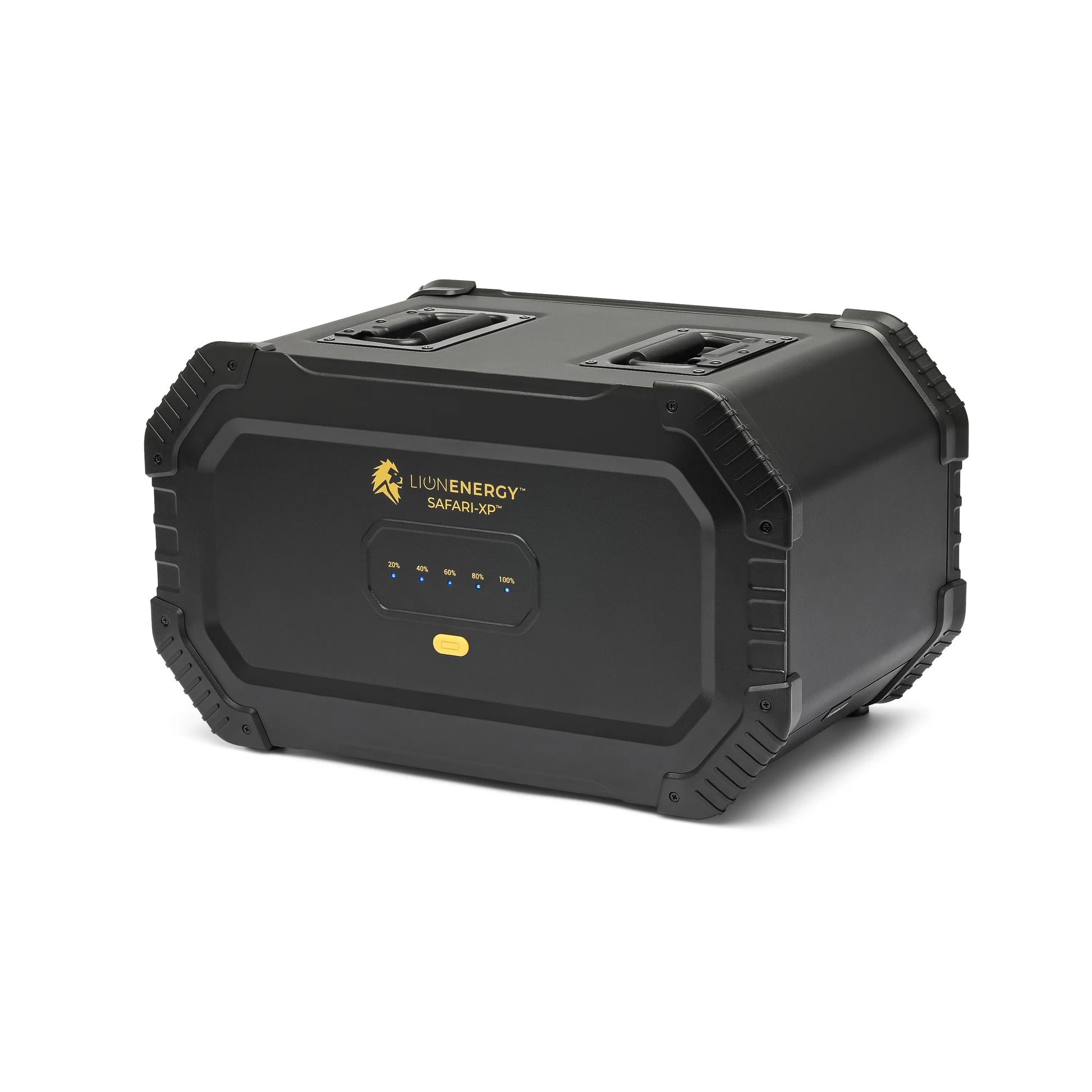

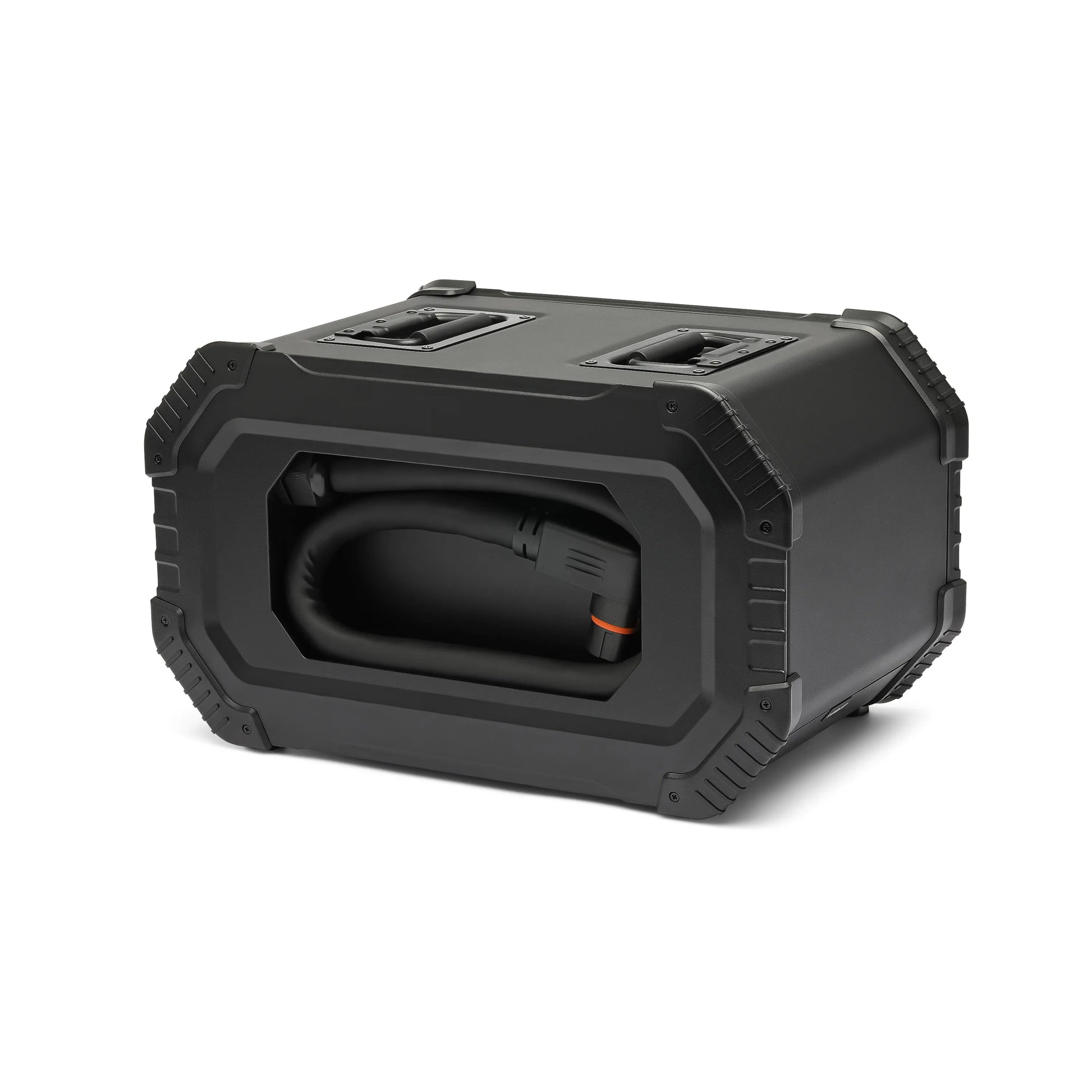

Lion Energy Safari XP 2688Wh LiFePO4 Expansion Battery Pack

Lion Energy Safari XP 2688Wh LiFePO4 Expansion Battery Pack

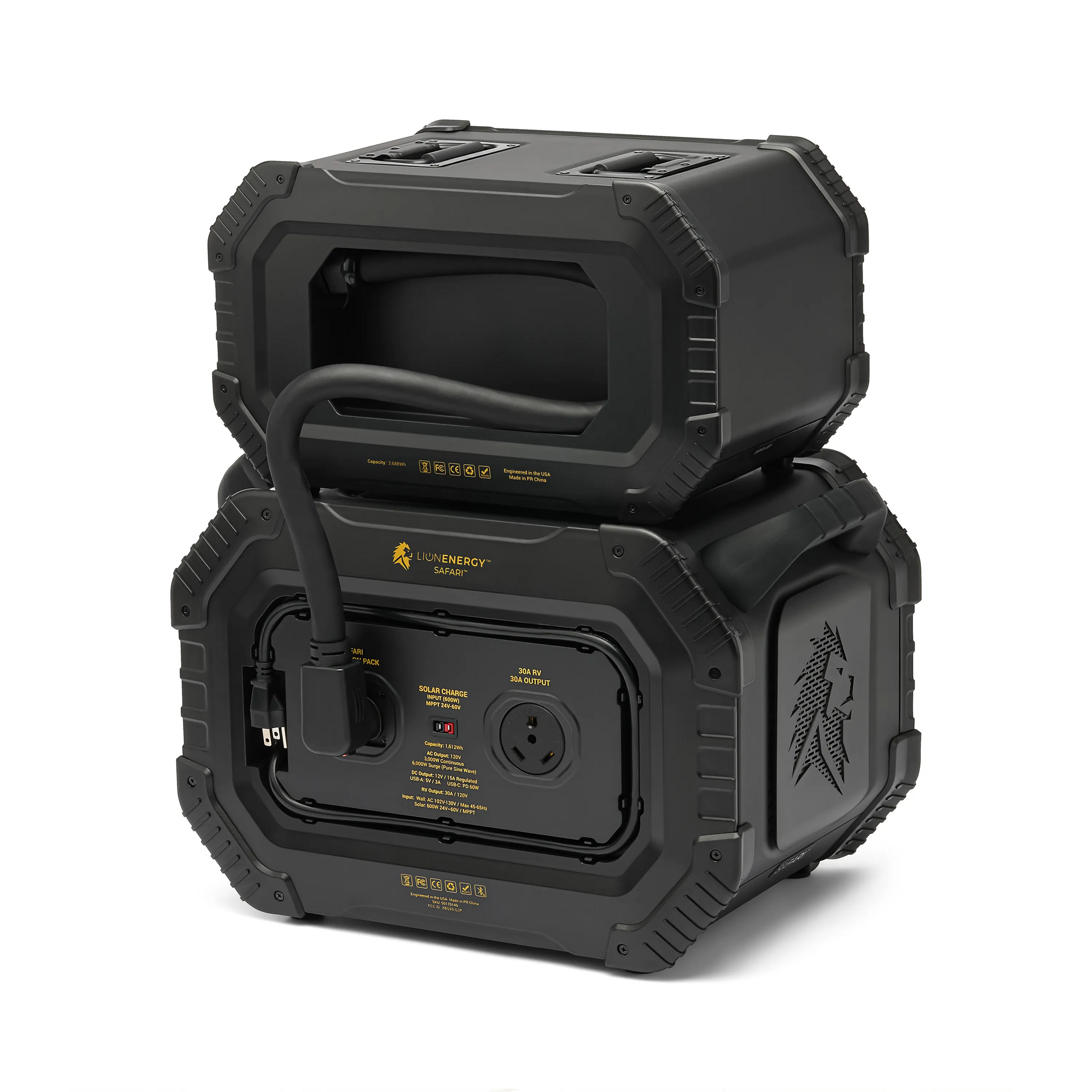

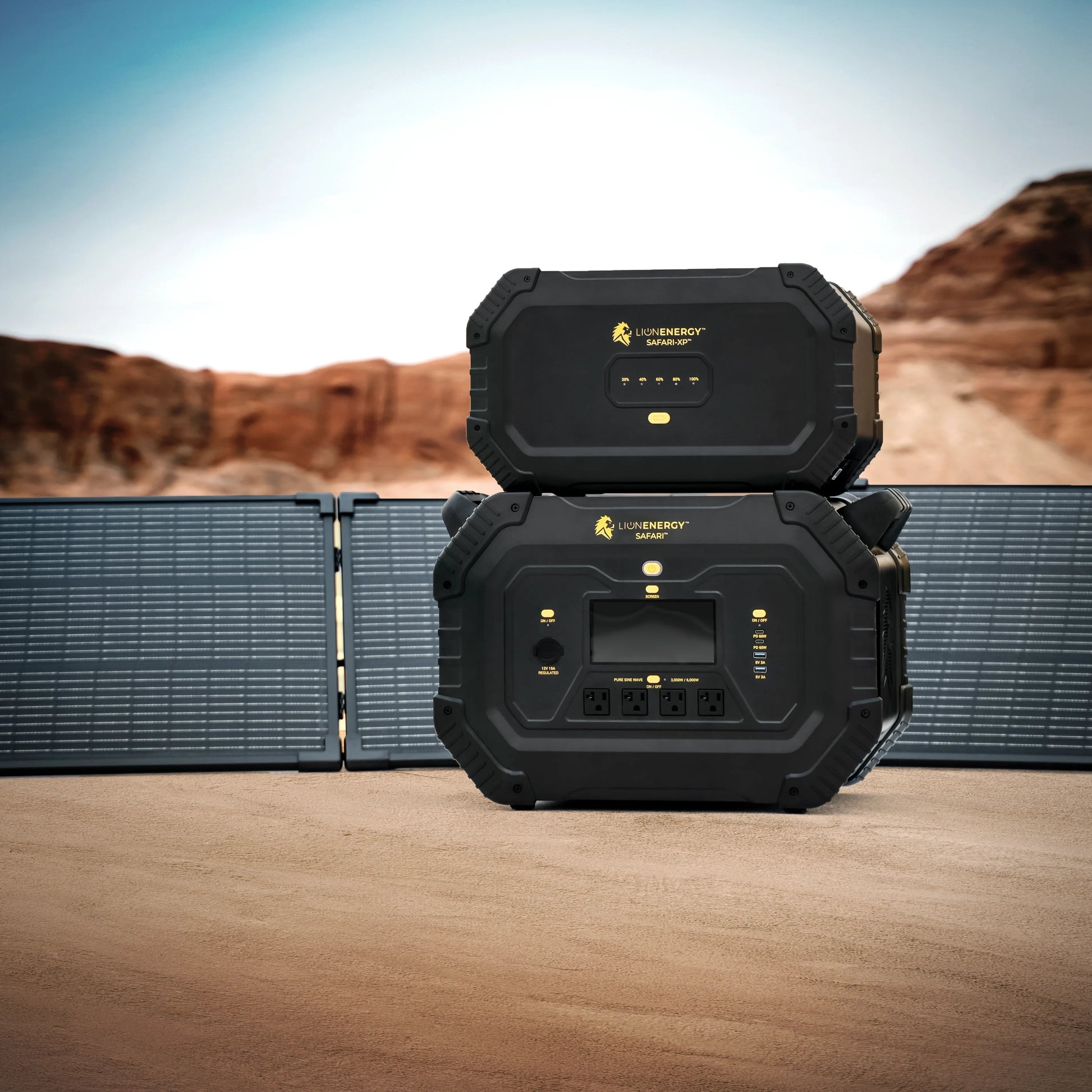

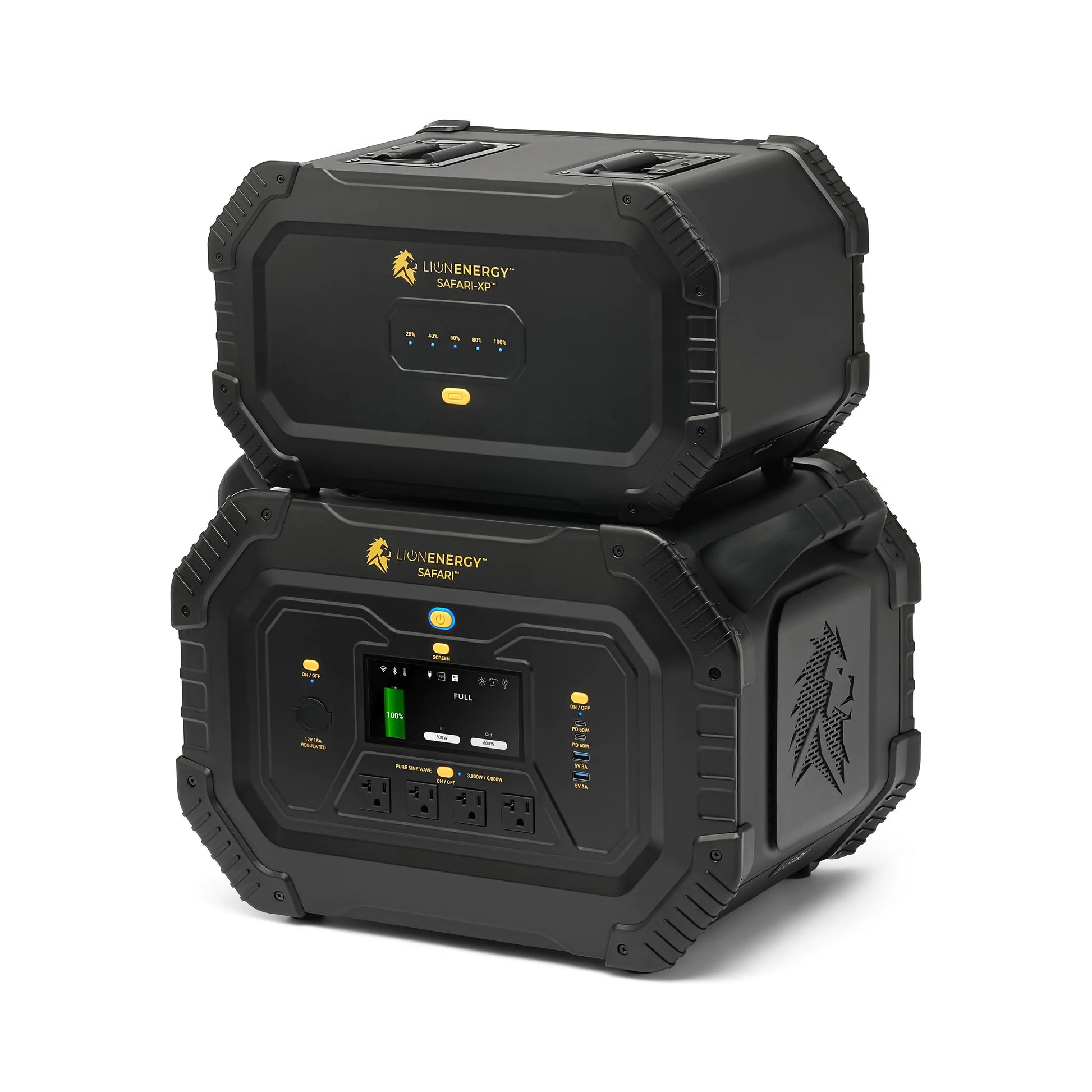

The Lion Energy Safari XP Expansion Pack is an additional lithium battery designed specifically for the Lion Safari portable power system. It adds 2,688Wh of LiFePO4 battery capacity, increasing the combined Safari and Safari XP system capacity to 4,300Wh. The expansion pack connects directly to the back of a compatible Lion Safari and provides additional runtime for RV, emergency backup, camping, and portable power applications.

Key Features

• 2,688Wh Expansion Capacity: Adds 2,688Wh of Lithium Iron Phosphate battery storage to a compatible Lion Safari system.
• 4,300Wh Combined Capacity: When paired with the Lion Safari, the total system capacity is stated as 4,300Wh.
• LiFePO4 Battery Chemistry: Uses Lithium Iron Phosphate battery chemistry for portable energy storage.
• 3,500+ Cycle Life: Rated for more than 3,500 battery cycles according to the supplied product information.
• Charge Retention: The supplied specifications state that the battery can hold its charge for up to two years.
• 3,000W AC Output: The supplied system specifications list 3,000W rated AC power and 6,000W surge power for the Safari system.
• Pure Sine Wave Output: Provides pure sine wave AC power according to the supplied specifications.
• 30A RV Port: The Safari system includes one NEMA TT-30 RV-ready port for compatible RV and trailer applications.
• Bluetooth Monitoring: Built-in Bluetooth provides real-time battery and system data through a compatible monitoring interface.
• Integrated BMS: Battery Management System protection is provided for overcharge, discharge, and short-circuit conditions.
• Overload and Overheat Protection: Automatic shutdown helps protect the system during excessive load or internal overheating conditions.
• Portable Expansion: Designed to connect directly to the compatible Lion Safari for increased energy storage without a separate external battery bank.

Specifications

• Brand: Lion Energy
• Battery Type: Lithium Iron Phosphate / LiFePO4
• Expansion Battery Capacity: 2,688Wh
• Combined Safari + XP Capacity: 4,300Wh
• Cycle Life: More than 3,500 cycles
• Charge Retention: Up to 2 years according to the supplied specifications
• Weight: 50.7 lb
• Dimensions: 16.9 × 10.2 × 9.8 inches
• AC Rated Power: 3,000W
• AC Surge Power: 6,000W
• AC Output Waveform: Pure Sine Wave
• AC Efficiency: Greater than 88%
• DC Output Voltage: 12V regulated
• 12V Socket: 15A regulated
• RV Port: 1 × NEMA TT-30, 30A
• Bluetooth Monitoring: Built in
• Battery Management System: Integrated overcharge, discharge, and short-circuit protection
• Certifications: CE, FCC, RoHS
• Indoor Use: Zero-emission operation according to the supplied product information

Charging Specifications

• AC Charging Input: Up to 800W at 102–130VAC, 45–65Hz.
• Solar Charging Input: Up to 600W at 24–60VDC with a 25A MPPT controller.
• Safari Charging Time: Approximately 2.3 hours via AC or 2.7 hours via solar.
• Safari + XP Charging Time: Approximately 6 hours via AC or 7.1 hours via solar.

Compatibility

The Safari XP Expansion Pack requires the Lion Safari portable power system to operate. It is not compatible with the Safari ME according to the supplied product information. The expansion pack is designed to connect directly to the back of a compatible Lion Safari.

Portable Power Applications

The combined Lion Safari and Safari XP system provides additional stored energy for portable power applications such as tools, mini refrigerators, CPAP machines, televisions, blenders, laptops, drones, lamps, cameras, and phones. The supplied information also identifies the system as suitable for RV and trailer use through its 30A port.

RV and Trailer Power

The Lion Safari system includes a 30A NEMA TT-30 port for compatible RV or trailer connections when shore power is unavailable. With the Safari XP connected, the total stated battery capacity reaches 4,300Wh.

Battery Management and Protection

• Overcharge Protection: Integrated BMS protection.
• Discharge Protection: Integrated BMS protection.
• Short-Circuit Protection: Integrated BMS protection.
• Overload Protection: Automatic shutdown during excessive load conditions.
• Overheat Protection: Automatic shutdown during excessive internal temperature conditions.

Package Contents

• Expansion Battery: 1 × Lion Safari XP Expansion Pack

Installation Note

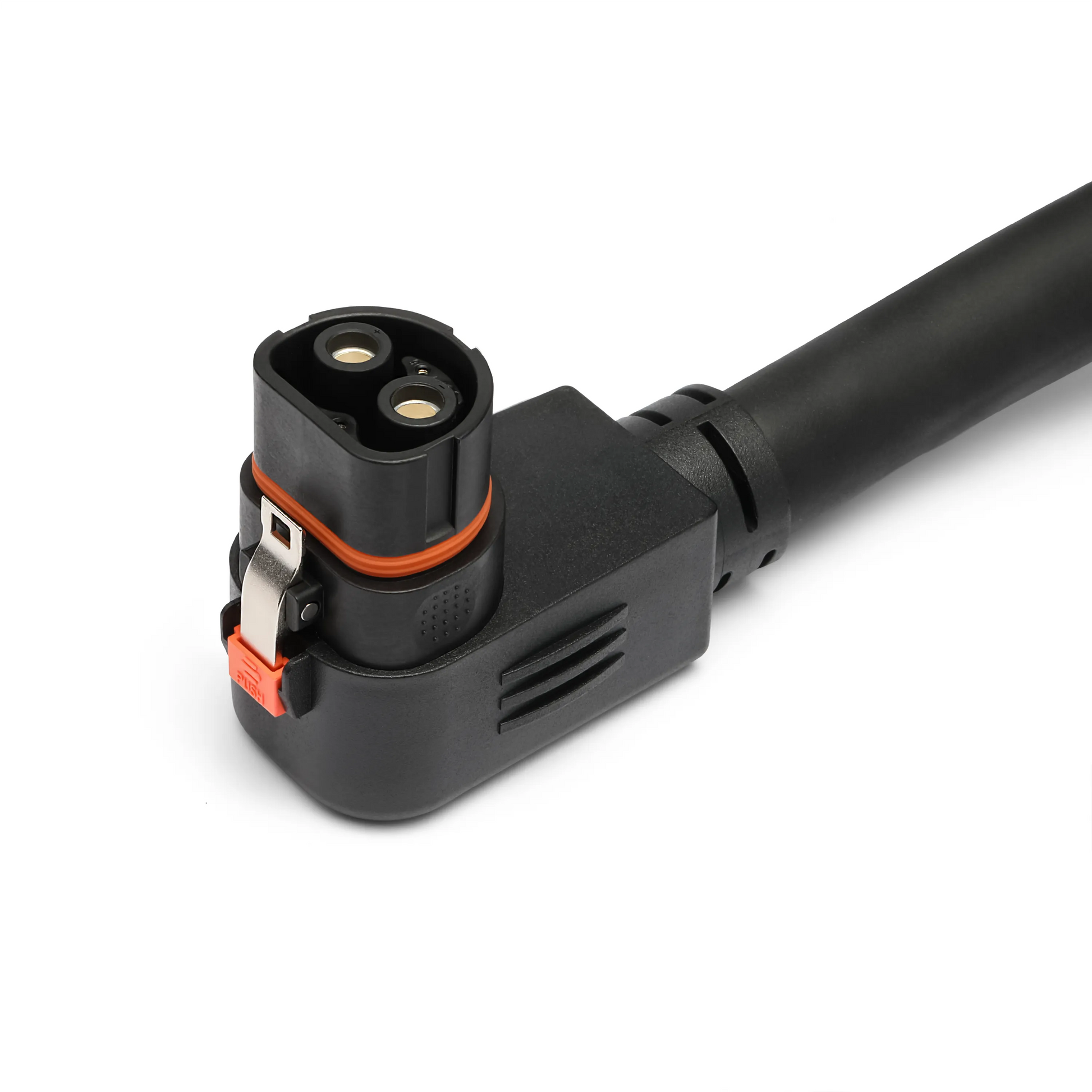

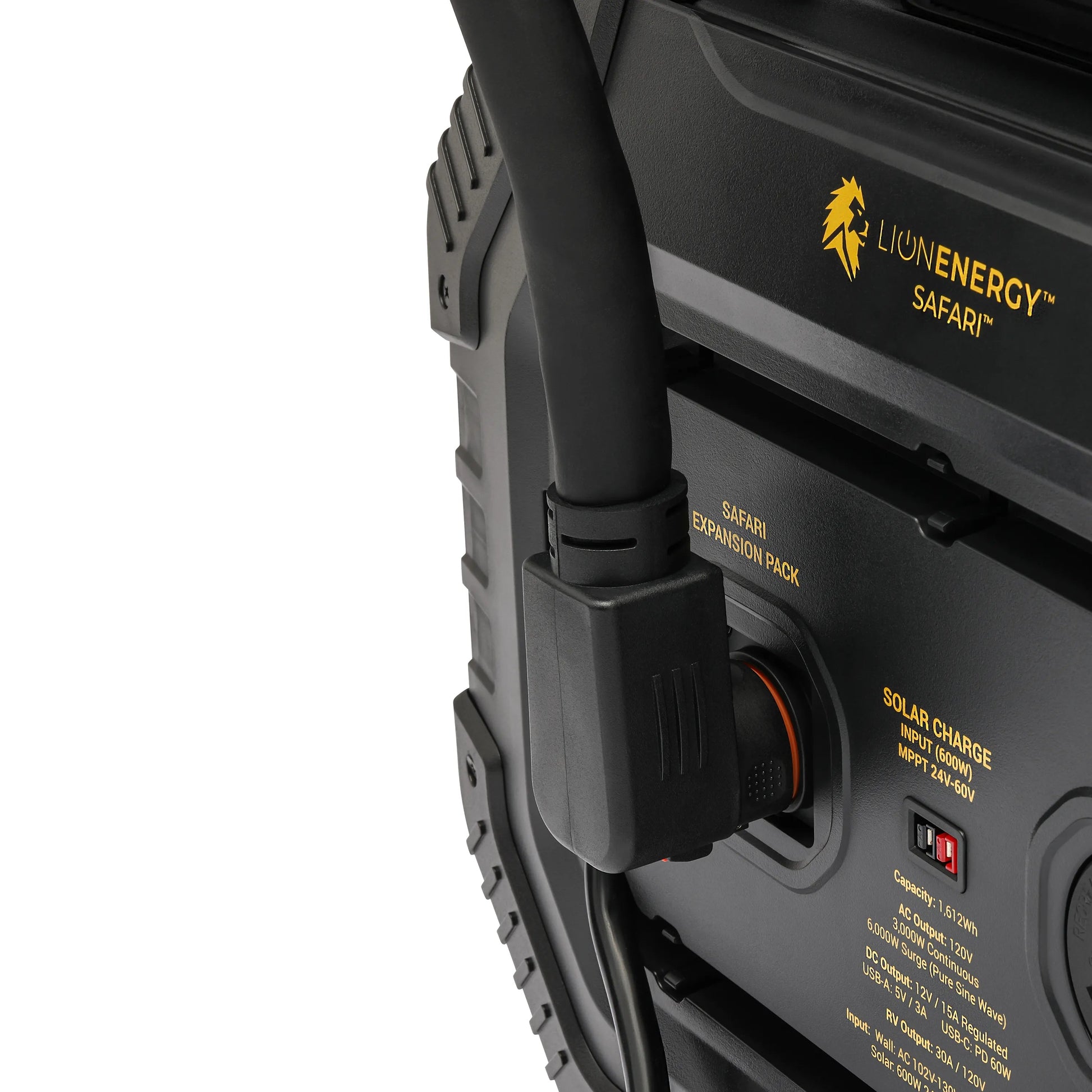

The Safari XP is an expansion component and requires a compatible Lion Safari to operate. Connect the expansion pack using the designated connection on the Safari and follow the manufacturer's operating instructions. Verify system compatibility and connection requirements before use.

The Lion Energy Safari XP 2688Wh LiFePO4 Expansion Battery Pack adds 2,688Wh of lithium storage to a compatible Lion Safari system, increasing combined capacity to 4,300Wh and providing additional runtime for portable power, RV, emergency backup, camping, and off-grid applications.
