Victron SmartSolar MPPT 150/100-TR VE.Can Solar Charge Controller 100A 12V 24V 48V Bluetooth

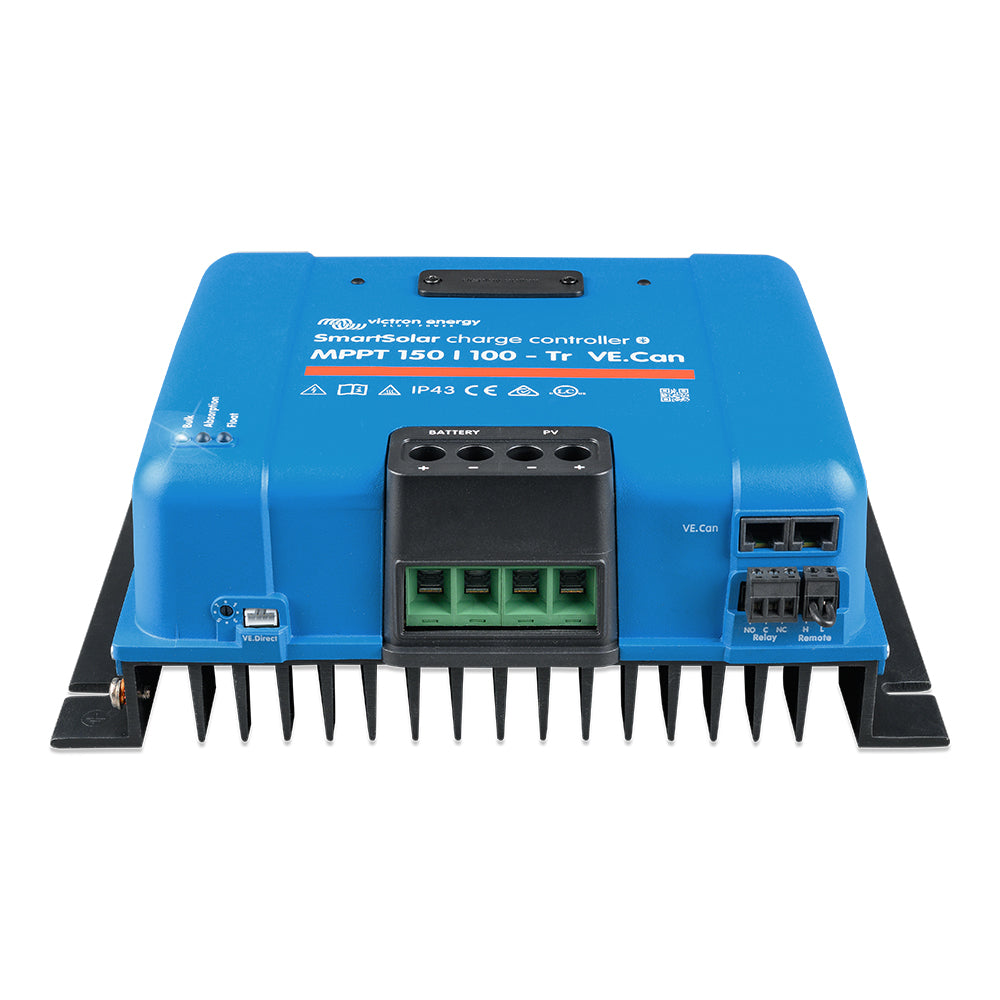

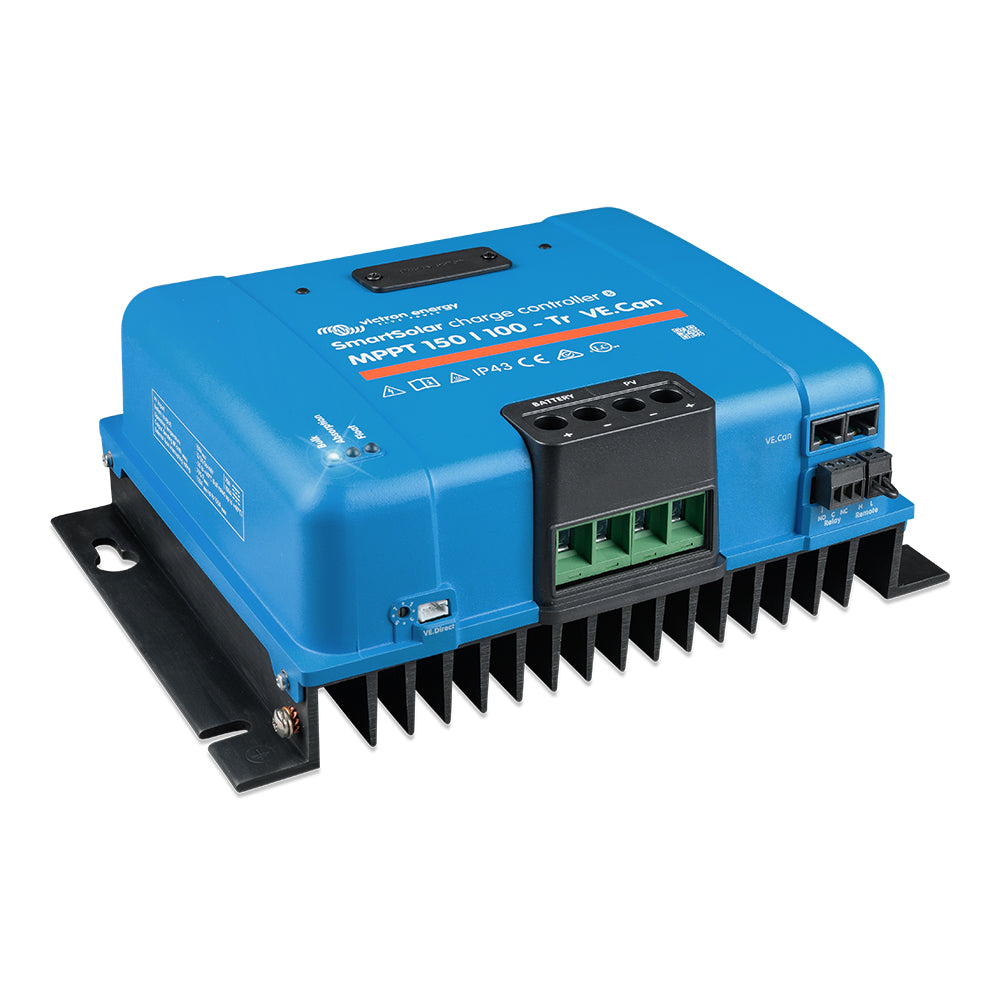

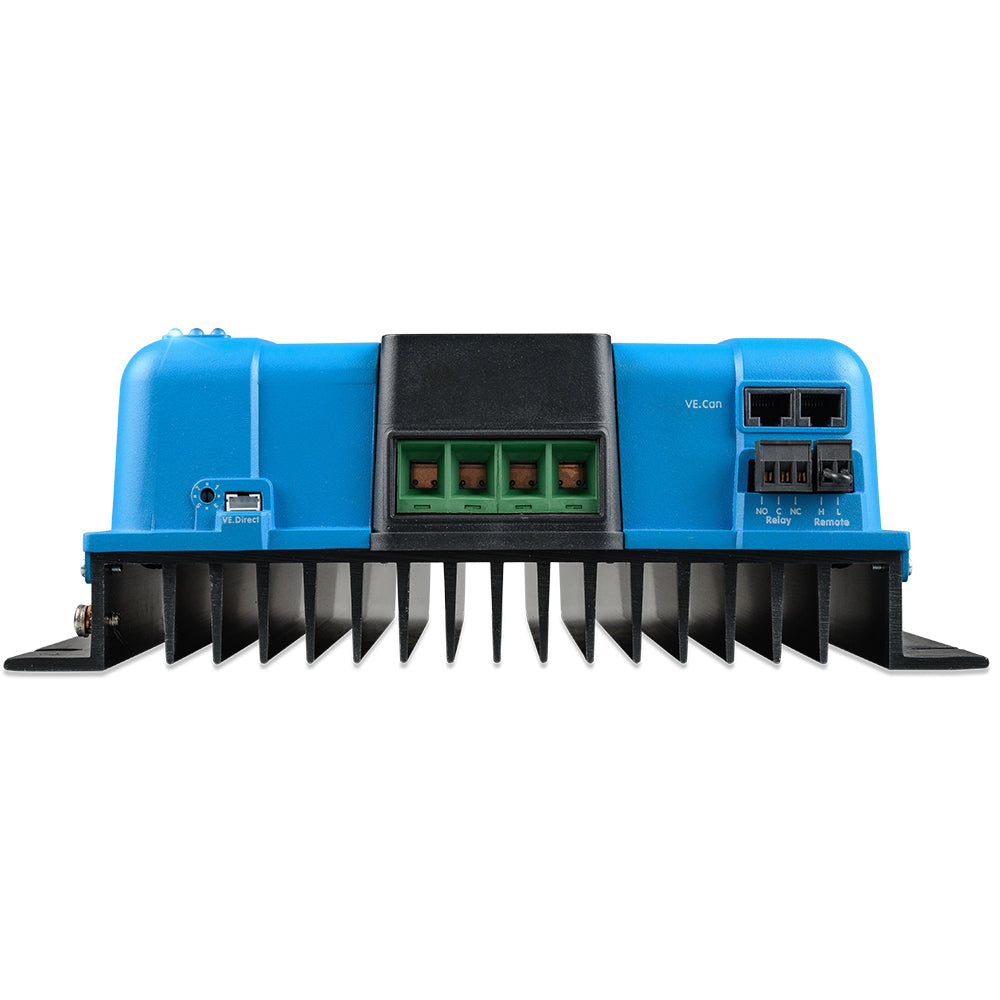

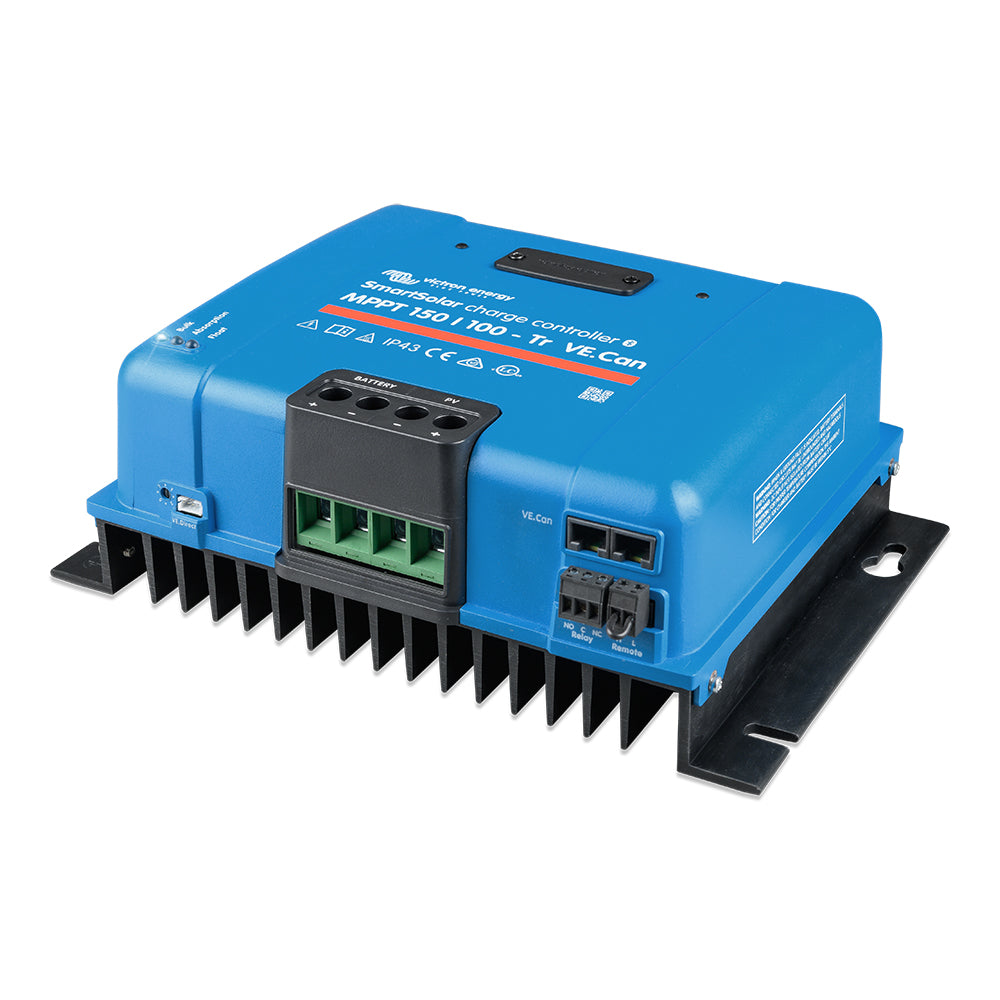

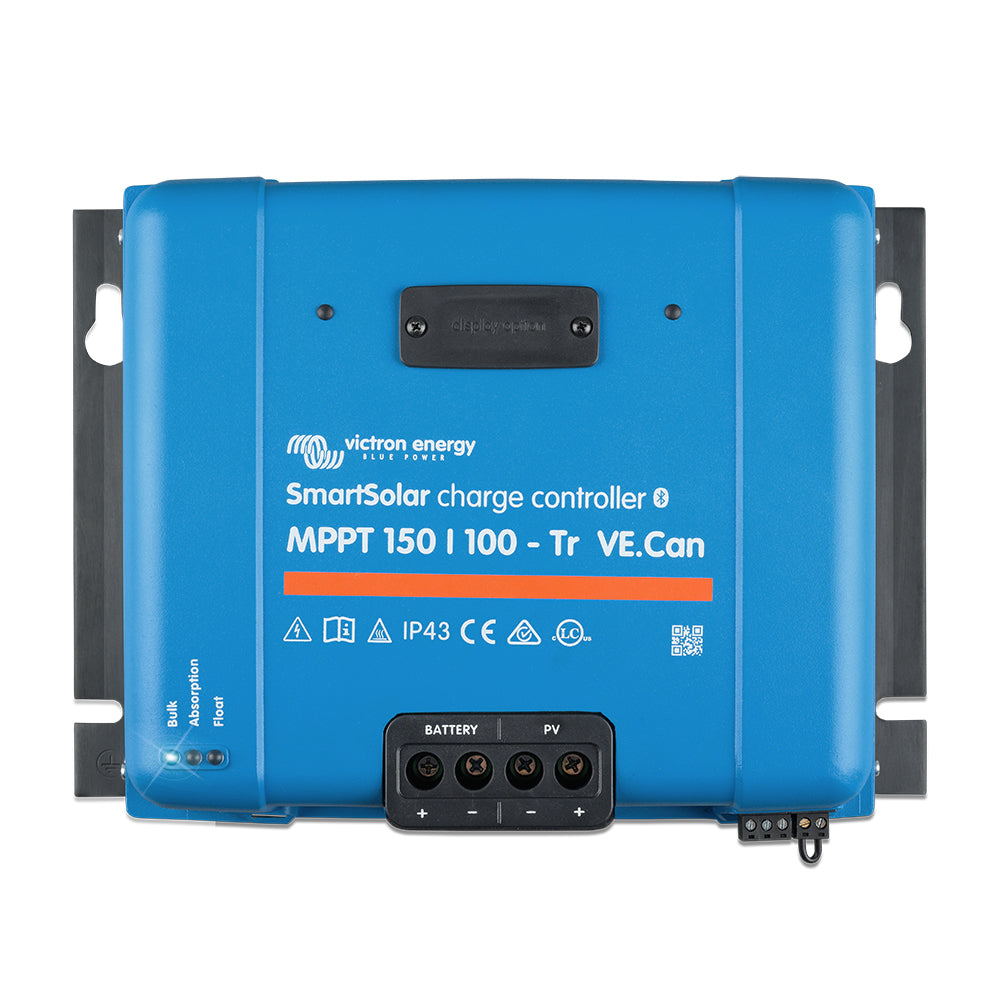

Victron SmartSolar MPPT 150/100-TR VE.Can Solar Charge Controller

Maximize solar energy production with the Victron Energy SmartSolar MPPT 150/100-TR VE.Can Solar Charge Controller. Designed for high-performance off-grid, RV, marine, and renewable energy systems, this advanced MPPT controller efficiently converts solar power into usable energy while providing intelligent battery charging and advanced system monitoring.

Featuring ultra-fast Maximum Power Point Tracking (MPPT) technology, the SmartSolar 150/100-TR continuously analyzes solar panel output to capture the highest available energy, even during changing weather conditions or partial shading. It automatically supports 12V, 24V, and 48V battery systems with fully programmable charging settings for lithium, lead-acid, AGM, gel, and other battery chemistries.

Key Features

• Ultra-Fast MPPT Technology: Extracts maximum power from your solar array by constantly monitoring PV voltage and current for optimal charging performance.
• 100A Solar Charging Output: Provides powerful charging capability for large battery banks and advanced solar energy systems.
• 150V Maximum PV Input: Supports high-voltage solar arrays for flexible installation and efficient system design.
• 12V, 24V & 48V Battery Compatibility: Automatically detects and optimizes charging for multiple battery system voltages.
• Bluetooth Built-In: Easily configure, monitor, and manage your solar charger using the VictronConnect mobile app.
• VE.Can Communication: Allows multiple VE.Can SmartSolar chargers to communicate, synchronize charging stages, and share system data.
• Advanced Battery Charging: Fully programmable charge profiles support lithium, AGM, flooded, gel, and other battery technologies.
• GX Device Integration: Connect with Victron GX monitoring devices for complete system visibility and remote management.
• Severely Depleted Battery Recovery: Can begin charging batteries with extremely low voltage when the cells are not permanently damaged.

Remote Monitoring & Control

The Victron SmartSolar MPPT 150/100-TR VE.Can provides complete control through Bluetooth connectivity and the VictronConnect app. Users can view real-time information including battery voltage, solar input, charging current, and historical performance data directly from a smartphone or tablet.

When paired with a Victron GX device and internet connection, the VRM Remote Management Portal provides remote monitoring and control from virtually anywhere.

Expandable Solar System Integration

Built-in VE.Can communication allows multiple SmartSolar controllers to be connected together using RJ45 cables. Connected controllers automatically synchronize charging stages and can transmit system information to a GX monitoring device for advanced energy management.

Ideal Applications

• Off-grid solar power systems
• RV and camper solar installations
• Marine battery systems
• Large lithium battery banks
• Remote cabins and backup power
• Residential and commercial solar storage systems

Specifications

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 150/100-TR VE.Can
• Manufacturer Part Number: SCC115110411
• UPC: 8719076050353
• Rated Charge Current: 100A
• Maximum PV Voltage: 150V
• Battery Voltage: 12V / 24V / 48V
• Communication: VE.Can, VE.Direct, Bluetooth

The Victron SmartSolar MPPT 150/100-TR VE.Can delivers professional-grade solar charging performance, intelligent battery management, and scalable system integration for customers who demand maximum efficiency and reliability from their renewable energy setup.
