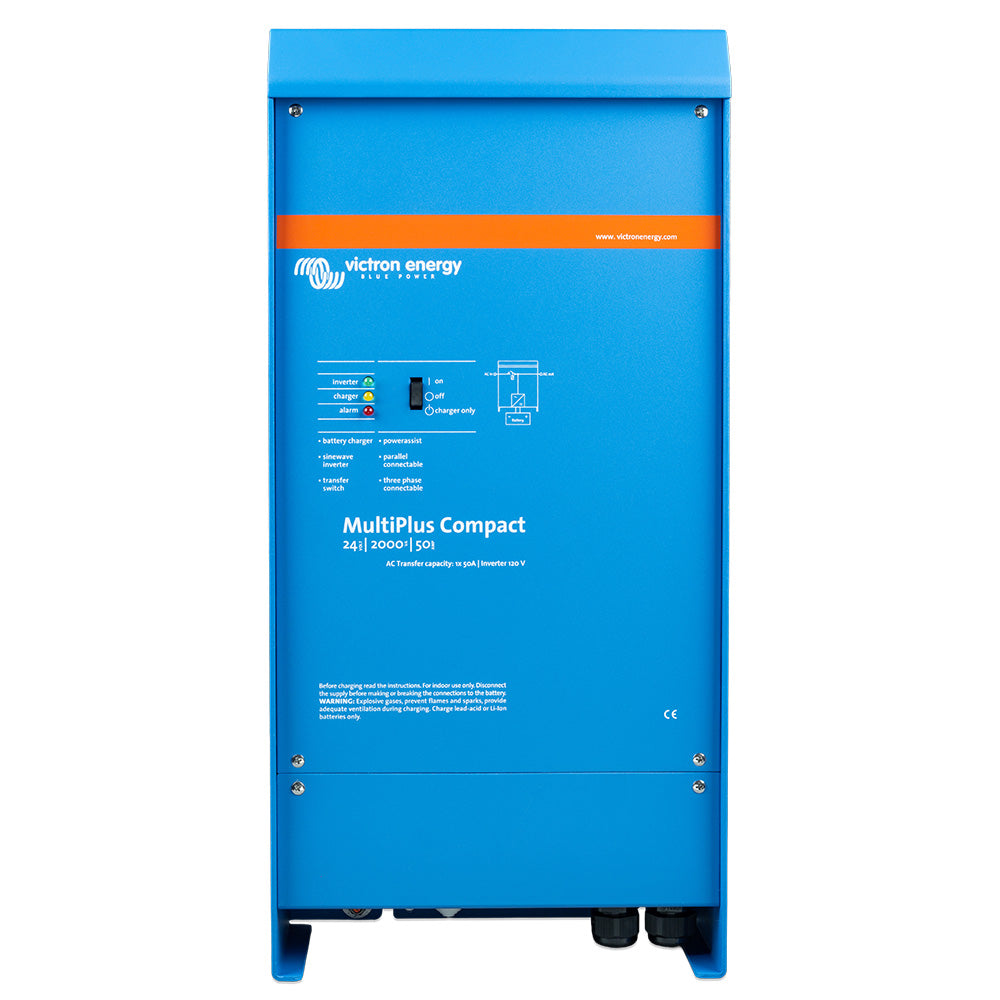

Victron MultiPlus 24V 2000VA 50A Inverter Charger 120V VE.Bus UL 458 | PMP242200102

Victron MultiPlus 24V 2000VA 50A Inverter Charger 120V VE.Bus UL 458

The Victron MultiPlus 24/2000/50-50 120V VE.Bus is a professional-grade pure sine wave inverter and battery charger engineered for reliable off-grid, marine, RV, emergency backup, and energy storage applications. Combining a 2000VA inverter, 50A adaptive battery charger, and high-speed automatic transfer switch into one compact unit, the MultiPlus delivers dependable AC power while intelligently managing battery charging and available shore or generator power.

Certified to UL 458, the MultiPlus features Victron's industry-leading PowerAssist and PowerControl technologies, allowing it to supplement limited shore or generator power with battery energy during peak loads while preventing AC source overload. Its built-in UPS functionality provides seamless power transfer to protect computers, electronics, and other sensitive equipment during utility outages.

Key Features

• 2000VA Pure Sine Wave Inverter delivers clean, stable AC power for sensitive electronics and appliances.
• Integrated 50A Adaptive Battery Charger provides fast, efficient charging for 24V lead-acid and compatible lithium battery systems.
• UL 458 Certified for demanding mobile, RV, marine, and off-grid power installations.
• PowerAssist Technology supplements generator or shore power with battery power during periods of high electrical demand.
• PowerControl automatically limits battery charging to prevent overloading generators or shore power connections.
• High-Speed Automatic Transfer Switch provides uninterrupted UPS operation with transfer times under 20 milliseconds.
• Dual AC Outputs
  • Primary output provides uninterrupted backup power.
  • Secondary output powers non-critical loads only when external AC power is available.
• Parallel Operation supports up to six MultiPlus units for increased inverter capacity.
• Three-Phase Capability allows multiple units to be configured for commercial and industrial three-phase systems.
• Split-Phase Support enables 120/240V installations using stacked units or compatible autotransformers.
• Four-Stage Adaptive Charging maximizes battery performance and extends battery life.
• Dedicated Starter Battery Output provides independent trickle charging for engine or generator starting batteries.
• VE.Bus Communication enables advanced system integration, remote monitoring, and expansion.
• Programmable Relay supports generator auto-start, alarm functions, and lithium battery BMS communication.

Ideal Applications

• Off-Grid Solar Power Systems
• Residential Backup Power
• RV & Motorhome Electrical Systems
• Marine Power Systems
• Emergency Backup Power
• Remote Cabins
• Commercial Mobile Power
• Battery Energy Storage Systems

Technical Specifications

• Battery Voltage: 24V DC
• Continuous Inverter Output: 2000 VA
• Continuous Output Power: 1600W
• Peak Surge Power: 4000W
• Maximum Battery Charging Current: 50A
• Starter Battery Charge Current: 4A
• Output Voltage: 120VAC Pure Sine Wave
• Transfer Switch Rating: 50A
• Input Voltage Range: 95-140VAC
• Input Frequency: 45-65Hz
• Maximum Efficiency: 94%
• PowerAssist: Yes
• PowerControl: Yes
• Parallel Operation: Yes
• Three-Phase Operation: Yes
• VE.Bus Communication: Yes
• Programmable Relay: Yes
• Remote On/Off: Yes
• Operating Temperature: -40°C to +65°C
• Protection Rating: IP21
• Dimensions: 520 × 255 × 125 mm (20.5 × 10.0 × 5.0 in.)
• Weight: 13 kg (28.7 lbs.)

Protection Features

• Output Short Circuit Protection
• Overload Protection
• High Battery Voltage Protection
• Low Battery Voltage Protection
• Over Temperature Protection
• High AC Output Voltage Protection
• Input Voltage Ripple Protection

Package Includes

• Victron MultiPlus 24/2000/50-50 120V VE.Bus Inverter Charger
• Installation Documentation

Manufacturer Information

• Brand: Victron Energy
• Manufacturer Part Number: PMP242200102
• UPC: 8719076060123

The Victron MultiPlus 24V 2000VA Inverter Charger combines a pure sine wave inverter, intelligent 50A battery charger, PowerAssist technology, UPS functionality, and advanced VE.Bus integration into one dependable power solution for RV, marine, off-grid solar, backup power, and energy storage systems.
