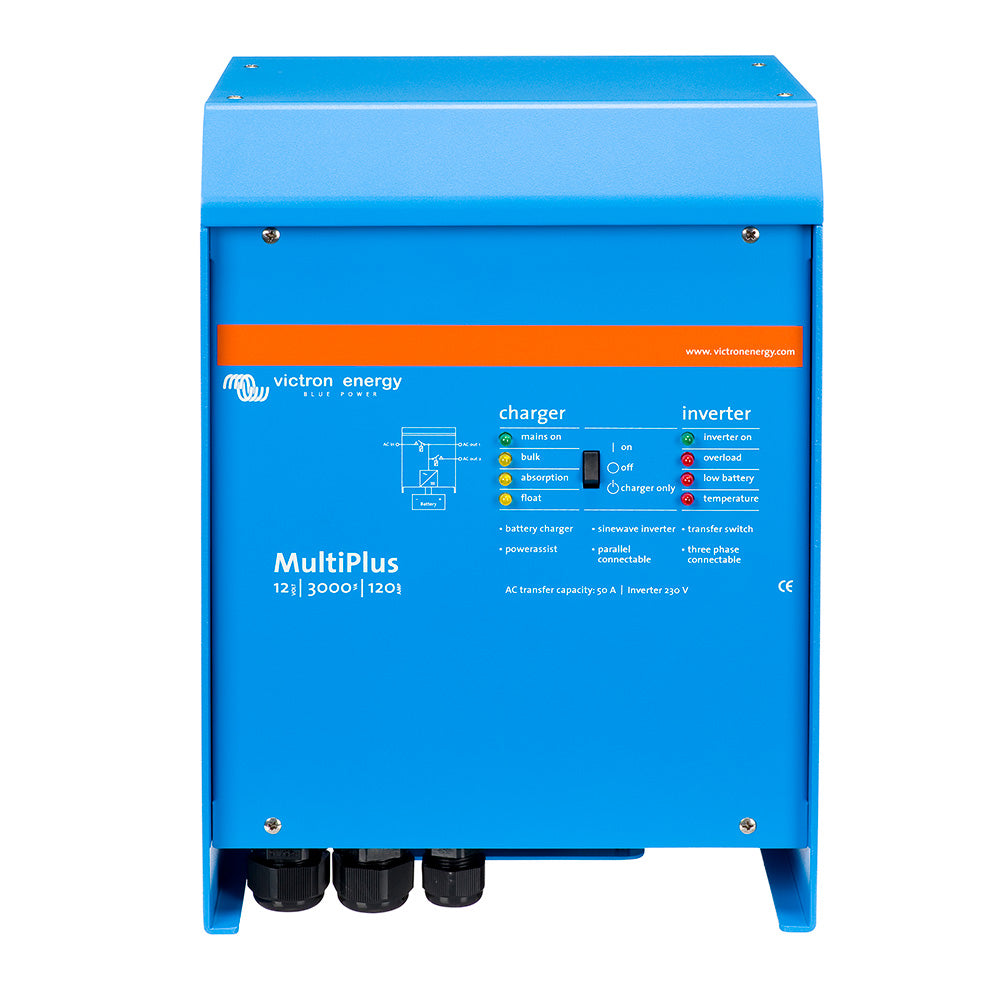

Victron MultiPlus 12V 3000VA 120A Inverter Charger 230V VE.Bus Pure Sine Wave | PMP123021010

Victron MultiPlus 12V 3000VA 120A Inverter Charger 230V VE.Bus Pure Sine Wave

The Victron MultiPlus 12/3000/120-50 230V VE.Bus is a professional-grade pure sine wave inverter and adaptive battery charger designed for off-grid solar, energy storage, marine, commercial, and backup power applications. Combining a powerful 3000VA inverter, 120A smart battery charger, automatic transfer switch, and advanced VE.Bus communication into one compact unit, the MultiPlus delivers reliable AC power with intelligent battery charging and seamless backup performance.

Featuring Victron's renowned PowerAssist and PowerControl technologies, the MultiPlus automatically supplements limited generator or shore power using battery energy during peak loads while preventing AC source overload. Its integrated UPS function provides uninterrupted power to sensitive electronics with transfer times of less than 20 milliseconds.

Key Features

• 3000VA Pure Sine Wave Inverter delivers clean, reliable AC power for sensitive electronics, appliances, and critical equipment.
• Integrated 120A Adaptive Battery Charger provides fast, intelligent charging for 12V lead-acid and compatible lithium battery systems.
• Automatic Transfer Switch provides uninterrupted UPS functionality with transfer times under 20 milliseconds.
• PowerAssist Technology supplements limited shore, grid, or generator power using battery energy during peak electrical demand.
• PowerControl intelligently manages charging current to prevent overloading generators or utility connections.
• Dual AC Outputs
  • Main output provides continuous backup power during outages.
  • Secondary output powers non-essential loads only when external AC power is available.
• Solar & Energy Storage Ready integrates with off-grid, grid-connected, self-consumption, and hybrid solar power systems.
• Parallel Operation supports up to six MultiPlus units for expanded inverter and charging capacity.
• Three-Phase Capability allows multiple units to be configured for high-capacity three-phase power systems.
• Four-Stage Adaptive Charging maximizes battery performance while extending battery life.
• Starter Battery Charging includes a dedicated trickle charging output for engine or generator starting batteries.
• Remote Monitoring & Configuration compatible with GX devices, VRM Portal, VE.Bus software, smartphones, tablets, and computers.
• VE.Bus Communication enables advanced system integration, monitoring, and remote management.
• Programmable Relay supports generator auto-start, alarm functions, and lithium battery BMS integration.

Ideal Applications

• Off-Grid Solar Systems
• Hybrid Solar Installations
• Battery Energy Storage Systems
• Residential Backup Power
• Marine Electrical Systems
• Commercial Power Systems
• Industrial Backup Power
• Remote Cabins

Technical Specifications

• Battery Voltage: 12V DC
• Continuous Inverter Output: 3000 VA
• Continuous Output Power: 2400W
• Peak Surge Power: 6000W
• Maximum Battery Charging Current: 120A
• Starter Battery Charge Current: 4A
• Output Voltage: 230VAC Pure Sine Wave
• Output Frequency: 50Hz (Adjustable to 60Hz)
• AC Input Voltage: 187-265VAC
• Input Frequency: 45-65Hz
• Maximum Efficiency: 93%
• Transfer Switch: 50A
• Auxiliary Output: 16A
• PowerAssist: Yes
• PowerControl: Yes
• Parallel Operation: Yes (Up to 6 Units)
• Three-Phase Operation: Yes
• VE.Bus Communication: Yes
• Programmable Relay: Yes
• Remote On/Off: Yes
• Operating Temperature: -40°C to +65°C
• Protection Rating: IP21
• Dimensions: 362 × 258 × 218 mm
• Weight: 18 kg

Protection Features

• Output Short Circuit Protection
• Overload Protection
• High Battery Voltage Protection
• Low Battery Voltage Protection
• Over Temperature Protection
• High AC Output Voltage Protection
• Input Voltage Ripple Protection

Package Includes

• Victron MultiPlus 12/3000/120-50 230V VE.Bus Inverter Charger
• Installation Documentation

Manufacturer Information

• Brand: Victron Energy
• Manufacturer Part Number: PMP123021010
• UPC: 8719076023951

The Victron MultiPlus 12V 3000VA Inverter Charger combines a high-efficiency pure sine wave inverter, intelligent 120A adaptive battery charger, PowerAssist technology, UPS backup, and advanced VE.Bus communication into one powerful solution for off-grid solar, marine, commercial, and energy storage applications.
