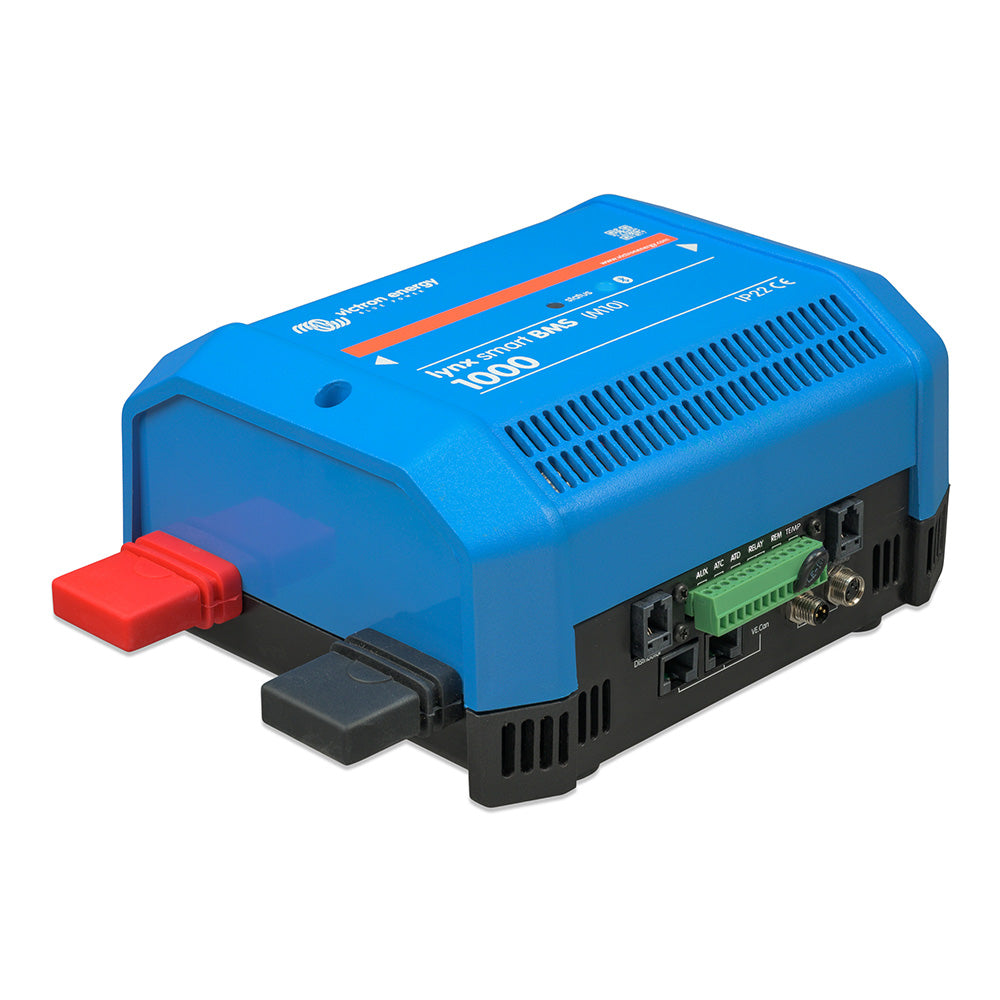

Victron Lynx Smart BMS 1000A M10 Battery Management System for Lithium Smart LiFePO4 Batteries

The Victron Lynx Smart BMS 1000A (M10) is Victron Energy's most advanced Battery Management System (BMS) designed specifically for Victron Lithium Smart LiFePO4 batteries. Built for demanding marine, RV, off-grid, backup power, and industrial energy storage systems, it delivers intelligent battery protection, advanced monitoring, integrated battery management, and seamless communication across your Victron power system.

Designed for 12V, 24V, and 48V battery banks, the Lynx Smart BMS supports battery configurations wired in series, parallel, or series/parallel with up to 20 Victron Lithium Smart batteries. Its integrated 1000A safety contactor, built-in battery monitor, Bluetooth connectivity, VE.Can communication, and programmable control outputs provide complete protection and management for high-capacity energy storage systems.

Key Features

• 1000A Continuous Built-In Contactor for system protection and remote main battery disconnect.
• Integrated Pre-Charge Circuit minimizes high inrush current when powering large inverters such as Victron MultiPlus and Quattro inverter/chargers.
• Supports 12V, 24V & 48V Battery Systems using Victron Lithium Smart LiFePO4 batteries.
• Compatible with Series, Parallel & Series/Parallel Battery Banks supporting up to 20 batteries per system.
• Built-In Battery Monitor displays:
  • State of Charge (SOC)
  • Battery Voltage
  • Current
  • Power
  • Historical Performance
  • Real-Time System Status
• Bluetooth Smart Connectivity allows wireless setup, diagnostics, firmware updates, and monitoring through the VictronConnect App.
• VE.Can Communication integrates directly with Cerbo GX and other GX devices for complete system management and remote monitoring.
• Remote Monitoring via VRM Portal provides worldwide access to system performance, battery health, alarms, and operating history.
• DVCC Closed-Loop Control automatically manages compatible Victron inverter/chargers and solar charge controllers for optimal charging performance.
• Programmable Relay Output configurable for alarms or alternator control.
• AUX Power Output keeps essential devices such as GX communication equipment powered during low-voltage shutdown events.
• Lynx Distributor Fuse Monitoring supports monitoring of up to four Lynx Distributor modules with blown fuse notifications.
• NMEA 2000 Compatible via VE.Can for marine electronics integration.

Ideal Applications

• Off-Grid Solar Power Systems
• Residential Energy Storage
• Marine Electrical Systems
• RV & Camper Battery Systems
• Commercial Backup Power
• Industrial Lithium Battery Banks

Technical Specifications

• Battery Voltage Range: 9-60 VDC
• Supported System Voltages: 12V, 24V, 48V
• Maximum Input Voltage: 75 VDC
• Main Contactor Rating: 1000A Continuous
• Peak Contactor Rating: 1200A (5 Minutes)
• Battery Support: Up to 20 Victron Lithium Smart Batteries
• Maximum Energy Storage: Up to 102 kWh (24V & 48V Systems)
• Bluetooth Smart: Built-In
• VE.Can Communication: Yes
• Battery Monitor: Integrated
• Remote Monitoring: VictronConnect & GX Devices
• Programmable Relay: Yes
• AUX Output: 1.1A Continuous
• Protection Rating: IP22
• Operating Temperature: -40°C to +60°C
• Busbar Connection: M10
• Dimensions: 230 x 180 x 100 mm
• Weight: 2.7 kg

Package Includes

• Victron Lynx Smart BMS 1000A Battery Management System (M10)
• Installation Documentation

Manufacturer Information

• Brand: Victron Energy
• Manufacturer Part Number: LYN034170210
• UPC: 8719076057604

Engineered for professional lithium battery installations, the Victron Lynx Smart BMS 1000A delivers advanced battery protection, intelligent charging management, integrated system monitoring, and seamless communication for reliable high-performance energy storage applications.
