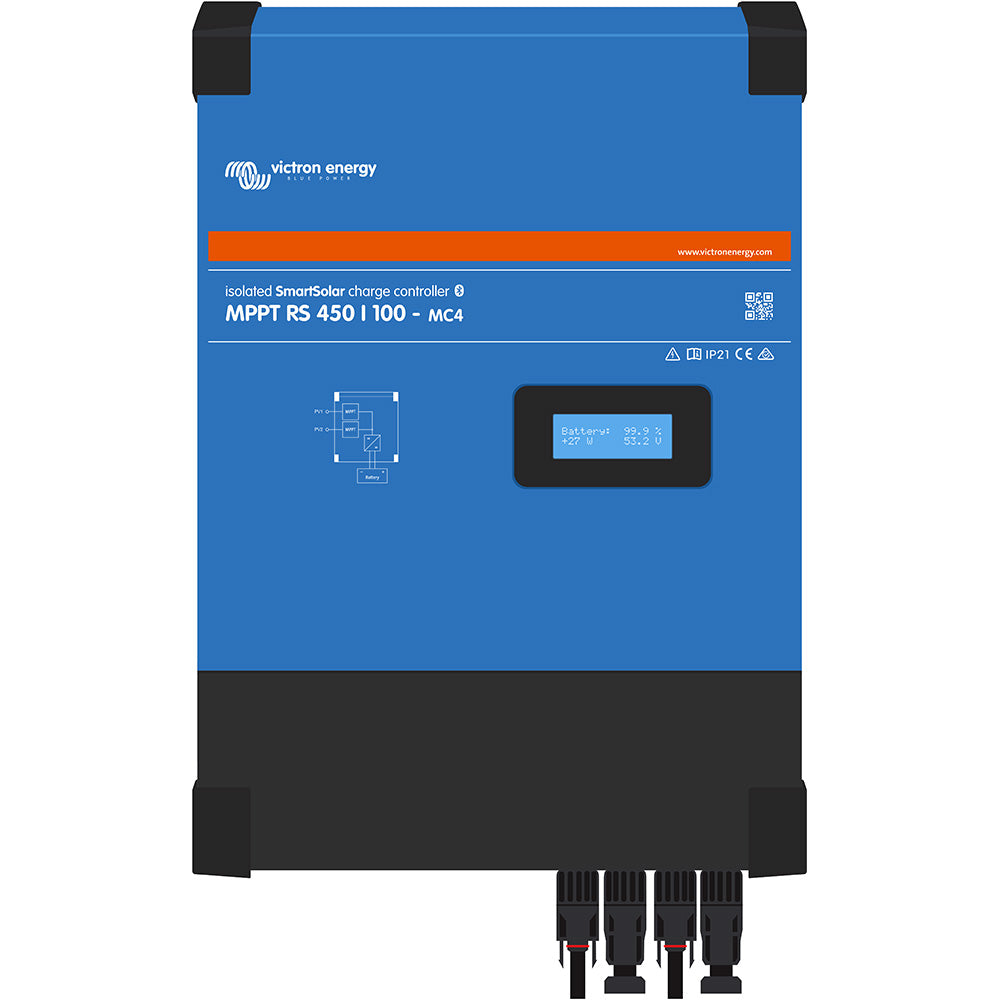

Victron Energy SmartSolar MPPT RS 450/100-MC4 Solar Charge Controller – 100A, 48V, Dual MPPT

The Victron Energy SmartSolar MPPT RS 450/100-MC4 is a 100 A MPPT solar charge controller for large 48 V battery systems, off-grid solar installations, energy storage systems (ESS) and commercial renewable energy applications. Ultra-fast Maximum Power Point Tracking (MPPT), dual independent MPPT inputs, Bluetooth, VE.Can networking and an integrated display help maximize solar harvest while charging your batteries efficiently.

Dual Independent MPPT Trackers

Two independent trackers optimize energy production from two separate solar arrays. Ultra-fast MPPT maximizes harvest through changing weather and lighting conditions.

High-Voltage PV Input: 65-450V DC

The wide 65-450 V DC PV input range supports high-voltage, series-connected solar arrays for greater installation flexibility. PV connectors are MC4, and the PV connections are isolated.

Charges Lithium and Lead-Acid Batteries

Programmable charging profiles support lithium, AGM, GEL and flooded lead-acid batteries, plus custom charging parameters. Remote voltage and temperature sensing improves charging accuracy. The controller is compatible with the Victron smallBMS and with battery management systems that use allow-to-charge signals.

Integrated Display and Bluetooth

The integrated LCD display shows battery voltage, charging current, PV voltage, system status and diagnostic information directly on the controller. Built-in Bluetooth Smart lets you configure, monitor and update the controller wirelessly with the VictronConnect app.

VE.Can, VE.Direct and Remote Monitoring

• VE.Can and VE.Direct: integrate with Victron Energy monitoring and control systems
• Daisy chain: synchronize multiple SmartSolar RS and VE.Can MPPT controllers for larger solar installations
• GX device compatible: connect to Cerbo GX and other GX devices for advanced monitoring
• VRM: monitor and manage your installation remotely from anywhere with internet access
• Programmable relay: supports custom automation and system control

Built to Last

A heavy-duty, industrial-grade metal enclosure with protected electrical connections and an active cooling system maintains reliable operation during high-output charging.

Ideal Applications

Off-grid solar power systems, residential energy storage systems, commercial solar installations, industrial renewable energy systems, large 48 V battery banks, remote telecommunications, agricultural solar systems, backup power installations and microgrids.

Specifications

• Brand: Victron Energy
• Model: SmartSolar MPPT RS 450/100-MC4
• Manufacturer Part No: SCC145110510
• UPC: 8719076062721
• Product Type: MPPT solar charge controller
• Maximum Charge Current: 100 A
• Battery System Voltage: 48 VDC
• PV Input Voltage Range: 65-450 VDC
• MPPT Inputs: 2 independent trackers
• PV Connectors: MC4
• Communication: VE.Can and VE.Direct
• Bluetooth: Built-in
• GX Device Compatible: Yes
• Remote Monitoring: Victron VRM platform
• Integrated Display: Yes
• Battery Compatibility: Lithium, AGM, GEL and flooded lead-acid
• Cooling: Active cooling
• Programmable Relay: Yes
• Remote Temperature and Voltage Sensing: Supported

Package Includes

• Victron Energy SmartSolar MPPT RS 450/100-MC4 Solar Charge Controller (integrated LCD display)
• Installation documentation
