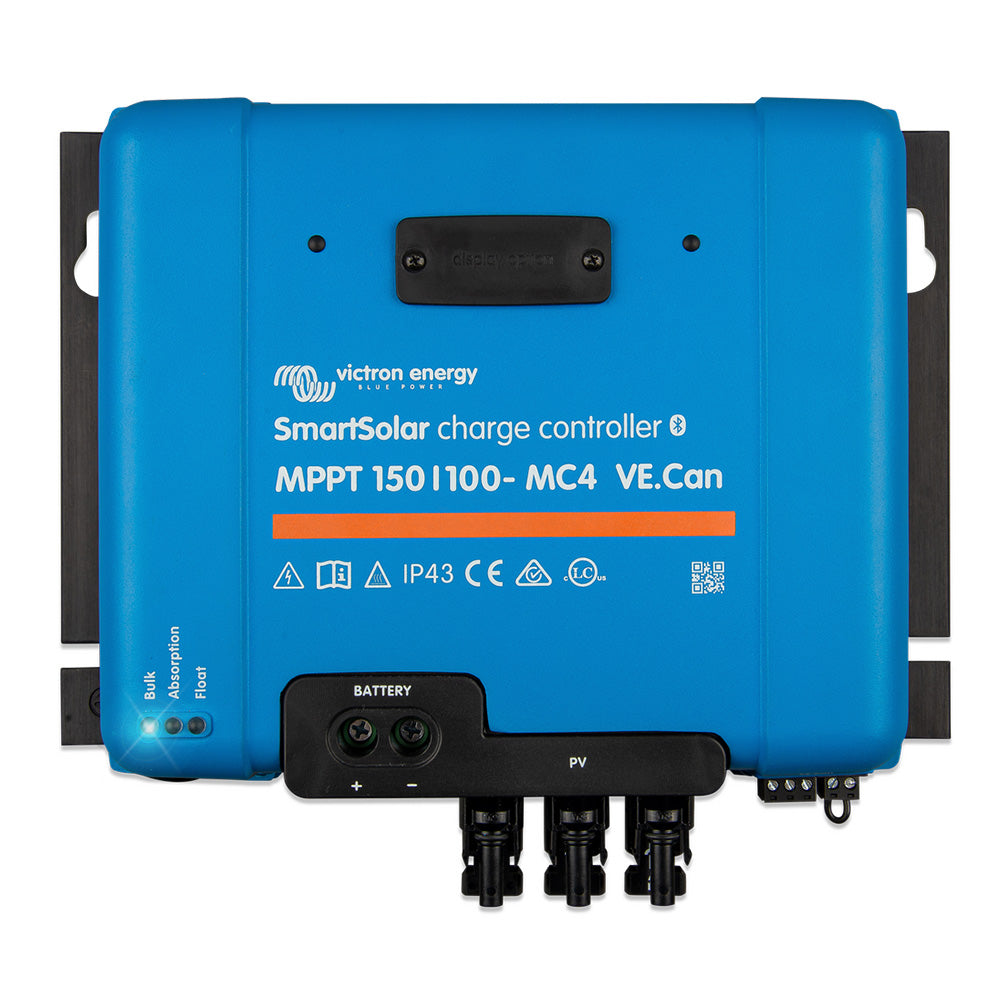

Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can Solar Charge Controller – 100A, 12V/24V/36V/48V

The Victron Energy SmartSolar MPPT 150/100-MC4 VE.Can is a solar charge controller for residential, off-grid, RV, marine and commercial energy systems. Ultra-fast Maximum Power Point Tracking (MPPT) maximizes solar harvest in changing weather and partial shading, so your battery bank charges faster and more efficiently. It works with 12 V, 24 V, 36 V and 48 V battery systems.

Ultra-Fast MPPT with Partial Shade Detection

The controller continuously tracks the optimal solar power point for high charging efficiency and maintains maximum power output even when panels are partially shaded. Outstanding conversion efficiency turns more of the available solar energy into usable battery power.

100A Charging, 150V PV Input

A 100 A charge output suits demanding off-grid and energy storage applications and larger battery banks. A 150 V maximum PV input voltage supports larger solar arrays and high-voltage panel configurations. PV connections are MC4.

Built-In Bluetooth Monitoring

Built-in Bluetooth Smart lets you monitor system performance, configure charging settings and view historical data in the VictronConnect app. An optional SmartSolar plug-in LCD display adds local monitoring.

VE.Can and VE.Direct Communication

• VE.Can: connect multiple SmartSolar controllers for synchronized charging in larger solar installations
• VE.Direct: integrates with Victron GX devices and advanced monitoring systems
• Remote on/off: supported, for integration with complete Victron Energy systems
• Programmable relay: configure custom automation and system control functions

Smart Battery Charging

Adaptive multi-stage charging is optimized for lithium and lead-acid batteries to help extend battery life. A battery recovery function automatically attempts to recharge deeply discharged batteries when possible. A built-in temperature sensor provides automatic temperature compensation, and optional external voltage and temperature sensing via Bluetooth accessories adds even greater charging precision.

Electronic Protection

Extensive electronic protection guards against overheating, overload, reverse polarity and other electrical faults.

Ideal Applications

Off-grid solar systems, residential solar energy storage, RV and camper solar installations, marine solar charging, industrial battery charging, backup power systems, and commercial solar applications.

Specifications

• Brand: Victron Energy
• Model: SmartSolar MPPT 150/100-MC4 VE.Can
• Manufacturer Part No: SCC115110511
• UPC: 8719076050360
• Maximum PV Input Voltage: 150 V
• Maximum Charge Current: 100 A
• Supported Battery Voltages: 12 V / 24 V / 36 V / 48 V
• MPPT Technology: Ultra-fast Maximum Power Point Tracking
• PV Connections: MC4
• Bluetooth: Built-in
• Communication Ports: VE.Can and VE.Direct
• Remote On/Off: Supported
• Programmable Relay: Yes
• Temperature Sensor: Internal
• Optional External Battery Sensing: Voltage and temperature via Bluetooth
• Optional Display: SmartSolar plug-in LCD
