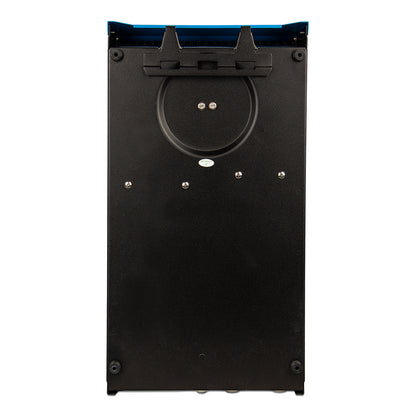

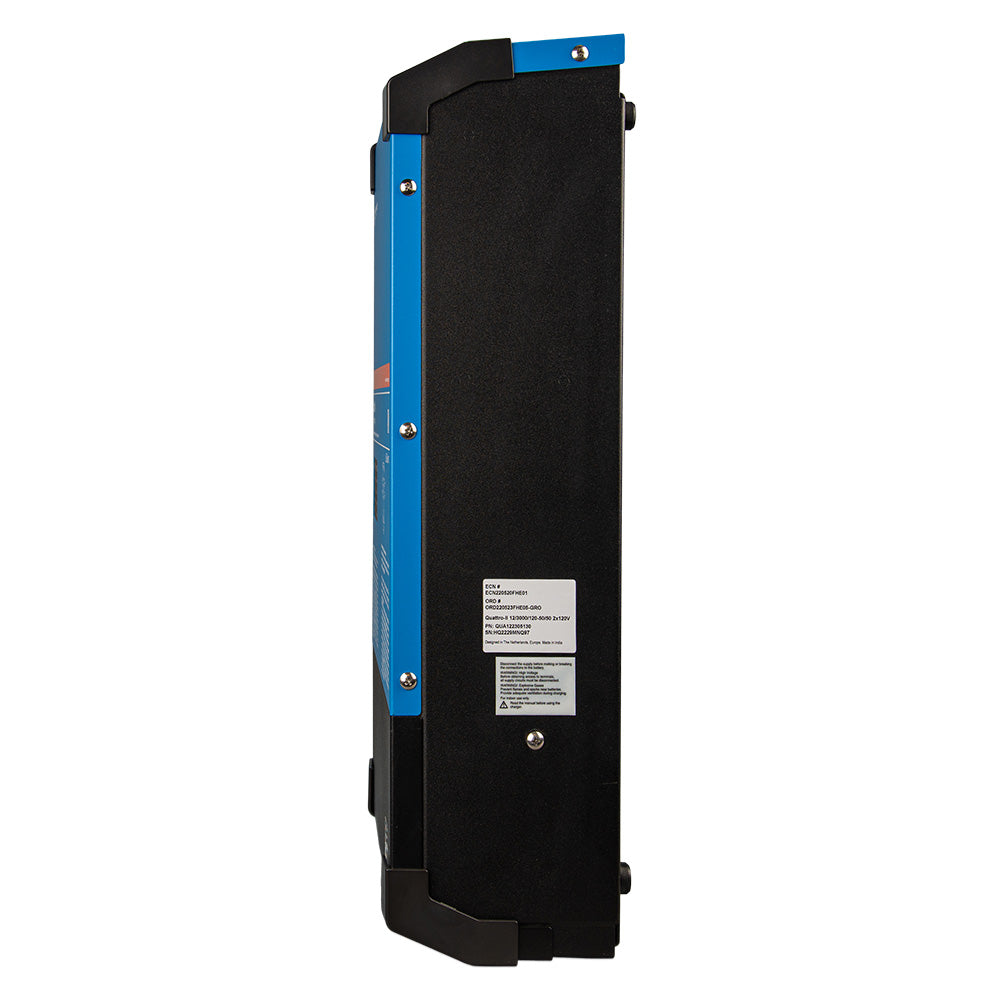

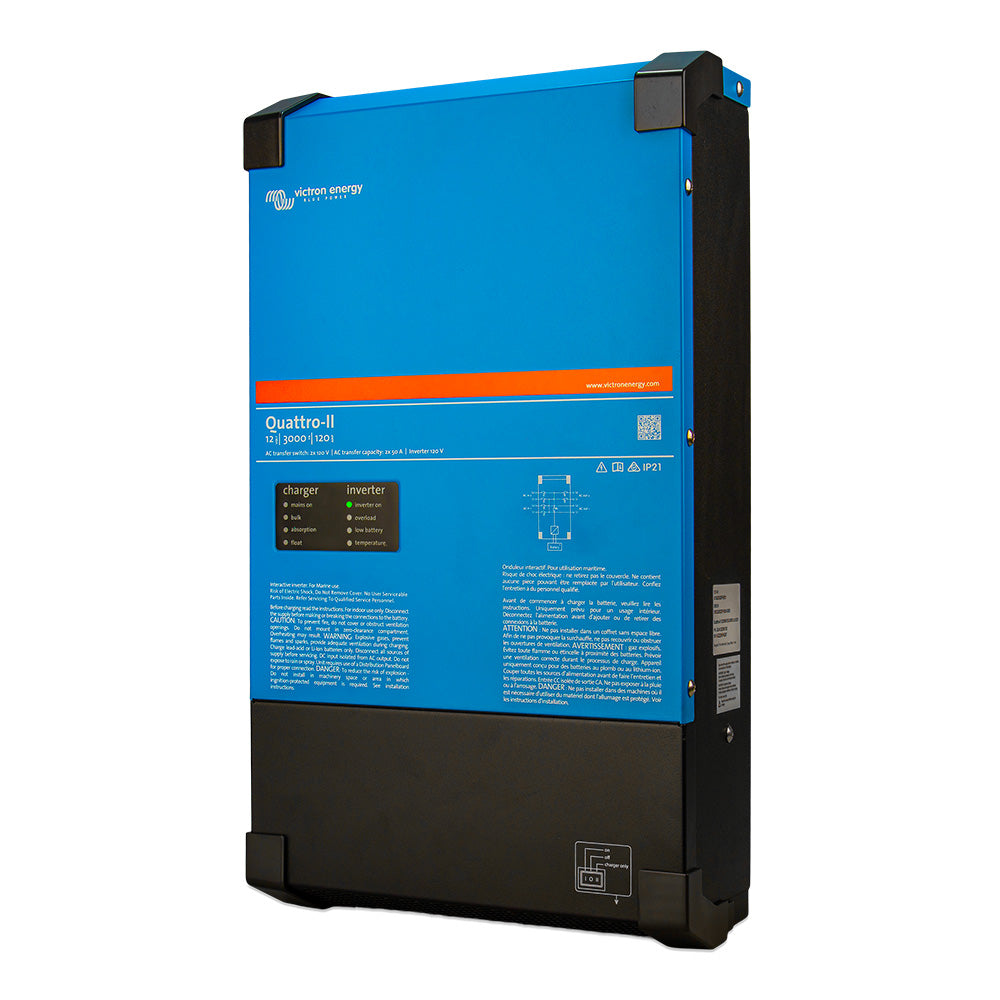

Victron Energy Quattro-II 12/3000/120-50/50 2x120V Inverter Charger – 12V, 3000VA, 120A Charger, 50A Transfer Switch

The Victron Energy Quattro-II 12/3000/120-50/50 2x120V is a pure sine wave inverter charger designed for North American 120/240 V split-phase electrical systems. It combines a 3000 VA inverter, a 120 A adaptive battery charger and an automatic transfer switch in one unit, for RVs, marine vessels, off-grid homes, cabins, emergency power systems and commercial energy installations.

Two AC Inputs with Automatic Switching

The Quattro-II automatically switches between two independent AC sources, such as shore power and a generator. The automatic transfer switch provides a seamless transition between AC input and inverter power.

120/240V Split-Phase Operation

Designed specifically for North American 120/240 V split-phase systems, with a 50 A transfer switch and a maximum AC input current of 50 A per leg.

PowerAssist and PowerControl

PowerControl prevents overload by managing battery charging based on the available input current. PowerAssist supplements limited shore or generator power with battery energy during high-demand loads.

Two AC Outputs with UPS Function

• Main output: uninterrupted UPS functionality, transferring to battery power in less than 18 milliseconds so sensitive electronics keep operating
• Secondary output: operates only when external AC power is available

120A Adaptive Battery Charger

Fast, efficient charging for lead-acid and compatible lithium battery systems.

Expandable System

Parallel operation supports up to six Quattro-II units for increased inverter capacity. Three identical units can be configured for three-phase systems.

Remote Monitoring and Configuration

Monitor and configure the system with a Cerbo GX or other GX device, the VRM Portal, VEConfigure software or the optional VE.Bus Smart Dongle. The programmable relay supports alarms, generator auto-start, lithium battery BMS communication and custom automation.

Protection Features

Output short circuit, overload, high and low battery voltage, over temperature, input voltage ripple and 120 VAC output protection.

Ideal Applications

Off-grid solar systems, residential backup power, whole-home energy storage, marine electrical systems, RVs and motorhomes, commercial backup power, generator integration, and cabins and remote installations.

Specifications

• Brand: Victron Energy
• Model: Quattro-II 12/3000 120-50/50 2x120V
• Manufacturer Part No: QUA122305130
• UPC: 8719076057369
• DC Battery Voltage: 12 V
• Continuous Inverter Power: 3000 VA
• Continuous Output Power: 2400 W
• Peak Surge Power: 5500 W
• Maximum Battery Charging Current: 120 A
• Output Voltage: 120 VAC, pure sine wave
• Split-Phase Input: 120/240 VAC
• Transfer Switch: 50 A
• Maximum AC Input Current: 50 A per leg
• Maximum Efficiency: 93%
• Transfer Time (main output): less than 18 milliseconds

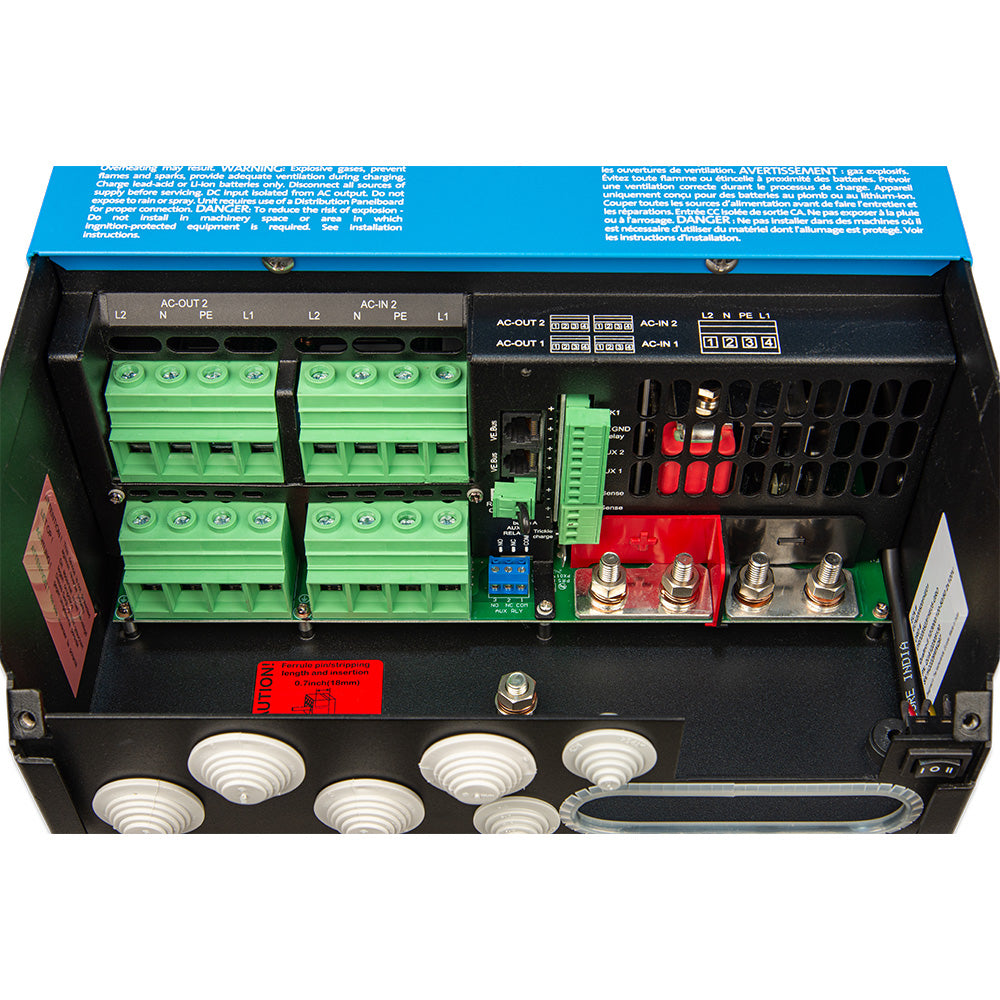

• AC Inputs / Outputs: 2 / 2
• PowerAssist / PowerControl: Yes
• Programmable Relay: Yes
• Communication: VE.Bus; 2 general purpose communication ports
• Remote On/Off: Yes
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Protection Rating: IP22
• Dimensions: 579 x 319 x 168 mm (23 x 13 x 7 in)
• Weight: 32.8 kg (72.3 lbs)

Package Includes

• Victron Quattro-II 12/3000 120-50/50 2x120V Inverter Charger
• Installation documentation
