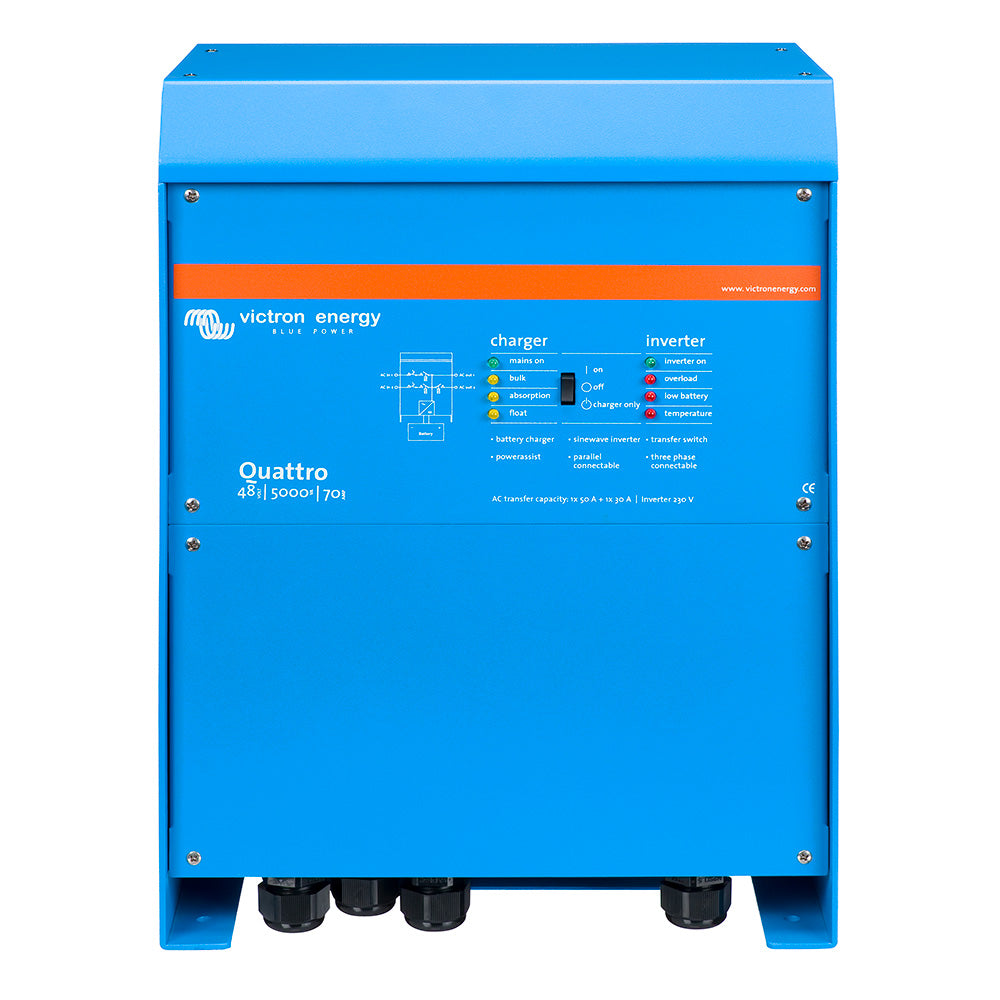

Victron Energy Quattro 48/5000/70-100/100 Inverter Charger – 48V, 5000VA, 120V AC, UL Listed

The Victron Energy Quattro 48/5000/70-100/100 VE.Bus combines a 5000 VA pure sine wave inverter, a 70 A adaptive battery charger and automatic dual AC input switching in one unit. It is built for off-grid solar systems, marine applications, RV electrical systems, backup power installations and energy storage solutions, and it is UL Listed for professional installations.

Two AC Inputs and Two AC Outputs

Connect two independent AC sources, such as shore power, utility power or a generator, and the Quattro automatically selects the active source. The primary output provides uninterrupted power, while the secondary output powers selected loads only when AC input is available.

Ultra-Fast UPS Transfer

The Quattro switches to battery inverter power in less than 20 milliseconds, so computers and sensitive electronics keep operating without interruption.

PowerAssist and PowerControl

PowerAssist prevents generator or shore power overload by supplementing limited AC input with energy from the battery bank. PowerControl automatically manages available AC power to prevent breaker trips and make efficient use of the source.

70A Adaptive Battery Charger

Intelligent adaptive charging optimizes battery performance and helps improve battery longevity. The unit is designed for 48 V battery systems and high-capacity energy storage.

Expandable with Parallel Operation

Connect up to six Quattro units for increased power output and larger system configurations. Supported split-phase and three-phase configurations suit residential, commercial and industrial applications.

VE.Bus Communication and Remote Monitoring

VE.Bus communication integrates with Victron Energy system components. Pair the Quattro with a Victron GX device for local or worldwide monitoring, configuration and control through the VRM platform.

Ideal Applications

Off-grid solar power systems, residential energy storage, whole home backup power, marine and yacht electrical systems, large RV and motorhome power systems, commercial backup power, remote cabins and off-grid properties, and generator-based power systems.

Specifications

• Brand: Victron Energy
• Model: Quattro 48/5000/70-100/100 VE.Bus
• Manufacturer Part No: QUA482501102
• UPC: 8719076068389
• Product Type: Pure sine wave inverter charger
• Battery Voltage: 48 V DC
• AC Output Voltage: 120 V AC
• Continuous Inverter Output: 5000 VA
• Battery Charger Output: 70 A
• Transfer Switch Rating: Dual 100 A AC inputs
• Waveform: Pure sine wave
• AC Inputs: 2 independent inputs
• AC Outputs: 2
• Transfer Time: less than 20 milliseconds
• PowerAssist: Yes
• Adaptive Charging: Yes
• Parallel Operation: Up to 6 units
• Split-Phase Compatible: Yes (supported configurations)
• Three-Phase Compatible: Yes (supported configurations)
• Communication: VE.Bus
• Remote Monitoring: Compatible with Victron GX devices and VRM platform
• Certification: UL Listed

Package Includes

• Victron Energy Quattro 48/5000/70-100/100 VE.Bus Inverter Charger
• Installation documentation
