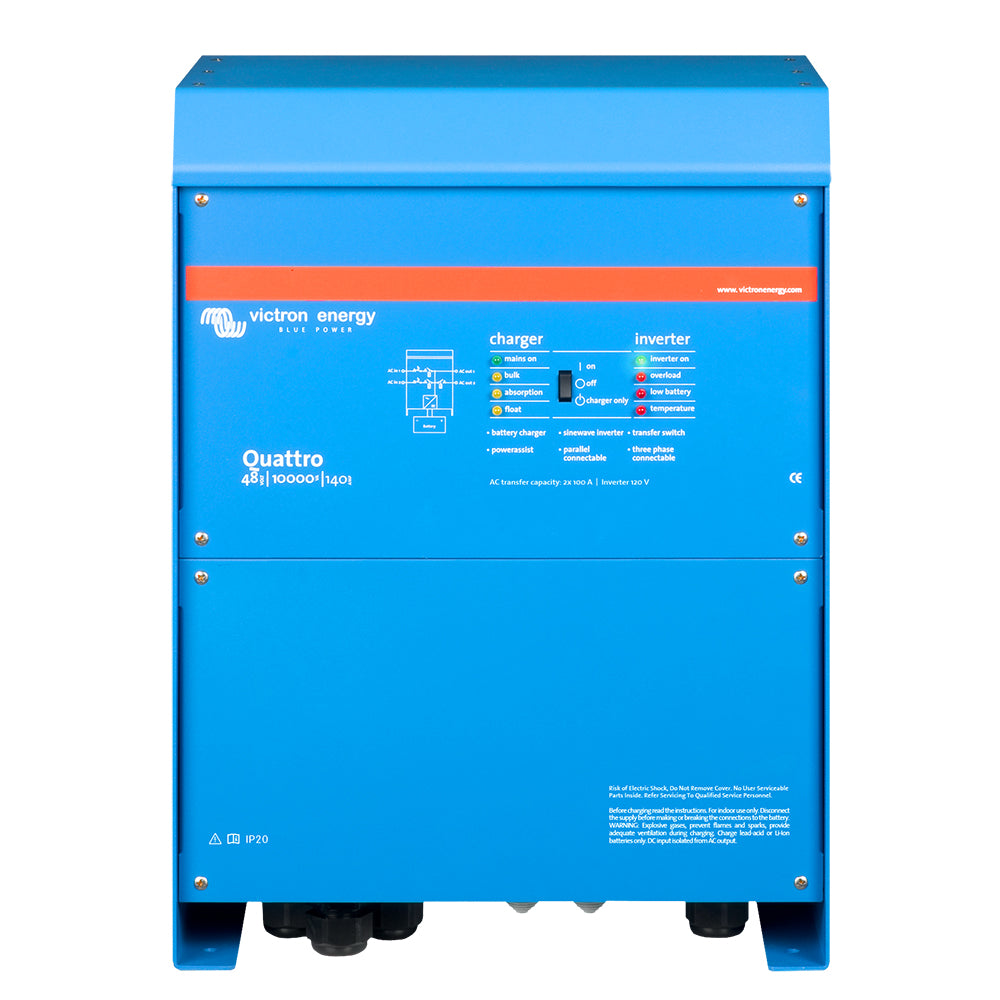

Victron Energy Quattro 48V 10000W Inverter/Charger – 200A Charger, 50A Transfer Switch

The Victron Energy Quattro 48V 10000W is a professional-grade inverter/charger for large off-grid, marine, RV, commercial and backup power systems. It combines a high-output pure sine wave inverter, a 200 A battery charger, a 50 A automatic transfer switch and intelligent power management in one unit, with seamless integration into renewable energy systems.

Two AC Inputs and Two AC Outputs

Two independent AC inputs let you connect multiple power sources, such as shore power, a generator or the grid, and the unit automatically selects the available source. The primary AC output has no-break UPS functionality: if grid, generator or shore power is interrupted, the inverter takes over in less than 20 milliseconds, so sensitive electronics and critical equipment keep running. The second output is a dedicated secondary output.

PowerAssist Technology

PowerAssist prevents limited AC sources from becoming overloaded. When generator or shore power is not enough, the Quattro supplements it with energy from the battery bank. When demand drops, the excess power automatically recharges the batteries.

Expandable Power System

Parallel, split-phase and three-phase operation are supported. Multiple units can be connected together to increase available power for larger residential, commercial and industrial installations.

Remote Monitoring and System Control

With a compatible Victron GX monitoring device, you can monitor and control the system locally and remotely through the VRM platform. View performance, adjust settings, manage charging and control connected equipment from a phone, tablet, laptop or computer.

Ideal Applications

Large off-grid solar systems, residential energy storage, marine vessels and yachts, commercial backup power, industrial installations, RV and motorhome systems, generator-assisted power systems, and remote facilities and emergency power.

Specifications

• Brand: Victron Energy
• Model: Quattro 48V 10000W
• Manufacturer Part No: QUA483100100
• UPC: 8719076044246
• DC Input Voltage: 48 V
• Continuous Inverter Output: 10,000 W
• Battery Charger Output: 200 A
• Transfer Switch Rating: 50 A
• AC Inputs: 2 independent inputs
• AC Outputs: 2
• Transfer Time: less than 20 milliseconds
• System Expansion: Parallel, split-phase and three-phase compatible

What's Included

• Victron Energy Quattro 48V 10000W Inverter/Charger
• User documentation

Shipping: This product ships by truck freight and does not qualify for standard shipping promotions.
