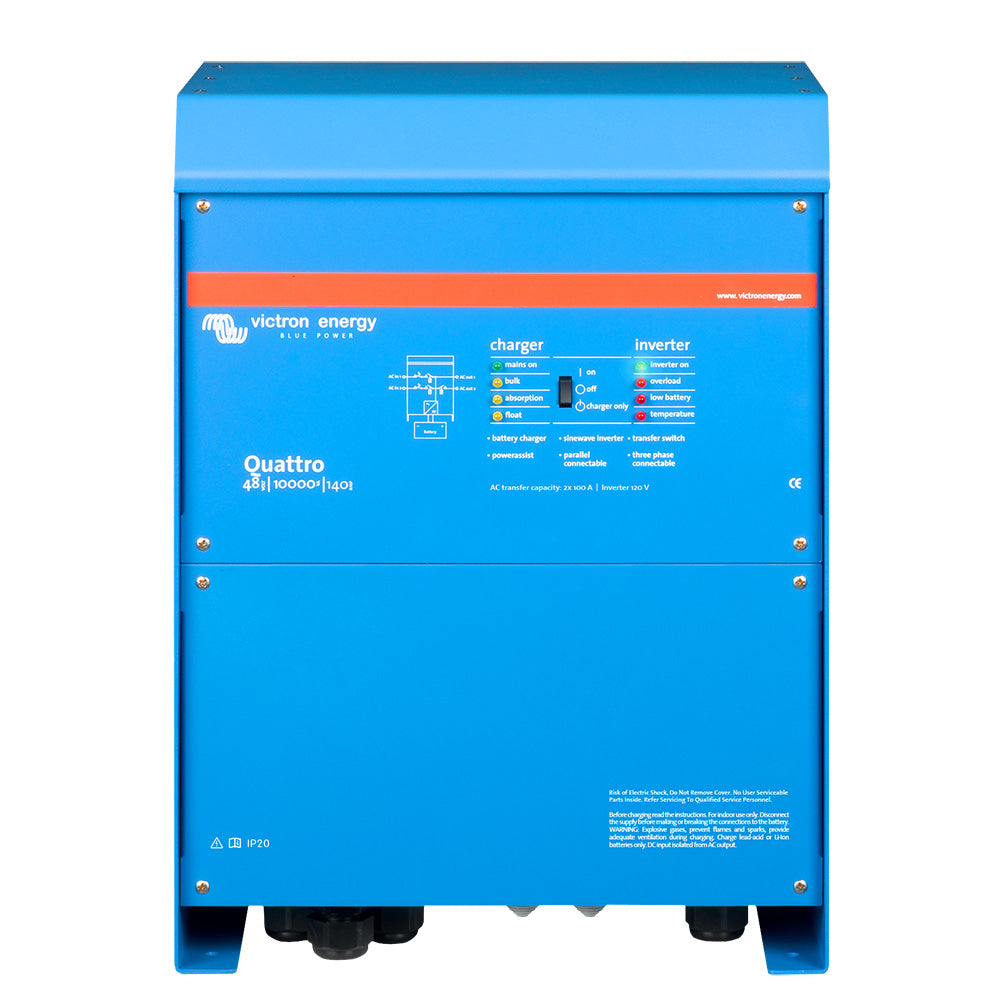

Victron Energy Quattro 48/10000 140-100/100 Inverter Charger – 48V, 10000VA, 120V AC

The Victron Energy Quattro 48/10000 140-100/100 (120V) combines a 10,000 VA true sine wave inverter, a 140 A adaptive battery charger, automatic transfer switching and advanced power management in one unit. It is designed for 48 V battery systems in marine, off-grid, commercial, RV, solar backup and industrial power applications.

Two AC Inputs with Automatic Source Switching

Dual AC inputs let the Quattro automatically select between two independent sources, such as shore power and a generator, to keep operation uninterrupted. Two AC outputs allow flexible load management.

Integrated UPS Function

If grid, shore or generator power is interrupted, the Quattro takes over power delivery in less than 20 milliseconds, helping keep computers, electronics, appliances and critical equipment running without disruption.

PowerAssist and PowerControl

PowerAssist prevents overloads on limited AC sources by reducing battery charging when needed and supplementing the available AC power with battery energy during peak demand. PowerControl helps prevent AC source overload.

Expandable Power System

Parallel operation increases power capacity, and three-phase and split-phase configurations are supported for scalable systems.

VE.Bus Communication and Remote Monitoring

VE.Bus communication connects the Quattro to Victron systems. With a compatible Victron GX device, such as the Cerbo GX, you can monitor performance, manage settings and control connected equipment from anywhere through the Victron VRM platform.

Ideal Applications

Large off-grid solar systems, marine vessels and yachts, RV and mobile power systems, backup power installations, commercial energy storage systems, generator-based power systems, and industrial power applications.

Specifications

• Brand: Victron Energy
• Model: Quattro 48/10000 140-100/100 120V
• Manufacturer Part No: QUA483100300
• UPC: 8719076075301
• System Voltage: 48 V DC
• Inverter Capacity: 10,000 VA
• Inverter Type: True sine wave
• Battery Charger Output: 140 A
• AC Voltage: 120 V
• Frequency: 50/60 Hz
• AC Inputs: 2
• AC Outputs: 2
• Transfer Time: less than 20 milliseconds
• Communication: VE.Bus
• Parallel Operation: Supported; three-phase and split-phase compatible

What's Included

• Victron Energy Quattro 48/10000 140-100/100 120V Inverter Charger
• Product documentation
