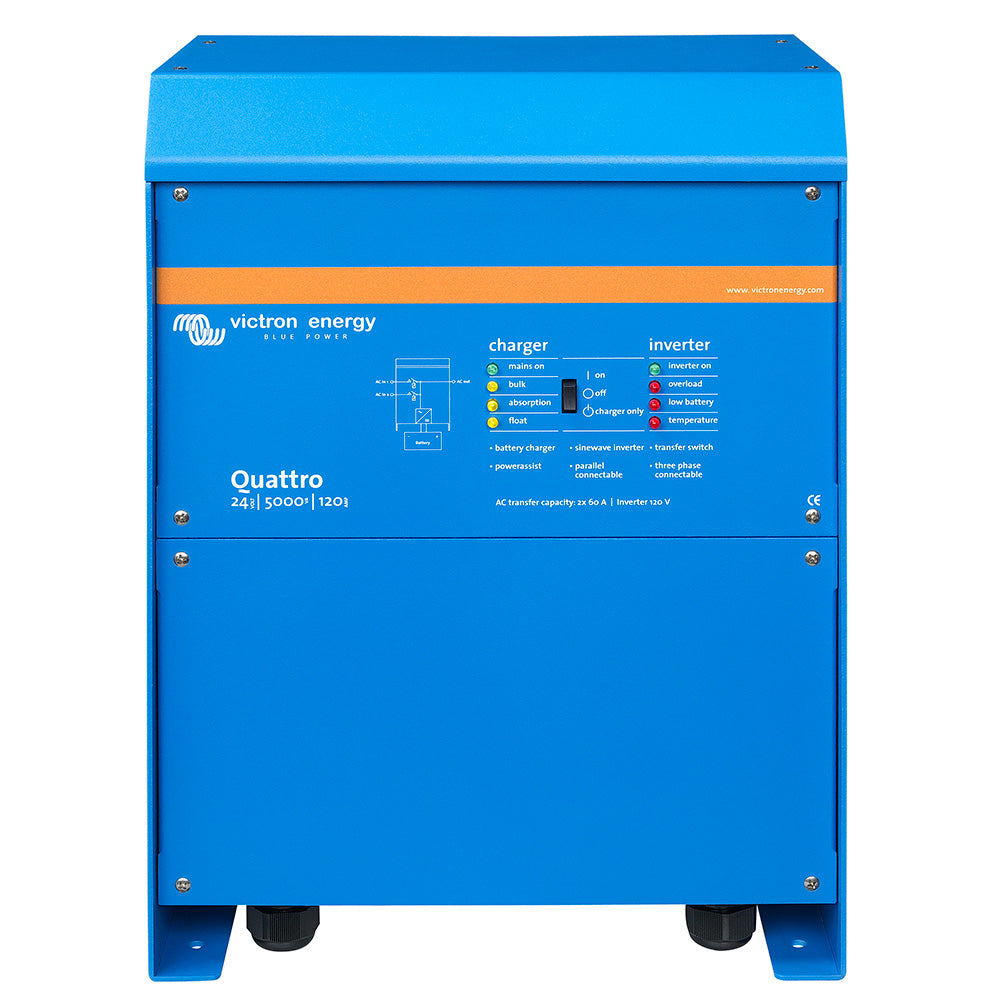

Victron Energy Quattro 24/5000/120-100/100 Inverter Charger – 24V, 120V AC, 120A Charger, UL458

The Victron Energy Quattro 24/5000/120 100/100 120V VE.Bus is a pure sine wave inverter charger with two AC inputs and two AC outputs. Its integrated transfer switch automatically connects to the active AC source. The output has UPS functionality, so the Quattro takes over the supply to your loads quickly enough that computers and other equipment are not interrupted.

Two AC Inputs with Integrated Transfer Switch

Two AC inputs with a 2 x 100 A transfer switch connect automatically to the active source. Input voltage range is 90-140 VAC at 45-65 Hz, and the power factor is 1.

Pure Sine Wave 120V AC Output

The Quattro delivers a pure sine wave 120 volt, 60 Hz AC output from a 24 V DC battery system, with UPS functionality for uninterrupted power.

Main Battery and Start Battery Chargers

A 120 A charger serves the main battery, and a separate 4 A charger maintains the start battery. A battery temperature sensor is included.

PowerControl and PowerAssist

PowerControl and PowerAssist are supported, helping manage limited AC sources such as shore power or a generator.

Expandable System

Multiple units can be configured together to provide 240-volt, three-phase or other configurations, up to a maximum of 50 kVA output. An optional remote panel is available.

Specifications

• Brand: Victron Energy
• Model: Quattro 24/5000/120 100/100 120V VE.Bus
• Manufacturer Part No: QUA242503112
• UPC: 8719076079781
• DC Input Voltage: 24 V
• AC Output: 120 V, 60 Hz, pure sine wave
• Transfer Switch: 2 x 100 A
• Main Battery Charger: 120 A
• Start Battery Charger: 4 A
• AC Inputs: 2 (90-140 VAC, 45-65 Hz)
• AC Outputs: 2
• Power Factor: 1
• PowerControl / PowerAssist: Yes
• Temperature Sensor: Included
• Communication: VE.Bus
• Certification: UL458
• Dimensions: 17.5 x 13 x 9.6 in
• Weight: 66 lbs
• Warranty: 5 years (extended warranty available)
