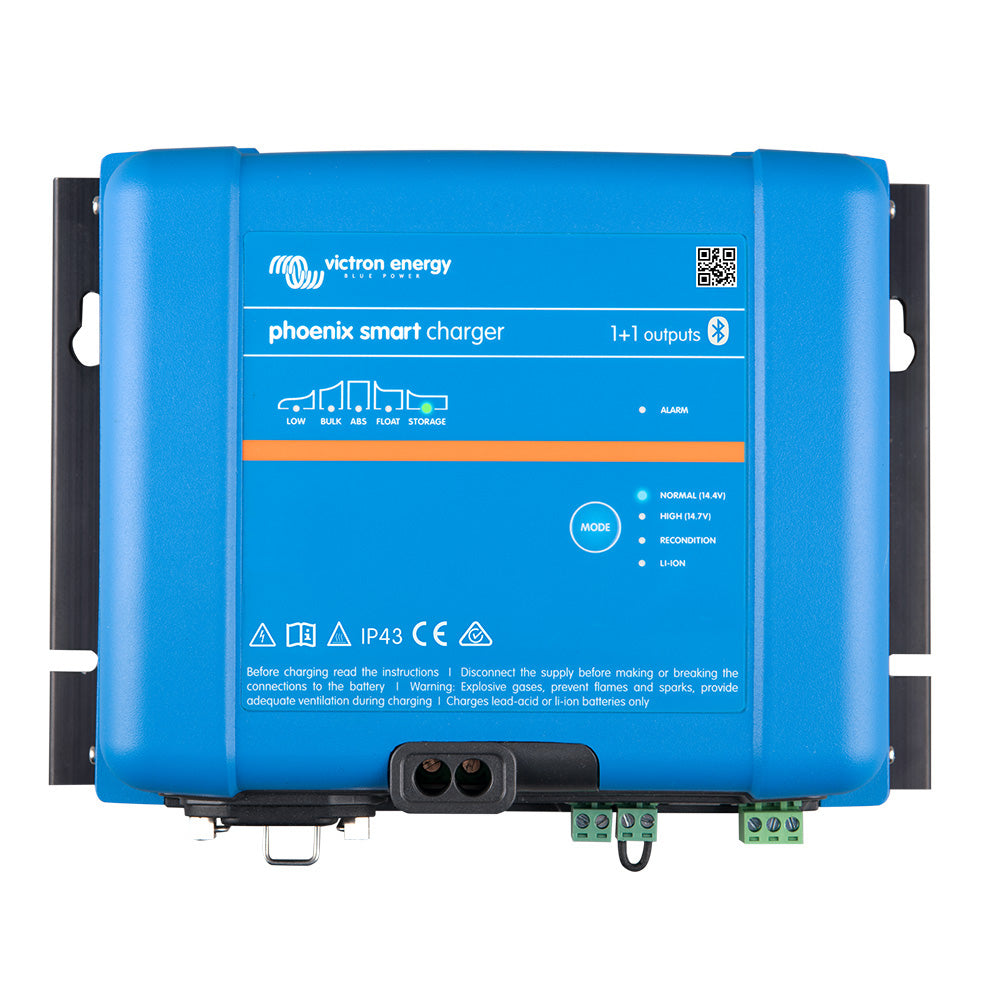

Victron Energy Phoenix Smart IP43 24V 25A 1+1 Battery Charger Bluetooth VE.Direct Marine RV PSC242551095

Victron Energy Phoenix Smart IP43 24V 25A 1+1 Battery Charger with Bluetooth and VE.Direct – PSC242551095

The Victron Energy Phoenix Smart IP43 24V 25A 1+1 Battery Charger is an intelligent dual-output charger designed for marine, RV, off-grid and professional 24V battery systems. Featuring built-in Bluetooth Smart, VE.Direct communication, adaptive multi-stage charging and dedicated house and starter battery outputs, it provides advanced battery management for demanding mobile and marine power installations.

The primary output delivers up to 25A charging current to a 24V house battery bank, while the dedicated secondary output provides approximately 4A for maintaining a starter battery. This 1+1 configuration makes the Phoenix Smart IP43 ideal for boats, RVs, campers and other systems requiring reliable charging of separate house and starter batteries.

24V 25A dual-output battery charger

The Phoenix Smart IP43 24/25 (1+1) provides intelligent charging for 24V battery systems. Its main 25A output handles the primary battery bank while the secondary output maintains a separate starter battery, allowing one charger to manage two important battery functions.

Built-in Bluetooth Smart

Integrated Bluetooth Smart connectivity provides convenient wireless monitoring and configuration through the VictronConnect app on a compatible smartphone or tablet. Users can monitor charging status, adjust battery settings, configure charging parameters, receive alerts and perform compatible firmware updates without requiring a separate Bluetooth accessory.

VE.Direct communication

The integrated VE.Direct interface expands monitoring, configuration and system integration capabilities with compatible Victron Energy equipment. Together with Bluetooth connectivity, this provides flexible control for marine, RV and off-grid power installations.

Adaptive 6-stage battery charging

Victron's adaptive charging technology automatically adjusts the charging process according to battery condition and usage. The intelligent charging sequence includes Bulk, Absorption, Recondition, Float, Storage and Refresh stages to provide efficient charging and long-term battery maintenance.

BatterySafe functionality helps protect batteries from excessive gassing, while Storage Mode reduces unnecessary battery aging during extended periods of inactivity.

LiFePO4 and lead-acid battery compatibility

The Phoenix Smart IP43 supports multiple battery technologies, including LiFePO4 lithium, AGM, Gel and flooded lead-acid batteries. Programmable charging algorithms allow charging parameters to be configured for different battery chemistries and installation requirements.

Designed for marine and RV systems

The 1+1 configuration is particularly useful for boats and mobile applications using separate house and engine starter batteries. With a wide 120-240VAC input range, IP43 protection and intelligent charging controls, the Phoenix Smart IP43 is well suited for shore-power charging in marine, RV and professional electrical systems.

Key features

• Victron Energy Phoenix Smart IP43 battery charger
• 24V battery system compatibility
• 25A primary charging output
• 1+1 dual-output configuration
• Approximately 4A starter battery output
• Built-in Bluetooth Smart
• VictronConnect app monitoring and configuration
• VE.Direct communication interface
• Adaptive 6-stage intelligent charging
• LiFePO4 lithium battery compatibility
• AGM, Gel and flooded lead-acid compatibility
• BatterySafe protection
• Storage Mode for long-term battery maintenance
• Automatic voltage compensation for cable losses
• Programmable charging algorithms
• Remote on/off capability
• Programmable alarm relay
• VE.Smart Network support
• 120-240VAC input compatibility
• IP43 protection rating

Technical specifications

• Brand: Victron Energy
• Product line: Phoenix Smart IP43
• Model: Phoenix Smart IP43 Charger 24/25 (1+1)
• Product type: Smart Dual-Output Battery Charger
• Manufacturer part number: PSC242551095
• UPC: 8719076053545
• Battery system voltage: 24V
• Main charging output: 25A
• Starter battery output: Approximately 4A
• Number of outputs: 2 (1+1)
• AC input voltage: 120-240VAC
• Connectivity: Bluetooth Smart and VE.Direct
• Charging: Adaptive 6-stage charging
• Battery compatibility: LiFePO4, AGM, Gel and flooded lead-acid
• Remote on/off: Yes
• Programmable relay: Yes
• Protection rating: IP43

Recommended applications

• Marine house and starter battery systems
• Boats and yachts
• RV and motorhome electrical systems
• Campers and mobile power systems
• 24V off-grid battery banks
• Solar energy storage systems
• Professional 24V battery installations

The Victron Energy Phoenix Smart IP43 24V 25A 1+1 Battery Charger combines 25A charging, dedicated starter battery maintenance, Bluetooth Smart, VE.Direct connectivity and adaptive battery management in one professional charging solution. Designed for marine, RV, off-grid and mobile 24V systems, it provides dependable charging for LiFePO4 and lead-acid battery banks while offering convenient monitoring and configuration through VictronConnect.
