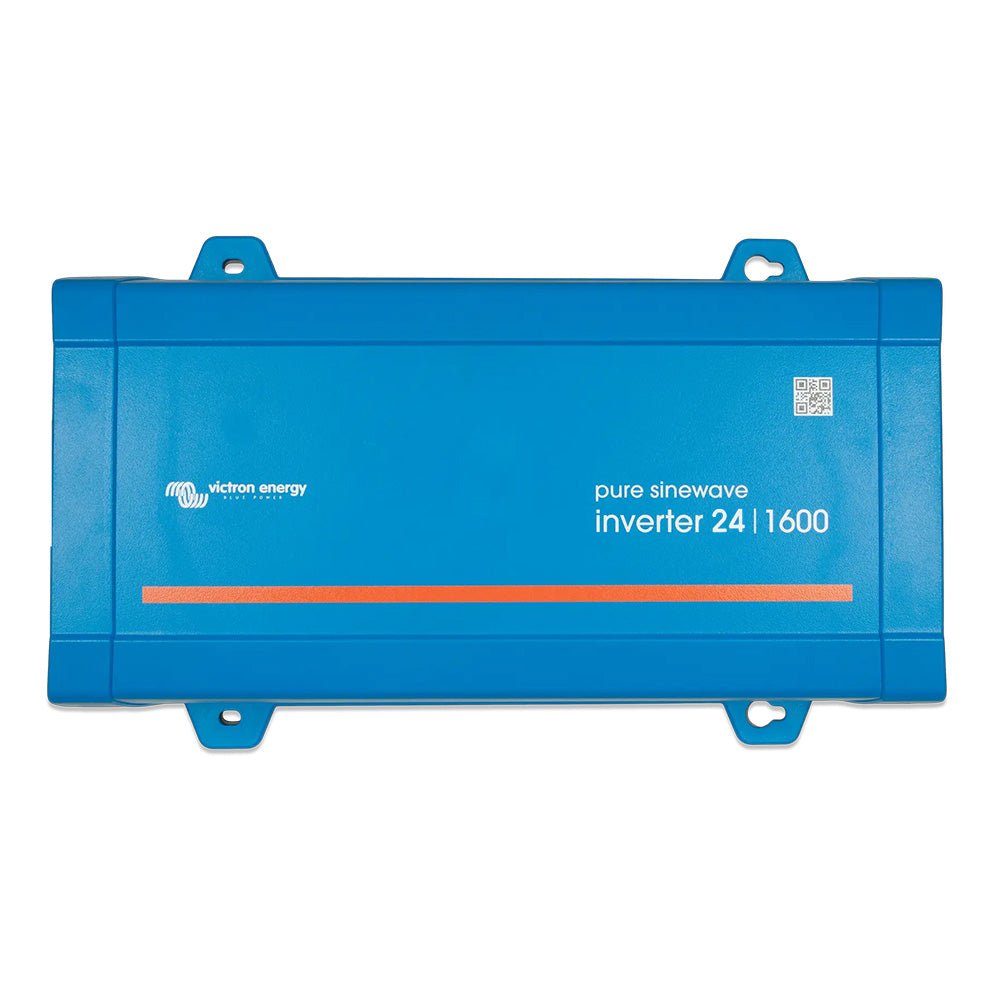

Victron Energy Phoenix Inverter Smart 24V 1600VA 120V Pure Sine Wave Bluetooth NEMA 5-15R PIN242161500

Victron Energy Phoenix Inverter Smart 24V 1600VA 120V Pure Sine Wave Bluetooth NEMA 5-15R – PIN242161500

The Victron Energy Phoenix Inverter Smart 24V 1600VA delivers clean, reliable 120V AC pure sine wave power from a 24V DC battery system. Designed for RV, marine, off-grid solar, commercial vehicle, cabin and backup power applications, this intelligent inverter combines dependable Victron Energy engineering with built-in Bluetooth control, high surge capability and a convenient NEMA 5-15R AC receptacle.

With a 1600VA capacity, 1200W continuous output and up to 2200W peak power, the Phoenix Inverter Smart is engineered to operate household electronics, appliances, tools and other AC equipment while providing the clean sine wave required by sensitive electronics.

Pure sine wave 120V AC power

The Phoenix Inverter Smart converts 24V DC battery power into stable 120V pure sine wave AC power. Its high-quality output makes it suitable for electronics, computers, appliances, entertainment equipment, tools and other equipment requiring consistent AC voltage and frequency.

1600VA capacity with 2200W peak power

A commercial-grade toroidal transformer provides strong startup performance for demanding loads. The inverter delivers 1200W continuous power at 25°C with peak output up to 2200W, helping it handle equipment with higher startup requirements.

Built-in Bluetooth and VictronConnect

Integrated Bluetooth connectivity provides convenient wireless configuration through the VictronConnect app on a compatible smartphone or tablet. Configure important inverter settings including output voltage, frequency, low-battery voltage levels, alarms and Eco Mode without requiring a separate Bluetooth accessory.

VE.Direct connectivity

The integrated VE.Direct interface expands monitoring and system integration options with compatible Victron Energy equipment. This makes the Phoenix Inverter Smart well suited for Victron-based RV, marine, solar and off-grid electrical systems.

NEMA 5-15R AC outlet

A built-in NEMA 5-15R receptacle provides a familiar North American AC connection for compatible plug-in equipment, making the inverter practical for mobile, marine and off-grid applications.

Efficient off-grid power

The Phoenix Inverter Smart offers maximum efficiency up to 87% with approximately 12W zero-load consumption. Eco Mode can help reduce unnecessary battery consumption when AC demand is low, an important advantage for battery-powered and off-grid installations.

Ideal applications

• RV, camper and motorhome electrical systems
• Marine and boat power systems
• Off-grid solar installations
• 24V battery banks
• Remote cabins and properties
• Commercial trucks and mobile power systems
• Backup and emergency power systems
• Professional battery-based power installations

Key features

• Victron Energy Phoenix Inverter Smart
• 24V DC input system
• 1600VA inverter capacity
• 1200W continuous output at 25°C
• Up to 2200W peak power
• 120V AC pure sine wave output
• Built-in Bluetooth connectivity
• VictronConnect app configuration
• VE.Direct communication interface
• Built-in NEMA 5-15R AC receptacle
• Toroidal transformer technology
• Maximum efficiency up to 87%
• Approximately 12W zero-load consumption
• Configurable Eco Mode
• Heavy-duty full metal enclosure
• DC terminals accommodate cable up to 1 AWG

Technical specifications

• Brand: Victron Energy
• Product line: Phoenix Inverter Smart
• Product type: Pure Sine Wave Power Inverter
• Manufacturer part number: PIN242161500
• UPC: 8719076071945
• DC input voltage: 24V
• Inverter capacity: 1600VA
• Continuous output: 1200W at 25°C
• Peak power: 2200W
• AC output: 120V
• Waveform: Pure Sine Wave
• AC connection: NEMA 5-15R
• Wireless connectivity: Built-in Bluetooth
• Communication: VE.Direct
• Maximum efficiency: 87%
• Zero-load power: 12W
• Weight: Approximately 20 lbs

The Victron Energy Phoenix Inverter Smart 24V 1600VA 120V is a professional-grade solution for customers who need reliable pure sine wave AC power from a 24V battery system. With built-in Bluetooth, VE.Direct connectivity, a NEMA 5-15R outlet, 1200W continuous output and 2200W peak capability, it is an excellent choice for RV, marine, off-grid solar, commercial vehicle and backup power applications.
