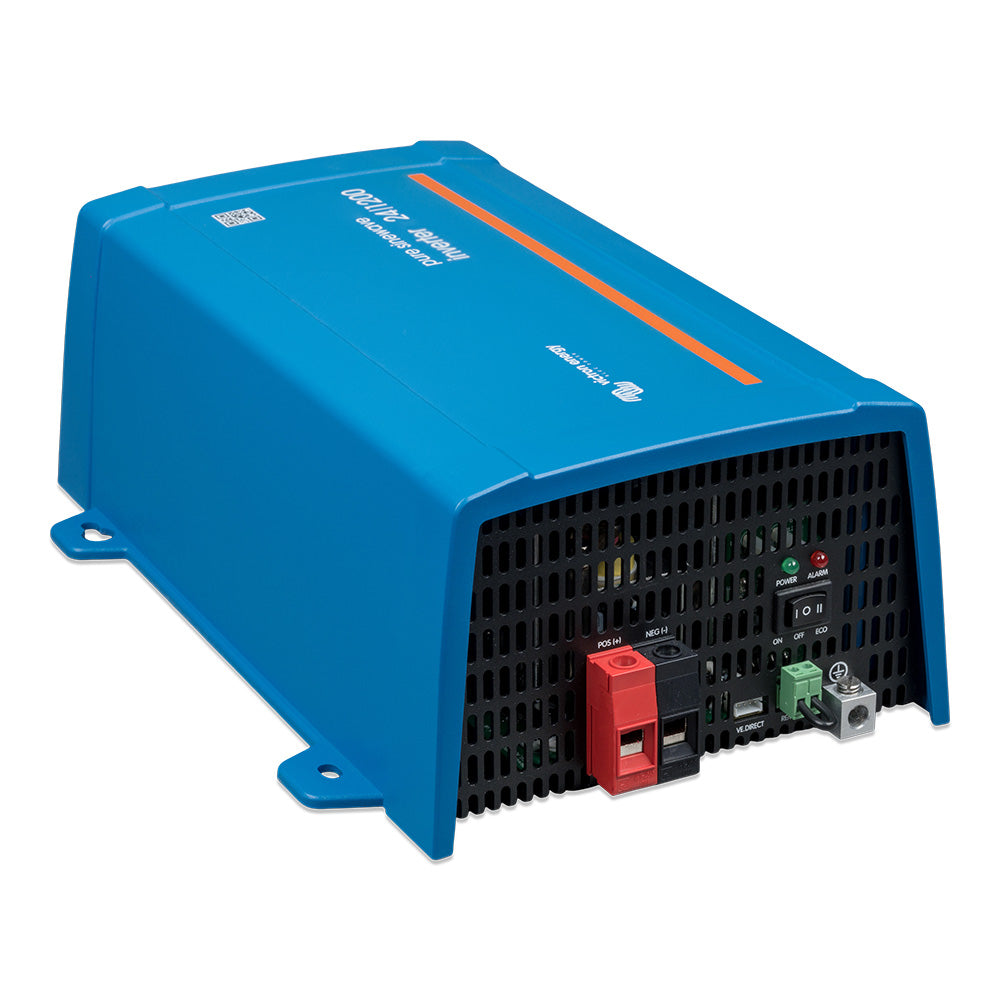

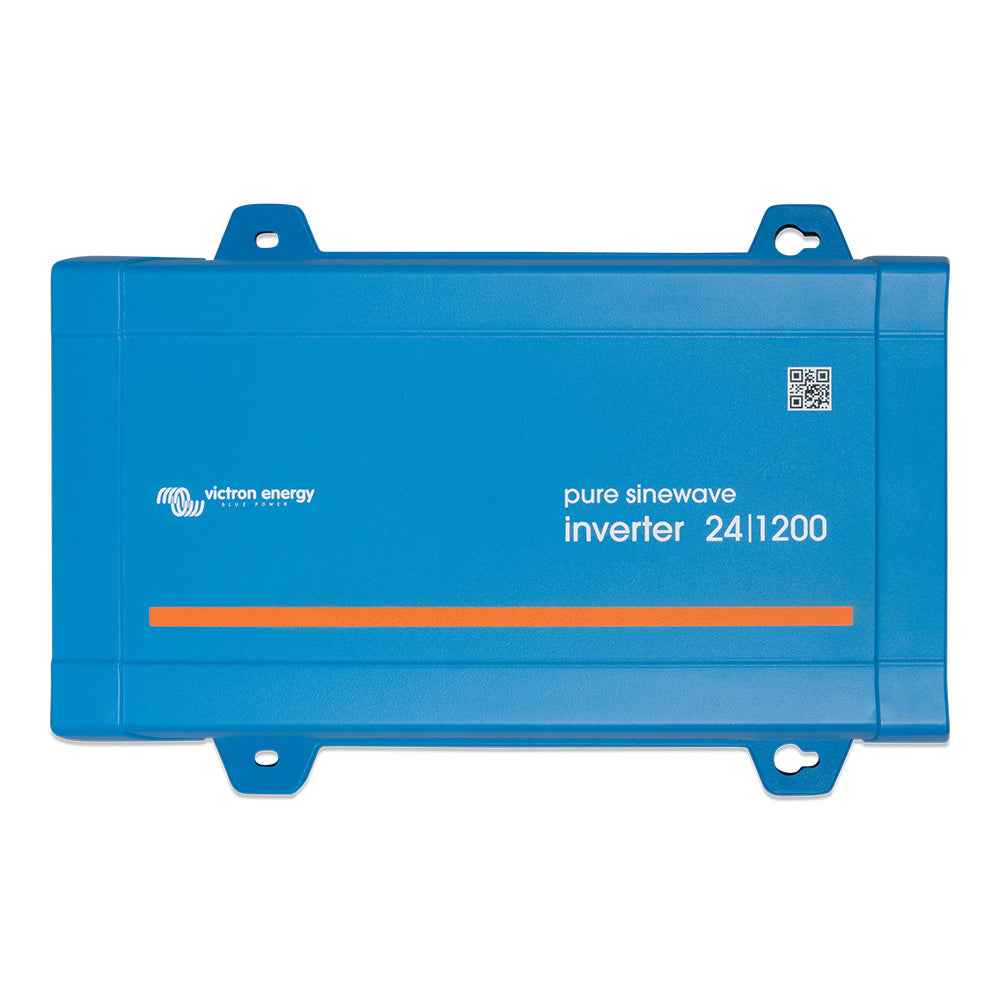

Victron Energy Phoenix Inverter 24V 1200VA 1000W 120V Pure Sine Wave VE.Direct GFCI UL458 PIN242122510

Victron Energy Phoenix Inverter 24V 1200VA 1000W 120V Pure Sine Wave VE.Direct GFCI UL458 – PIN242122510

The Victron Energy Phoenix Inverter 24/1200 120V is a professional pure sine wave inverter designed to convert 24V DC battery power into clean, stable 120V 60Hz AC power. Delivering 1200VA capacity, 1000W continuous output and up to 2200W peak power, this Phoenix inverter is ideal for marine, RV, off-grid solar, camper, mobile and backup power systems.

Featuring VE.Direct communication, a NEMA GFCI AC receptacle and UL458 compliance, the Phoenix 24/1200 provides dependable AC power for appliances, electronics, tools and other compatible 120V equipment. The GFCI configuration is particularly well suited for marine installations where appropriate ground-fault protection is required.

24V DC to 120V pure sine wave power

The Phoenix Inverter converts energy from a 24V battery bank into 120V 60Hz pure sine wave AC electricity. Its clean sine wave output makes it suitable for sensitive electronics as well as common appliances and AC equipment requiring stable voltage and frequency.

1200VA with 1000W continuous output

The inverter delivers 1200VA capacity and 1000W continuous output at 25°C. Peak power of up to 2200W provides additional capacity for compatible equipment with higher startup requirements.

This combination of continuous and peak output makes the Phoenix 24/1200 an excellent solution for battery-powered systems requiring dependable AC performance.

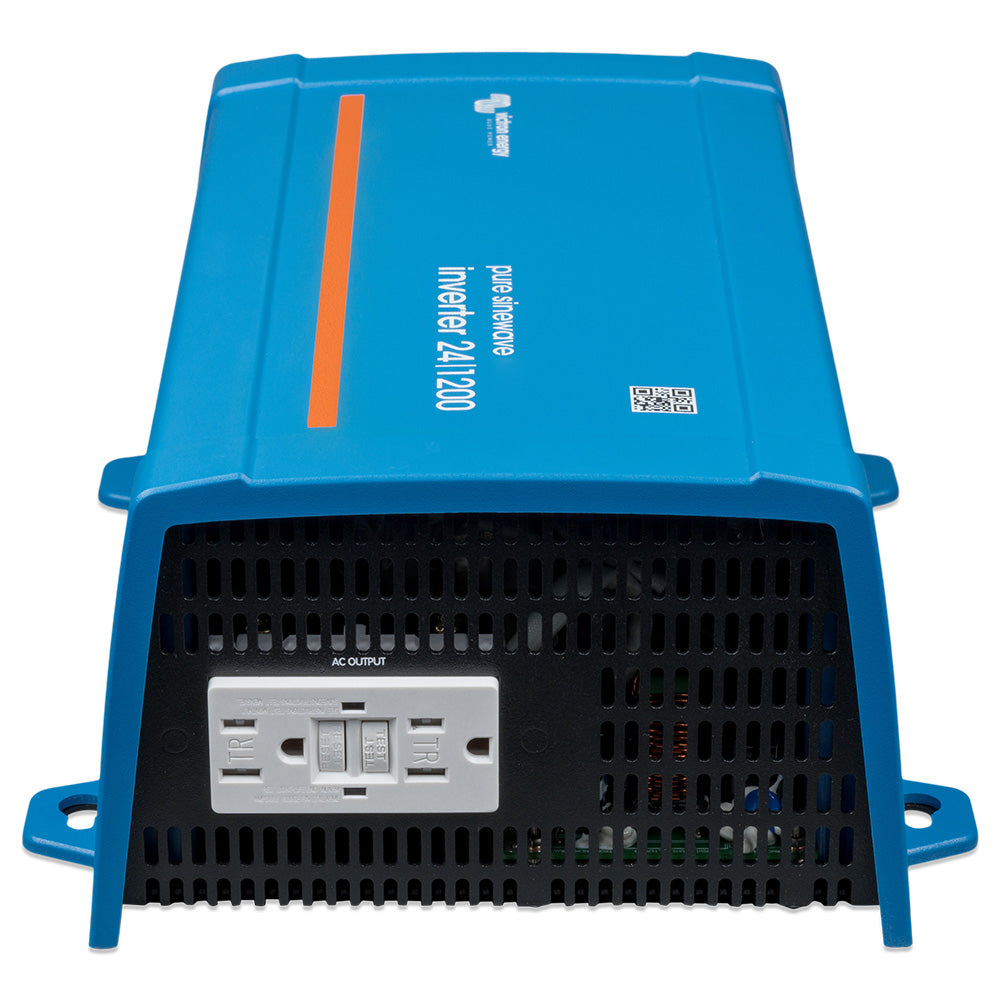

NEMA GFCI AC outlet

This North American model features a NEMA GFCI receptacle for convenient connection of compatible 120V equipment. The GFCI configuration provides an important safety feature for marine, RV and mobile electrical applications.

For marine installations, the GFCI configuration is designed to support applications requiring compliance with applicable ABYC electrical standards.

VE.Direct communication

The integrated VE.Direct communication interface provides additional monitoring and configuration capabilities when used with compatible Victron Energy accessories. This allows the Phoenix Inverter to integrate into Victron-based battery and energy systems while providing greater visibility into inverter operation.

High peak power capability

With up to 2200W peak power, the Phoenix Inverter provides the additional startup capacity required by many compatible AC loads. This is useful for equipment that temporarily draws substantially more power during startup than during normal operation.

High-efficiency operation

Maximum efficiency of up to 91% helps make effective use of stored battery energy. Zero-load consumption is approximately 8W, making the inverter suitable for battery-based systems where efficient energy use is important.

Ideal for marine, RV and off-grid systems

The Victron Phoenix 24/1200 is well suited for boats, marine electrical systems, RVs, motorhomes, campers, off-grid solar installations, remote cabins, mobile vehicles and other applications requiring reliable 120V AC power from a 24V battery bank.

Key features

• Victron Energy Phoenix Inverter 24/1200
• 24V DC battery input
• 120V AC output
• 60Hz output frequency
• Pure sine wave power
• 1200VA continuous capacity at 25°C
• 1000W continuous output at 25°C
• 2200W peak power
• Up to 91% maximum efficiency
• Approximately 8W zero-load consumption
• VE.Direct communication interface
• NEMA GFCI AC receptacle
• UL458 compliant
• Supports battery cable up to 4 AWG
• Ideal for marine, RV and off-grid installations

Technical specifications

• Brand: Victron Energy
• Product line: Phoenix Inverter
• Model: Phoenix Inverter 24/1200 120V
• Product type: Pure Sine Wave Inverter
• Manufacturer part number: PIN242122510
• UPC: 8719076054221
• DC input voltage: 24V
• AC output voltage: 120V
• Output frequency: 60Hz
• Inverter capacity: 1200VA
• Continuous output: 1000W at 25°C
• Peak power: 2200W
• Output waveform: Pure Sine Wave
• Maximum efficiency: 91%
• Zero-load power: 8W
• Communication: VE.Direct
• AC connection: NEMA GFCI receptacle
• Maximum battery cable: 4 AWG
• Weight: 16.3 lbs
• Dimensions: 4.6 x 9.1 x 12.9 inches
• Safety standard: UL458

Recommended applications

• Marine and boat electrical systems
• RV and motorhome power systems
• Campers and travel trailers
• 24V off-grid solar systems
• Battery energy storage systems
• Remote cabins and properties
• Mobile and service vehicles
• Backup battery power systems

The Victron Energy Phoenix Inverter 24V 1200VA 1000W 120V VE.Direct GFCI UL458 combines clean pure sine wave power, 2200W peak capability, VE.Direct communication and a GFCI AC connection in a dependable inverter for 24V battery systems. It is an excellent choice for marine, RV, off-grid and mobile installations requiring efficient and reliable 120V AC power.
