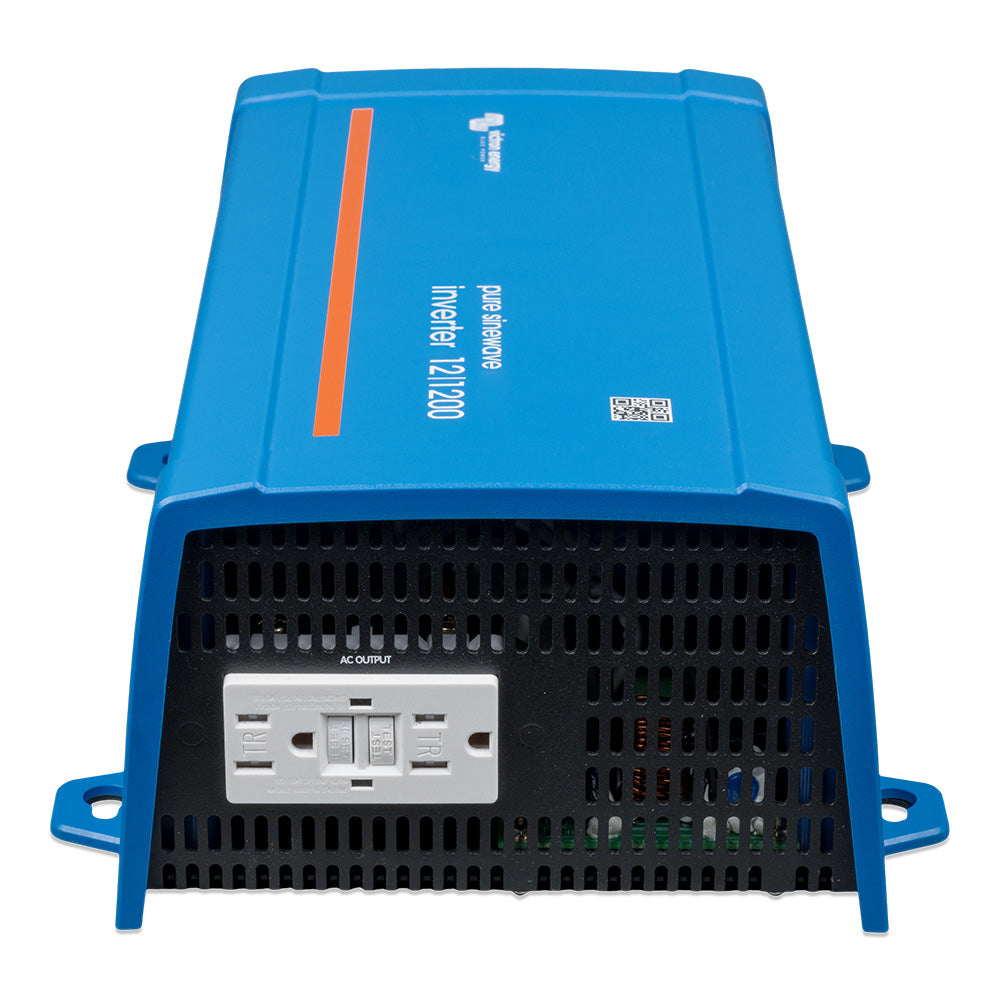

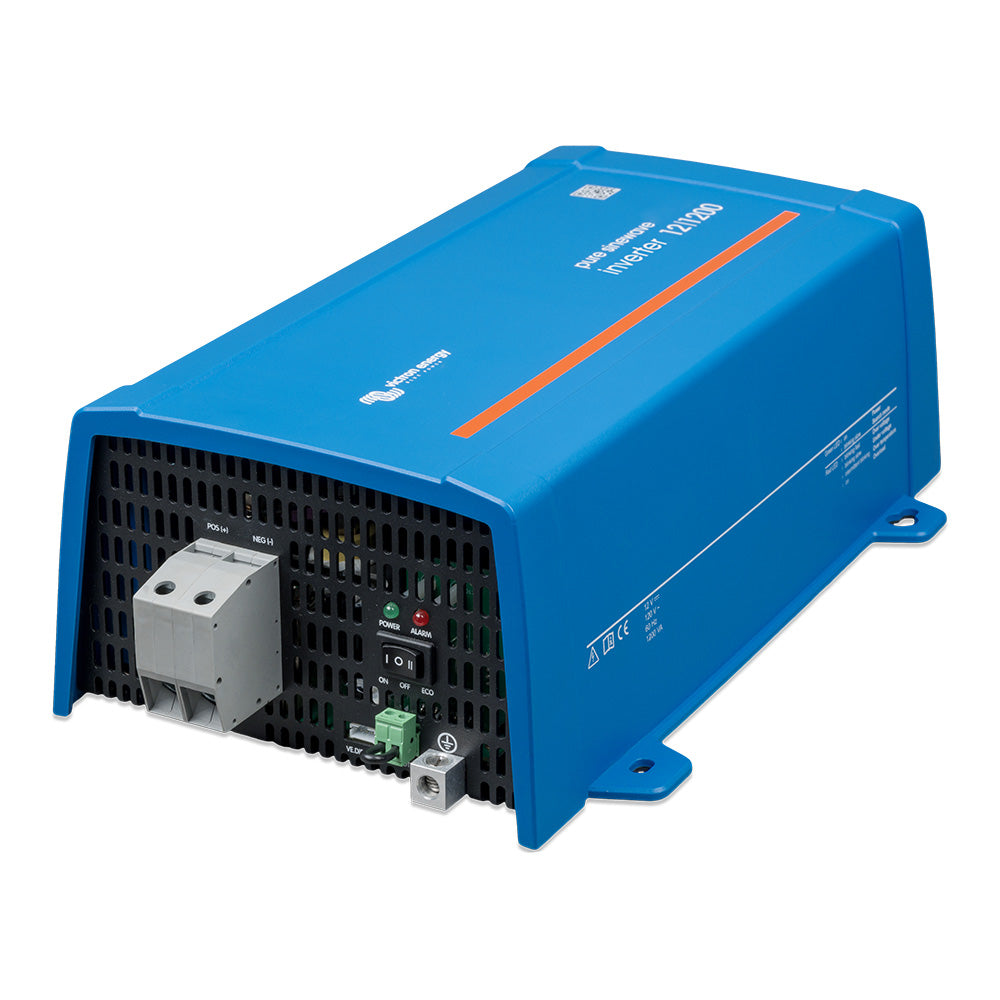

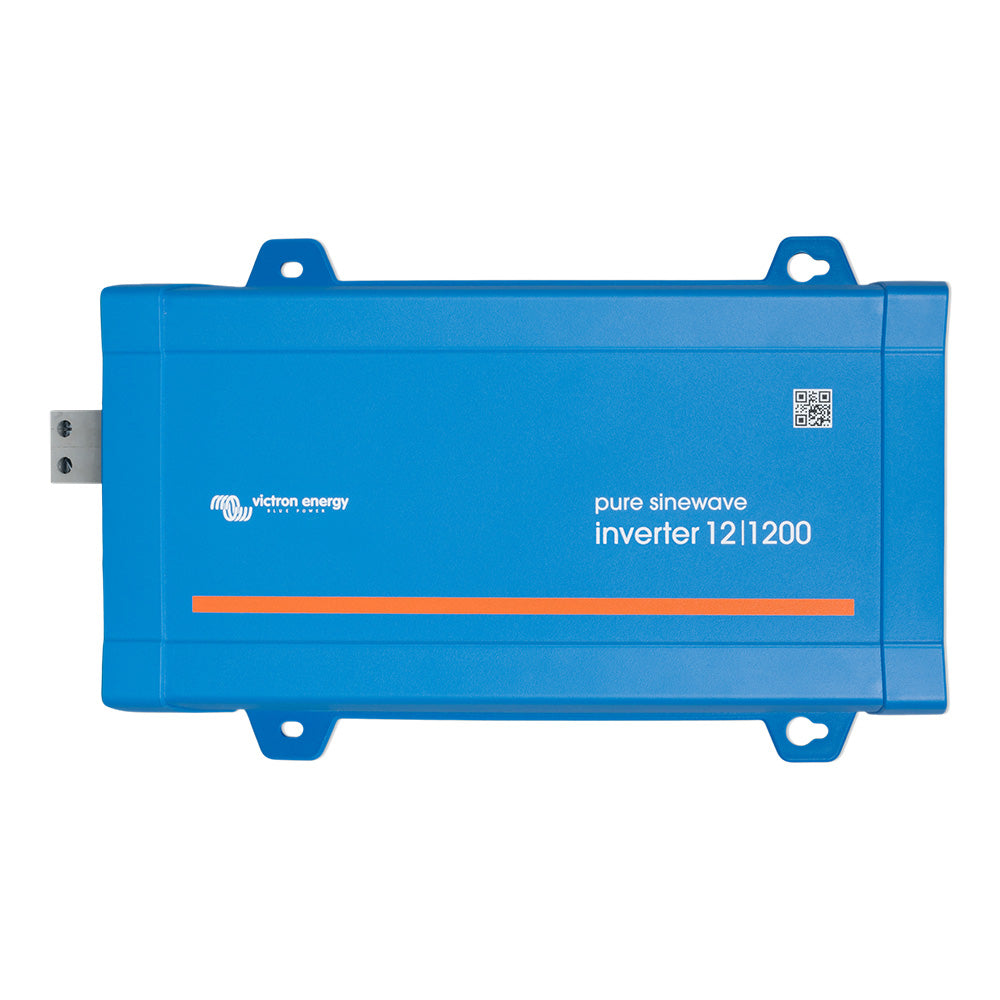

Victron Energy Phoenix Inverter 12V 1200VA 120V Pure Sine Wave VE.Direct GFCI UL 458 PIN122122510

Victron Energy Phoenix Inverter 12V 1200VA 120V Pure Sine Wave VE.Direct NEMA GFCI UL 458 – PIN122122510

The Victron Energy Phoenix Inverter 12/1200 120V is a reliable pure sine wave power inverter designed to convert 12V DC battery power into clean 120V AC electricity for RV, marine, camper, off-grid and mobile power systems. Featuring VE.Direct communication, a NEMA GFCI duplex outlet and UL 458 compliance, this Phoenix inverter is engineered for demanding applications requiring dependable AC power from a 12V battery bank.

Victron's proven full-bridge plus toroidal transformer design provides excellent reliability, high startup capability and stable pure sine wave output for electronics, appliances, tools, lighting and other AC equipment.

12V DC to 120V pure sine wave power

The Phoenix Inverter converts power from a 12V battery system into 120V AC pure sine wave electricity. Clean sine wave output makes it suitable for sensitive electronics as well as common household and mobile AC equipment.

NEMA GFCI duplex outlet and UL 458

This model features a convenient NEMA GFCI duplex AC outlet for North American applications and is built to the UL 458 safety standard. The GFCI configuration makes this model particularly suitable for RV, marine and mobile installations requiring a North American 120V AC connection.

VE.Direct communication

The integrated VE.Direct port provides monitoring and configuration options using compatible Victron Energy accessories. Monitor input and output voltage, inverter load and alarms, while accessing configurable operating parameters.

Wireless monitoring from compatible smartphones and tablets is available when the inverter is used with a compatible VE.Direct Bluetooth Smart dongle.

Fully configurable operation

The Phoenix Inverter provides extensive configuration options, including low-battery alarm levels, low-voltage cut-off and restart levels, dynamic load-dependent cut-off, AC output settings, frequency and ECO Mode operation. These controls allow the inverter to be configured for specific battery systems and power requirements.

ECO Mode for lower power consumption

When ECO Mode is enabled, the inverter can switch to standby when the connected AC load drops below a preset level. It periodically checks for increased demand and automatically resumes continuous operation when the load exceeds the configured threshold, helping reduce unnecessary battery consumption.

High startup power

High startup capability helps the Phoenix Inverter operate loads that require additional power during startup, including certain electric tools, lighting equipment and electronic power converters.

Built-in protection and reliable construction

The inverter is protected against output short circuits, overload, excessive battery voltage, low battery voltage, high operating temperature and excessive DC ripple. Fan-assisted cooling supports operation in demanding environments.

Key features

• Victron Energy Phoenix Inverter 12/1200
• 12V DC battery input
• 120V AC pure sine wave output
• 1200VA inverter class
• VE.Direct communication port
• NEMA GFCI duplex AC outlet
• UL 458 compliant
• High startup power capability
• Configurable low-battery protection
• Dynamic low-voltage cut-off
• Configurable ECO Mode
• Remote on/off capability
• LED diagnostic indicators
• Short-circuit and overload protection
• Over-temperature protection
• IP21 protection category

Technical specifications

• Brand: Victron Energy
• Product line: Phoenix Inverter
• Model: Phoenix Inverter 12/1200 120V
• Manufacturer part number: PIN122122510
• UPC: 8719076054207
• DC system voltage: 12V
• AC output: 120V
• Output waveform: Pure Sine Wave
• Communication: VE.Direct
• AC outlet: NEMA 5-15R GFCI
• Maximum cable size: 10mm² / AWG 8
• Battery connection: Screw terminals
• Protection rating: IP21
• Operating temperature: -40°C to +65°C
• Weight: 5.3 lbs / 2.4 kg
• Dimensions: 3.4 x 6.5 x 10.2 in
• Safety standard: UL 458

Recommended applications

• RV and motorhome power systems
• Marine and boat electrical systems
• Campers and travel trailers
• 12V off-grid battery systems
• Solar battery installations
• Mobile and service vehicles
• Remote cabins and backup power systems

The Victron Energy Phoenix Inverter 12V 1200VA 120V VE.Direct GFCI UL 458 combines pure sine wave output, VE.Direct monitoring, configurable ECO Mode, high startup capability and a NEMA GFCI duplex outlet in a compact professional inverter. Designed for 12V battery systems, it is an excellent choice for RV, marine, camper, off-grid and mobile applications requiring reliable 120V AC power.
