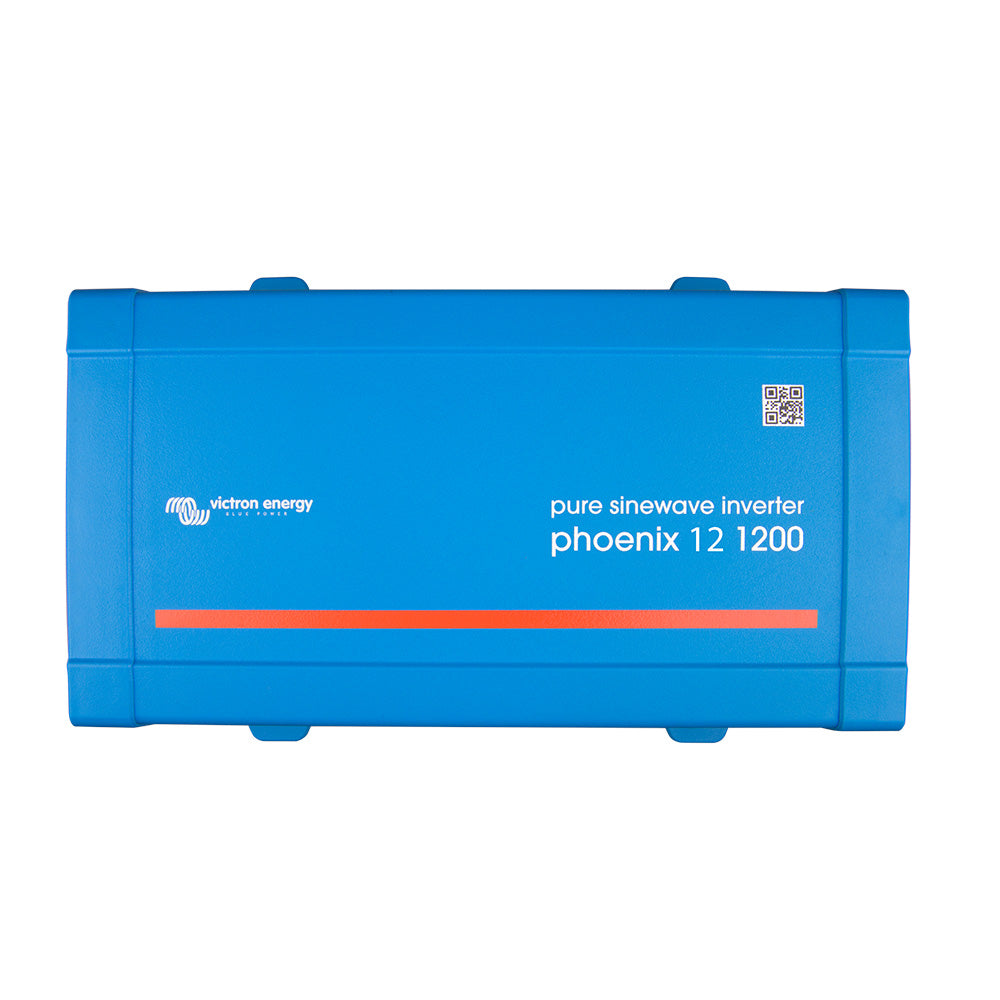

Victron Energy Phoenix Inverter 12V 1200VA 120V Pure Sine Wave VE.Direct ECO Mode PIN122122500

Victron Energy Phoenix Inverter 12V 1200VA 120V Pure Sine Wave VE.Direct – PIN122122500

The Victron Energy Phoenix Inverter VE.Direct 12V 1200VA 120V is a professional pure sine wave inverter designed to convert 12V DC battery power into clean, stable 120V AC electricity. Featuring 1200VA inverter capacity, VE.Direct communication, high startup power, configurable ECO Mode and advanced battery protection, the Phoenix Inverter is an excellent choice for RV, marine, camper, off-grid solar, mobile and backup power systems.

Built with Victron Energy's proven full-bridge and toroidal transformer technology, the Phoenix 12/1200 provides dependable AC power for compatible appliances, electronics, tools, lighting and other equipment operating from a 12V battery bank.

12V DC to 120V pure sine wave power

The Phoenix Inverter converts 12V DC battery power into 120V AC pure sine wave electricity. Its clean sine wave output provides stable power for sensitive electronics and other AC equipment requiring consistent voltage and frequency.

This makes the inverter ideal for battery-powered electrical systems in RVs, motorhomes, boats, campers, off-grid properties and mobile applications.

1200VA inverter capacity

With a 1200VA inverter rating, the Phoenix 12/1200 provides reliable AC power for a wide range of compatible equipment. High startup power helps support loads that require additional energy when initially switched on, including certain electric tools, lighting systems and electronic power converters.

VE.Direct communication

The integrated VE.Direct port provides monitoring and configuration capabilities when used with compatible Victron Energy accessories. Users can monitor input voltage, output voltage, load percentage and inverter alarms while configuring important operating parameters.

The inverter can connect to a computer using a compatible VE.Direct to USB interface cable. Smartphones and tablets can also access compatible monitoring functions when used with a VE.Direct Bluetooth Smart dongle.

Fully configurable inverter settings

The Phoenix Inverter provides extensive configuration options for different battery systems and operating requirements. Adjustable settings include low-battery alarm and reset levels, low-voltage cut-off and restart levels, dynamic load-dependent cut-off, AC output settings, frequency and ECO Mode parameters.

ECO Mode for improved battery efficiency

When ECO Mode is enabled, the inverter can automatically enter standby when the connected AC load falls below a preset level. The inverter periodically checks for increased power demand and returns to continuous operation when the connected load exceeds the configured threshold.

This feature helps reduce unnecessary battery consumption when AC equipment is not actively drawing significant power.

Proven reliability and built-in protection

The full-bridge plus toroidal transformer design provides dependable operation in demanding battery-powered applications. Integrated protection safeguards the inverter against output short circuits and overheating caused by overload or high ambient temperatures.

Remote on/off capability

A compatible remote on/off switch can be connected to the inverter, allowing convenient control when the Phoenix is installed in a compartment or another location that is not easily accessible.

Key features

• Victron Energy Phoenix Inverter 12/1200
• 12V DC battery input
• 1200VA inverter capacity
• 120V AC pure sine wave output
• VE.Direct communication port
• High startup power capability
• Configurable low-battery alarm
• Adjustable low-voltage cut-off and restart
• Dynamic load-dependent cut-off
• Configurable 50Hz or 60Hz frequency
• Energy-saving ECO Mode
• Adjustable ECO Mode sense level
• Remote on/off capability
• Input and output voltage monitoring
• Load percentage and alarm monitoring
• Short-circuit protection
• Over-temperature protection
• Screw-terminal DC connections

Technical specifications

• Brand: Victron Energy
• Product line: Phoenix Inverter
• Model: Phoenix Inverter VE.Direct 12/1200
• Product type: Pure Sine Wave Power Inverter
• Manufacturer part number: PIN122122500
• UPC: 8719076054191
• DC input voltage: 12V
• Inverter capacity: 1200VA
• AC output voltage: 120V
• Output waveform: Pure Sine Wave
• Frequency: 50Hz or 60Hz configurable
• Communication: VE.Direct
• DC connection: Screw terminals
• Remote on/off: Yes
• ECO Mode: Yes, configurable

Recommended applications

• RV and motorhome power systems
• Marine and boat electrical systems
• Campers and travel trailers
• 12V off-grid solar systems
• Deep-cycle battery banks
• Remote cabins and properties
• Mobile and service vehicles
• Backup battery power systems

The Victron Energy Phoenix Inverter VE.Direct 12V 1200VA 120V combines clean pure sine wave output, VE.Direct monitoring, high startup capability, configurable ECO Mode and advanced battery protection in a reliable inverter for 12V systems. It is an excellent choice for RV, marine, off-grid solar and mobile installations requiring dependable 120V AC power.
