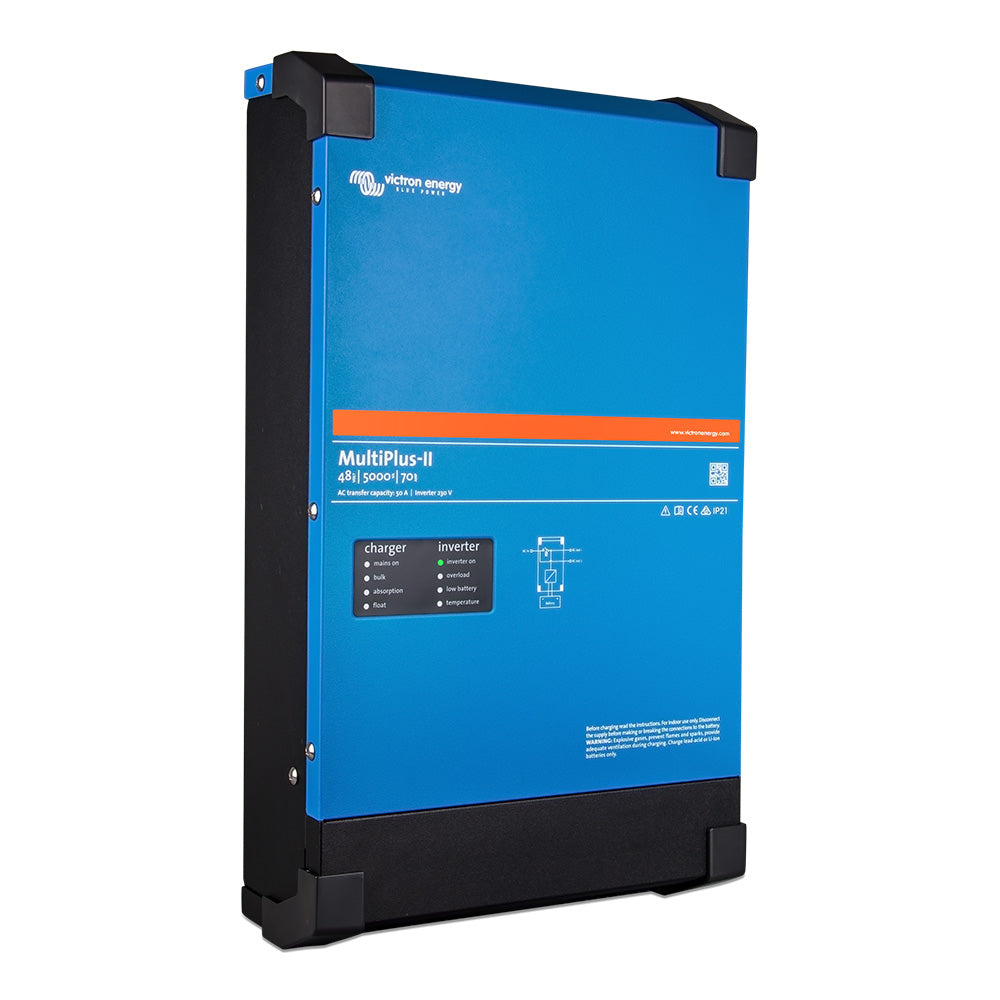

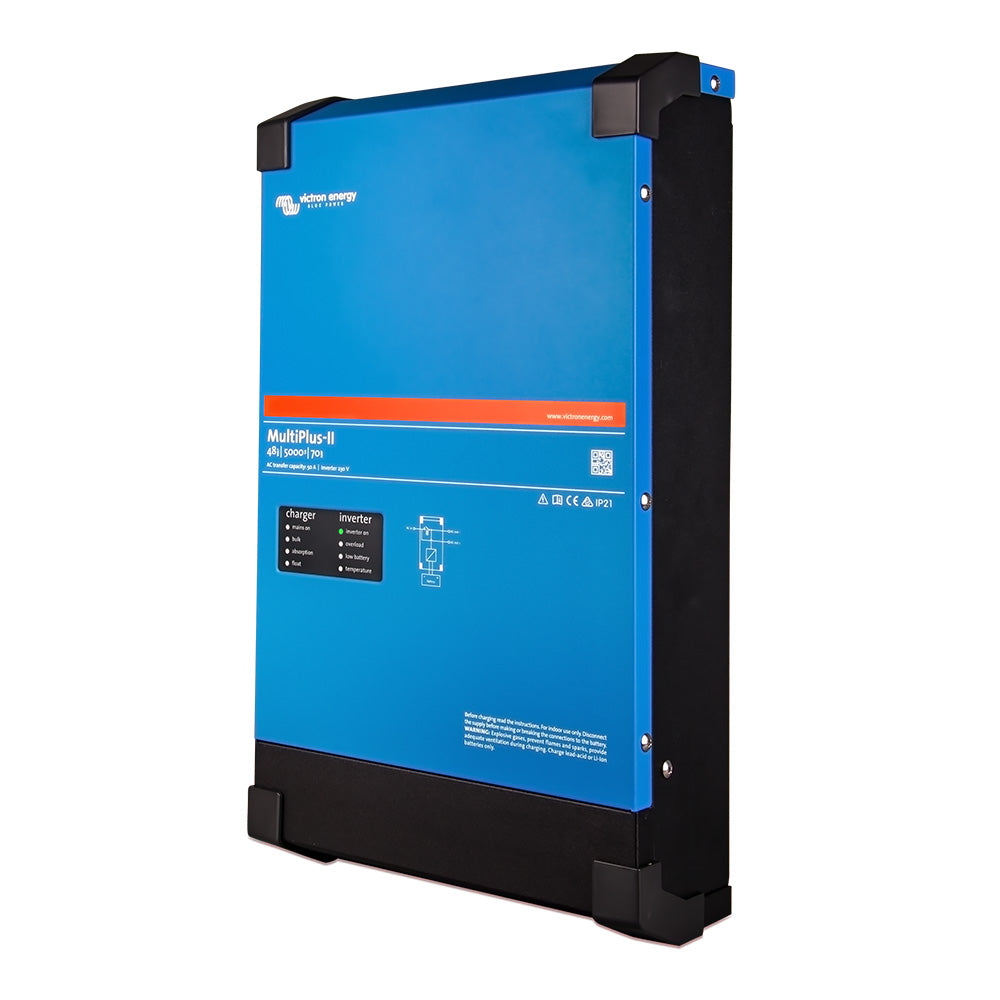

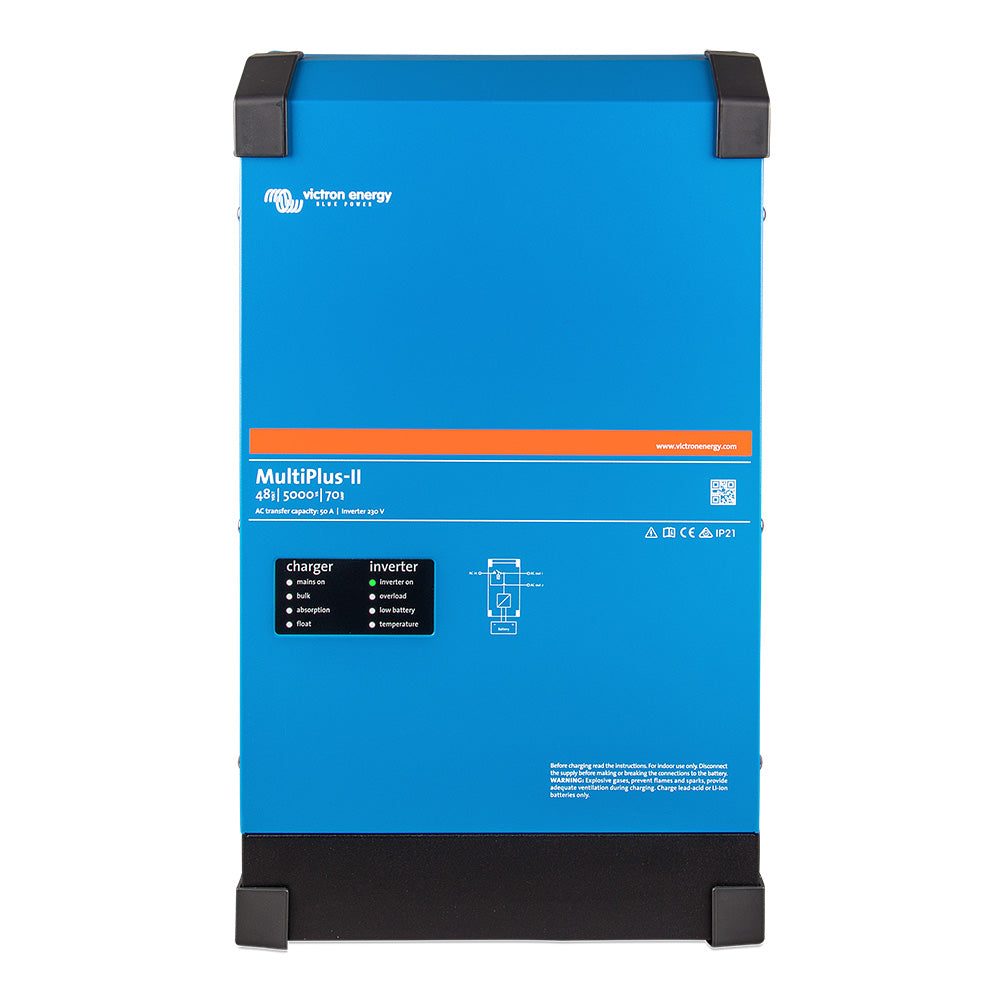

Victron Energy MultiPlus-II 48V 5000VA 4000W Inverter Charger 120V 70A 95A Transfer Switch VE.Bus

Victron Energy MultiPlus-II 48V 5000VA 4000W Inverter Charger 120V 70A VE.Bus

The Victron Energy MultiPlus-II 48V 5000VA Inverter Charger combines a pure sine wave inverter, high-performance battery charger, and advanced AC transfer switch into one powerful energy management solution. Designed for off-grid, backup power, RV, marine, and solar energy storage systems, the MultiPlus-II delivers reliable 120V AC power while intelligently managing battery charging and shore or generator input.

Featuring PowerAssist and PowerControl technology, the MultiPlus-II automatically supplements limited shore power or generator capacity with battery power during peak demand while preventing overloads. Once demand decreases, surplus power is redirected to recharge your battery bank.

The integrated 95A transfer switch provides seamless power transfer in less than 20 milliseconds, ensuring uninterrupted operation of sensitive electronics, computers, networking equipment, and essential appliances during utility or generator outages.

Designed for complete energy independence, the MultiPlus-II works seamlessly with Victron MPPT solar charge controllers, lithium batteries, and Energy Storage Systems (ESS). It supports parallel, split-phase, and three-phase configurations, allowing your system to grow as power requirements increase.

Key Features

• 5000VA pure sine wave inverter with 4000W continuous output
• 48V DC battery system with 120V AC output
• Integrated 70A adaptive battery charger
• 95A automatic transfer switch with uninterrupted power transfer
• PowerAssist and PowerControl prevent generator and shore power overload
• Compatible with lithium, AGM, GEL, and lead-acid battery banks
• Works with off-grid, backup, RV, marine, and solar power systems
• Supports Victron Energy Storage Systems (ESS)
• Compatible with MPPT solar charge controllers and grid-tie inverters
• Dual AC outputs for critical and non-critical loads
• Expandable with parallel operation up to 6 units
• Supports split-phase 240V and three-phase installations
• VE.Bus communication for advanced monitoring and system integration
• Remote monitoring through GX devices and Victron VRM platform
• Fan-assisted cooling with high-efficiency operation up to 96%

Specifications

• Manufacturer: Victron Energy
• Model: MultiPlus-II
• Manufacturer Part Number: PMP482505110
• UPC: 8719076058465
• DC Input Voltage: 48V (39-66 VDC)
• AC Output: 120 VAC ±2%, 60Hz
• Continuous Power: 5000VA / 4000W
• Peak Power: 9000W
• Battery Charger Output: 70A
• Transfer Switch: 95A
• Maximum Efficiency: 96%
• Battery Connection: M8 Bolts
• Communication: VE.Bus
• Protection Rating: IP22
• Operating Temperature: -40°C to +65°C
• Dimensions: 676 × 330 × 164 mm (26.6 × 13.0 × 6.5 in)
• Weight: 32 kg (71 lb)

Ideal Applications

The Victron Energy MultiPlus-II is engineered for residential backup power, off-grid solar installations, RV electrical systems, marine vessels, cabins, tiny homes, commercial energy storage, and other demanding power applications requiring reliable inverter, battery charging, and automatic AC power management.
