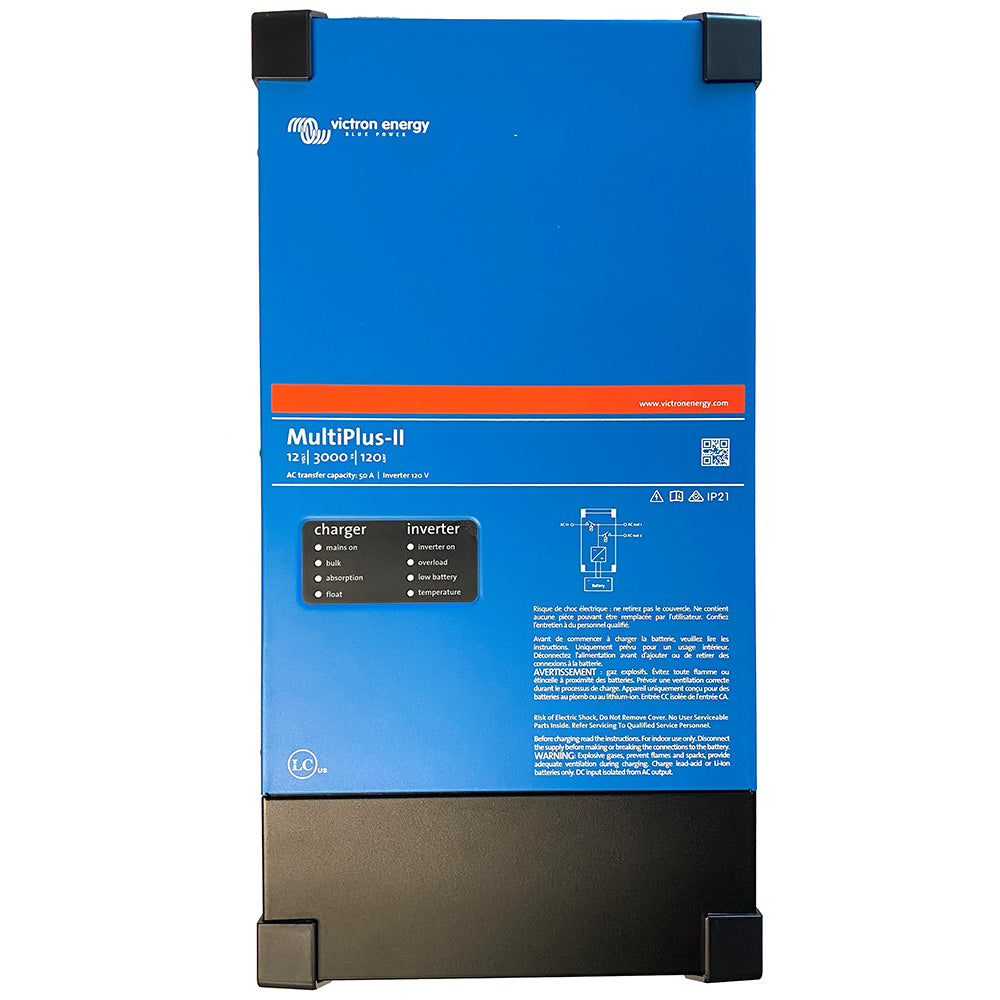

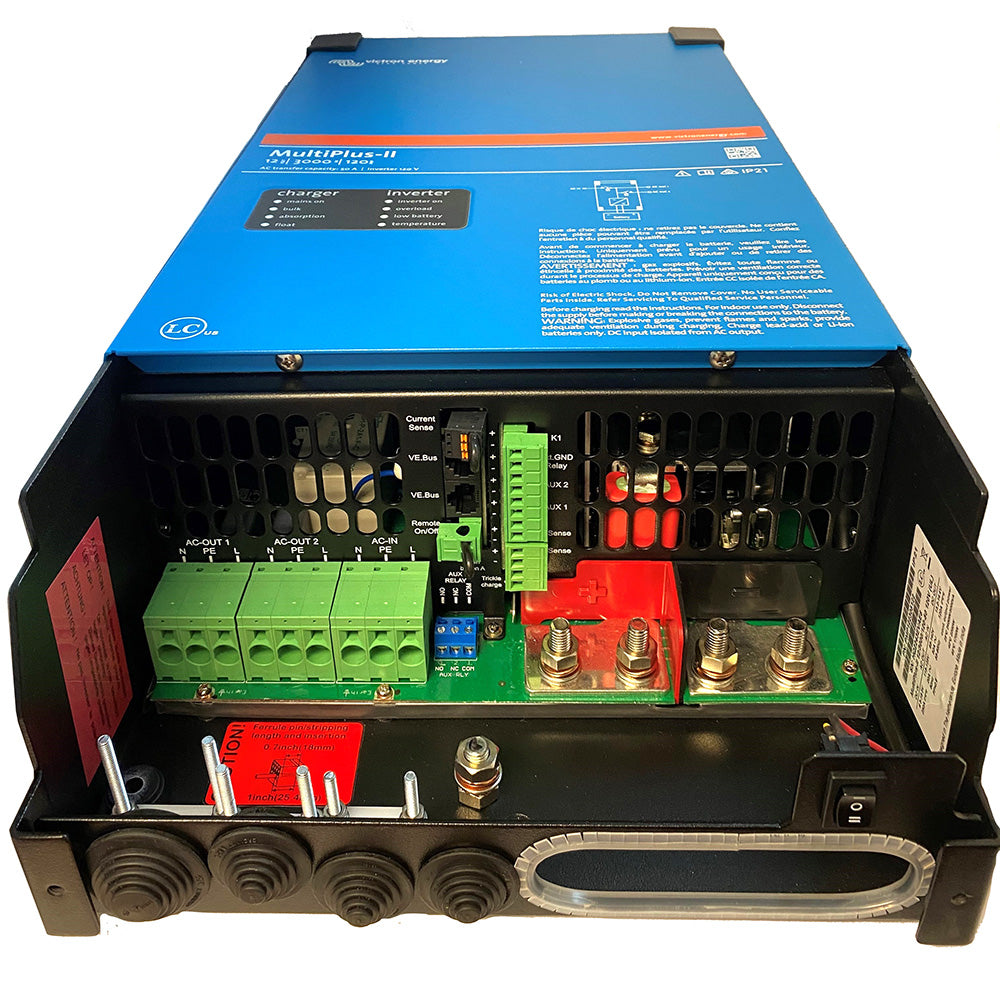

Victron Energy MultiPlus-II 12/3000 120V Inverter Charger – 3000VA, 120A Charger, 50A Transfer Switch

The Victron Energy MultiPlus-II 12/3000 120V is an all-in-one pure sine wave inverter and battery charger for off-grid, marine, RV, backup power and energy storage applications. It combines a 3000 VA inverter, a 120 A integrated battery charger and a 50 A transfer switch in one unit, with intelligent charging and system integration.

PowerAssist and PowerControl

The MultiPlus-II prevents overload when you are connected to a limited AC source such as a generator, shore power or the grid. PowerControl automatically adjusts battery charging to prevent excessive demand, and PowerAssist supplements the available AC power with battery energy when more power is needed.

Built-In UPS Backup Power

If grid, generator or shore power fails, the MultiPlus-II switches automatically to inverter mode. The fast transfer time keeps sensitive electronics, computers and equipment running without interruption.

Energy Storage System (ESS) Compatible

The MultiPlus-II works with Victron solar charge controllers, lithium battery systems and grid-connected solar applications as a core component of an energy storage system.

Parallel, Split-Phase and Three-Phase Operation

Connect multiple MultiPlus-II units to increase available power. Parallel, split-phase and three-phase configurations suit residential backup power, commercial installations and large off-grid systems.

Remote Monitoring and Control

With a Victron GX device, you can monitor and control your power system locally or remotely from a smartphone, tablet or computer. Adjust settings, monitor battery performance, view system status and manage connected equipment. A built-in battery temperature sensor and a programmable relay for alarms and generator control are included.

Ideal Applications

RV power systems, marine electrical systems, off-grid solar installations, lithium battery banks, backup power solutions, and residential energy storage systems.

Specifications

• Brand: Victron Energy
• Model: MultiPlus-II 12/3000 120V
• Manufacturer Part No: PMP122305122
• DC Input Voltage: 9.5-17 V
• Continuous Power Output: 3000 VA / 2400 W
• Peak Power: 5500 W
• Maximum Efficiency: 93%
• Battery Charge Current: 120 A
• AC Output Voltage: 120 V
• AC Input Voltage: 90-140 VAC
• Transfer Switch: 50 A
• Waveform: Pure sine wave
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Weight: 9 kg (19.8 lbs)
• Temperature Sensor: Built-in
• Programmable Relay: Yes
