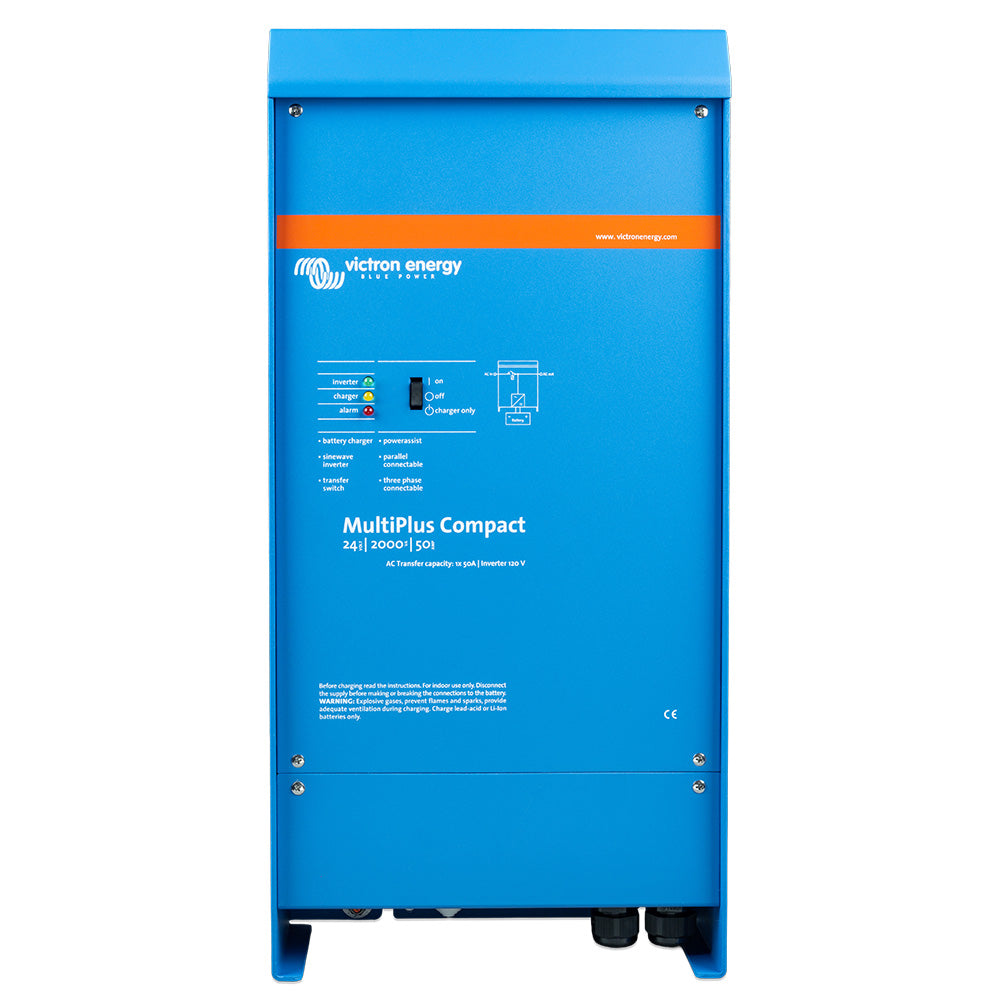

Victron Energy MultiPlus 24V 2000VA 1600W 120V UL458 Pure Sine Wave Inverter Charger, 50A Battery Charger, 50A Transfer Switch, VE.Bus, PMP242200102

The Victron Energy MultiPlus 24V 2000VA 120V UL458 Inverter Charger (Model 24/2000/50-50 120V VE.Bus, MPN PMP242200102) combines a pure sine wave inverter, a 50A adaptive battery charger, and a 50A high-speed automatic transfer switch in one compact unit. Built for off-grid, marine, RV, emergency backup, and energy storage applications, this UL458 certified 24 volt inverter charger delivers dependable 120VAC power while intelligently managing battery charging and available shore or generator power.

UL458 Certified 24V Inverter Charger

UL458 certification makes the MultiPlus well suited for demanding mobile, RV, marine, and off-grid installations. It provides 2000VA / 1600W of continuous pure sine wave power with 4000W peak surge capacity and up to 94% efficiency.

50A Four-Stage Adaptive Battery Charger

The integrated 50A adaptive charger delivers fast, efficient four-stage charging for 24V lead-acid and compatible lithium battery systems, maximizing performance and extending battery life. A dedicated 4A starter battery output provides independent trickle charging for engine or generator starting batteries.

PowerAssist and PowerControl for Generators and Shore Power

PowerControl automatically limits battery charging to prevent overloading generators or shore power connections. During periods of high demand, PowerAssist supplements the AC source with battery power.

UPS Backup and Dual AC Outputs

The high-speed automatic transfer switch provides uninterrupted UPS operation with transfer times under 20 milliseconds, protecting computers, electronics, and other sensitive equipment during outages. The primary output supplies uninterrupted backup power, while the secondary output powers non-critical loads only when external AC power is available.

Parallel, Split-Phase, and Three-Phase Expansion

Up to six MultiPlus units can operate in parallel for increased inverter capacity. Split-phase 120/240V installations are supported using stacked units or compatible autotransformers, and multiple units can be configured for three-phase commercial and industrial systems.

VE.Bus Communication and System Control

VE.Bus communication enables advanced system integration, remote monitoring, and expansion. A programmable relay supports generator auto-start, alarm functions, and lithium battery BMS communication.

Key Features

• 24V 2000VA / 1600W pure sine wave inverter, 4000W peak
• 50A four-stage adaptive battery charger
• 120VAC output
• UL458 certified
• 50A automatic transfer switch with UPS transfer under 20 ms
• PowerAssist and PowerControl technology
• Dual AC outputs for critical and non-critical loads
• 4A starter battery trickle charge output
• Parallel operation with up to six units
• Split-phase 120/240V and three-phase capable
• VE.Bus communication and remote monitoring
• Programmable relay and remote on/off

Protection Features

• Output short circuit protection
• Overload protection
• High and low battery voltage protection
• Over temperature protection
• High AC output voltage protection
• Input voltage ripple protection

Applications

• Off-grid solar power systems
• Residential backup power
• RV and motorhome electrical systems
• Boats and marine power systems
• Emergency backup power
• Remote cabins
• Commercial mobile power
• Battery energy storage systems

Specifications

What's Included

• Victron Energy MultiPlus 24/2000/50-50 120V VE.Bus Inverter Charger
• Installation documentation

The UL458 certified Victron
