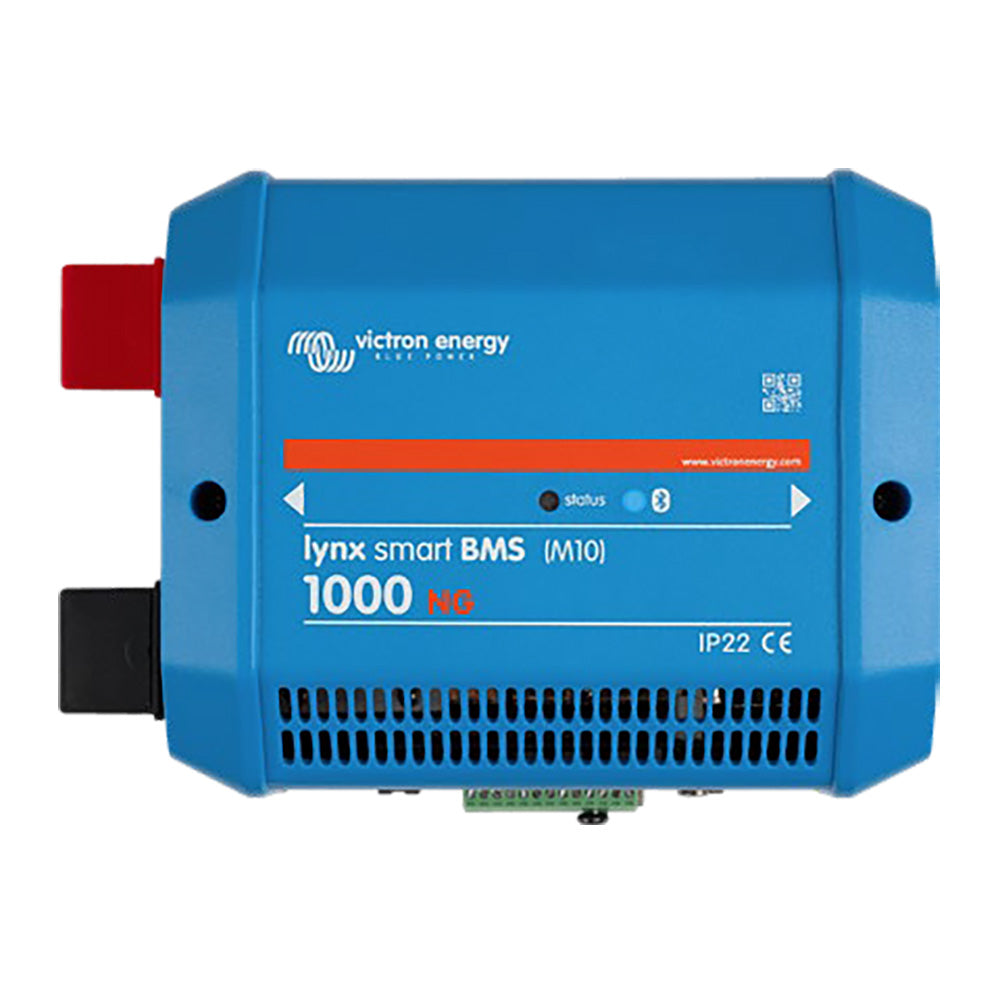

Victron Energy Lynx Smart BMS NG 1000 M10 Battery Management System | Lithium NG BMS | LYN034170310

Victron Energy Lynx Smart BMS NG 1000 M10 Battery Management System | Lithium NG BMS | LYN034170310

The Victron Energy Lynx Smart BMS NG 1000 M10 is the most advanced Battery Management System (BMS) for Victron Lithium NG (LiFePO4) Batteries. Designed for demanding off-grid solar, energy storage systems (ESS), marine, RV, commercial, and industrial applications, this intelligent BMS delivers comprehensive battery protection, real-time monitoring, advanced system automation, and seamless integration with the Victron Energy ecosystem.

Featuring a powerful 1000A built-in contactor, integrated pre-charge circuit, Bluetooth connectivity, VE.Can communication, GX device compatibility, DVCC closed-loop control, and Lynx Distributor fuse monitoring, the Lynx Smart BMS NG provides professional-grade lithium battery management for high-capacity battery banks up to 384kWh.

Key Features

• Designed for Victron Lithium NG Batteries – Fully compatible with Victron Lithium NG 12.8V, 25.6V, and 51.2V LiFePO4 batteries.
• 1000A Integrated Safety Contactor – High-current contactor functions as a secondary safety device while also serving as a remotely controlled main battery disconnect.
• Supports Large Battery Banks – Manage up to 50 Lithium NG batteries in 12V, 24V, or 48V systems with energy storage capacities up to 384kWh.
• Integrated Pre-Charge Circuit – Safely charges capacitive loads such as large inverter chargers before full connection, eliminating the need for external pre-charge devices.
• Advanced Battery Monitoring – Continuously monitors State of Charge (SOC), battery voltage, current, power, historical performance, temperatures, cell voltages, and system diagnostics.
• Bluetooth Smart Built-In – Configure, monitor, and update the BMS wirelessly using the VictronConnect app.
• Instant Readout – View essential battery data instantly without establishing a complete Bluetooth connection.
• GX Device Integration – Fully compatible with Cerbo GX, Ekrano GX, and other Victron GX devices for advanced monitoring and control.
• Victron Remote Management (VRM) – Monitor your entire energy system remotely from anywhere using the VRM Portal.
• DVCC Closed-Loop Control – Automatically controls compatible Victron inverter/chargers, Orion XS DC-DC chargers, and SmartSolar charge controllers for optimized charging performance.
• Allow-to-Charge & Allow-to-Discharge Outputs – Supports external chargers and connected loads using remote on/off control signals.
• Programmable Relay – Configure as an alarm output or alternator control relay with Alternator ATC mode for safe alternator shutdown.
• Integrated AUX Power Output – Provides auxiliary power for critical devices such as GX controllers even after system shutdown.
• VE.Can Communication – High-speed communication using standard RJ45 network connections.
• NMEA 2000 Compatible – Easily integrates into marine electronics networks with an optional VE.Can to NMEA 2000 cable.
• Lynx Distributor Fuse Monitoring – Monitor up to four Lynx Distributor modules and receive fuse failure alerts through VictronConnect or GX devices.
• Modular Lynx System Integration – Compatible with Lynx Distributor, Lynx Power In, and other M10 Lynx products for clean, scalable installations.

Ideal Applications

• Off-Grid Solar Systems
• Residential Energy Storage Systems (ESS)
• Commercial Solar Installations
• Industrial Battery Banks
• Marine & Yacht Electrical Systems
• RV & Motorhome Power Systems
• Backup Power Systems
• Telecommunications Power Systems
• Microgrids & Renewable Energy Projects

Specifications

Why Choose the Victron Lynx Smart BMS NG 1000?

The Victron Lynx Smart BMS NG 1000 M10 is the flagship battery management solution for Victron Lithium NG battery systems. Combining intelligent battery protection, a powerful 1000A safety contactor, integrated pre-charge circuitry, Bluetooth monitoring, GX and VRM connectivity, DVCC closed-loop charging control, and modular Lynx integration, it delivers the highest level of safety, performance, and expandability available in the Victron ecosystem.

Whether you're building a residential ESS, off-grid solar installation, marine electrical system, or large commercial battery bank, the Lynx Smart BMS NG provides the advanced control and reliability required for professional energy storage applications.

Package Includes

• Victron Energy Lynx Smart BMS NG 1000 M10 Battery Management System
• Installation Documentation

Product Information

Brand: Victron Energy

Model: Lynx Smart BMS NG 1000 M10

Manufacturer Part Number: LYN034170310

UPC: 8719076063568
