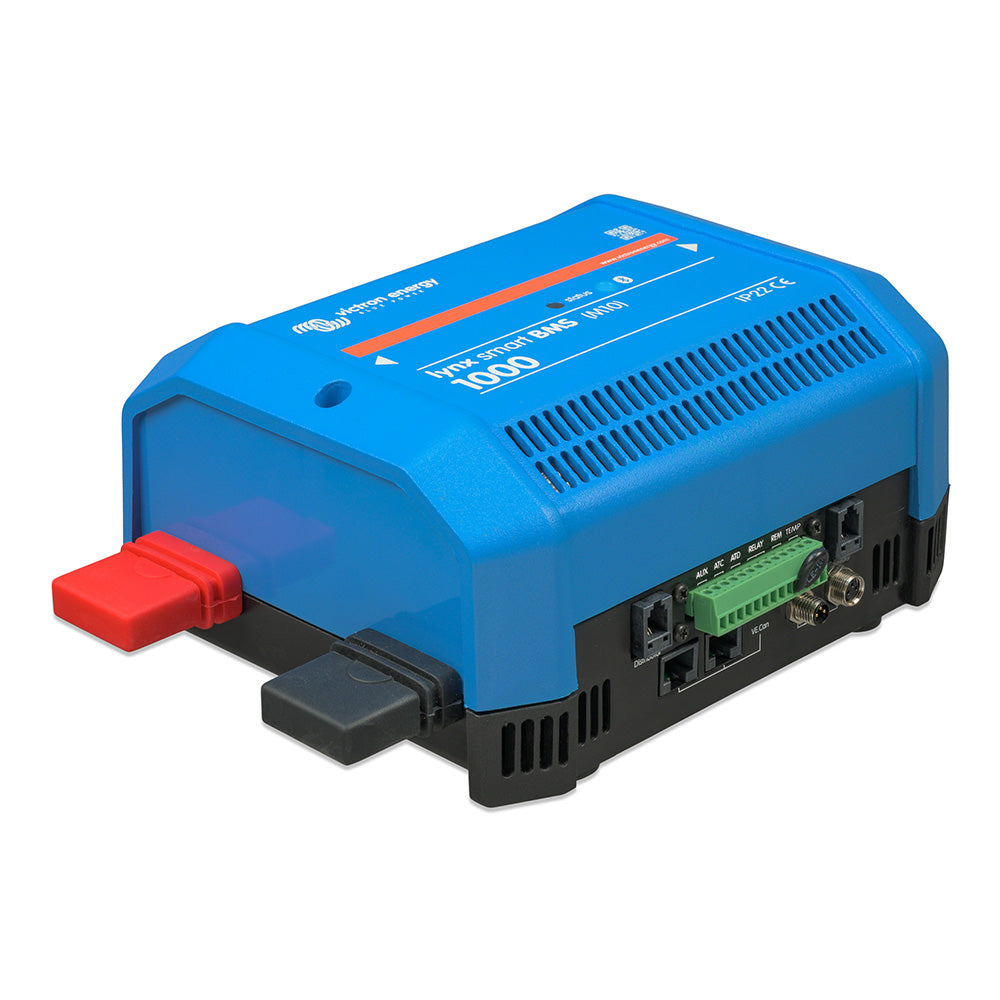

Victron Energy Lynx Smart BMS 1000A (M10) Battery Management System for Lithium Smart LiFePO4 Batteries

The Victron Lynx Smart BMS 1000A (M10) is a battery management system designed specifically for Victron Lithium Smart LiFePO4 batteries. Built for marine, RV, off-grid, backup power and industrial energy storage systems, it combines battery protection, monitoring and system communication in one unit. It supports 12 V, 24 V and 48 V battery banks wired in series, parallel or series/parallel, with up to 20 Victron Lithium Smart batteries.

1000A Contactor and Pre-Charge Circuit

The built-in 1000 A continuous contactor protects the system and works as a remote main battery disconnect. The integrated pre-charge circuit limits high inrush current when powering large inverters, such as Victron MultiPlus and Quattro inverter/chargers.

Built-In Battery Monitor

The integrated battery monitor shows state of charge (SOC), battery voltage, current, power, historical performance and real-time system status.

Bluetooth, VE.Can and Remote Monitoring

• Bluetooth: wireless setup, diagnostics, firmware updates and monitoring through the VictronConnect app
• VE.Can: connects directly to Cerbo GX and other GX devices for system management and remote monitoring
• VRM Portal: worldwide access to system performance, battery health, alarms and operating history
• NMEA 2000: compatible via VE.Can for marine electronics integration
• DVCC closed-loop control: automatically manages compatible Victron inverter/chargers and solar charge controllers for optimal charging

Flexible Control and Power Outputs

• Programmable relay output: configurable for alarms or alternator control
• AUX power output: keeps essential devices, such as GX communication equipment, powered during low-voltage shutdown events
• Lynx Distributor fuse monitoring: monitors up to four Lynx Distributor modules with blown fuse notifications

Ideal Applications

Off-grid solar power systems, residential energy storage, marine electrical systems, RV and camper battery systems, commercial backup power, and industrial lithium battery banks.

Specifications

• Brand: Victron Energy
• Model: Lynx Smart BMS 1000A (M10)
• Manufacturer Part No: LYN034170210
• UPC: 8719076057604
• Supported System Voltages: 12 V, 24 V, 48 V
• Battery Voltage Range: 9-60 VDC
• Maximum Input Voltage: 75 VDC
• Main Contactor Rating: 1000 A continuous
• Peak Contactor Rating: 1200 A (5 minutes)
• Battery Support: up to 20 Victron Lithium Smart batteries
• Maximum Energy Storage: up to 102 kWh (24 V and 48 V systems)
• Bluetooth: built-in
• VE.Can Communication: yes
• Battery Monitor: integrated
• Programmable Relay: yes
• AUX Output: 1.1 A continuous
• Protection Rating: IP22
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Busbar Connection: M10
• Dimensions: 230 x 180 x 100 mm (9.1 x 7.1 x 3.9 in)
• Weight: 2.7 kg (6.0 lbs)

Package Includes

• Victron Lynx Smart BMS 1000A (M10)
• Installation documentation
