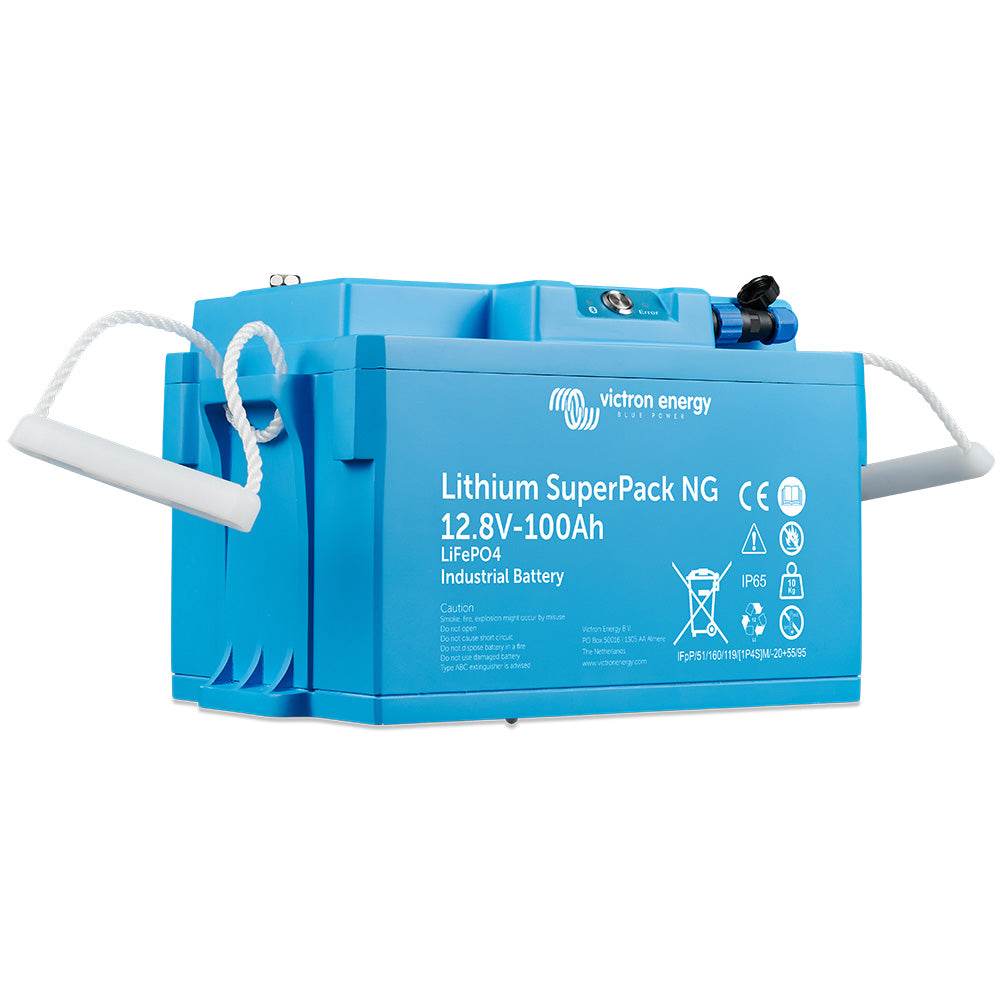

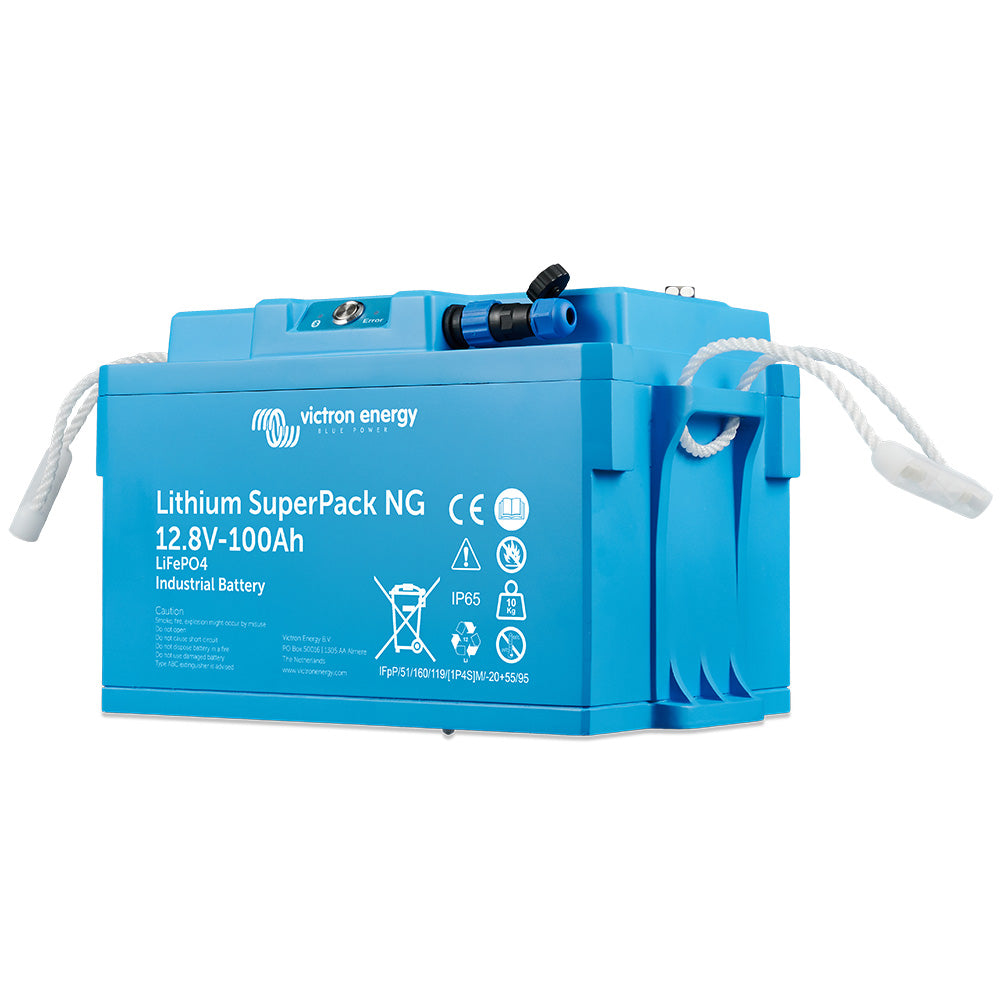

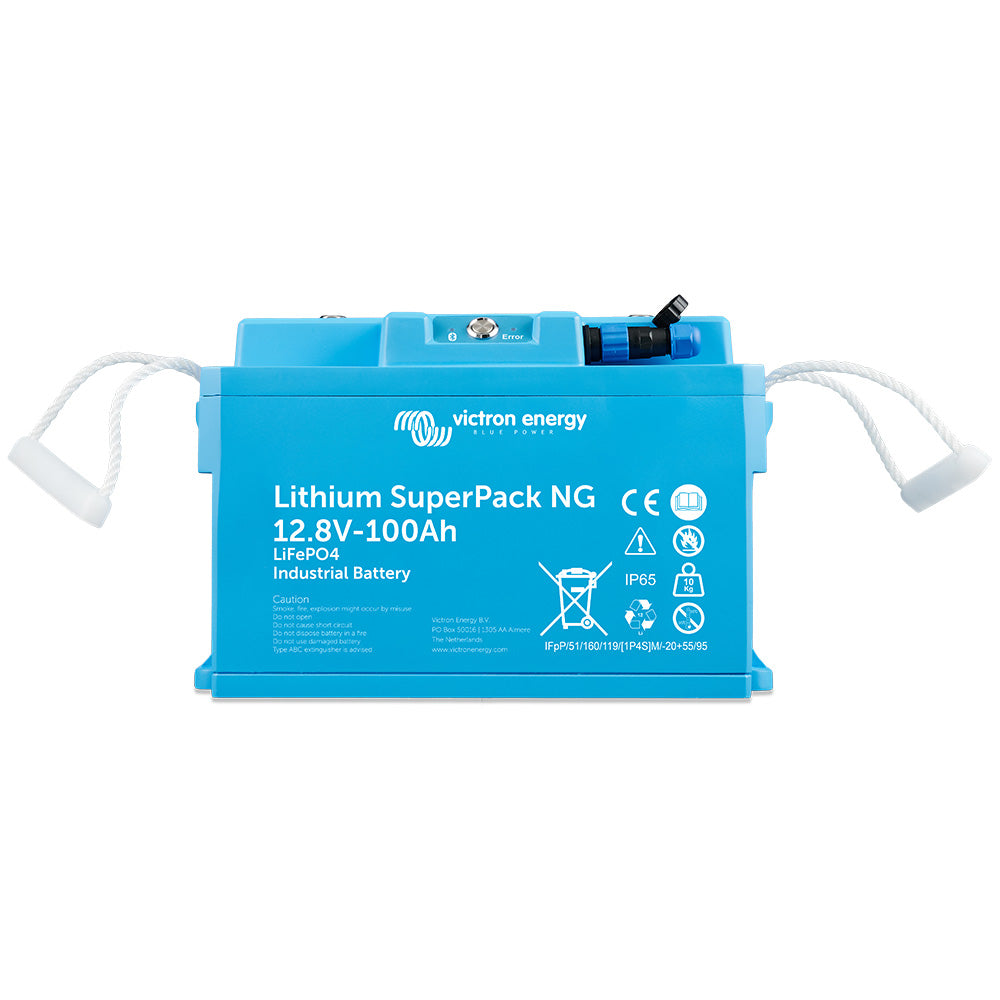

Victron Energy Lithium SuperPack NG 12V 100Ah LiFePO4 Battery

The Victron Energy Lithium SuperPack NG 12V 100Ah is a Lithium Iron Phosphate (LiFePO4) battery designed as a drop-in replacement for lead-acid batteries in mobile, marine and industrial applications. Built for extended off-grid use, it has ample capacity to power a complete electrical system, including high-demand appliances. It installs easily with no additional components, and the internal switch disconnects the battery in case of over-discharge or high temperature.

Built-In Battery Management and Protection

The integrated Battery Management System (BMS) keeps energy flow within the safe operating limits of the battery and your system. A self-resetting circuit breaker can interrupt charging and discharging independently. Certain protection events clear automatically, with multiple recovery attempts for short-circuit and over-current conditions, reducing the need for manual resets after transient faults. Internal cell balancing keeps voltage balanced at the end of charging.

High Continuous Current

Supports continuous discharge currents up to 2C and continuous charge currents up to 1C, so you do not need to oversize the battery pack.

Self-Heating for Cold Weather

The self-heating function keeps the battery above the minimum safe charging temperature for reliable operation in cold environments. Two modes are available:

• Charger mode (default): the connected charger powers the heater, which activates automatically when cell temperature drops below 0 °C during charging
• Auto mode: the battery powers the heater to keep cells above 0 °C for immediate charging, limited by the battery's internal energy and disconnected if state of charge falls below the Low SoC threshold

An internal heat balancer supports optimized thermal management and a wide operating range.

Bluetooth Monitoring and Easy Control

• Bluetooth: real-time monitoring and control through VictronConnect
• On/Off push button: switches the battery on or off, disabling charging and discharging. It can also reset certain protection or lock-in conditions. In the off state the battery enters storage mode with self-discharge of less than 3% per month
• LED status indication: two LEDs show Bluetooth connectivity, warning and alarm conditions, and firmware update status
• External Feedback Signal (EFS): provides a battery voltage signal limited to 250 mA, usable as an External Disconnection Signal for redundant system protection or as an External Charging Signal to trigger a charger start based on the low SoC pre-alarm threshold

Flexible, Rugged Installation

• BCI Group 49 compatible: height dimension fits standard battery compartments
• Mounting brackets included: secure, stable fixing in all three axes
• IP65 enclosure: protection against dust and low-pressure water jets from any direction
• Parallel connection: connect an unlimited number of batteries to increase total energy capacity. Total system current should not exceed the maximum current a single battery can safely interrupt. Series connection is not allowed

Specifications

• Brand: Victron Energy
• Model: Lithium SuperPack NG 12V/100Ah
• Manufacturer Part No: BAT512110740
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12 V (12.8 V)
• Capacity: 100 Ah
• Max Continuous Discharge: up to 2C
• Max Continuous Charge: up to 1C
• Communication: Bluetooth (VictronConnect)
• Ingress Protection: IP65
• Size Compatibility: BCI Group 49 (height)
• Connection: Parallel only; series not allowed

Note: Please contact your dealer for any returns, repairs or support issues related to this product.
