PRODUCT DESCRIPTION

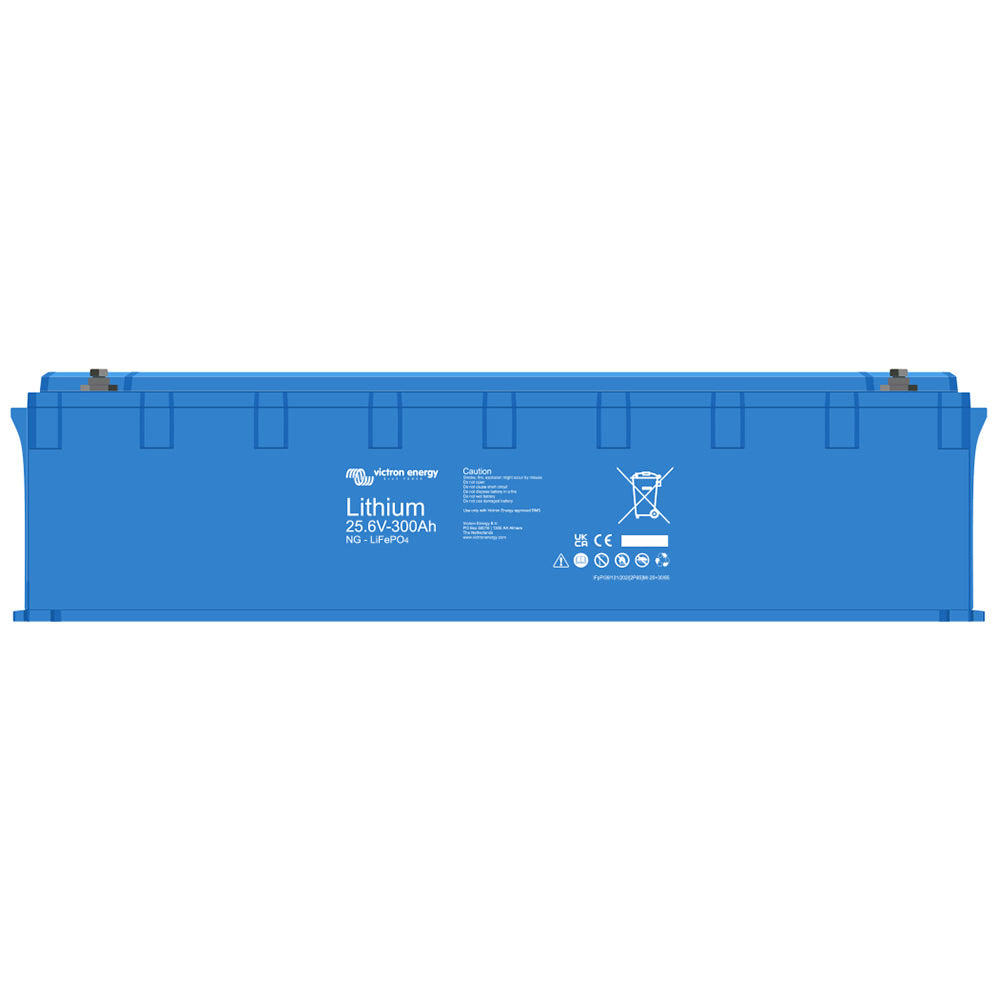

Victron Energy Lithium NG 24V 300Ah Smart LiFePO4 Battery
The Victron Energy Lithium NG 24V 300Ah is a Lithium Iron Phosphate (LiFePO4) battery from the NG (Next Generation) series, which builds on the Lithium Smart Series with added read-out of cell voltages and temperatures. It is designed for sophisticated, dependable energy storage. NG batteries can be connected in series, parallel and series/parallel to build battery banks for 12 V, 24 V or 48 V systems, with up to 50 batteries in one system.
Integrated Shunt
Battery voltage, current and temperature are transmitted to the BMS, which uses them to calculate the state of charge. You can read the data through VictronConnect or a GX communication center, and the BMS creates specific warnings and alarms.
Automatic Setup, Monitoring and Control
The BMS manages all battery parameters automatically. It detects the system voltage and the number of batteries connected in parallel, series and series/parallel. Monitor and control the system through VictronConnect (every BMS model has Bluetooth), a GX communication center or the VRM Portal. View cell status, cell voltages, battery current and temperatures in real time. The battery firmware is updated automatically by the BMS.
Important: A Victron Lynx Smart BMS NG (500 A or 1000 A) is mandatory and must be purchased separately.
Easy Mounting
Mounting brackets simplify installation and secure the battery against slipping and tipping over. Bracket mounting and strap mounting are both supported.
IP65 Ingress Protection
The battery is sealed against dust and can withstand low-pressure water jets, which suits environments where dust and water exposure are a concern.
Low Self-Discharge
Self-discharge is a maximum of 2% of battery capacity per month, which supports performance, longevity and reliability.
Specifications
- Brand: Victron Energy
- Model: Lithium NG Smart 24V 300Ah
- Manufacturer Part No: BAT524130620
- UPC: 8719076064749
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 24 V (25.6 V)
- Capacity: 300 Ah
- System Voltages: 12 V, 24 V or 48 V banks (series, parallel, series/parallel)
- Maximum Batteries per System: 50
- Self-Discharge: max. 2% per month
- Protection Rating: IP65
- Mounting: Bracket or strap
- Required BMS (sold separately): Lynx Smart BMS NG 500 A / 1000 A
