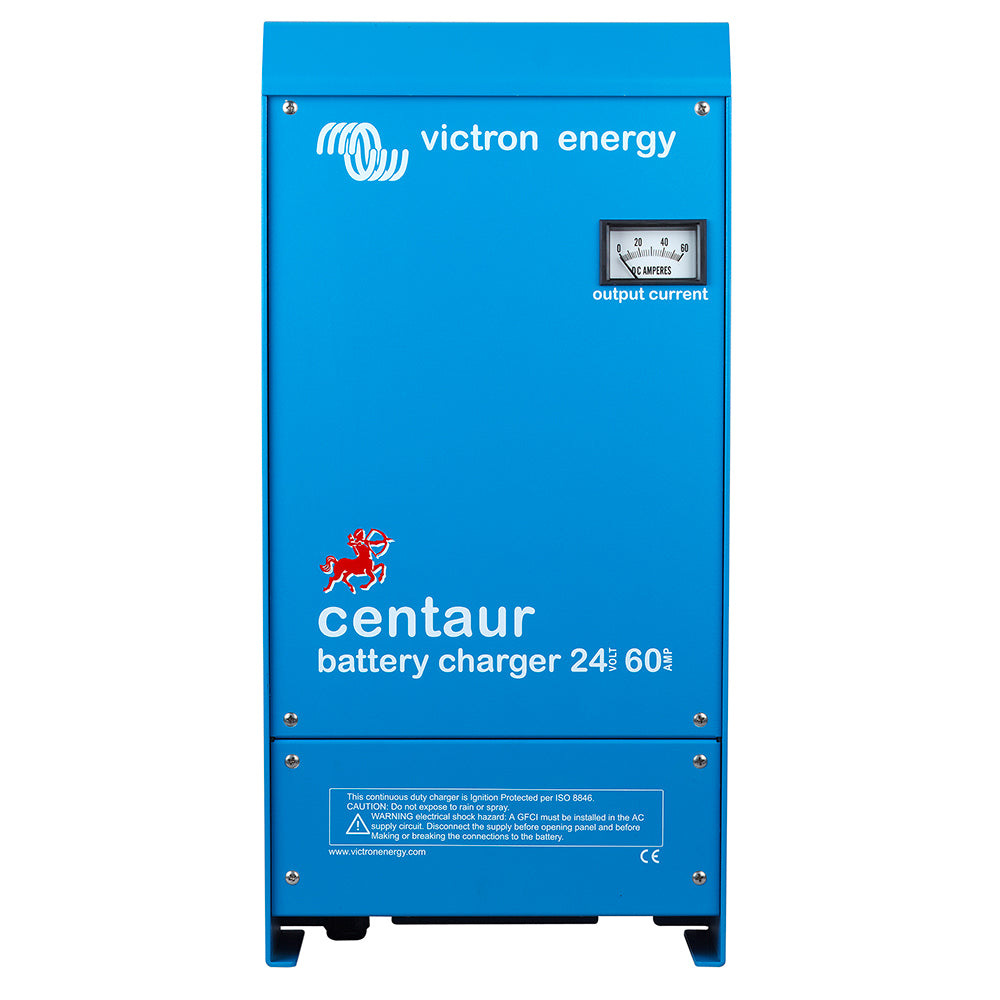

Victron Energy Centaur Charger 24V 60A 3-Bank Battery Charger 120-240VAC Marine RV

Victron Energy Centaur 24V 60A 3-Bank Battery Charger

The Victron Energy Centaur Charger 24V 60A is a professional-grade multi-bank battery charger designed for marine, RV, commercial, industrial, and off-grid power systems. Combining reliable charging performance with rugged construction, the Centaur provides efficient battery charging for demanding environments where durability and dependable operation are essential.

Featuring a powerful 60 amp charging output, three isolated battery charging outputs, universal AC input compatibility, and advanced three-stage charging technology, the Victron Centaur Charger delivers consistent power management for multiple battery banks.

Three Isolated Battery Bank Outputs

The Centaur 24V 60A charger includes three independent isolated charging outputs that allow simultaneous charging of three separate battery banks. Each output is capable of supplying the full rated charging current, making it ideal for systems requiring dedicated charging for house, starter, and auxiliary batteries.

Universal AC and DC Input Compatibility

Designed for flexible worldwide installation, the Centaur automatically operates from a wide 90-265VAC input range at both 50Hz and 60Hz without adjustment. The charger also supports 90-400V DC input, allowing use in AC-DC and DC-DC applications.

Advanced Three-Stage Charging Technology

The intelligent charging system automatically manages battery charging through bulk, absorption, and float stages. The charger begins with high-current bulk charging, transitions to controlled absorption charging, and maintains batteries safely with float charging for long-term battery health.

Built-in temperature compensation automatically adjusts charging voltage based on battery temperature, helping prevent overcharging and improving overall battery performance.

Built for Marine and Industrial Environments

The Victron Centaur is engineered for harsh operating conditions with an aluminum epoxy powder-coated enclosure, stainless steel mounting hardware, and acrylic-coated circuit boards. This construction provides excellent resistance against heat, moisture, vibration, and salt-air corrosion.

Compatible Battery Charging Profiles

Selectable charging settings allow the Centaur charger to be optimized for different battery types, including Flooded Lead-Acid, Gel, and AGM batteries.

Key Features

• 24V 60A high-output battery charger
• Three isolated outputs for charging three battery banks
• Each output provides full rated charging current
• Universal 90-265VAC input voltage range
• Supports 50Hz and 60Hz operation
• Accepts 90-400V DC input
• AC-DC and DC-DC charging capability
• Automatic three-stage charging system
• Temperature-compensated charging voltage
• Selectable charging profiles for AGM, Gel, and Flooded batteries
• Corrosion-resistant aluminum housing
• Designed for marine, RV, industrial, and off-grid applications

Ideal Applications

• Marine battery systems and yachts
• RV and camper power systems
• Commercial vehicle battery banks
• Off-grid solar installations
• Industrial backup power systems
• Multi-bank 24V battery charging applications

Technical Specifications

• Manufacturer: Victron Energy
• Product: Centaur Battery Charger
• Model: 24V 60A 3-Bank
• Manufacturer Part Number: CCH024060000
• UPC: 8719076021575
• Battery Voltage: 24V DC
• Maximum Charging Current: 60A
• Charging Outputs: 3 Isolated Outputs
• AC Input Range: 90-265VAC
• DC Input Range: 90-400V DC
• Charging Method: Three-Stage Automatic Charging
• Battery Compatibility: Flooded Lead-Acid, Gel, AGM

What's Included

• Victron Energy Centaur 24V 60A 3-Bank Battery Charger
• User documentation

The Victron Energy Centaur 24V 60A 3-Bank Battery Charger provides powerful, reliable, and efficient charging for advanced battery systems. With professional-grade construction, intelligent charging control, and flexible installation options, it is an excellent choice for marine, RV, industrial, and off-grid energy applications.
