Victron Energy Centaur Charger 24V 40A 3-Bank Battery Charger 120-240VAC Marine RV

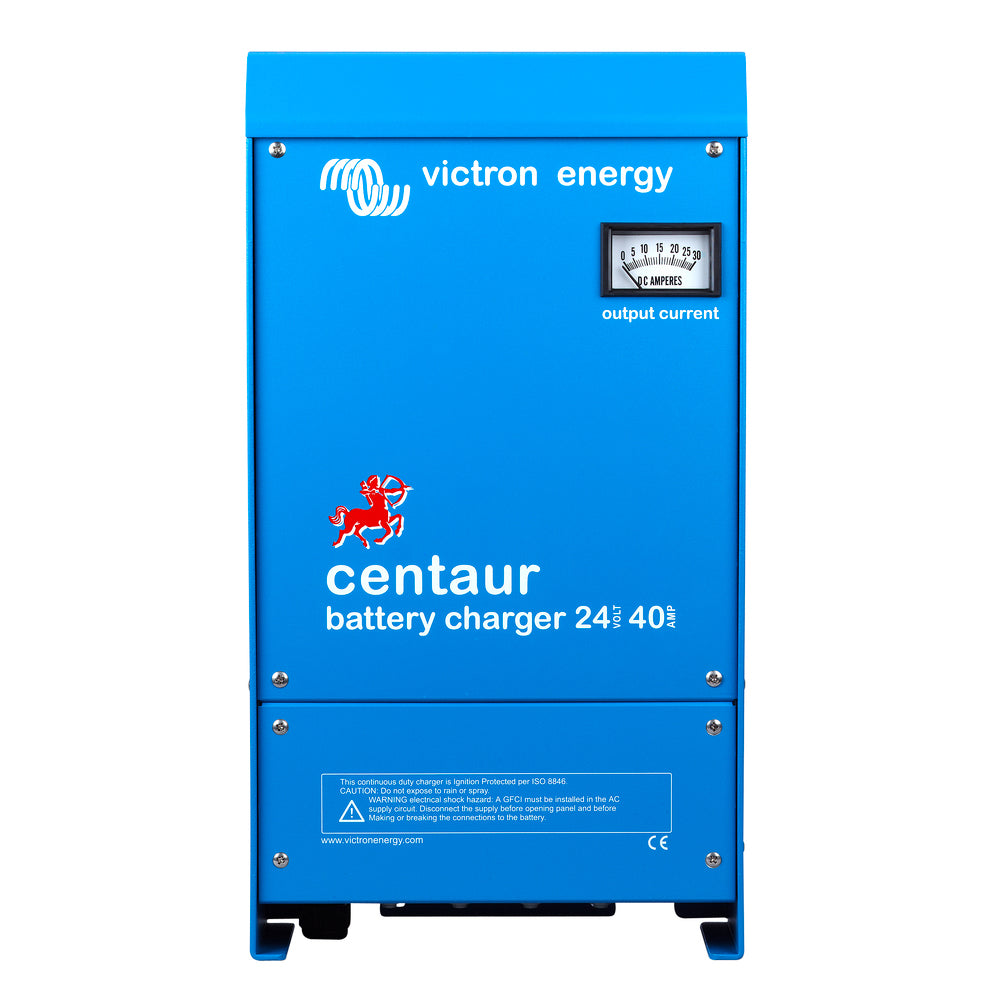

Victron Energy Centaur 24V 40A 3-Bank Battery Charger

The Victron Energy Centaur Charger 24V 40A is a reliable, professional-grade battery charging solution designed for marine, RV, industrial, and off-grid power systems. Featuring three isolated charging outputs, universal AC/DC input capability, and intelligent three-stage charging technology, the Centaur delivers efficient and dependable charging for multiple battery banks.

Built for long-term performance in demanding environments, the Centaur Charger features a corrosion-resistant aluminum housing, temperature compensation, and selectable charging profiles for AGM, Gel, and flooded lead-acid batteries.

Three Isolated Battery Charging Outputs

The Victron Centaur 24V 40A Charger includes three separate isolated outputs that allow simultaneous charging of multiple battery banks. Each output can provide the full rated charging current, making it ideal for systems with dedicated house, starter, and auxiliary batteries.

Universal Worldwide Input Compatibility

The Centaur charger automatically accepts a wide 90-265VAC input range and operates on both 50Hz and 60Hz electrical systems without manual adjustment. It also supports 90-400V DC input, allowing flexible AC-DC and DC-DC charging applications.

Intelligent Three-Stage Charging

The advanced charging system automatically controls the charging process through bulk, absorption, and float stages. This ensures batteries receive the correct amount of power while helping reduce overcharging and extending battery service life.

An integrated temperature sensor automatically compensates charging voltage based on battery temperature, providing safer and more efficient charging performance.

Designed for Harsh Environments

The Centaur Charger is engineered for marine and industrial conditions with an aluminum epoxy powder-coated enclosure, stainless steel mounting hardware, and protective acrylic-coated circuit boards. This construction helps protect against heat, humidity, vibration, and salt-air corrosion.

Adjustable Battery Charging Profiles

Built-in DIP switch settings allow users to select the appropriate charging characteristics for different battery types, including Flooded Lead-Acid, Gel, and AGM batteries.

Key Features

• 24V 40A battery charger for professional charging applications
• Three isolated charging outputs for three battery banks
• Each output supports full rated charging current
• Universal 90-265VAC input voltage range
• Supports 50Hz and 60Hz operation
• Accepts 90-400V DC input power
• AC-DC and DC-DC charging capability
• Automatic bulk, absorption, and float charging
• Temperature-compensated charging system
• Selectable AGM, Gel, and Flooded battery profiles
• Marine-grade corrosion-resistant construction

Ideal Applications

• Marine battery charging systems
• Boats and yachts
• RV and camper electrical systems
• Commercial vehicle battery banks
• Industrial power systems
• Off-grid solar and backup energy systems
• 24V multi-bank battery installations

Technical Specifications

• Manufacturer: Victron Energy
• Product: Centaur Battery Charger
• Model: 24V 40A 3-Bank
• Manufacturer Part Number: CCH024040000
• UPC: 8719076021568
• Battery Voltage: 24V DC
• Maximum Charging Current: 40A
• Charging Outputs: 3 Isolated Outputs
• AC Input Range: 90-265VAC
• DC Input Range: 90-400V DC
• Charging Method: Three-Stage Automatic Charging
• Compatible Batteries: AGM, Gel, Flooded Lead-Acid

What's Included

• Victron Energy Centaur 24V 40A 3-Bank Battery Charger
• User documentation

The Victron Energy Centaur 24V 40A 3-Bank Battery Charger delivers reliable charging power, advanced battery management, and rugged durability for marine, RV, industrial, and off-grid applications requiring dependable multi-bank battery charging.
