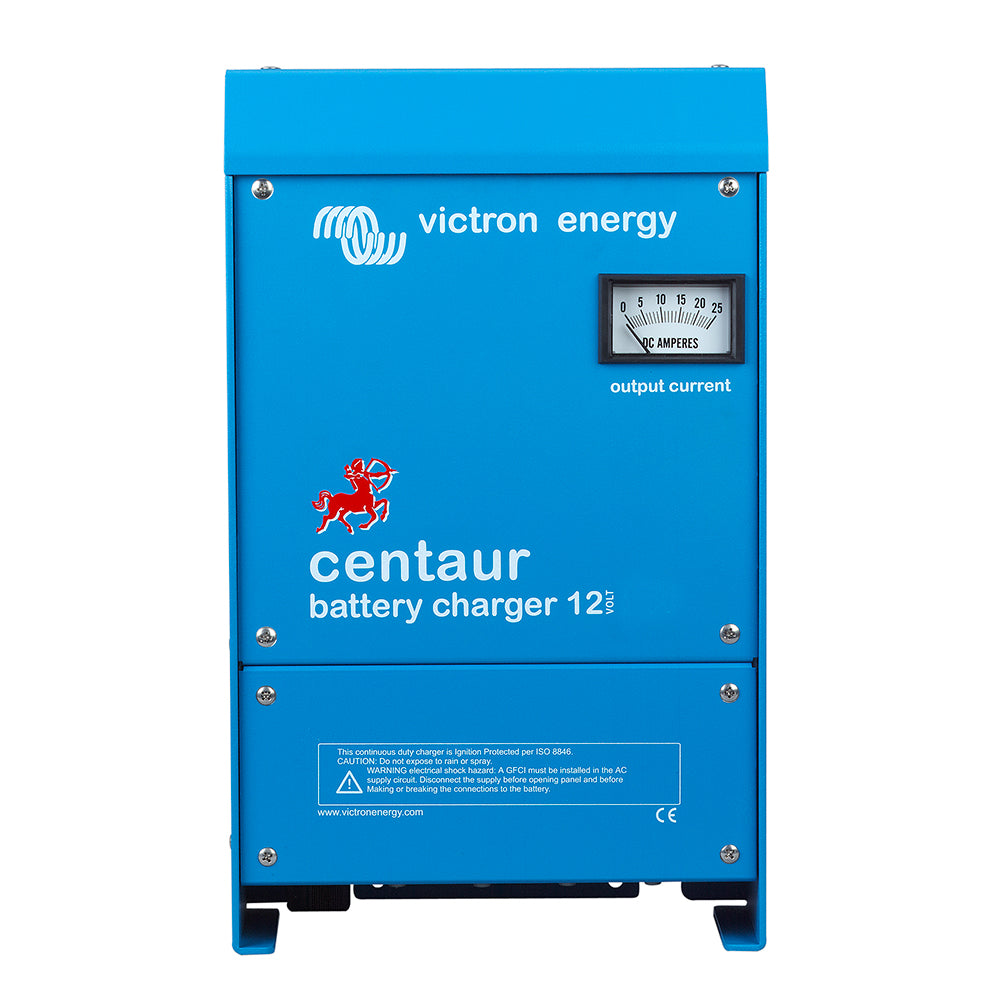

Victron Energy Centaur 12V 40A 3-Bank Battery Charger 120-240VAC Marine Smart Charger CCH012040000

Victron Energy Centaur 12V 40A 3-Bank Smart Battery Charger 120-240VAC

The Victron Energy Centaur 12V 40A Battery Charger is a professional-grade multi-bank charging solution designed for marine, RV, industrial, and off-grid power systems. Featuring a rugged corrosion-resistant design, universal AC input capability, and three isolated charging outputs, the Centaur provides reliable and efficient charging for multiple battery banks in demanding environments.

With a 40A charging capacity, three independent battery outputs, and support for both AC and DC power sources, this charger delivers dependable battery maintenance and charging performance for a wide range of applications.

Three Isolated Battery Charging Outputs

The Victron Centaur features three fully isolated charging outputs, allowing up to three battery banks to be charged simultaneously. Each output can provide the full rated charging current, making it ideal for installations with separate house, starter, and auxiliary battery systems.

Universal Worldwide Input Compatibility

The Centaur charger automatically accepts a wide 90-265VAC input range without requiring adjustment and operates on both 50Hz and 60Hz power systems. It also supports 90-400V DC input, providing exceptional installation flexibility for marine, mobile, and industrial applications.

Advanced Three-Stage Charging

The intelligent three-stage charging system delivers optimized battery charging through bulk, absorption, and float stages. Temperature compensation automatically adjusts charging voltage based on operating conditions, helping improve battery performance and extend service life.

Built for Harsh Environments

Designed for professional installations, the Centaur features an aluminum epoxy powder-coated enclosure, stainless steel mounting hardware, and acrylic-coated circuit boards for enhanced protection against heat, moisture, vibration, and salt-air corrosion.

Battery Type Compatibility

A convenient DIP switch allows selection of optimized charging profiles for different battery chemistries, including Flooded Lead-Acid, Gel, and AGM batteries.

Key Features

• 12V 40A intelligent battery charger
• Three isolated outputs for charging three battery banks
• Each output supports full rated charging current
• Universal 90-265VAC input range
• Supports 50Hz and 60Hz operation
• Accepts 90-400V DC power input
• Three-stage automatic charging technology
• Temperature-compensated charging
• Selectable charging profiles for Flooded, Gel, and AGM batteries
• Corrosion-resistant aluminum enclosure
• Suitable for AC-DC and DC-DC operation
• Designed for marine, RV, industrial, and off-grid applications

Ideal Applications

• Boat and yacht battery systems
• RV and camper battery charging
• Commercial vehicle electrical systems
• Off-grid solar power installations
• Industrial battery banks
• Backup power systems
• Multi-battery charging applications

Technical Specifications

• Manufacturer: Victron Energy
• Product: Centaur Battery Charger
• Model: 12V 40A 3-Bank
• Manufacturer Part Number: CCH012040000
• UPC: 8719076021490
• Battery Voltage: 12V DC
• Maximum Charging Current: 40A
• Charging Outputs: 3 Isolated Outputs
• AC Input Range: 90-265VAC
• DC Input Range: 90-400V DC
• Charging Algorithm: Three-Stage Automatic Charging
• Battery Compatibility: Flooded Lead-Acid, Gel, AGM

What's Included

• Victron Energy Centaur 12V 40A 3-Bank Battery Charger
• User documentation

The Victron Energy Centaur 12V 40A 3-Bank Battery Charger delivers reliable multi-bank charging, worldwide input compatibility, and rugged durability for professional energy systems. Whether installed on a vessel, RV, commercial vehicle, or off-grid application, the Centaur provides consistent charging performance and long-term reliability.
