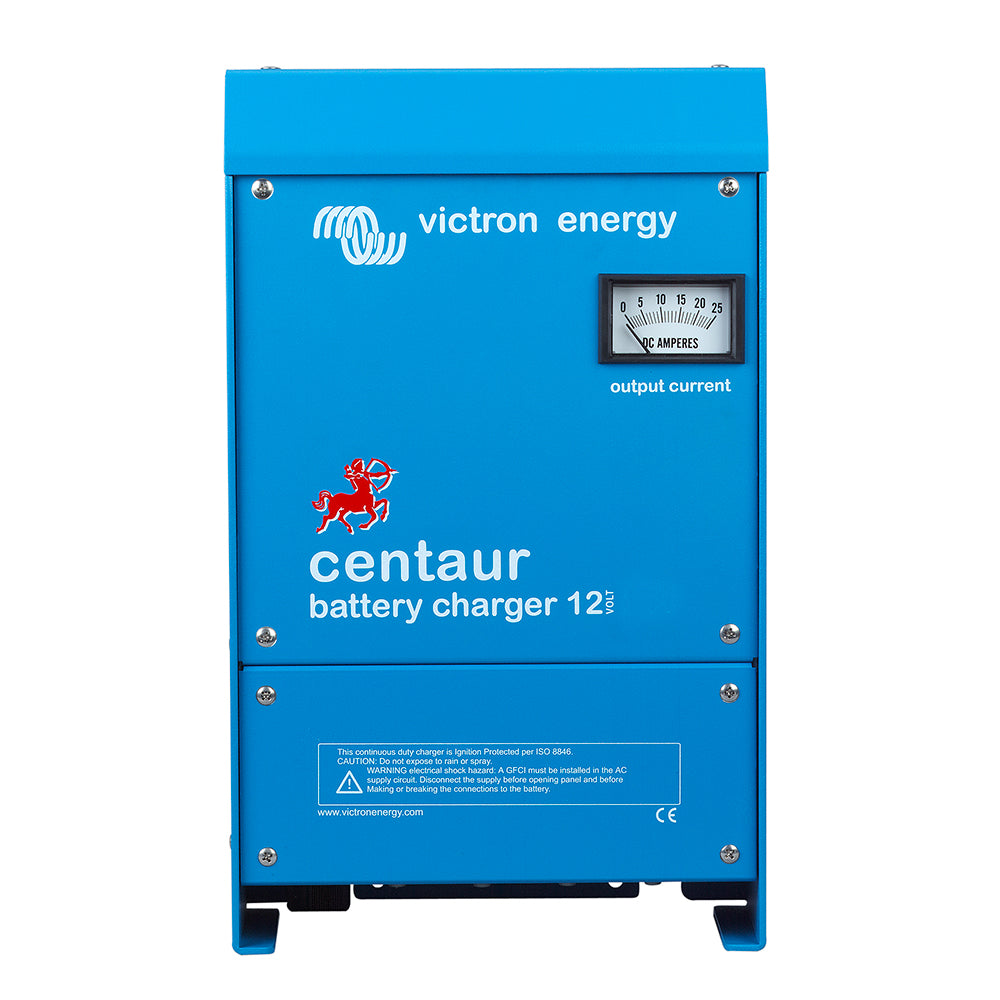

Victron Energy Centaur 12V 100A 3-Bank Battery Charger 120-240VAC Marine Smart Charger CCH012100000

Victron Energy Centaur 12V 100A 3-Bank Smart Battery Charger 120-240VAC

The Victron Energy Centaur 12V 100A Battery Charger is a high-performance, professional-grade charging solution designed for large marine, RV, commercial, industrial, and off-grid battery systems. Featuring a powerful 100 amp charging output, three isolated battery charging banks, universal voltage input, and rugged corrosion-resistant construction, the Centaur delivers dependable charging performance in demanding environments.

Built for reliability and long-term operation, the Centaur charger provides intelligent three-stage charging, automatic temperature compensation, and flexible AC/DC power compatibility for a wide range of battery applications.

Three Independent Battery Bank Charging Outputs

The Victron Centaur features three fully isolated charging outputs that allow simultaneous charging of three separate battery banks. Each output is capable of delivering the full rated charging current, making it ideal for advanced battery systems requiring dedicated charging for house, starter, and auxiliary batteries.

Universal AC & DC Input Capability

Designed for worldwide installation flexibility, the Centaur automatically accepts a broad 90-265VAC input range without adjustment and operates on both 50Hz and 60Hz power systems. It also supports 90-400V DC input, allowing use in AC-DC and DC-DC charging applications.

Advanced Three-Stage Charging System

The intelligent charging algorithm automatically manages battery charging through bulk, absorption, and float stages. The charger delivers a high initial bulk charge, transitions into controlled absorption charging, and maintains batteries safely with float charging for long-term storage.

Built-in temperature compensation adjusts charging voltage based on battery temperature, helping prevent overcharging while maximizing battery performance and service life.

Designed for Marine & Industrial Conditions

The Centaur charger is engineered for harsh environments with an aluminum epoxy powder-coated enclosure, stainless steel mounting hardware, and acrylic-coated circuit boards for maximum resistance against heat, humidity, vibration, and salt-air corrosion.

Compatible Battery Charging Profiles

A convenient DIP switch allows users to select optimized charging profiles for multiple battery chemistries, including Flooded Lead-Acid, Gel, and AGM batteries.

Key Features

• 12V 100A high-output battery charger
• Three isolated outputs for charging three battery banks
• Each output can provide full rated charging current
• Universal 90-265VAC input voltage range
• Supports 50Hz and 60Hz operation
• Accepts 90-400V DC input power
• AC-DC and DC-DC charging capability
• Automatic three-stage charging technology
• Temperature-compensated charging voltage
• Selectable charging profiles for Flooded, Gel, and AGM batteries
• Corrosion-resistant aluminum housing
• Designed for professional marine and industrial applications

Ideal Applications

• Large marine battery systems
• Commercial boats and yachts
• RV and motorhome power systems
• Off-grid solar energy storage
• Industrial battery banks
• Emergency backup power systems
• Vehicle and equipment charging systems
• Multi-bank 12V battery installations

Technical Specifications

• Manufacturer: Victron Energy
• Product: Centaur Battery Charger
• Model: 12V 100A 3-Bank
• Manufacturer Part Number: CCH012100000
• UPC: 8719076021537
• Battery Voltage: 12V DC
• Maximum Charging Current: 100A
• Charging Outputs: 3 Isolated Outputs
• AC Input Range: 90-265VAC
• DC Input Range: 90-400V DC
• Charging Algorithm: Three-Stage Automatic Charging
• Battery Compatibility: Flooded Lead-Acid, Gel, AGM

What's Included

• Victron Energy Centaur 12V 100A 3-Bank Battery Charger
• User documentation

The Victron Energy Centaur 12V 100A 3-Bank Battery Charger provides exceptional charging power, advanced battery management, and rugged durability for demanding energy systems. With three independent charging outputs and worldwide input compatibility, it is an ideal solution for marine, RV, industrial, and off-grid applications requiring reliable multi-bank battery charging.
