Victron BMV-710H Smart High Voltage Battery Monitor 60-385VDC Bluetooth VE.Direct | BAM030710100

Victron BMV-710H Smart High Voltage Battery Monitor 60-385VDC Bluetooth VE.Direct

The Victron BMV-710H Smart High Voltage Battery Monitor is an advanced battery monitoring solution designed specifically for high-voltage battery banks ranging from 60V to 385V DC. Ideal for energy storage systems, industrial battery banks, off-grid solar installations, telecommunications, marine, and commercial applications, the BMV-710H delivers precise, real-time battery performance data to maximize battery life and system efficiency.

Featuring built-in Bluetooth, the BMV-710H connects wirelessly to the free VictronConnect app, allowing users to monitor battery voltage, current, power consumption, state of charge, remaining runtime, historical data, and system performance directly from a smartphone, tablet, or compatible device.

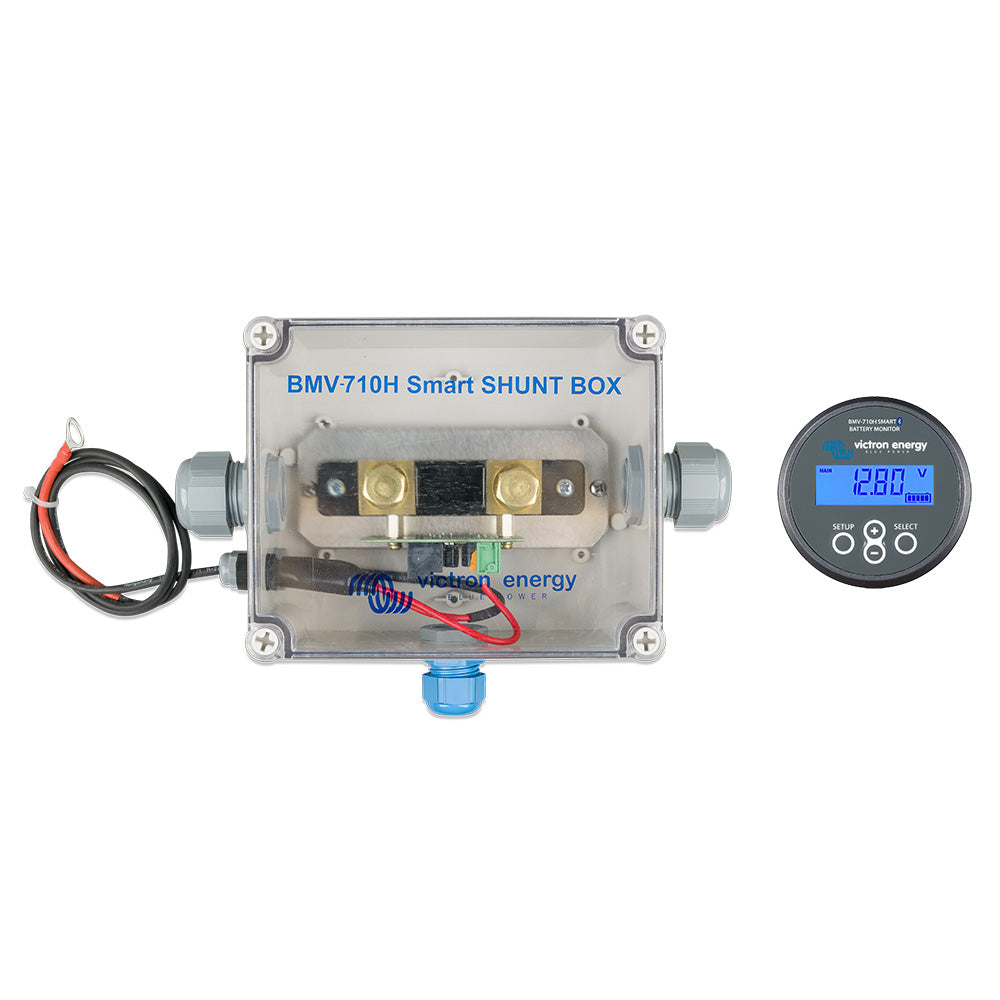

The included 500A/50mV precision shunt, housed in a dedicated enclosure for high-voltage applications, accurately measures current flow to calculate amp-hours consumed and remaining battery capacity, providing dependable battery management for demanding installations.

Key Features

• Designed for High Voltage Battery Systems supporting battery banks from 60V to 385V DC.
• Built-in Bluetooth Smart provides wireless monitoring and configuration using the free VictronConnect mobile app.
• Comprehensive Battery Monitoring displays:
  • Battery Voltage
  • Charging & Discharge Current
  • Power Consumption (Watts)
  • Amp-Hours Consumed
  • State of Charge (SOC)
  • Remaining Runtime (Time-to-Go)
  • Historical Battery Data
• High Accuracy Battery Fuel Gauge continuously calculates remaining battery capacity using advanced algorithms.
• VE.Direct Communication Port integrates with Victron GX devices and advanced monitoring systems.
• Programmable Alarm includes visual and audible alerts for customizable battery protection.
• Programmable Relay Output can automatically disconnect non-critical loads or start a generator when battery conditions require.
• Expandable Shunt Support supports current shunts up to 10,000A for large-scale battery systems.
• Low Power Consumption minimizes energy draw during continuous monitoring.
• Flush-Mount Display includes interchangeable round and square bezels for flexible installation.

Ideal Applications

• High-Voltage Lithium Battery Systems
• Commercial Energy Storage Systems (ESS)
• Industrial Battery Banks
• Off-Grid Solar Installations
• Backup Power Systems
• Telecommunications
• Marine Power Systems
• Renewable Energy Projects

Technical Specifications

• Battery Voltage Range: 60-385V DC
• Battery Capacity: 1-9999Ah
• Current Measurement Resolution: 0.01A
• Voltage Resolution: 0.01V
• Current Accuracy: ±0.4%
• Voltage Accuracy: ±0.3%
• State of Charge Accuracy: ±0.1%
• Time-to-Go Resolution: 1 Minute
• VE.Direct Communication: Yes
• Bluetooth: Built-In
• Relay Output: 60V / 1A Normally Open
• Operating Temperature: -40°C to +50°C
• Protection Rating: IP55 (Display)
• Installation: Flush Mount
• Front Display Diameter: 63 mm
• Front Bezel: 69 × 69 mm
• Body Diameter: 52 mm
• Mounting Depth: 31 mm
• Shunt Connection: M10 Bolts

Included in the Box

• Victron BMV-710H Smart High Voltage Battery Monitor
• 500A / 50mV Precision Shunt with Protective Enclosure
• 10 Meter RJ12 Communication Cable
• Fused Power Supply Cable
• Round Mounting Ring
• Square Bezel Overlay
• Mounting Hardware
• Installation Documentation

Manufacturer Information

• Brand: Victron Energy
• Manufacturer Part Number: BAM030710100
• UPC: 8719076049500

The Victron BMV-710H Smart High Voltage Battery Monitor delivers professional-grade battery monitoring with built-in Bluetooth, VE.Direct communication, precision 500A shunt measurement, programmable alarms, and advanced state-of-charge tracking for high-voltage lithium and battery energy storage systems from 60V to 385V DC.
