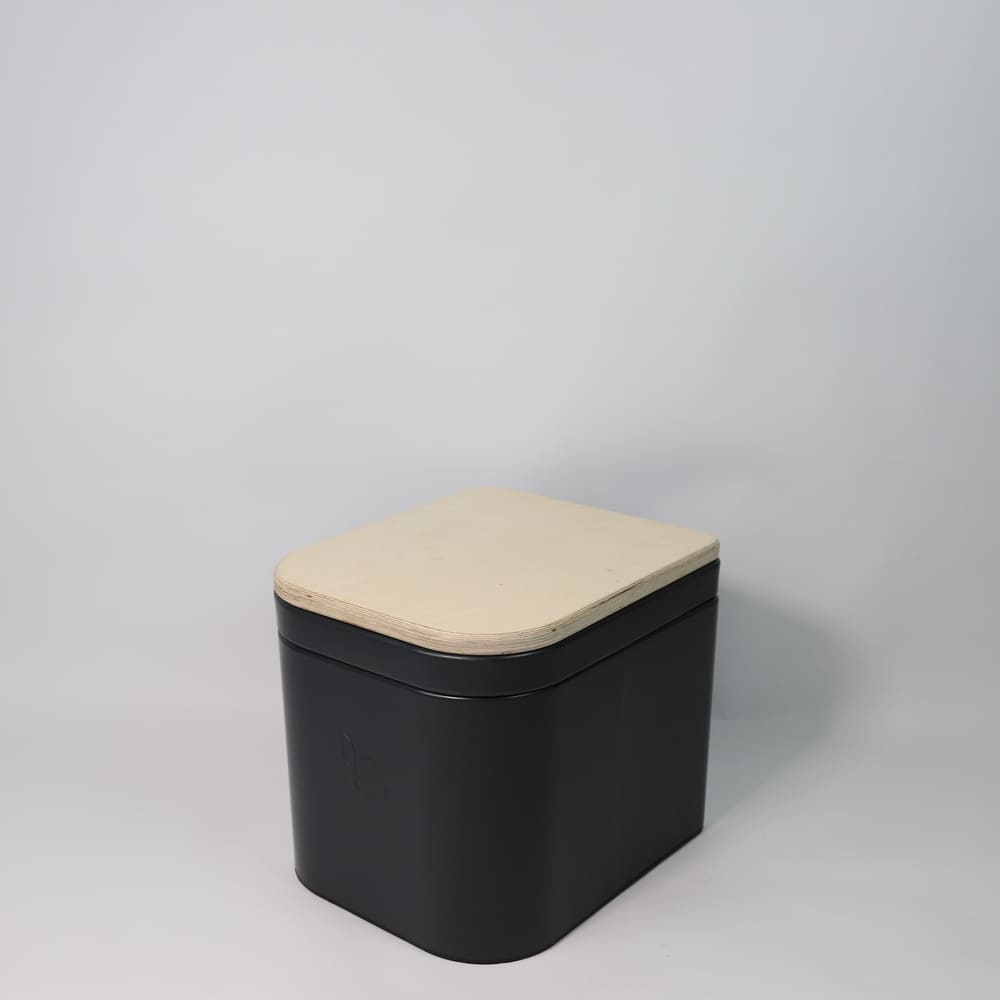

Trelino Origin M Portable Composting Toilet with Wooden Lid

Trelino Origin M Portable Composting Toilet with Wooden Lid

The Trelino Origin M is a compact portable composting toilet designed for vans, truck campers, RVs, boats, and other mobile or off-grid spaces. Its urine-separating design uses separate removable containers for liquid and solid waste, while the 13.0 × 15.4 × 13.2 inch dimensions provide a compact intermediate size for mobile installations. The toilet features a durable polyethylene body, a multilayer birch wood lid secured with magnets, removable waste containers, and operation without flushing water or chemical additives.

Key Features

• Portable Composting Toilet: Designed for use in Sprinter vans, truck campers, RVs, boats, and other mobile or off-grid environments.

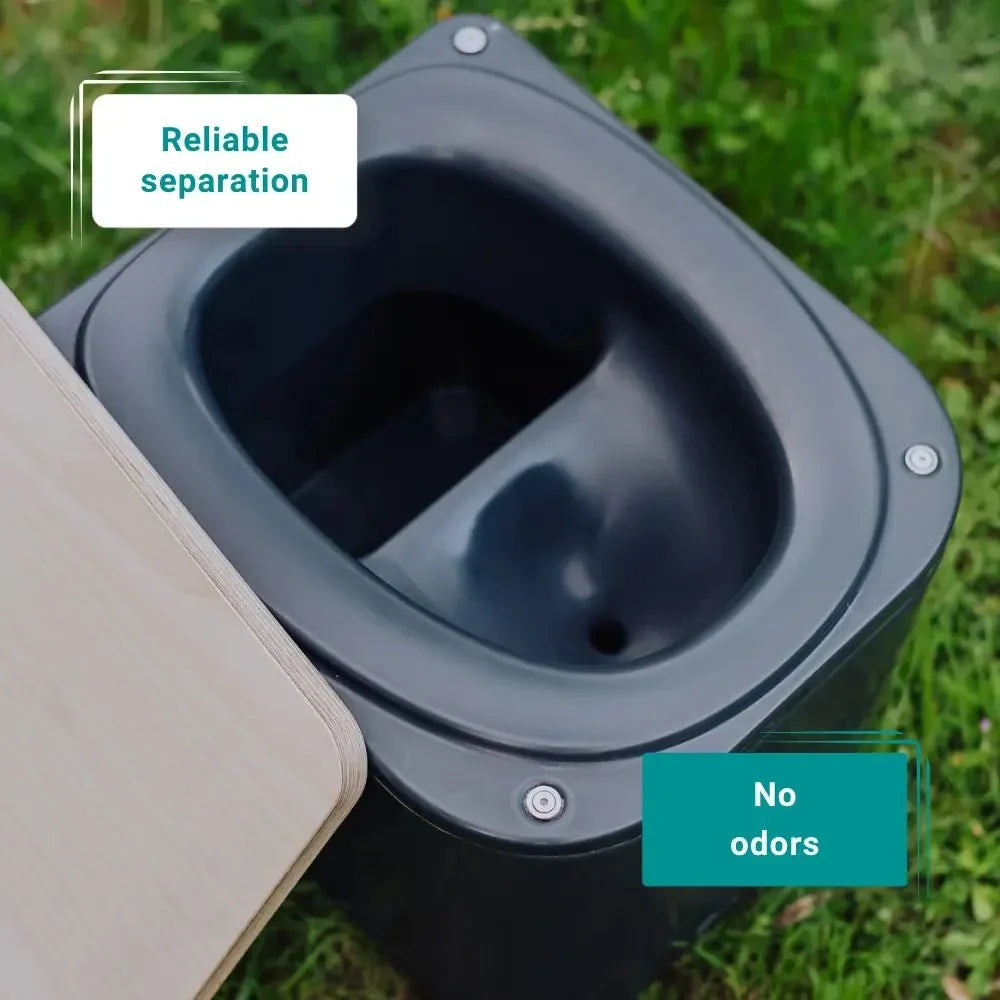

• Urine-Separating Design: Separates liquid and solid waste into individual containers for separate emptying and cleaning.
• 1.3 US Gallon Urine Container: The urine canister has a 1.3 US gallon capacity and is specified to hold approximately 9–11 liquid uses.
• 1.8 US Gallon Solids Container: The solids container provides a 1.8 US gallon capacity and is specified to hold approximately 5–10 bowel movements.

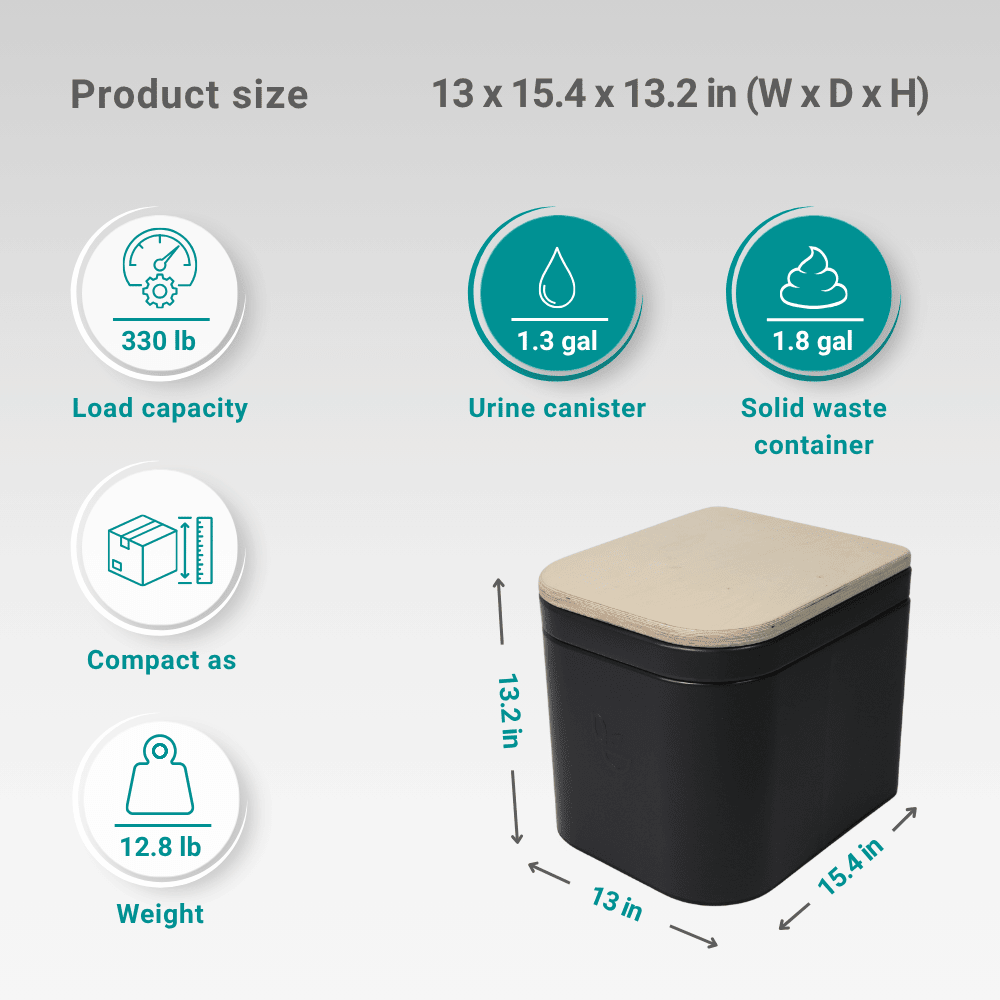

• Compact Dimensions: Measures 13.0 inches wide, 15.4 inches deep, and 13.2 inches high for space-conscious installations.
• Lightweight Construction: Weighs approximately 12.8 lb for easier transportation and placement.
• Wooden Lid: Features a waterproof glued multilayer, untreated birch wood lid.
• Magnetic Lid Attachment: Holding magnets secure the lid to the toilet body during transportation.
• Removable Containers: Separate urine and solids containers can be removed individually for emptying and cleaning.
• Recyclable Polyethylene Construction: The body and containers are made from recyclable polyethylene that is resistant to acids and chemicals.
• Water-Resistant Exterior: The polyethylene exterior is described as water resistant and suitable for use in areas such as showers.
• Odor Reduction: The separation and drying system is designed to reduce unpleasant odors during use.
• Optional Fan Installation: A fan can be installed to support faster drying of the solids. The manufacturer specifies that the opening must be drilled during installation.
• No Flushing Water: The dry separation toilet operates without conventional flushing water.
• No Chemical Additives: The toilet is designed to operate without chemical additives.
• Leakage Protection: The manufacturer describes the exterior as leak-proof for mobile transportation and use.

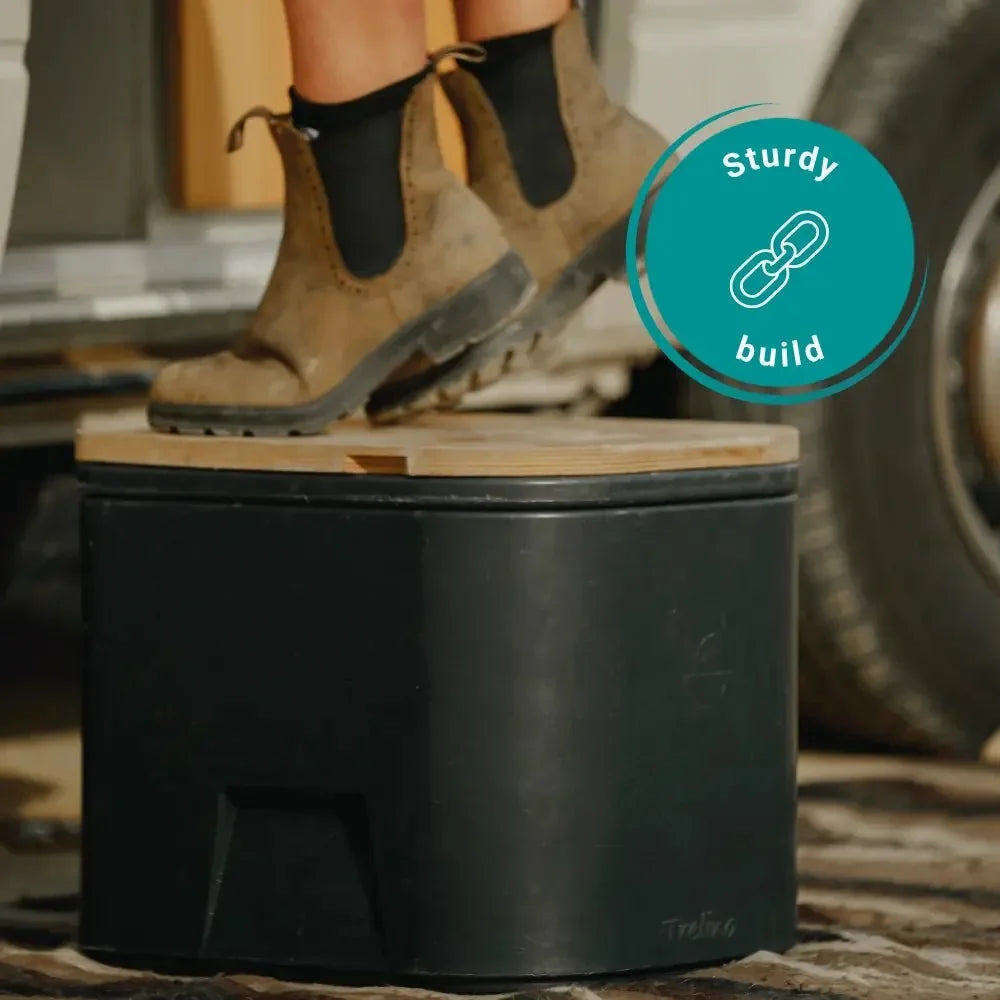

• Stable Construction: The robust polyethylene body provides a stable structure for mobile environments.

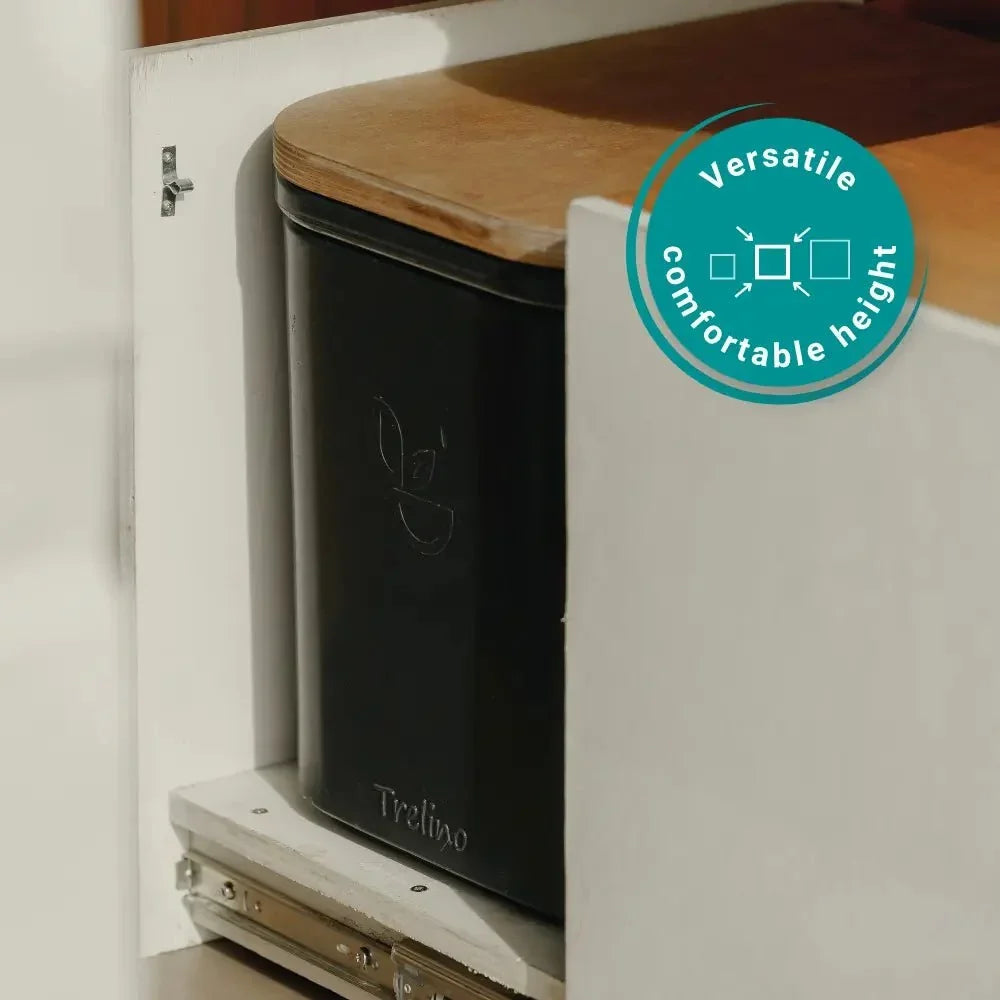

• Portable or Fixed Installation: The compact design can be transported or permanently installed in a suitable location.
• German Production: Production is carried out exclusively in Germany according to the supplied product information.
• Recycled Material Bags Included: Includes 10 bags made from recycled materials.

Specifications

• Brand: Trelino
• Toilet Type: Portable urine-separating composting toilet
• Width: 13.0 inches
• Depth: 15.4 inches
• Height: 13.2 inches
• Weight: 12.8 lb
• Urine Container Capacity: 1.3 US gallons
• Solids Container Capacity: 1.8 US gallons
• Body Material: Polyethylene (PE)
• Container Material: Polyethylene (PE)
• Lid Material: Multilayer untreated birch wood
• Lid Attachment: Magnetic attachment
• Lid Type: Removable wooden lid
• Fan: Optional; installation requires drilling the designated opening
• Water Use: No flushing water required
• Chemical Use: No chemical additives required
• Installation: Portable or permanent installation
• Production: Germany

Suitable Applications

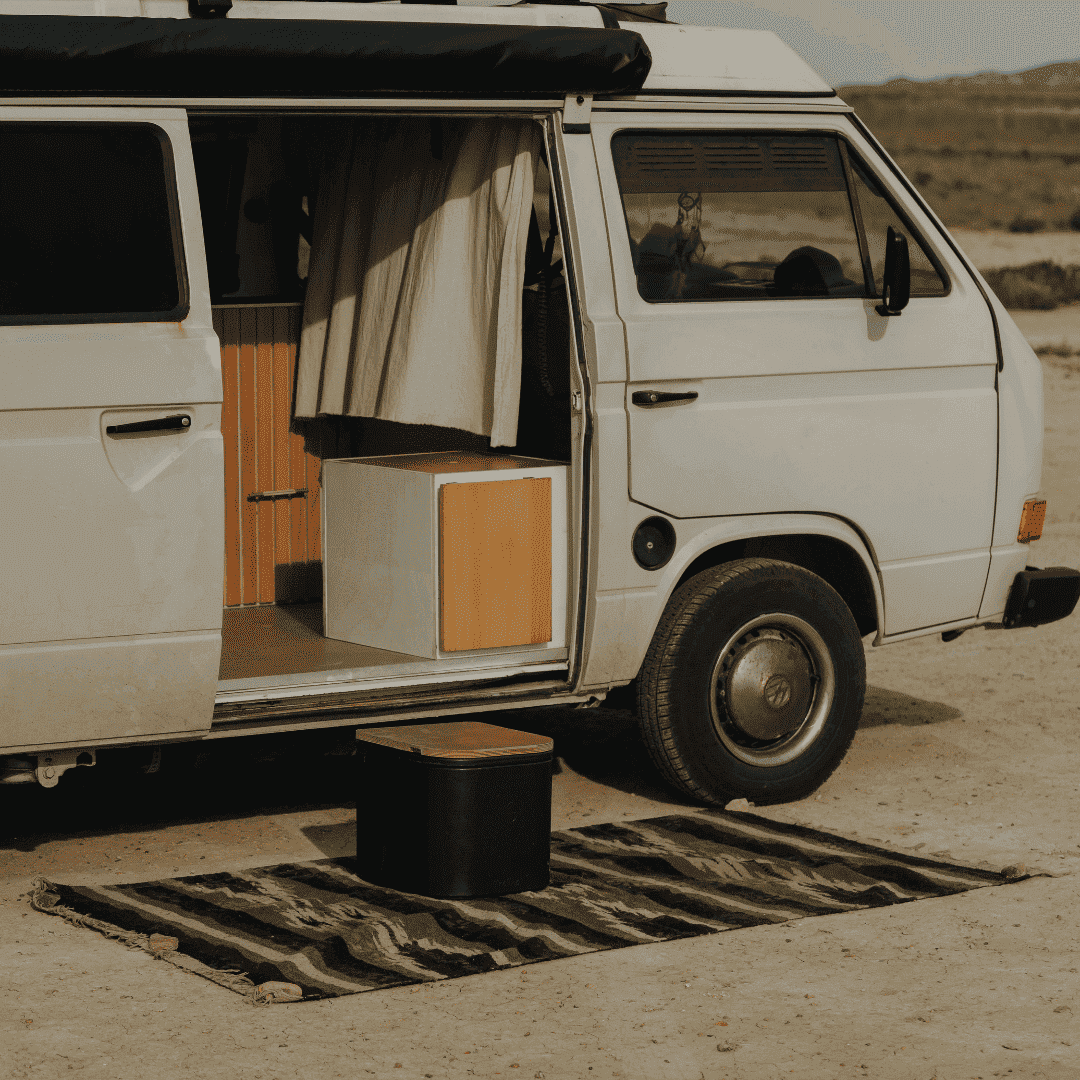

The Trelino Origin M is designed for mobile sanitation applications where a compact toilet with separate waste containers is required. Suitable uses include Sprinter vans, truck campers, RVs, boats, camping setups, and other mobile or off-grid spaces.

Waste Separation System

The Origin M separates urine and solid waste into two removable containers. The 1.3 US gallon urine canister and 1.8 US gallon solids container can each be removed independently for emptying and cleaning.

Compact & Portable Design

Measuring 13.0 × 15.4 × 13.2 inches and weighing approximately 12.8 lb, the Origin M is designed for convenient transportation and compact installation. Its size provides a balance between portability and container capacity for mobile environments.

Wooden Lid & Magnetic Attachment

The Origin M includes a waterproof glued multilayer untreated birch wood lid. Holding magnets secure the lid to the toilet body, helping keep the toilet closed during transportation.

Materials & Construction

The toilet body and removable containers are made from recyclable polyethylene that is described as resistant to acids and chemicals. The polyethylene exterior is also described as water resistant, while the wooden lid uses multilayer untreated birch wood construction.

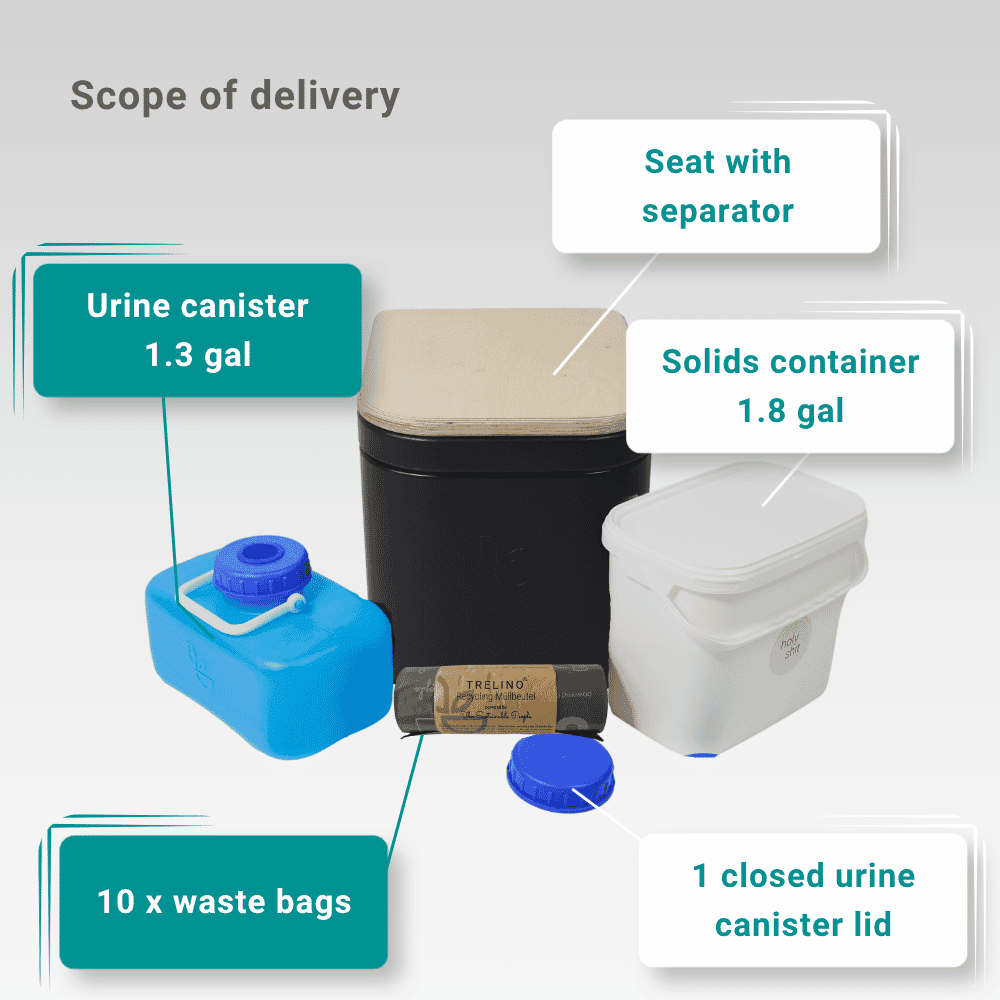

Included Components

• 1 × Exterior Body: Main polyethylene toilet body.
• 1 × Wooden Lid: Multilayer birch wood lid with magnetic attachment.
• 1 × Toilet Seat: Seat with integrated urine separator.
• 1 × Urine Canister: 1.3 US gallon removable liquid container.
• 1 × Solids Container: 1.8 US gallon removable solids container.
• 1 × Membrane Closure Lid: Included with the toilet system.
• 1 × Replacement Lid: Spare lid included.
• 10 × Recycled Material Bags: Waste-management bags included with the package.

Fan Installation Option

The Trelino Origin M can accommodate a fan to support faster drying of the solids. The manufacturer states that the opening for the fan must be drilled during installation and recommends a 1.53-inch step drill for this process.

Installation & Use

The Trelino Origin M can be used as a portable toilet or installed permanently in a suitable location. The removable urine and solids containers can be taken out separately for emptying and cleaning. The magnetic lid attachment is designed to keep the toilet closed during transportation.

Important Usage Note

Use the Trelino Origin M according to the manufacturer's instructions and intended toilet function. When installing an optional fan, follow the manufacturer's drilling and installation instructions. Empty and clean the urine and solids containers according to the recommended maintenance procedures for the product.
