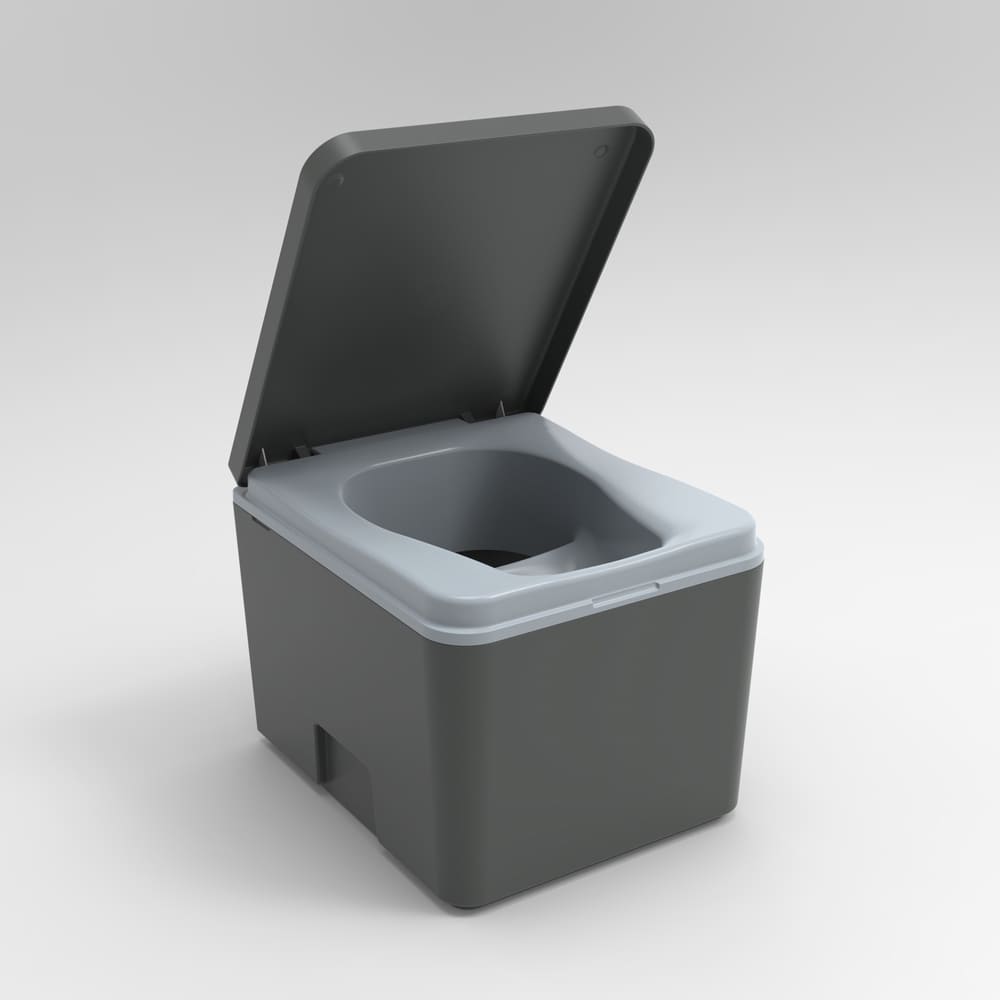

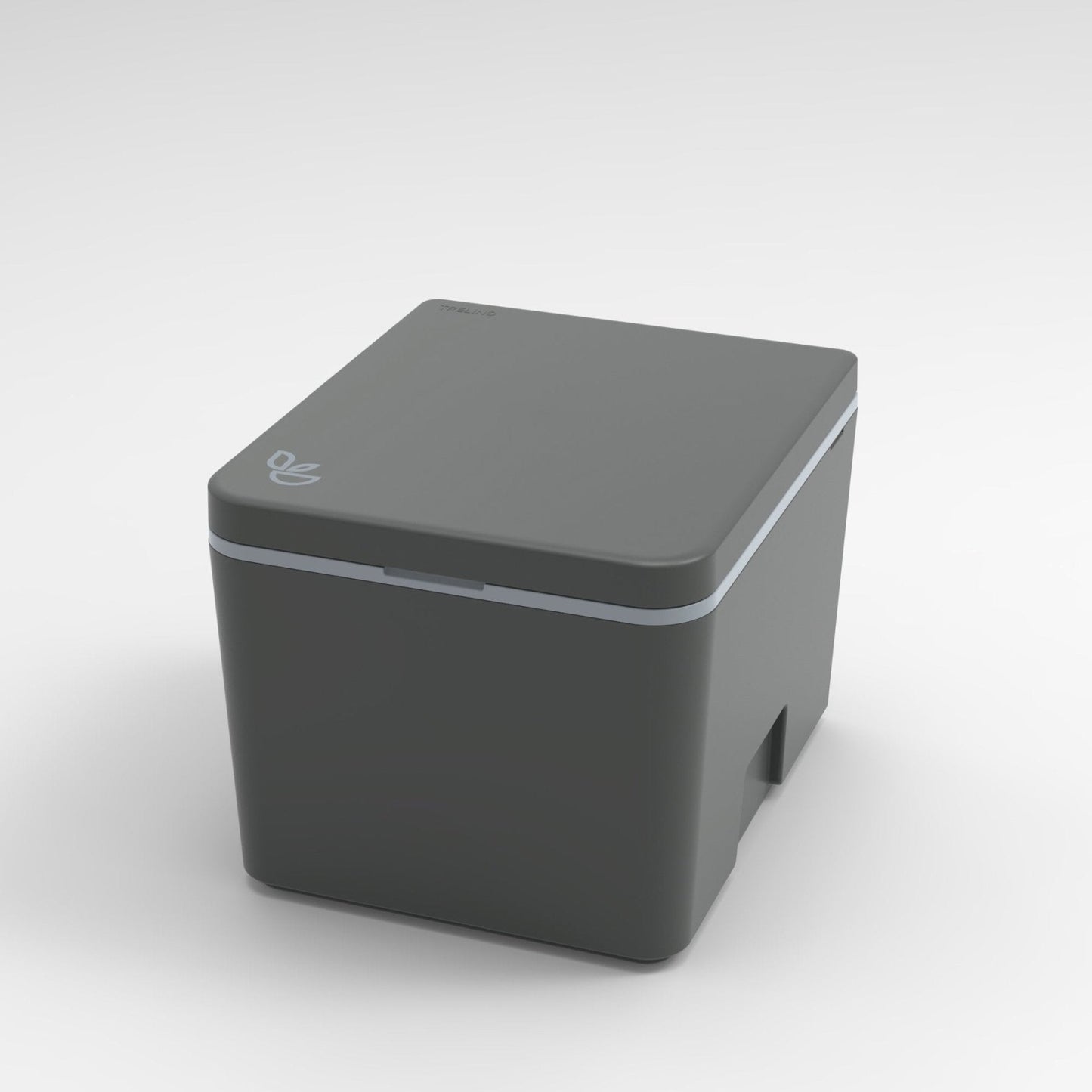

Trelino Evo S Dark Gray Portable Composting Toilet

Trelino Evo S Dark Gray Portable Composting Toilet

The Trelino Evo S is a compact portable composting toilet designed for use in vans, trailers, boats, RVs, and other mobile or off-grid environments. Its urine-separating design uses separate containers for liquid and solid waste, while the lightweight 8.6 lb construction and compact 13.0 × 15.4 × 11.7 inch dimensions make it easy to transport and store. The toilet features a soft-close lid, removable containers, recyclable plastic construction, and does not require a fan.

Key Features

• Portable Composting Toilet: Designed for use in vans, trailers, boats, RVs, and other mobile or off-grid applications.
• Urine-Separating Design: Separates liquid and solid waste into individual containers for separate emptying and cleaning.
• 1.2 US Gallon Urine Container: The urine canister has a 1.2 US gallon capacity and is specified to hold approximately 9–11 liquid uses.
• 1.6 US Gallon Solids Container: The solids container provides a 1.6 US gallon capacity and is specified to hold approximately 4–8 bowel movements.
• Lightweight Construction: Weighs approximately 8.6 lb for easier transportation and installation in mobile spaces.
• Compact Dimensions: Measures 13.0 inches wide, 15.4 inches deep, and 11.7 inches high for use in space-constrained areas.

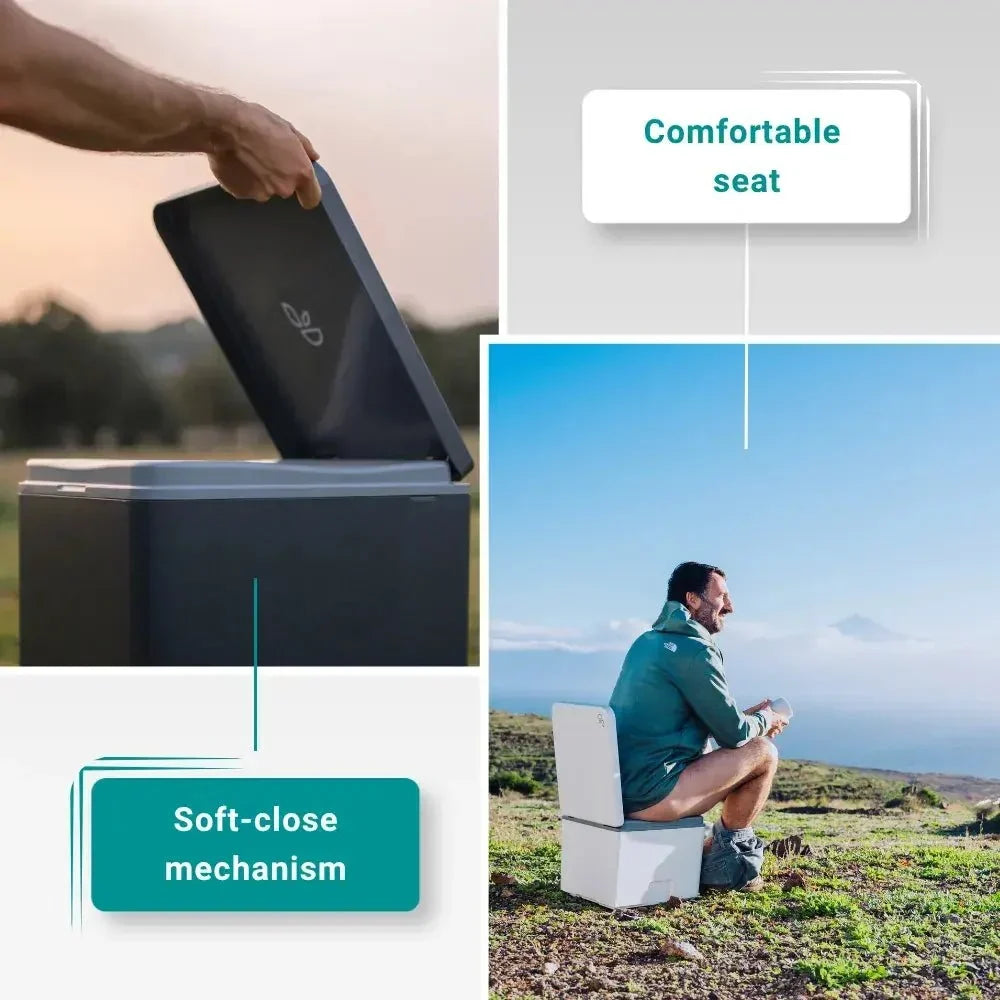

• Soft-Close Lid: The hinged lid includes an automatic soft-close function for controlled closing.
• Removable Containers: Individual urine and solids containers can be removed separately for emptying and cleaning.

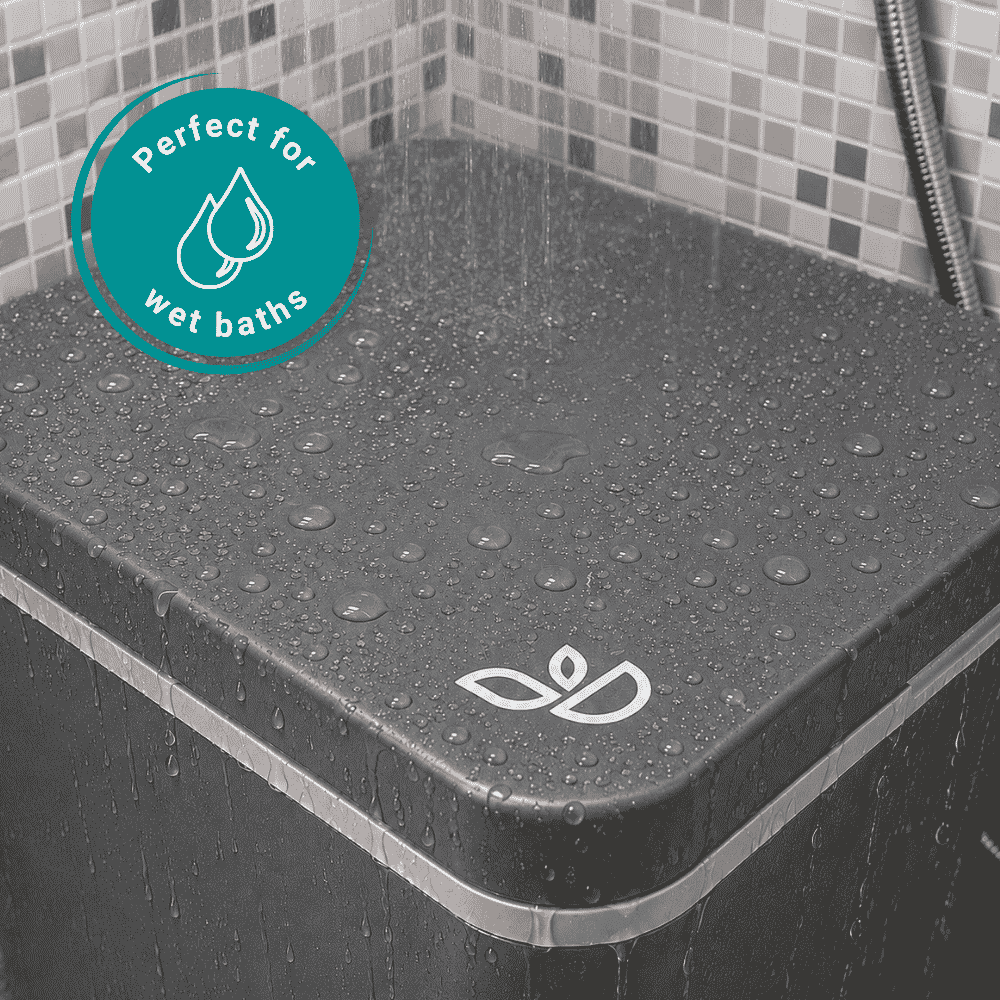

• Water-Resistant Exterior: The polyethylene exterior is described as water resistant and suitable for use in areas such as showers.
• Recyclable Plastic Construction: The toilet body is made from acrylonitrile butadiene styrene (ABS), while the containers are made from polypropylene.
• Odor Reduction Design: The separation and drying process is designed to reduce unpleasant odors during use.
• No Fan Required: The manufacturer states that the short emptying cycles mean the Evo S does not require a ventilation fan.
• No Water or Chemicals Required: The separation toilet operates without flushing water or chemical additives.
• Leakage Protection: The manufacturer describes the exterior as leak-proof for use during transportation.
• Stable Design: The compact toilet body is designed for stable use in mobile environments.
• German Production: The manufacturer states that production is carried out exclusively in Germany.
• Dark Gray Finish: This version is supplied in a dark gray exterior color.
• Replacement Lid Included: The package includes the installed soft-close lid with an additional replacement lid.
• Recycled Material Bags Included: The package includes 10 bags made from recycled materials.

Specifications

• Brand: Trelino
• Color: Dark Gray
• Toilet Type: Portable urine-separating composting toilet
• Width: 13.0 inches
• Depth: 15.4 inches
• Height: 11.7 inches
• Weight: 8.6 lb
• Urine Container Capacity: 1.2 US gallons
• Solids Container Capacity: 1.6 US gallons
• Body Material: Acrylonitrile Butadiene Styrene (ABS)
• Container Material: Polypropylene
• Exterior Material: Polyethylene
• Lid Type: Hinged soft-close lid
• Fan: Not required
• Water Use: No flushing water required
• Chemical Use: No chemical additives required
• Container Design: Individually removable urine and solids containers
• Production: Germany

Suitable Applications

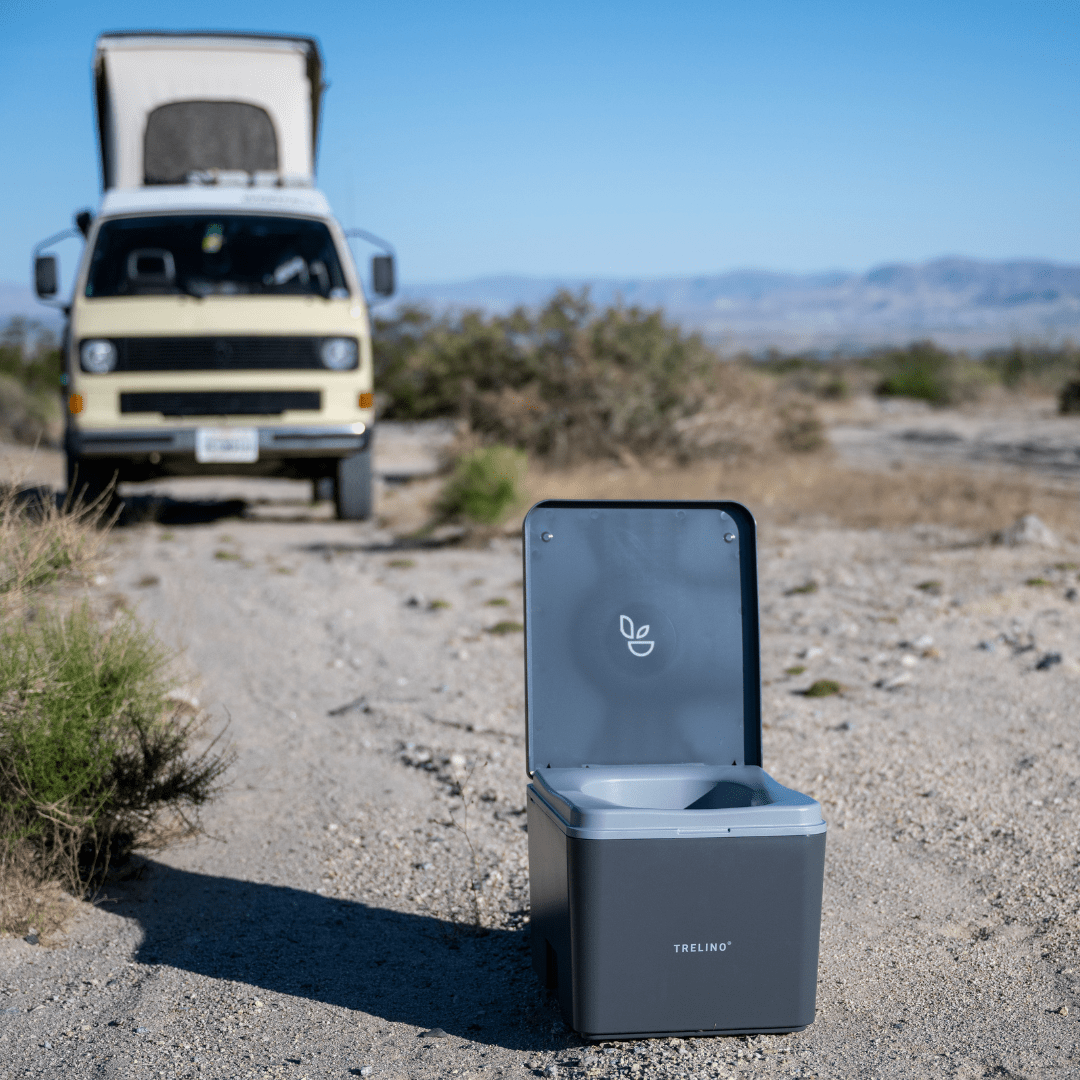

The Trelino Evo S is designed for compact mobile sanitation setups where conventional plumbing or fixed toilet systems are not practical. Suitable applications include camper vans, trailers, boats, RVs, camping setups, and other mobile or off-grid spaces where a portable toilet is required.

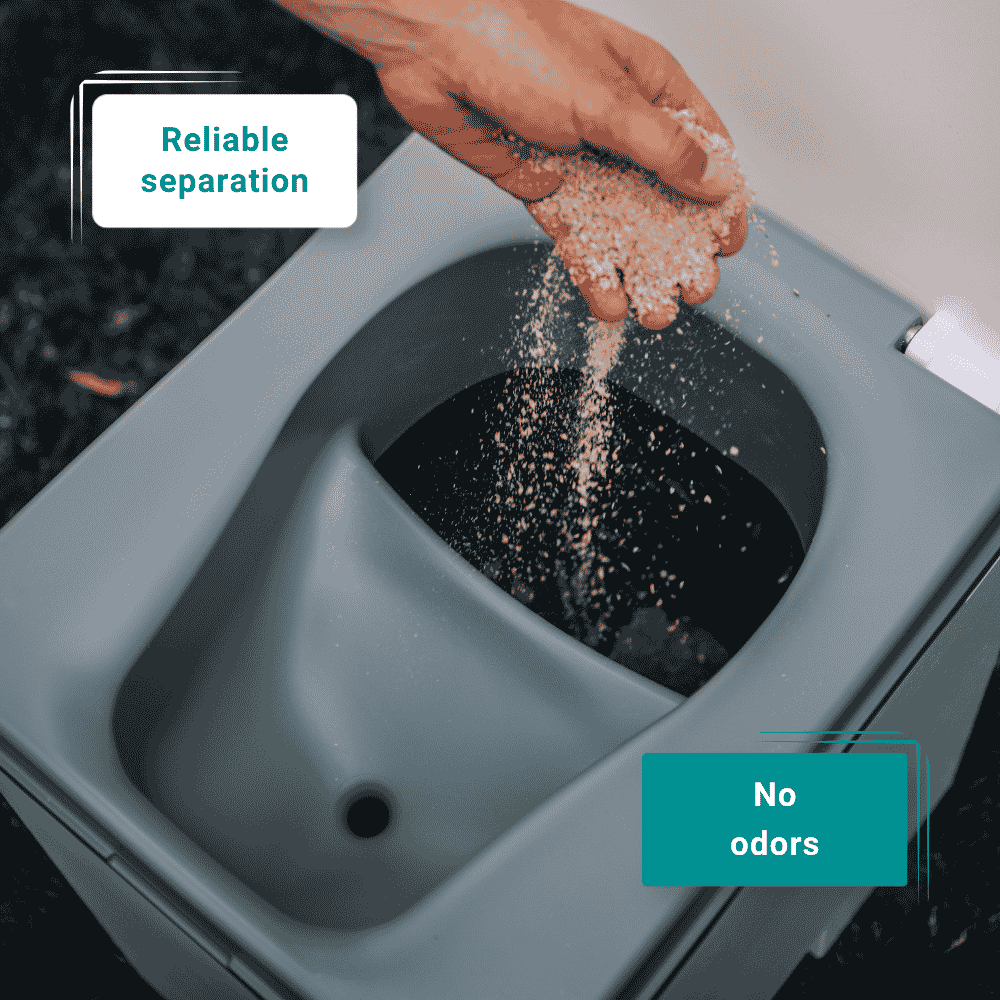

Waste Separation System

The Evo S uses a urine-separating design with two removable containers. The 1.2 US gallon urine canister is positioned separately from the 1.6 US gallon solids container, allowing each container to be emptied and cleaned independently.

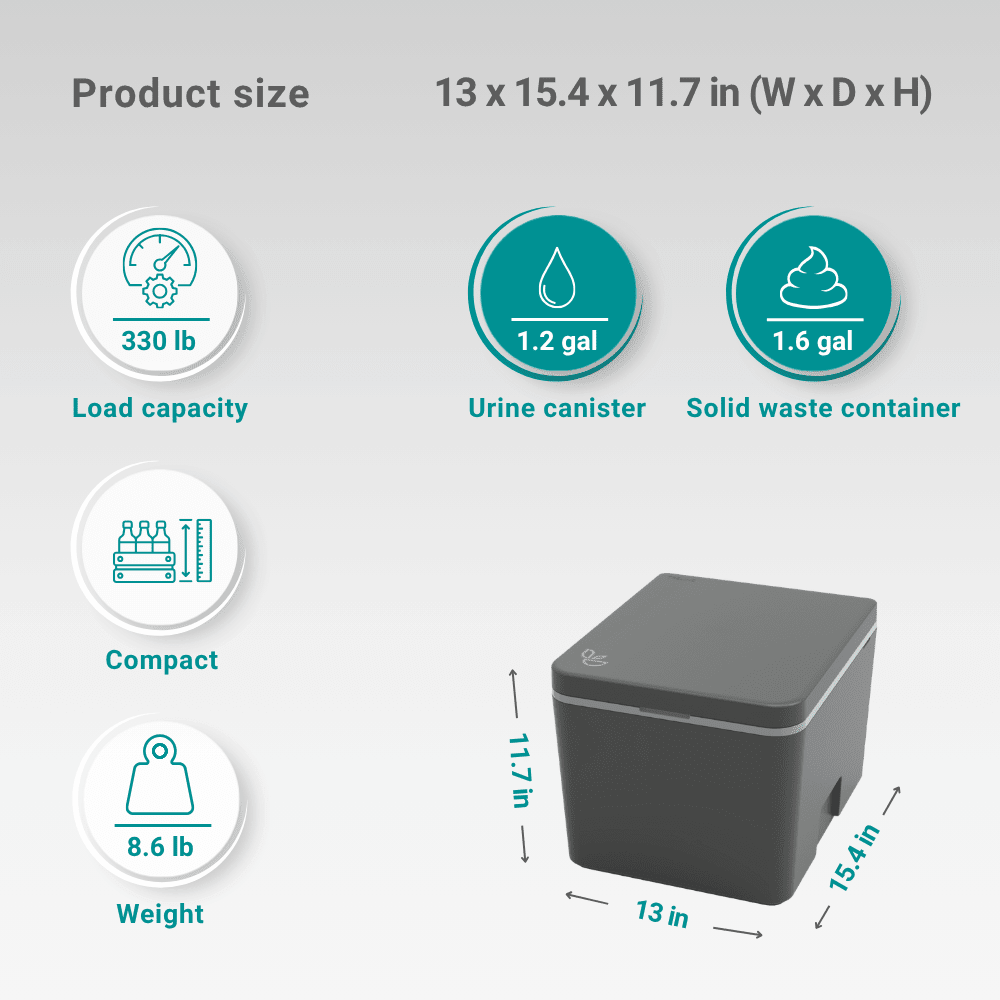

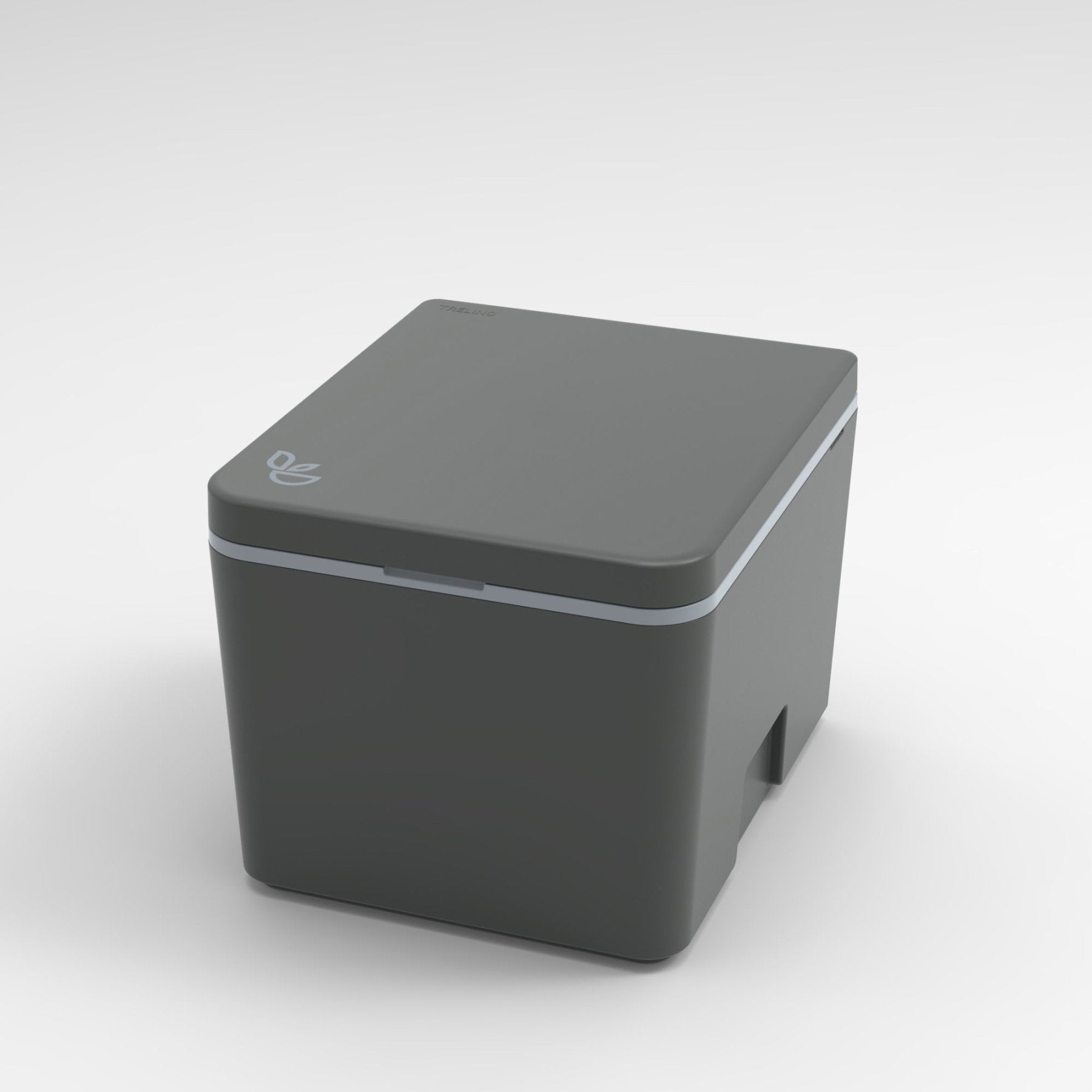

Compact & Portable Design

Measuring 13.0 × 15.4 × 11.7 inches and weighing approximately 8.6 lb, the Evo S is designed for installation and storage in compact mobile spaces. Its size allows it to be transported between locations while providing a toilet format similar to a conventional seating arrangement.

Materials & Construction

The toilet body is made from ABS plastic, while the removable containers are made from polypropylene. The manufacturer describes the exterior as water resistant and the construction as suitable for mobile use. The body and containers are made from recyclable plastic materials and are specified as resistant to aqueous chemicals.

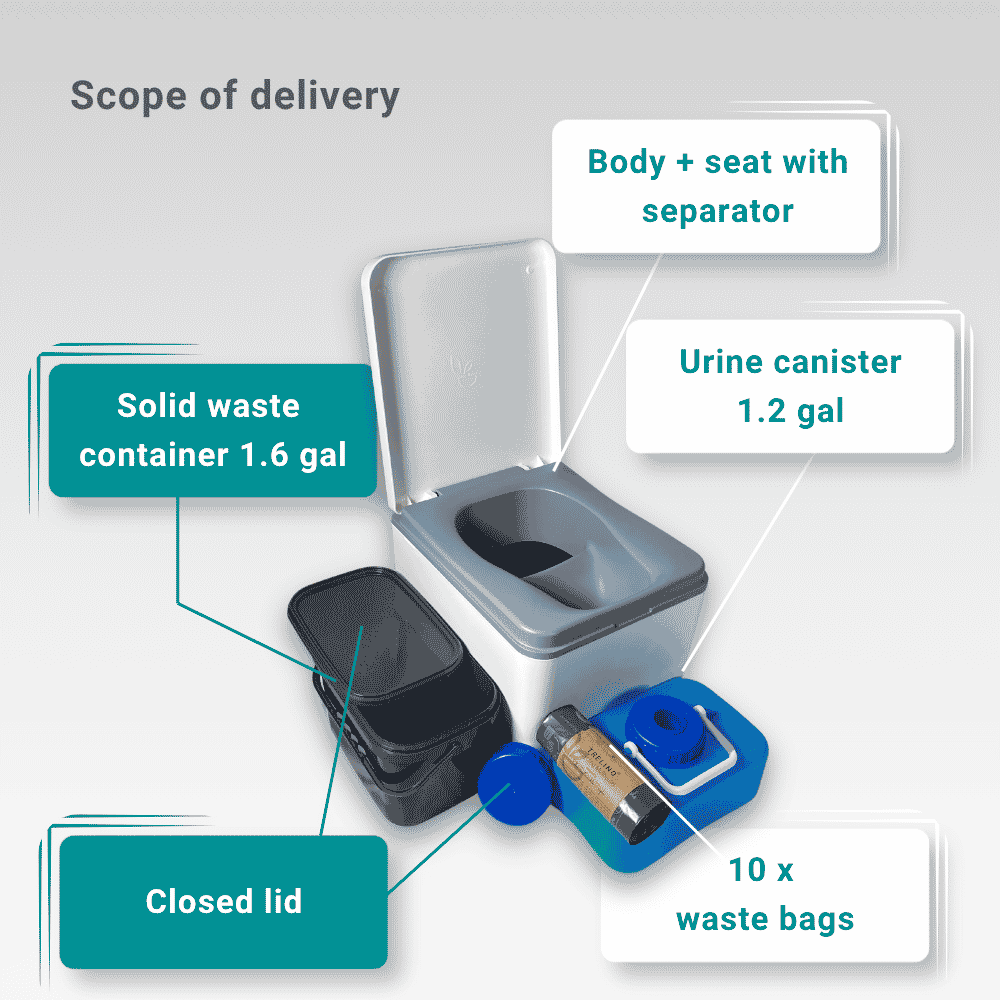

Included Components

• 1 × Exterior Body & Seat: Main toilet body with integrated urine separator.
• 1 × Soft-Close Lid: Hinged lid with automatic soft-close function.
• 1 × Urine Canister: 1.2 US gallon removable liquid container.
• 1 × Solids Container: 1.6 US gallon removable solids container.
• 1 × Membrane Closure Lid: Included with the toilet system.
• 1 × Replacement Lid: Spare lid included.
• 10 × Recycled Material Bags: Waste-management bags included with the package.

Installation & Use

The Trelino Evo S is intended to be used only as a toilet and should not be used as a seat or standing surface. The manufacturer specifies that the soft-close lid is designed with lightweight construction and should be allowed to close gently without manually pressing it down. The removable containers can be taken out separately for emptying and cleaning.

Important Usage Note

Use the Trelino Evo S according to the manufacturer's instructions and intended toilet function. Do not use the lid as a seat. Allow the soft-close mechanism to operate without manually forcing the lid closed. Empty and clean the urine and solids containers according to the recommended maintenance procedure for the product.
