Trelino Evo L Dark Gray Large Portable Composting Toilet

Trelino Evo L Dark Gray Large Portable Composting Toilet

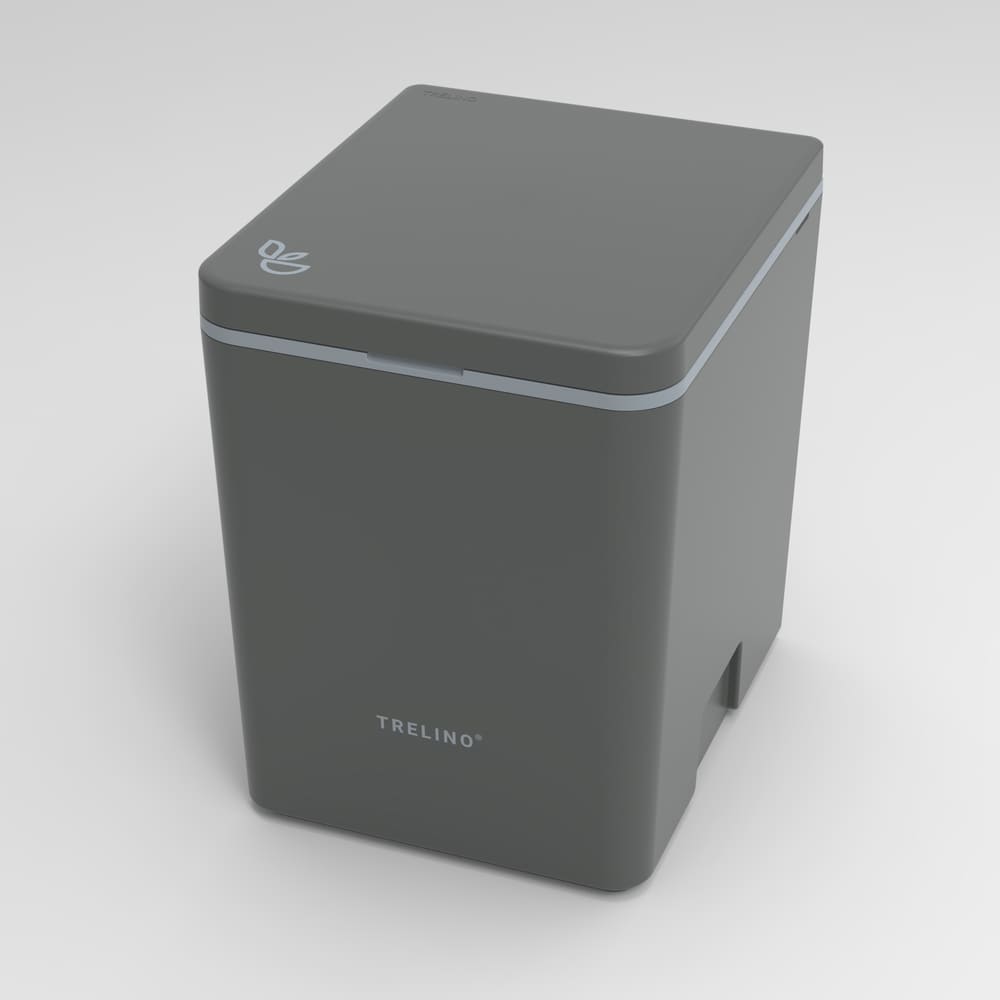

The Trelino Evo L is a large-capacity portable composting toilet designed for RVs, motorhomes, skoolies, large vans, tiny homes, and other mobile or off-grid spaces. Its urine-separating design uses separate 2.6 US gallon containers for liquid and solid waste, while the 13.0 × 15.4 × 16.9 inch dimensions provide a higher seating position and larger waste capacity. The toilet features a soft-close lid, removable containers, recyclable plastic construction, and operation without flushing water or chemical additives.

Key Features

• Large-Capacity Composting Toilet: Designed for RVs, motorhomes, skoolies, large vans, off-grid cabins, and tiny homes.
• Urine-Separating Design: Separates liquid and solid waste into individual containers for separate emptying and cleaning.
• 2.6 US Gallon Urine Container: Provides 2.6 US gallons of liquid capacity and is specified to hold approximately 12–22 liquid uses.
• 2.6 US Gallon Solids Container: Provides 2.6 US gallons of solids capacity and is specified to hold approximately 11–20 bowel movements.
• 10.8 lb Weight: Lightweight construction makes the toilet easier to transport and position in mobile spaces.

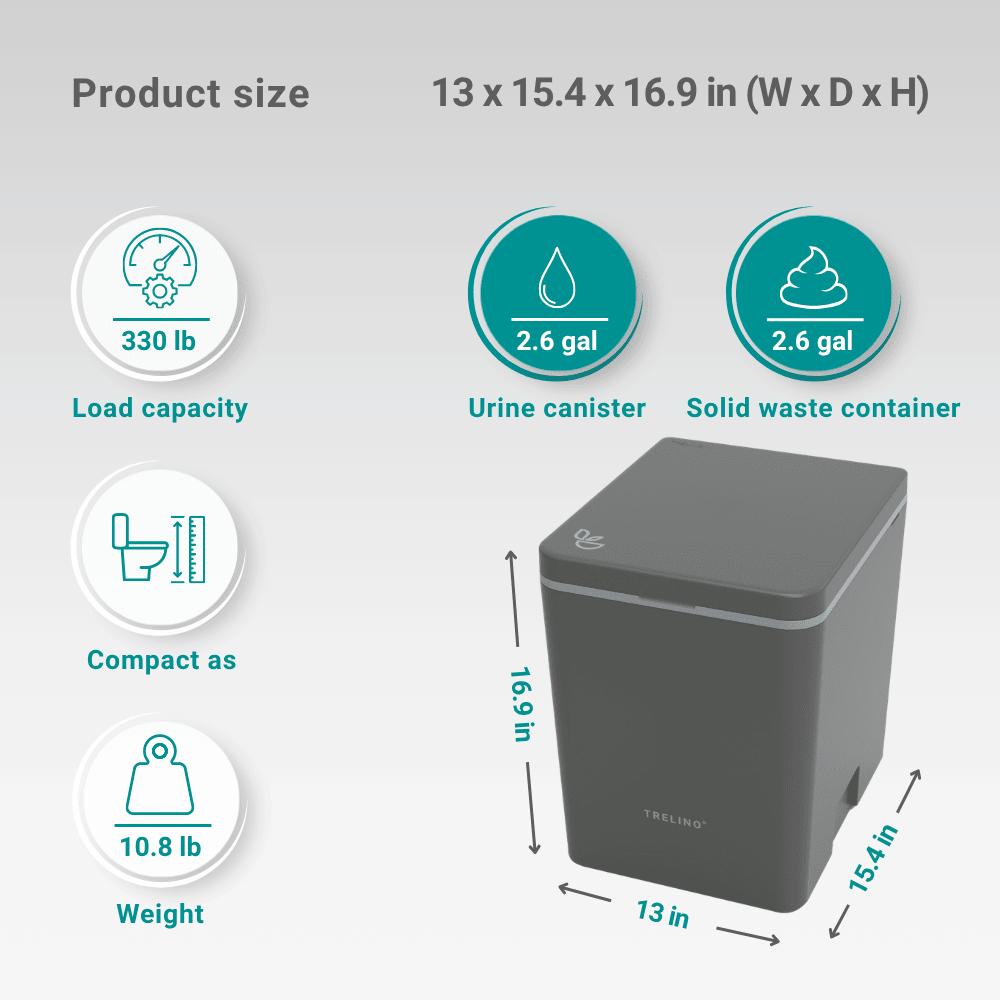

• 13.0 × 15.4 × 16.9 Inch Dimensions: Provides a higher toilet height and compact footprint for mobile installations.

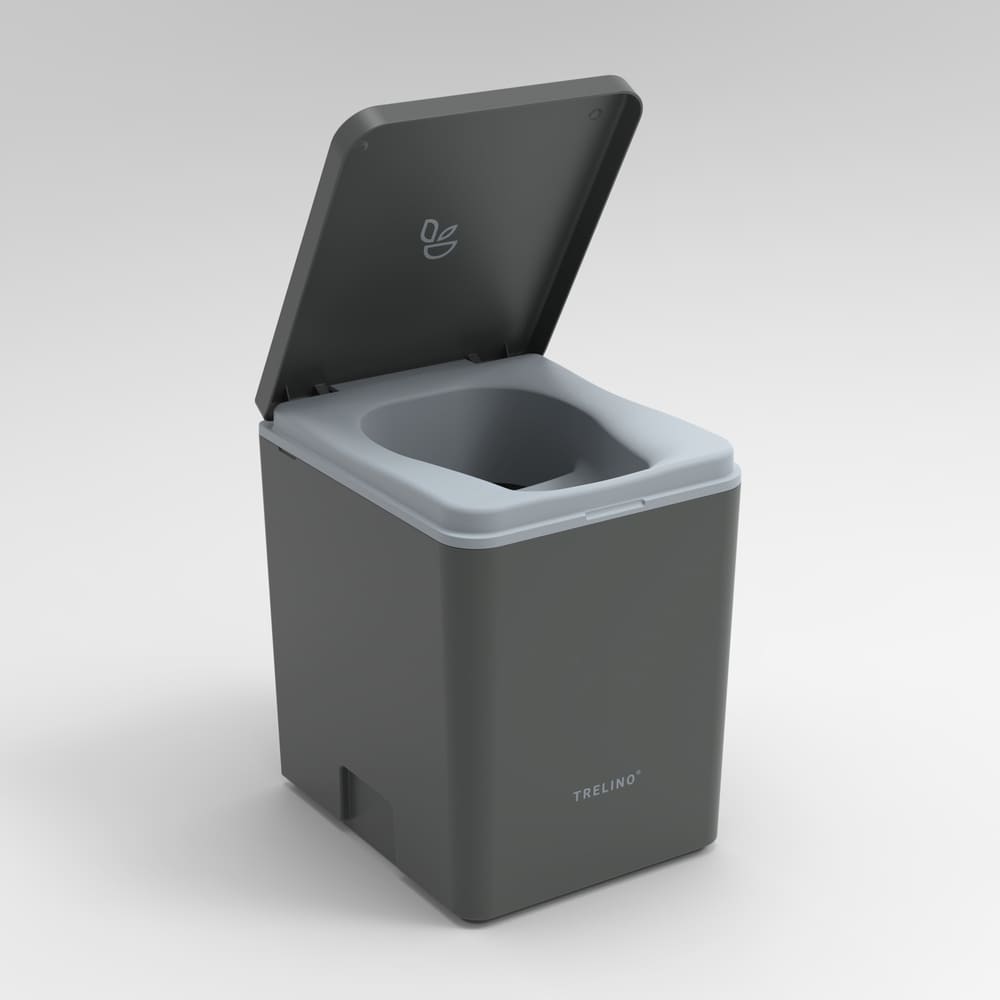

• Soft-Close Lid: Features a hinged lid with an automatic soft-close mechanism.
• Removable Containers: Separate urine and solids containers can be removed individually for emptying and cleaning.

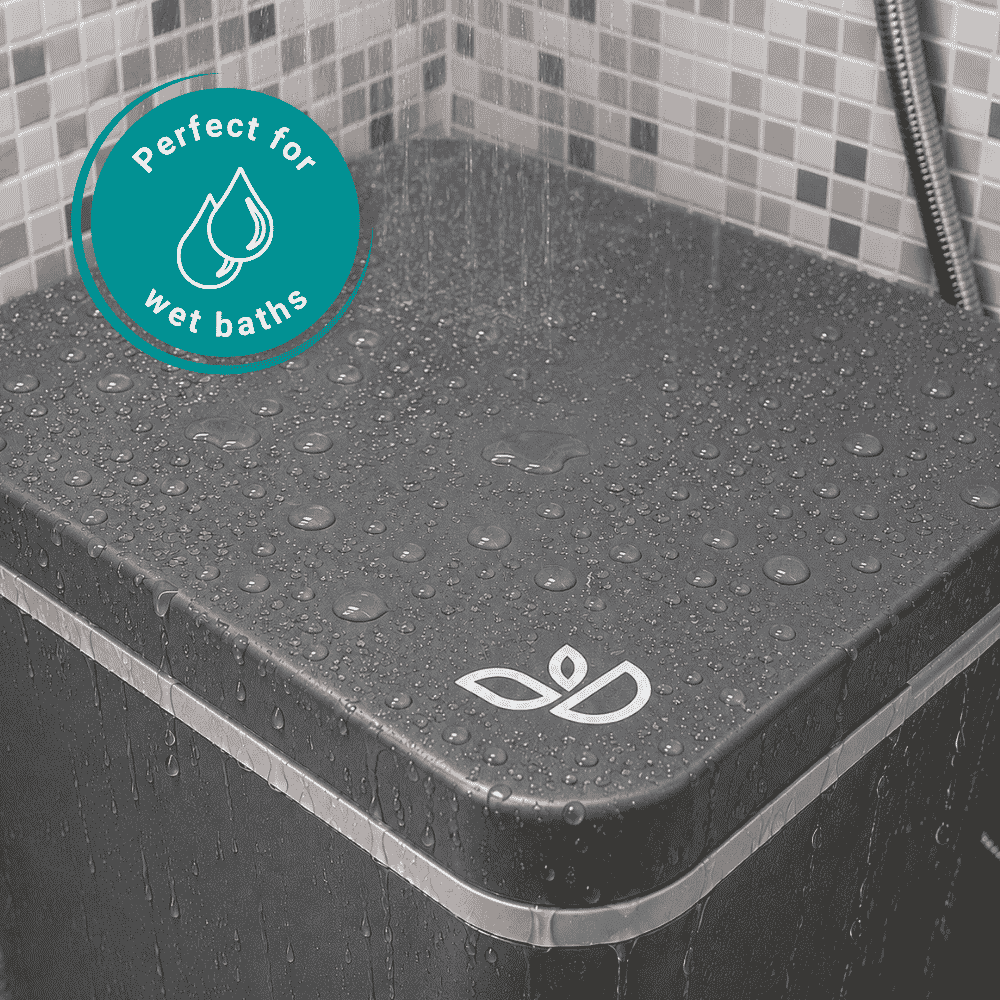

• Water-Resistant Exterior: The polyethylene exterior is described as water resistant and suitable for use in areas such as showers.
• Recyclable Plastic Construction: The body is made from ABS plastic and the containers are made from polypropylene.
• Odor Reduction: The urine-separation and drying process is designed to reduce unpleasant odors during use.
• Optional Fan Installation: A fan can be installed to support faster drying of the solids. The manufacturer specifies that the opening must be drilled during installation.

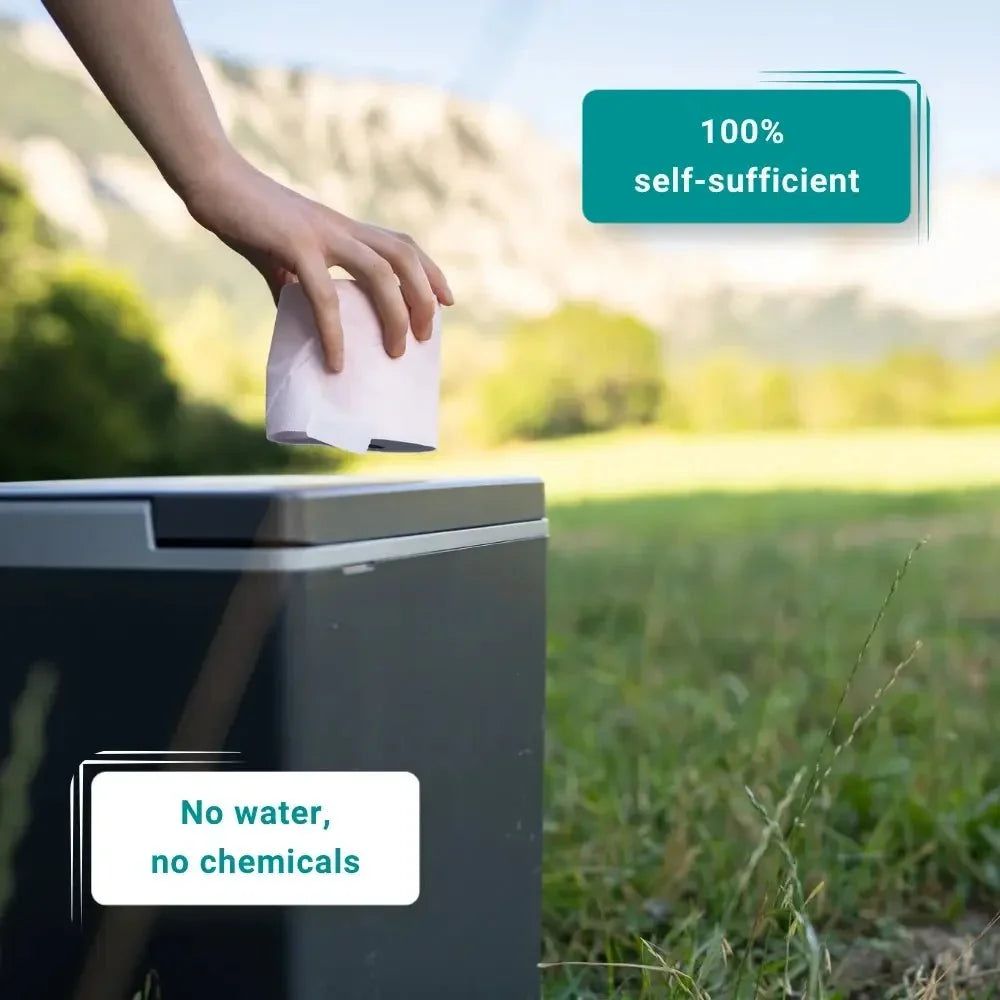

• No Flushing Water: The separating toilet operates without conventional flushing water.
• No Chemical Additives: The toilet is designed to operate without chemical additives.
• Leakage Protection: The manufacturer describes the exterior as leak-proof for transportation and mobile use.
• Stable Construction: Designed for stable use in RV and other mobile environments.
• German Production: Production is carried out exclusively in Germany according to the supplied product information.
• Dark Gray Finish: This version features a dark gray exterior.
• Replacement Lid Included: An additional replacement lid is included with the toilet.
• Recycled Material Bags: Includes 10 bags made from recycled materials.

Specifications

• Brand: Trelino
• Color: Dark Gray
• Toilet Type: Portable urine-separating composting toilet
• Width: 13.0 inches
• Depth: 15.4 inches
• Height: 16.9 inches
• Weight: 10.8 lb
• Urine Container Capacity: 2.6 US gallons
• Solids Container Capacity: 2.6 US gallons
• Body Material: Acrylonitrile Butadiene Styrene (ABS)
• Container Material: Polypropylene
• Exterior Material: Polyethylene
• Lid Type: Hinged soft-close lid
• Fan: Optional; installation requires drilling the designated opening
• Water Use: No flushing water required
• Chemical Use: No chemical additives required
• Container Design: Individually removable urine and solids containers
• Production: Germany

Suitable Applications

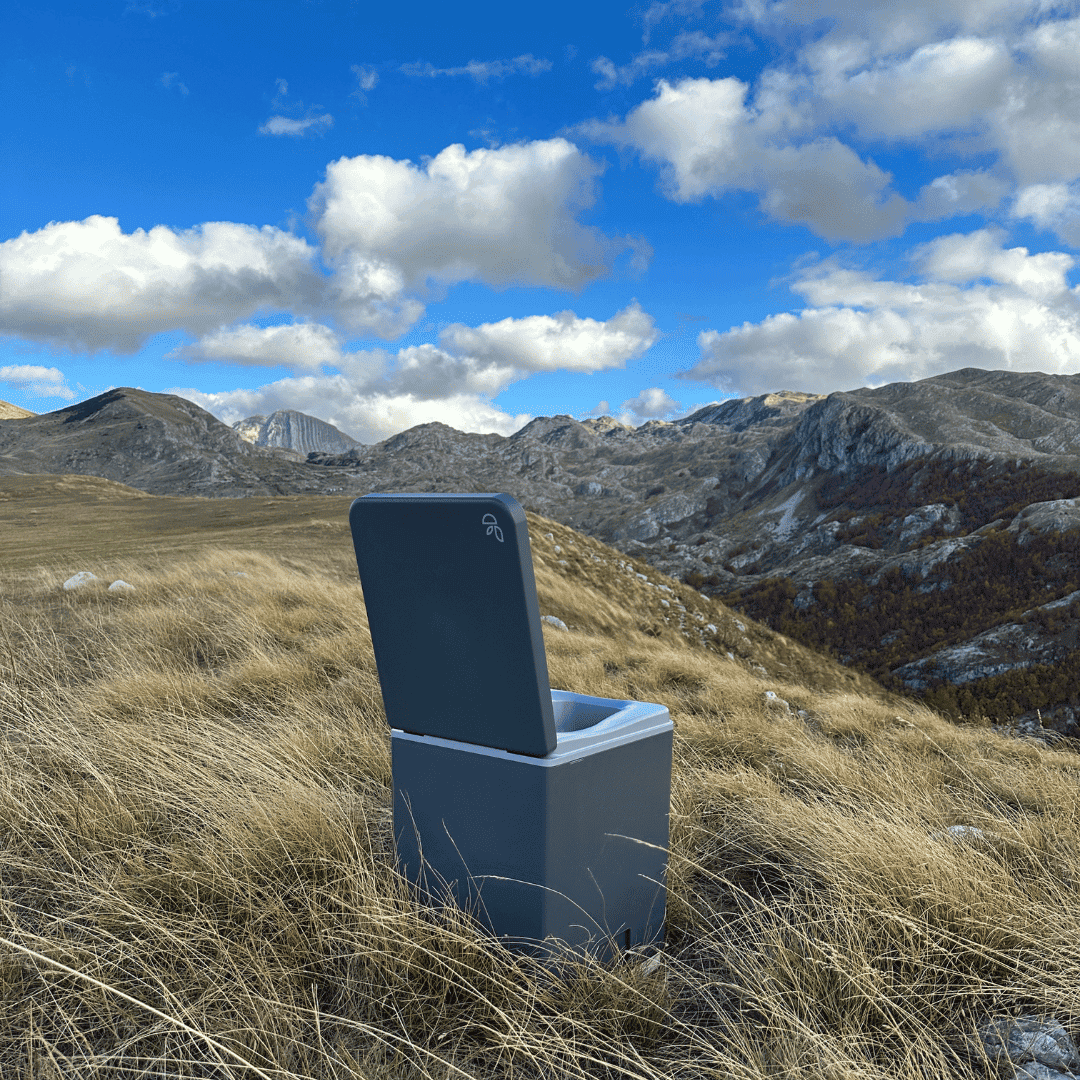

The Trelino Evo L is designed for mobile and off-grid sanitation applications where a larger-capacity portable toilet is required. Suitable uses include RVs, motorhomes, skoolies, large vans, tiny homes, off-grid cabins, and other spaces where conventional plumbing is unavailable or impractical.

Waste Separation System

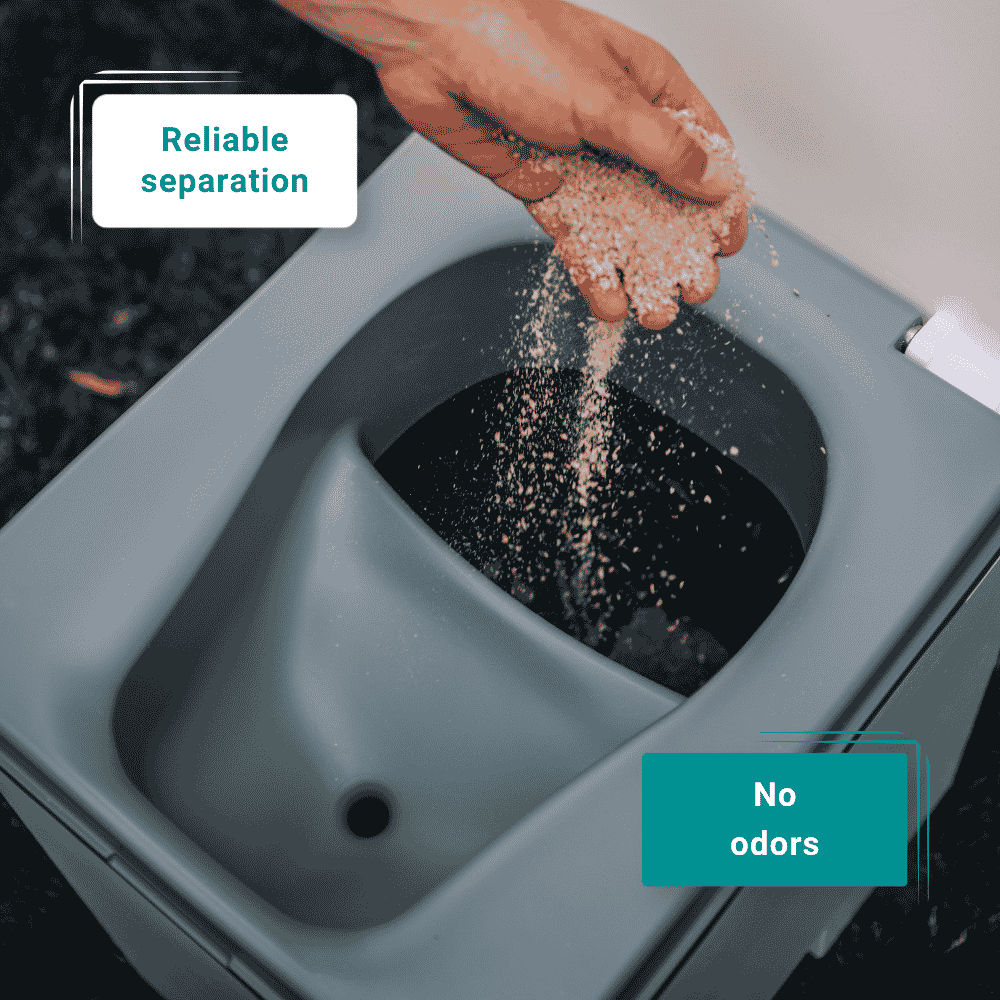

The Evo L separates urine and solid waste into two independently removable 2.6 US gallon containers. The separate containers allow each waste compartment to be emptied and cleaned independently.

Large-Capacity Design

With a 2.6 US gallon urine container and a 2.6 US gallon solids container, the Evo L provides a combined 5.2 US gallons of container capacity. Its 16.9-inch height also provides a taller toilet format for installations where additional seating height is preferred.

Compact & Portable Construction

Measuring 13.0 × 15.4 × 16.9 inches and weighing approximately 10.8 lb, the Evo L is designed for compact installation and convenient transportation. Its dimensions provide additional container capacity while maintaining a portable format for mobile environments.

Materials & Construction

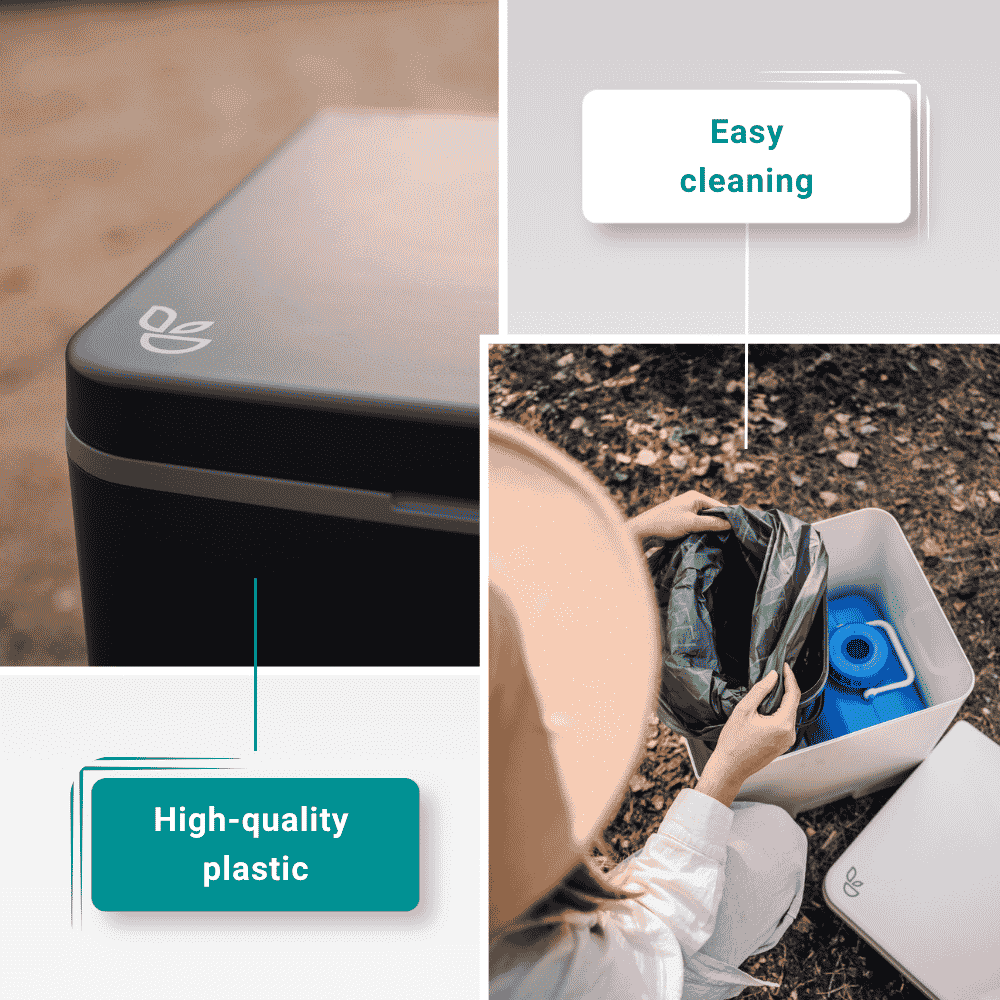

The main toilet body is made from ABS plastic, while the removable containers use polypropylene. The exterior is made from polyethylene and is described as water resistant. The supplied product information also specifies recyclable plastic construction and resistance to aqueous chemicals.

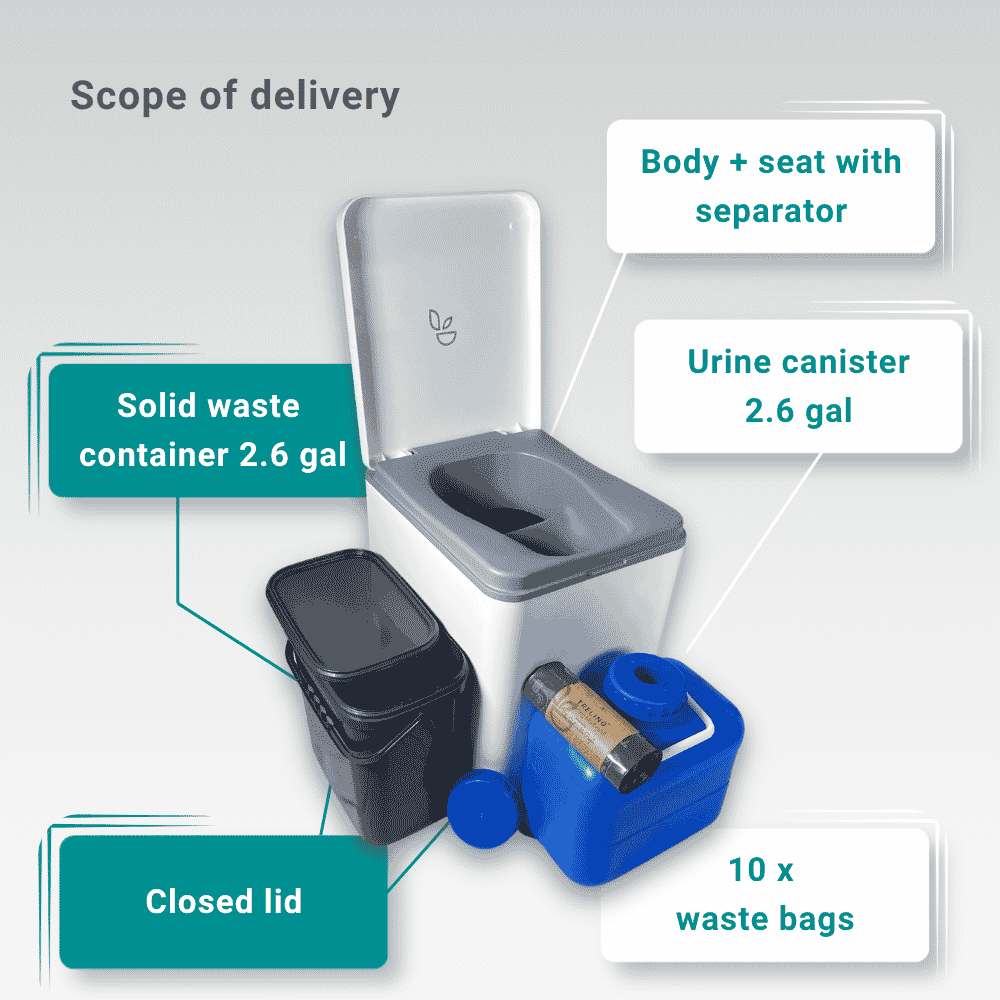

Included Components

• 1 × Exterior Body & Seat: Main toilet body with integrated urine separator.
• 1 × Soft-Close Lid: Hinged lid with automatic soft-close function.
• 1 × Urine Canister: 2.6 US gallon removable liquid container.
• 1 × Solids Container: 2.6 US gallon removable solids container.
• 1 × Membrane Closure Lid: Included with the toilet system.
• 1 × Replacement Lid: Spare lid included.
• 10 × Recycled Material Bags: Waste-management bags included with the package.

Fan Installation Option

The Trelino Evo L can accommodate a fan to support faster drying of the solids. The manufacturer states that the opening for the fan must be drilled during installation and recommends a 1.53-inch step drill for the process.

Installation & Use

The Trelino Evo L is intended to be used only as a toilet and should not be used as a seat. The manufacturer specifies that the lightweight soft-close lid is not designed to support sitting and should be allowed to close gently on its own without manually pressing it down. The removable urine and solids containers can be taken out separately for emptying and cleaning.

Important Usage Note

Use the Trelino Evo L according to the manufacturer's instructions and intended toilet function. Do not sit or stand on the lid. Allow the soft-close mechanism to close without manually forcing it. When installing an optional fan, follow the manufacturer's drilling and installation instructions. Empty and clean the urine and solids containers according to the recommended maintenance procedures for the product.
