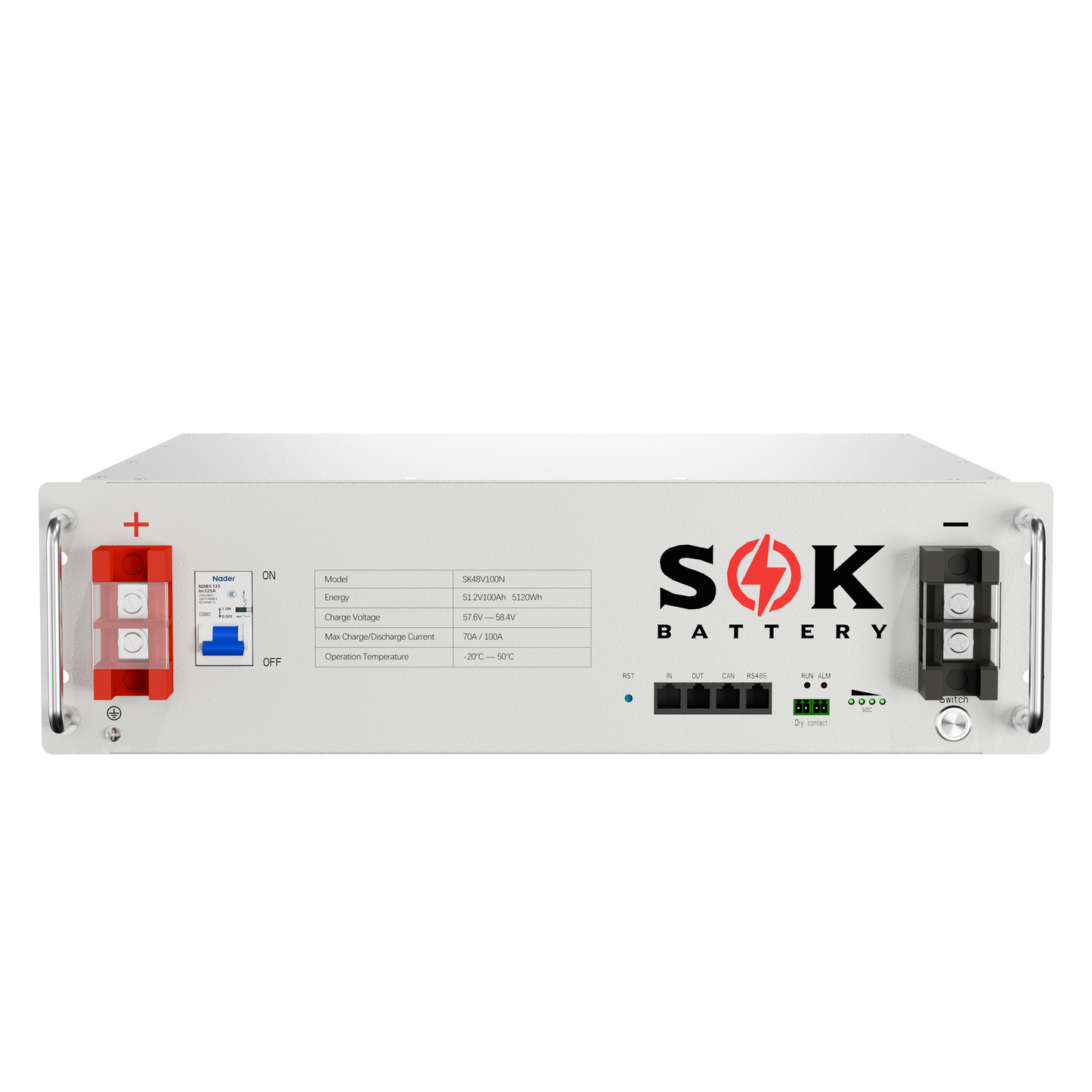

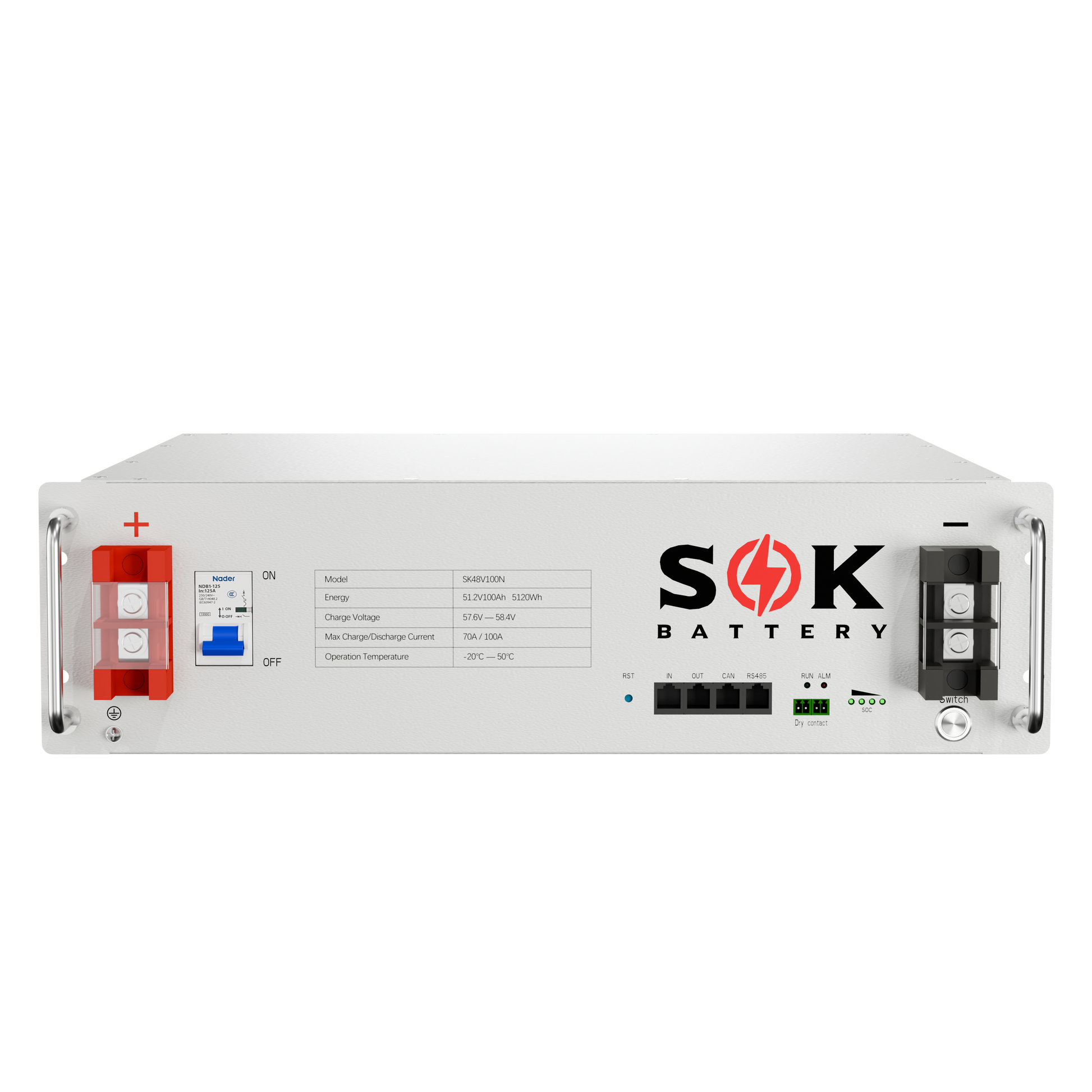

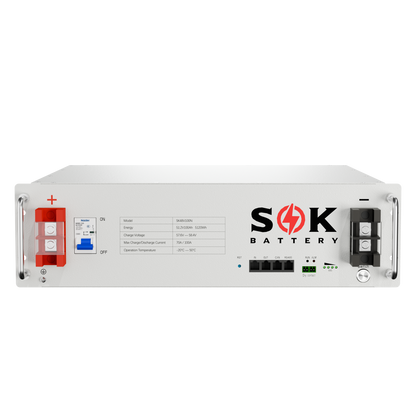

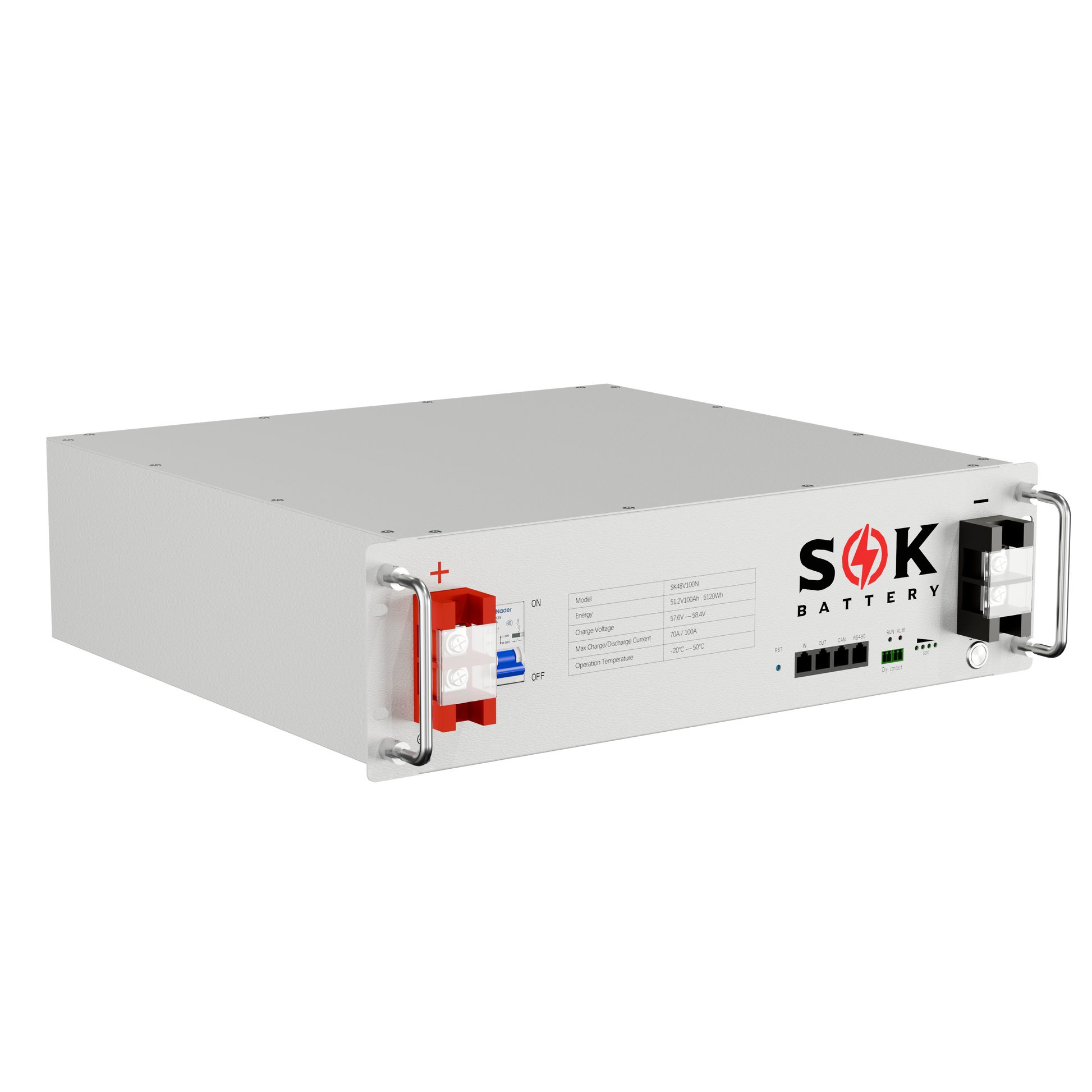

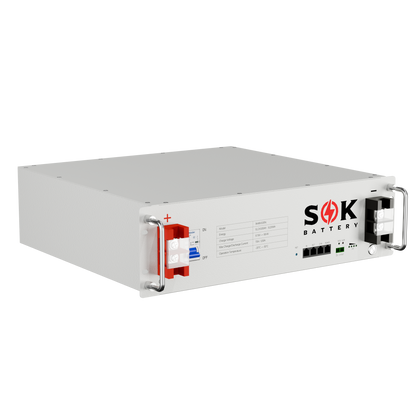

SOK SK48V100N 48V 100Ah Server Rack LiFePO4 Battery

SOK SK48V100N 48V 100Ah Server Rack LiFePO4 Battery

The SOK SK48V100N is a 48V-class server rack LiFePO4 battery with a 51.2V nominal voltage, 100Ah capacity, and 5.12kWh of stored energy. It is designed for compatible residential backup, off-grid solar, and stationary energy storage systems, featuring a built-in Smart BMS, internal heater, CAN bus and RS485 communication, Bluetooth monitoring, and a rack-mountable design.

Key Features

• 5.12kWh Energy Capacity: Provides 100Ah of nominal capacity at 51.2V for compatible 48V energy storage systems.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate chemistry for long-term stationary energy storage applications.
• 3U Server Rack Design: Rack-mountable construction supports organized installation in compatible 19-inch battery racks and cabinets.
• Built-In Smart BMS: Integrated Battery Management System provides multiple protection and battery management functions.
• Built-In Heater: Internal 100W heating supports operation and charging in cold conditions within the specified temperature limits.
• Bluetooth Monitoring: Provides wireless battery information and system monitoring through a compatible mobile application.
• CAN Bus & RS485 Communication: Supports communication with compatible inverters and energy storage equipment.
• Multiple Inverter Compatibility: Designed to work with compatible inverter systems using supported CAN bus or RS485 communication protocols.
• 100A Continuous Discharge: Provides up to 100A of continuous discharge current for compatible 48V systems.
• 100A Maximum Charge Current: Supports charging currents of up to 100A when used with compatible charging equipment.
• 50A Recommended Charge Current: The recommended charging current is 50A for standard operation.
• Long Cycle Life: Rated for more than 6,000 cycles at 80% depth of discharge and a 0.5C rate according to the supplied product information.
• Maintenance-Free Operation: Designed for lithium battery operation without routine watering or acid maintenance.
• Pre-Charge Circuit: Includes a pre-charge circuit designed to help reduce the risk of BMS damage from high-capacitance inverter inputs.
• On/Off Power Switch: Integrated power control provides convenient battery operation.
• Master/Slave Support: Supports automatic master/slave assignment for compatible multi-battery installations.
• Indoor Rack Installation: IP20 enclosure protection is intended for dry, protected indoor installation environments.
• 7-Year Warranty: Supplied product information lists a 7-year warranty.

Specifications

• Brand: SOK Battery
• Battery Type: Server rack LiFePO4 battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• System Voltage: 48V class
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Nominal Energy: 5.12kWh
• Cell Specification: 3.2V 100Ah cells
• Maximum Continuous Charge Current: 100A
• Recommended Charge Current: 50A
• Recommended Charge Voltage: Up to 58.4V
• Maximum Continuous Discharge Current: 100A
• Peak Discharge Current: 120A
• Recommended Low-Voltage Disconnect: 44.8V
• Built-In Heater: 100W
• Bluetooth: Yes
• OTA Support: Yes
• Communication: CAN bus and RS485
• Rack Format: 3U
• Dimensions: 19.14 × 16.95 × 5.22 inches
• Weight: Approximately 100 lb
• Terminal Type: M8
• Terminal Torque: 80–100 in-lb
• Case Material: SPCC + SGCC
• Enclosure Rating: IP20
• Discharge Temperature: -20°C to 60°C / -4°F to 140°F
• Charge Temperature: -20°C to 50°C / -4°F to 122°F
• Storage Temperature: -5°C to 35°C / 23°F to 95°F
• Typical Cycle Life: More than 6,000 cycles at 80% depth of discharge and 0.5C rate
• Warranty: 7 years

Suitable Applications

The SOK SK48V100N is designed for compatible 48V-class stationary energy storage applications, including home backup power, off-grid solar systems, battery banks, and rack-mounted energy storage installations. Its 5.12kWh capacity and 3U rack form factor make it suitable for systems where organized battery installation and inverter communication are required.

Inverter Communication

The battery provides CAN bus and RS485 communication for integration with compatible inverter systems. Supported communication depends on the inverter model, protocol selection, wiring, and system configuration. Confirm inverter compatibility and communication settings before commissioning the battery.

Bluetooth Monitoring

The built-in Bluetooth functionality provides access to available battery information through a compatible mobile application. Monitoring can be used to view battery operating information and system status without relying solely on the inverter display.

Battery Management & Protection

The integrated Smart BMS is designed to manage battery operating conditions and provide protection against conditions that may affect the battery. The battery also includes a pre-charge circuit intended to help reduce electrical stress when connecting to high-capacitance inverter systems.

Rack Installation

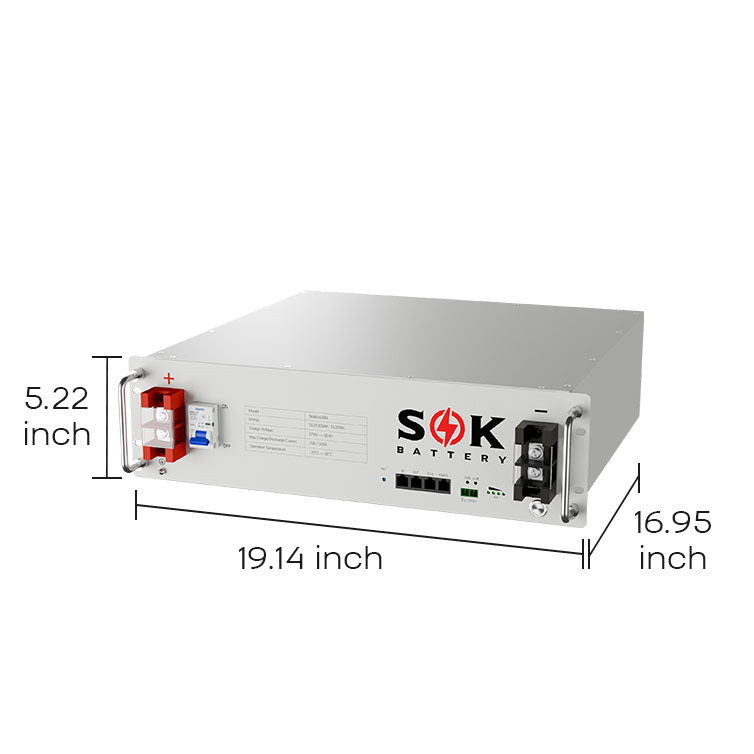

The SK48V100N uses a 3U rack-mountable design measuring 19.14 × 16.95 × 5.22 inches. The SPCC + SGCC enclosure has an IP20 rating, making the battery suitable for dry, protected indoor rack cabinets, server racks, utility rooms, and similar energy-storage environments.

Cold-Weather Operation

The built-in 100W heater is designed to support battery operation in cold conditions. Charging and discharging must remain within the specified temperature limits, and the complete installation should use charging equipment and settings compatible with the battery manufacturer's requirements.

Important Usage Note

Actual battery performance depends on inverter settings, connected loads, charging equipment, battery temperature, state of charge, wiring, and installation conditions. Use compatible LiFePO4 charging equipment and follow the manufacturer's voltage, current, communication, temperature, and protection requirements. Because the battery is IP20 rated, install it in a clean, dry, protected indoor location away from rain, standing water, and direct outdoor exposure.
