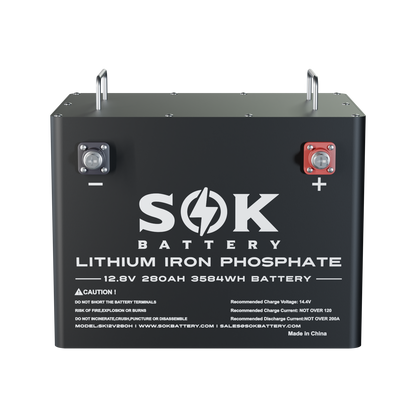

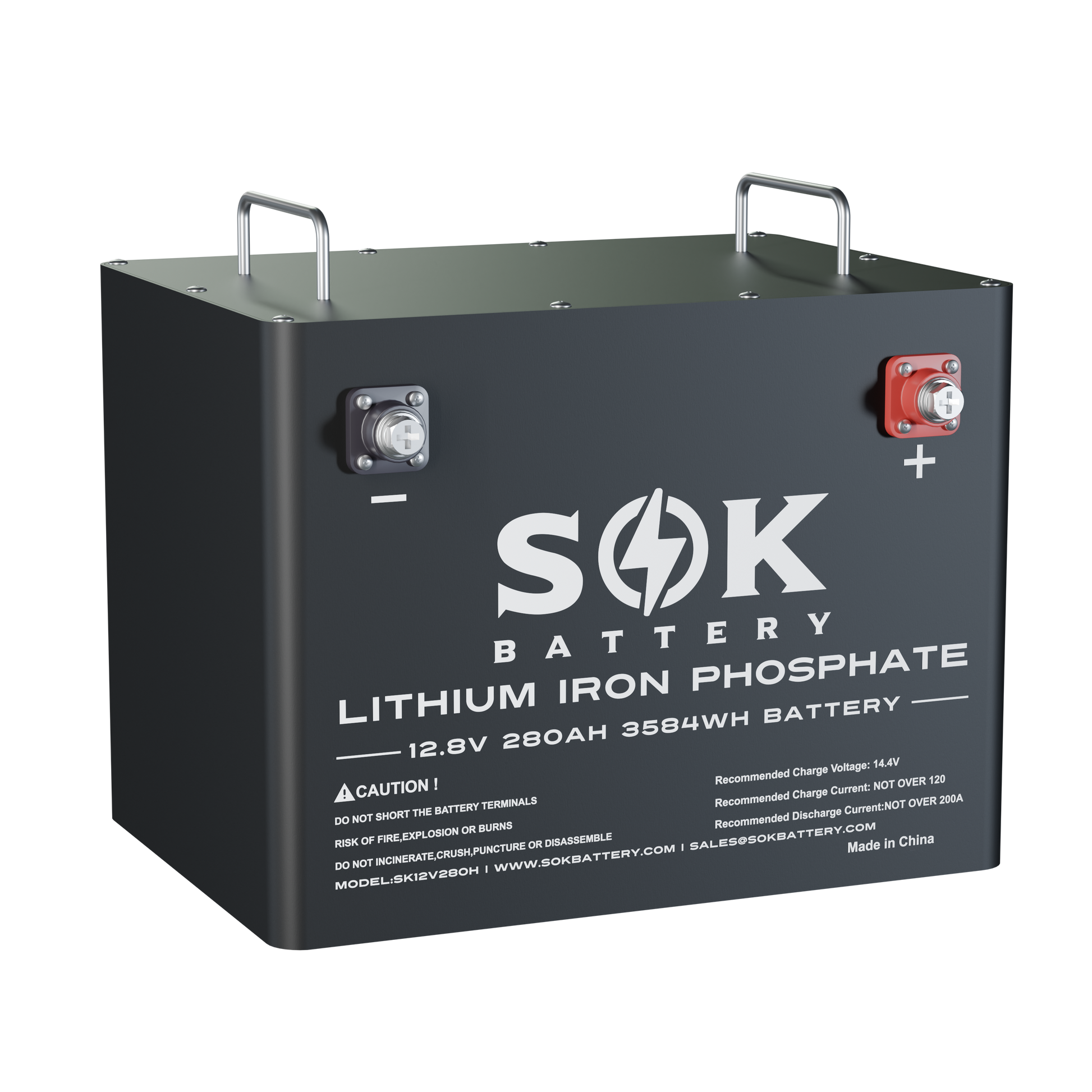

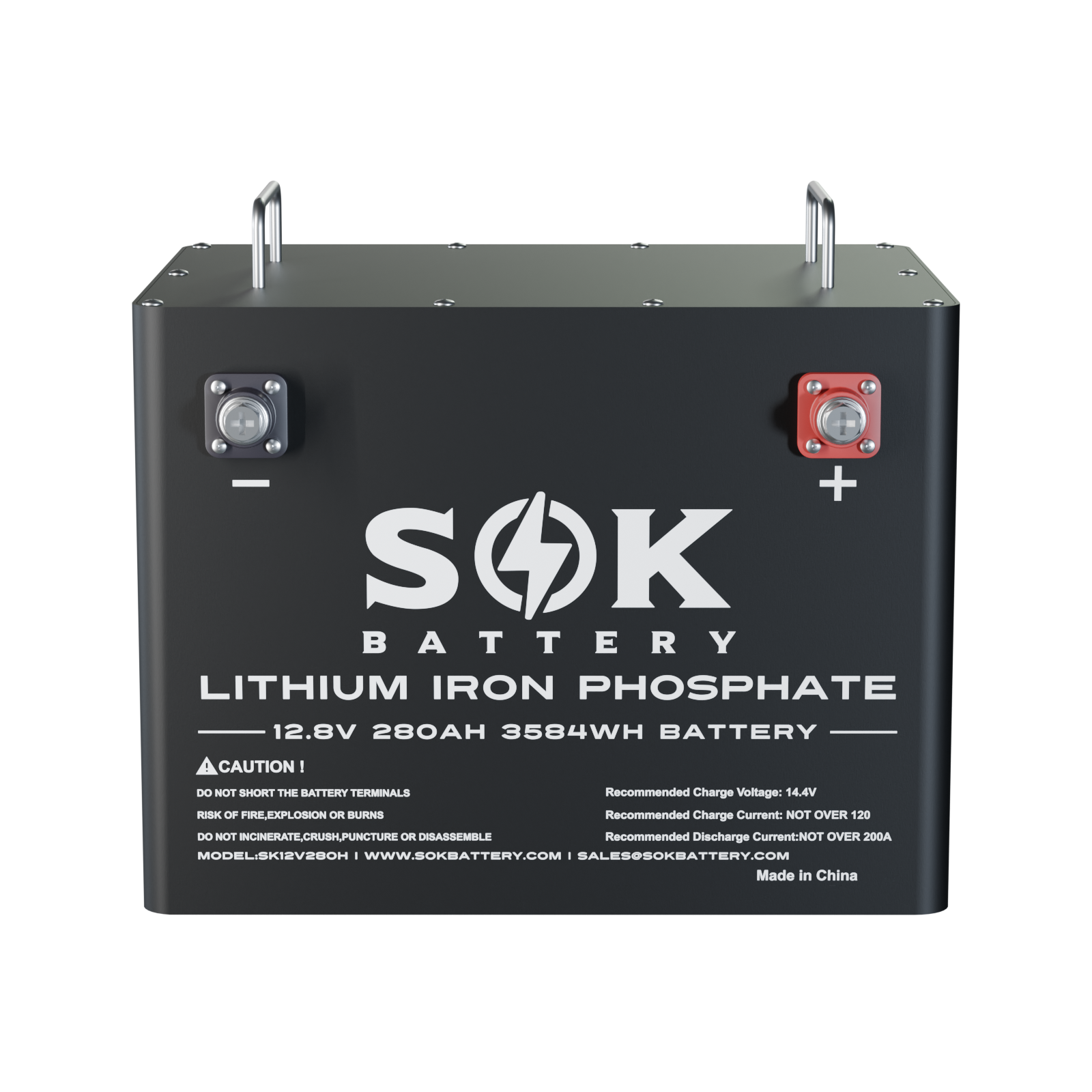

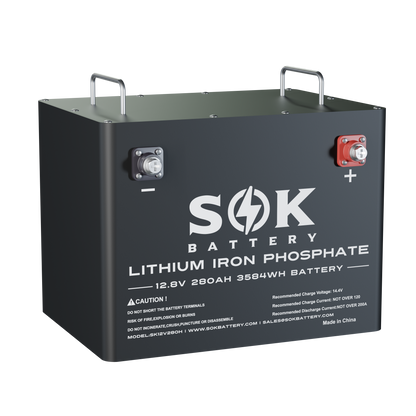

SOK SK12V280H 12V 280Ah Heated Bluetooth LiFePO4 Battery

SOK SK12V280H 12V 280Ah Heated Bluetooth LiFePO4 Battery

The SOK SK12V280H is a 12V 280Ah LiFePO4 deep-cycle battery designed for compatible RV, marine, solar, off-grid, and backup power systems. It provides 12.8V nominal voltage, 3.584kWh of stored energy, a built-in heater, Bluetooth monitoring, Smart BMS protection, automatic cell balancing, and a serviceable design with a detachable cover and replaceable BMS and cells.

Key Features

• 280Ah High-Capacity Battery: Provides 280Ah of nominal capacity and 3.584kWh of stored energy for compatible 12V power systems.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate cells for deep-cycle energy storage.
• Built-In Heater: Includes an internal heater pad to support battery operation and charging in low-temperature conditions.
• Bluetooth 4.0 Monitoring: Connects with compatible iPhone or Android smartphones for battery monitoring.
• ABC-BMS App Support: The supplied product information identifies ABC-BMS as the compatible mobile application for monitoring the battery.
• Smart BMS Protection: Integrated Battery Management System provides protection against overcharging, over-discharging, over-current, short circuits, and temperature conditions.
• Automatic Cell Balancing: Helps maintain balanced cell voltages for consistent battery operation.
• 200A Continuous Discharge: Provides up to 200A of maximum continuous discharge current for compatible 12V systems.
• 250A Peak Discharge: Supports short-duration peak discharge of up to 250A.
• 120A Maximum Charge Current: Supports charging currents up to 120A with compatible LiFePO4 charging equipment.
• 56A Recommended Charge Current: The recommended charging current is 56A or approximately 0.2C.
• Serviceable Design: The detachable cover allows access to the battery's BMS and cells, which are designed to be replaceable where supported.
• Series Expansion: Up to four compatible batteries can be connected in series to create higher-voltage battery banks.
• Parallel Expansion: Supports multiple batteries in parallel for increased total capacity, with the supplied specifications allowing up to 10 batteries in parallel.
• Long Cycle Life: Rated for approximately 8,000–12,000 cycles depending on operating conditions and depth of discharge.
• Maintenance-Free Operation: Designed for lithium battery operation without routine watering or lead-acid maintenance.
• M8 Terminals: Uses M8 terminals compatible with 5/16-inch lugs.
• Aluminum Case: Uses a black-painted aluminum enclosure designed for durable battery installation.
• IP50 Enclosure: Designed for protected environments and indoor or enclosed installations.
• 7-Year Warranty: Supplied product information specifies a 7-year warranty.

Specifications

• Brand: SOK Battery
• Model: SK12V280H
• Battery Type: Heated deep-cycle LiFePO4 battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 280Ah
• Energy: 3,584Wh / 3.584kWh
• Cell Specification: 3.2V 280Ah cells
• Recommended Charge Current: 56A / 0.2C
• Maximum Charge Current: 120A
• Recommended Charge Voltage: 14.6V
• BMS Charge Cut-Off Voltage: Below 14.6V
• Reconnect Voltage: Above 14.4V
• Balancing Voltage: Below 14.4V
• Maximum Continuous Discharge Current: 200A
• Peak Discharge Current: 250A
• Recommended Low-Voltage Disconnect: 11.2V
• BMS Discharge Cut-Off Voltage: Above 10.4V
• Discharge Reconnect Voltage: Above 11.6V
• Maximum Batteries in Series: 4
• Maximum Batteries in Parallel: 10
• Bluetooth: Bluetooth 4.0
• Mobile App: ABC-BMS for compatible iPhone and Android devices
• Built-In Heater: Yes
• Terminal Type: M8 / 5/16-inch lugs
• Terminal Torque: 80–100 in-lb / 9–11 N·m
• Case Material: Black-painted aluminum
• Enclosure Protection: IP50

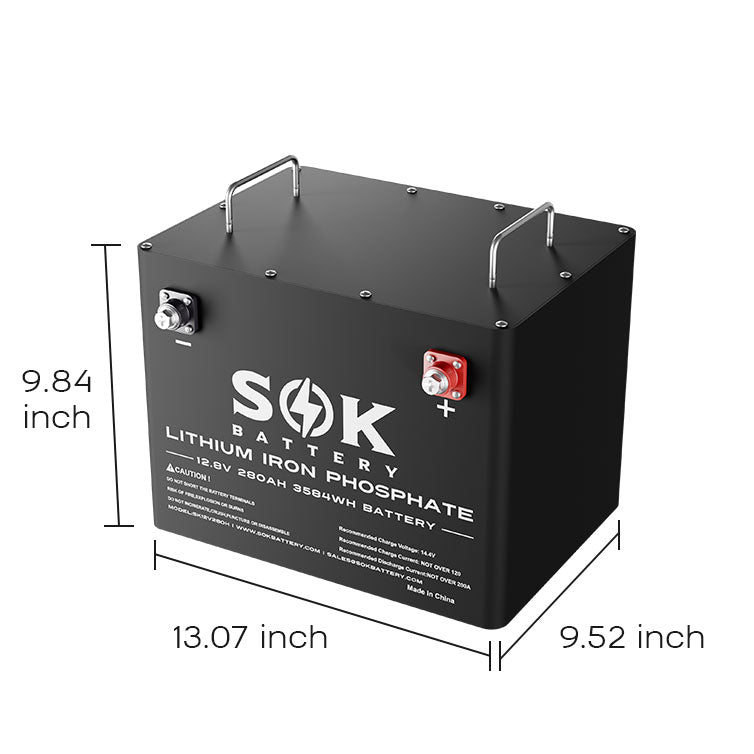

• Dimensions: 13.07 × 9.52 × 9.84 inches
• Weight: Approximately 73 lb
• Discharge Temperature: -4°F to 140°F
• Charge Temperature: 4°F to 113°F
• Recommended Storage Temperature: 23°F to 95°F
• BMS High-Temperature Cut-Off: 149°F / 65°C
• Reconnect Temperature: 131°F / 55°C
• Short-Circuit Protection: 200–500A
• Certifications: UL1973, UL9540A, IEC62619 for cells
• Shipping Documentation: MSDS available for shipping
• Warranty: 7 years

Suitable Applications

The SOK SK12V280H is designed for compatible 12V deep-cycle applications including RV house batteries, marine systems, solar energy storage, off-grid power systems, backup power, and other mobile or stationary energy-storage installations. Its 280Ah capacity provides a high-capacity solution for systems requiring extended battery runtime.

Bluetooth Monitoring

The built-in Bluetooth 4.0 functionality allows users to connect the battery to a compatible iPhone or Android smartphone through the ABC-BMS application. The app can be used to monitor available battery information and operating status without requiring a separate external battery monitor.

Smart BMS Protection

The integrated Smart Battery Management System provides protection against overcharging, over-discharging, excessive current, short circuits, and high-temperature conditions. The battery also includes low-temperature charging protection and automatic cell balancing to support safe and consistent operation.

Built-In Heater

The SK12V280H includes an internal heater pad designed to support charging in low-temperature environments. The heater works with the battery's temperature-management system to help maintain suitable cell conditions during cold-weather operation.

Series & Parallel Configuration

Up to four compatible batteries can be connected in series for higher-voltage battery-bank configurations. Multiple batteries can also be connected in parallel to increase total amp-hour capacity, with the supplied specifications allowing up to 10 batteries in parallel. Use matched batteries and follow the manufacturer's wiring and installation requirements.

Serviceable Battery Design

The detachable cover provides access to the battery's internal components, including the BMS and cells. The product is designed with replaceable BMS and cell components where compatible replacement parts and service procedures are available.

Charging & Operation

The recommended charging current is 56A, while the maximum charge current is 120A. The recommended charge voltage is 14.6V. Use a compatible 12V LiFePO4 charger and verify charger voltage, current, polarity, wiring, and battery temperature before charging.

Important Usage Note

Actual battery performance and service life depend on charging settings, discharge rate, depth of discharge, temperature, connected equipment, wiring, and installation conditions. Do not exceed the specified charge or discharge limits. The IP50 enclosure is intended for protected environments and should be kept away from rain, standing water, and direct exposure to moisture.
