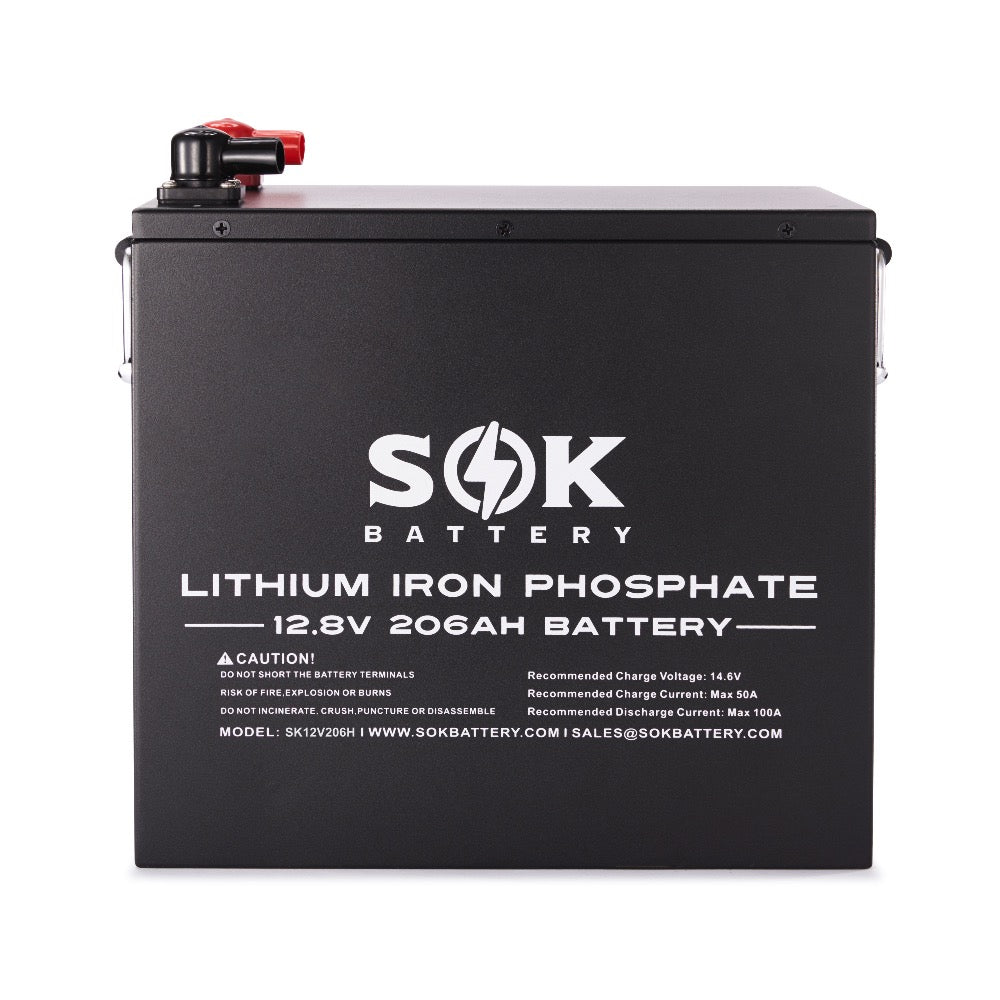

SOK SK12V206H 12V 206Ah Heated Bluetooth LiFePO4 Battery

SOK SK12V206H 12V 206Ah Heated Bluetooth LiFePO4 Battery

The SOK SK12V206H is a 12V 206Ah Lithium Iron Phosphate (LiFePO4) battery designed for compatible RV, marine, solar, off-grid, backup, and mobile energy storage systems. It provides 12.8V nominal voltage, 2.6368kWh of stored energy, built-in heating, Bluetooth 4.0 monitoring, Smart BMS protection, automatic cell balancing, and a serviceable design with a detachable cover and replaceable BMS and cells.

Key Features

• 206Ah High-Capacity Battery: Provides 206Ah of nominal capacity and 2.64kWh of stored energy for compatible 12V deep-cycle applications.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate cells for deep-cycle energy storage.
• Built-In Heater: Includes an internal heater pad designed to support charging in low-temperature conditions down to -4°F.
• Bluetooth 4.0 Monitoring: Connects with compatible iPhone and Android smartphones for battery monitoring.
• ABC-BMS App Support: The battery can be monitored through the ABC-BMS mobile application on compatible devices.
• Smart Battery Management System: Integrated BMS provides protection against overcharging, over-discharging, over-current, short circuits, and temperature conditions.
• Automatic Cell Balancing: Helps maintain balanced cell voltages during charging and operation.
• 150A Continuous Discharge: Supports up to 150A of maximum continuous discharge current.
• 170A Peak Discharge: Provides short-duration peak discharge capability of up to 170A.
• 70A Maximum Charge Current: Supports up to 70A maximum charging current with compatible LiFePO4 charging equipment.
• 40A Recommended Charge Current: The recommended charging current is 40A for standard operation.
• Serviceable Construction: The detachable cover provides access to replaceable BMS and battery cell components where supported.
• Series Expansion: Supports up to four compatible batteries in series for higher-voltage battery-bank configurations.
• Parallel Expansion: Supports multiple batteries connected in parallel for increased total capacity.
• Long Cycle Life: Designed for approximately 3,000–8,000 cycles depending on operating conditions and usage.
• Maintenance-Free Design: LiFePO4 construction requires no routine watering or acid maintenance.
• M8 Terminals: Uses M8 terminals compatible with 5/16-inch lugs.
• 7-Year Warranty: Supplied product information specifies a 7-year warranty.

Specifications

• Brand: SOK Battery
• Model: SK12V206H
• Battery Type: Deep-cycle LiFePO4 battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 206Ah
• Energy: 2,636.8Wh / 2.64kWh
• Cell Specification: 3.2V 206Ah cells
• Recommended Charge Current: 40A
• Maximum Charge Current: 70A
• Recommended Charge Voltage: 14.4V–14.6V
• Maximum Continuous Discharge Current: 150A
• Peak Discharge Current: 170A
• Recommended Low-Voltage Disconnect: 10.4V
• BMS Discharge Cut-Off Voltage: Above 10.4V
• Discharge Reconnect Voltage: Above 11.6V
• Maximum Batteries in Series: 4
• Bluetooth: Bluetooth 4.0
• Mobile App: ABC-BMS
• Built-In Heater: Yes
• Terminal Type: M8 / 5/16-inch lugs
• Terminal Torque: 80–100 in-lb / 9–11 N·m
• Case Material: Black-painted metal
• Enclosure Protection: IP50

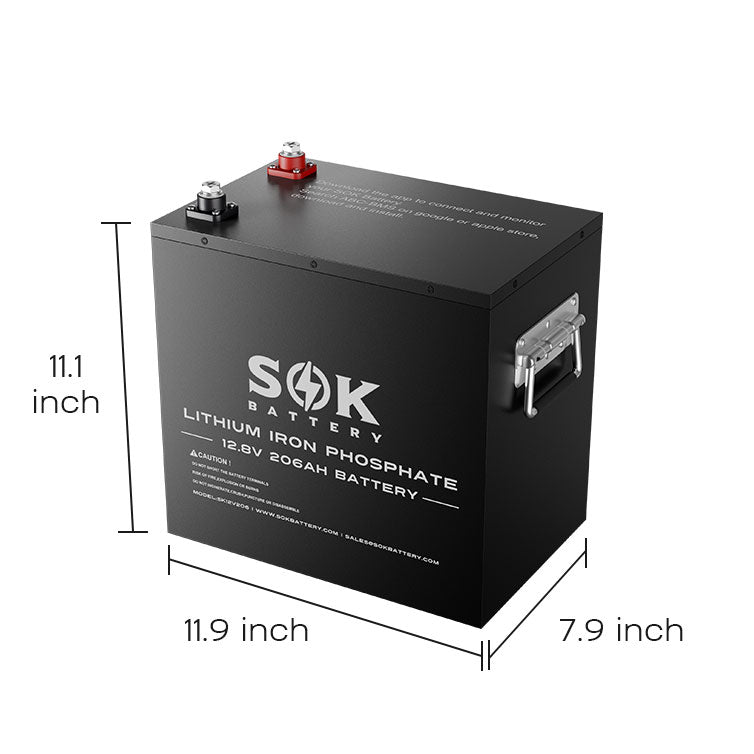

• Dimensions: 11.9 × 7.9 × 11.1 inches
• Weight: Approximately 50.04 lb
• Discharge Temperature: -4°F to 140°F
• Charge Temperature: -4°F to 140°F according to the supplied battery specifications
• Storage Temperature: -4°F to 140°F according to the supplied battery specifications
• BMS High-Temperature Cut-Off: 149°F / 65°C
• Reconnect Temperature: 131°F / 55°C
• Short-Circuit Protection: 200–500A
• Self-Discharge: Less than 3% per month
• Certifications: UL1973, UL9540A, IEC62619 for battery cells
• Warranty: 7 years

Suitable Applications

The SOK SK12V206H is designed for compatible 12V deep-cycle applications including RV house batteries, marine systems, solar installations, off-grid power systems, backup power, and other mobile or stationary energy storage setups. Its 206Ah capacity and built-in heater make it suitable for systems that require high-capacity lithium storage and low-temperature charging support.

Bluetooth Battery Monitoring

The built-in Bluetooth 4.0 connection allows the battery to communicate with compatible iPhone and Android devices through the ABC-BMS application. Users can access available battery information and monitor operating status from a compatible smartphone.

Smart BMS & Protection

The integrated Smart Battery Management System provides protection against overcharging, over-discharging, over-current, short circuits, and high-temperature conditions. Low-temperature charging cutoff and automatic cell balancing are also included to support safe and consistent battery operation.

Built-In Heating

The SK12V206H includes an internal heater pad designed to support charging in cold conditions down to -4°F. Charging should remain within the battery manufacturer's specified temperature and current limits.

Series & Parallel Configuration

Up to four compatible batteries can be connected in series to create higher-voltage battery banks. Batteries can also be connected in parallel for increased capacity. When installing batteries in series, use batteries with matching specifications and state of charge, and follow the manufacturer's requirements for battery voltage balancing.

Serviceable Battery Design

The detachable cover provides access to internal components, including the BMS and battery cells. The design allows the BMS and cells to be replaced where compatible replacement components and service procedures are available.

Charging & Operation

The recommended charging current is 40A, with a maximum charging current of 70A. The recommended charging voltage is 14.6V. Use a compatible 12V LiFePO4 charger and verify charger voltage, current, polarity, wiring, and battery temperature before charging.

Important Usage Note

Actual battery performance and service life depend on charging settings, discharge rate, depth of discharge, temperature, connected equipment, wiring, and installation conditions. Do not exceed the specified charge or discharge limits. For series-connected batteries, ensure compatible batteries are at the same state of charge before connection and use the required voltage-balancing equipment. The IP50 enclosure is intended for protected environments and should be kept away from rain, standing water, and direct moisture exposure.
