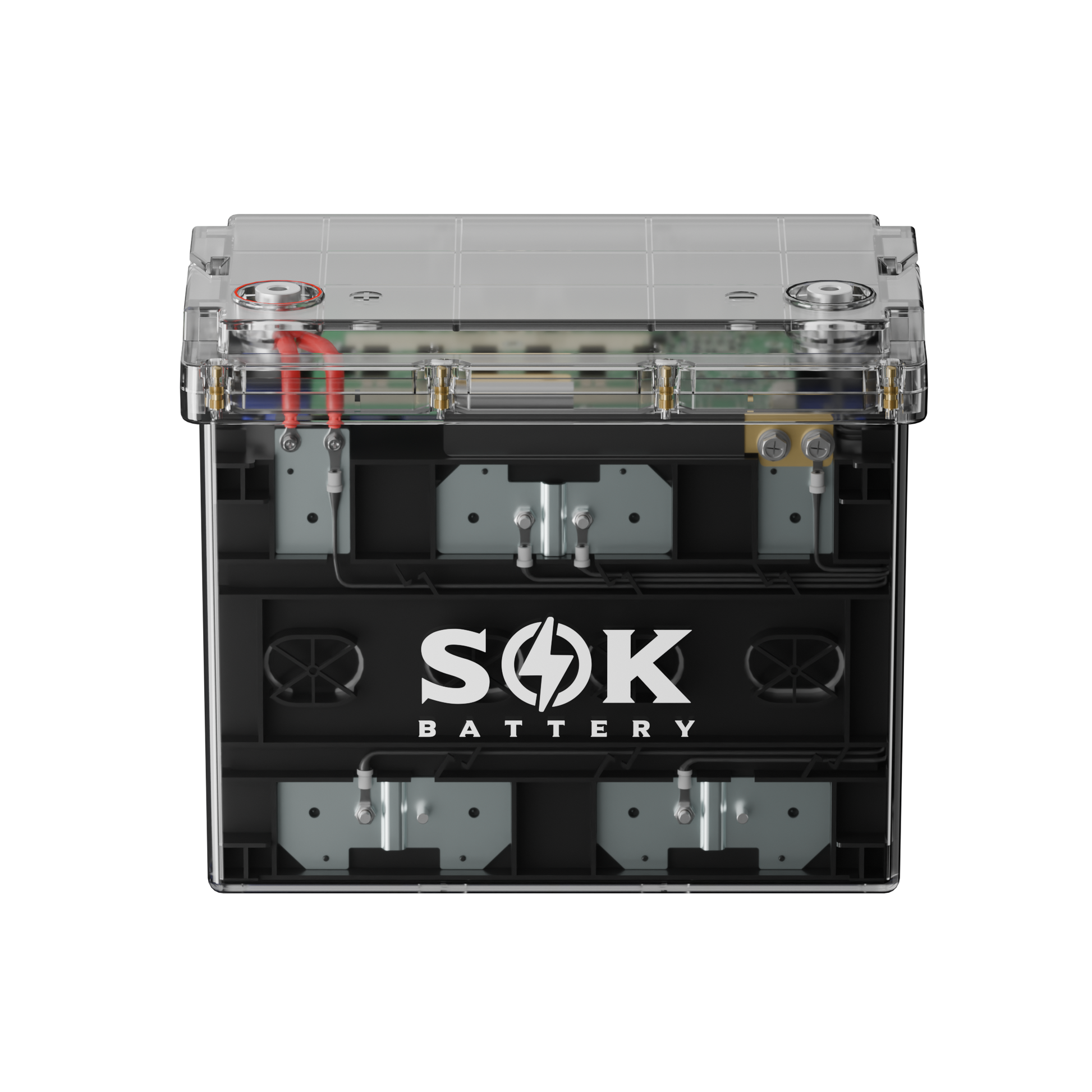

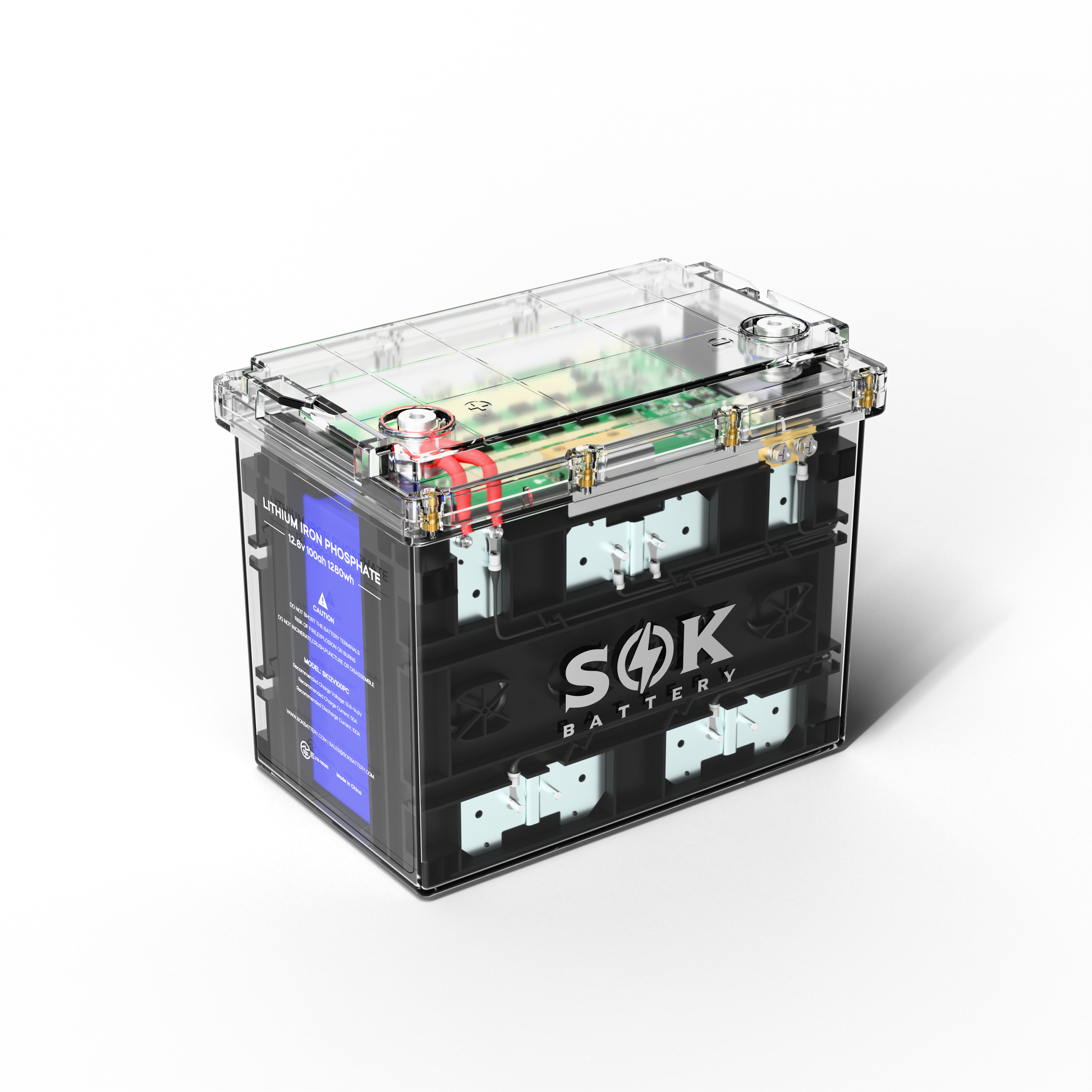

SOK SK12V100PC 12V 100Ah Deep Cycle LiFePO4 Battery

SOK SK12V100PC 12V 100Ah Deep Cycle LiFePO4 Battery

The SOK SK12V100PC is a 12V 100Ah Lithium Iron Phosphate (LiFePO4) battery designed for compatible RV, marine, solar, off-grid, backup, and mobile energy storage systems. It provides 12.8V nominal voltage and 1,280Wh of stored energy, along with automatic cell balancing, a built-in Battery Management System (BMS), and a serviceable sealed-plastic enclosure. The battery supports up to 100A continuous discharge and 70A maximum charge current.

Key Features

• 100Ah LiFePO4 Capacity: Provides 100Ah of nominal capacity and 1.28kWh of stored energy for compatible 12V applications.
• 12.8V Nominal Voltage: Designed for compatible 12V lithium battery systems.
• 100A Continuous Discharge: Supports up to 100A of maximum continuous discharge current.
• 170A Peak Discharge: Provides short-duration peak discharge capability of up to 170A.
• 70A Maximum Charge Current: Supports up to 70A maximum charging current with compatible LiFePO4 charging equipment.
• Recommended Charge Current Below 50A: The specified recommended charging current is below 50A.
• 13.8–14.6V Charge Voltage: Designed for the specified charging voltage range for compatible 12V LiFePO4 systems.
• Smart Battery Management System: Built-in BMS provides protection against overcharging, over-discharging, over-current, short circuits, and excessive battery temperature.
• Automatic Cell Balancing: Helps maintain balanced cell voltages during charging and operation.
• Serviceable Construction: The battery uses a sealed plastic case and is designed as a serviceable battery platform.
• Series Configuration: Supports up to four compatible batteries connected in series for higher-voltage battery banks.
• Parallel Configuration: Supports up to 10 compatible batteries connected in parallel for increased battery capacity.
• IP65 Protection: The enclosure is rated IP65 for protection against dust and water jets.
• Maintenance-Free Operation: LiFePO4 chemistry eliminates routine watering and acid maintenance.
• Compact Size: Measures 10.24 × 6.69 × 8.27 inches for space-conscious battery installations.
• Lightweight Construction: Weighs approximately 24.7 lb for easier handling and installation.
• Long Cycle Life: Supplied product information specifies a cycle life of approximately 3,000–8,000 cycles depending on operating conditions.
• 5-Year Warranty: The supplied product information lists a 5-year warranty.

Specifications

• Brand: SOK Battery
• Model: SK12V100PC
• Battery Type: Drop-in replacement LiFePO4 battery
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Stored Energy: 1,280Wh / 1.28kWh
• Cell Specification: 3.2V 100Ah cells
• Recommended Charge Current: Below 50A
• Maximum Charge Current: 70A
• Recommended Charge Voltage: 13.8V–14.6V
• BMS Charge Cut-Off Voltage: Below 14.6V
• Charge Reconnect Voltage: Above 14.4V
• Balancing Voltage: Below 14.4V
• Maximum Continuous Discharge Current: 100A
• Peak Discharge Current: 170A
• Recommended Low-Voltage Disconnect: 10.4V
• BMS Discharge Cut-Off Voltage: Above 10.4V
• Discharge Reconnect Voltage: Above 11.6V
• Maximum Batteries in Series: 4
• Maximum Batteries in Parallel: 10
• Terminal Type: M8
• Terminal Torque: 80–100 in-lb / 9–11 N·m
• Case Material: Sealed plastic
• Enclosure Protection: IP65

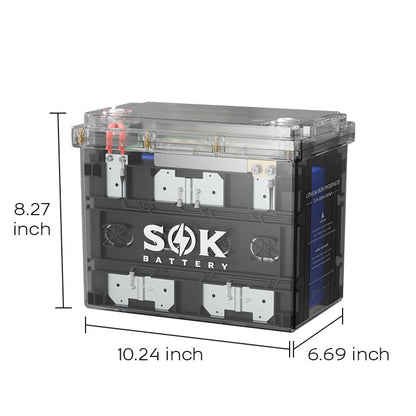

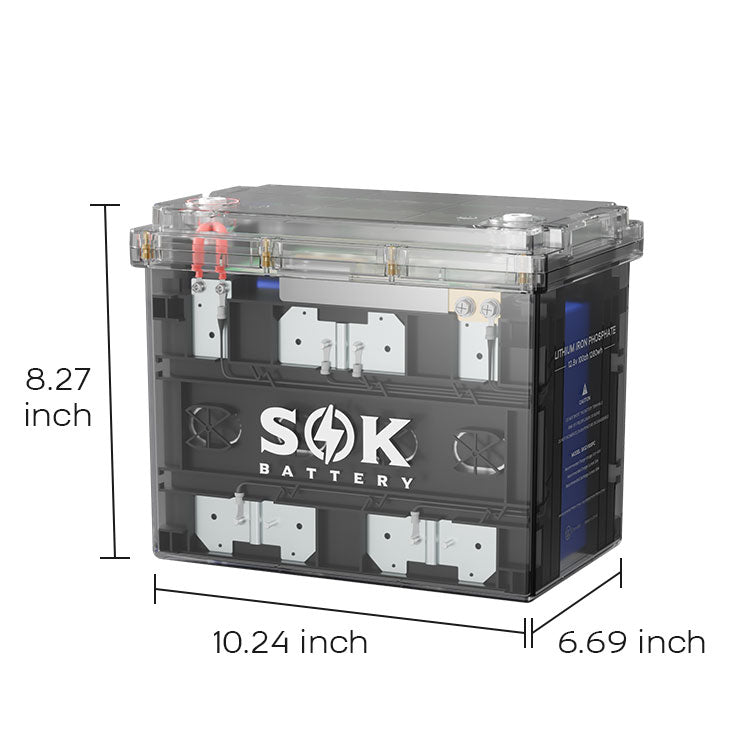

• Dimensions: 10.24 × 6.69 × 8.27 inches
• Weight: Approximately 24.7 lb
• Discharge Temperature: -4°F to 140°F / -20°C to 60°C
• Charge Temperature: -4°F to 140°F / -20°C to 60°C
• Storage Temperature: -4°F to 140°F / -20°C to 60°C
• BMS High-Temperature Cut-Off: 149°F / 65°C
• Reconnect Temperature: 131°F / 55°C
• Short-Circuit Protection: 200–500A
• Self-Discharge: Less than 3% per month
• Certifications: UL1973, UL9540A, IEC62619 for cells
• Shipping Documentation: MSDS for shipping
• Warranty: 5 years

Suitable Applications

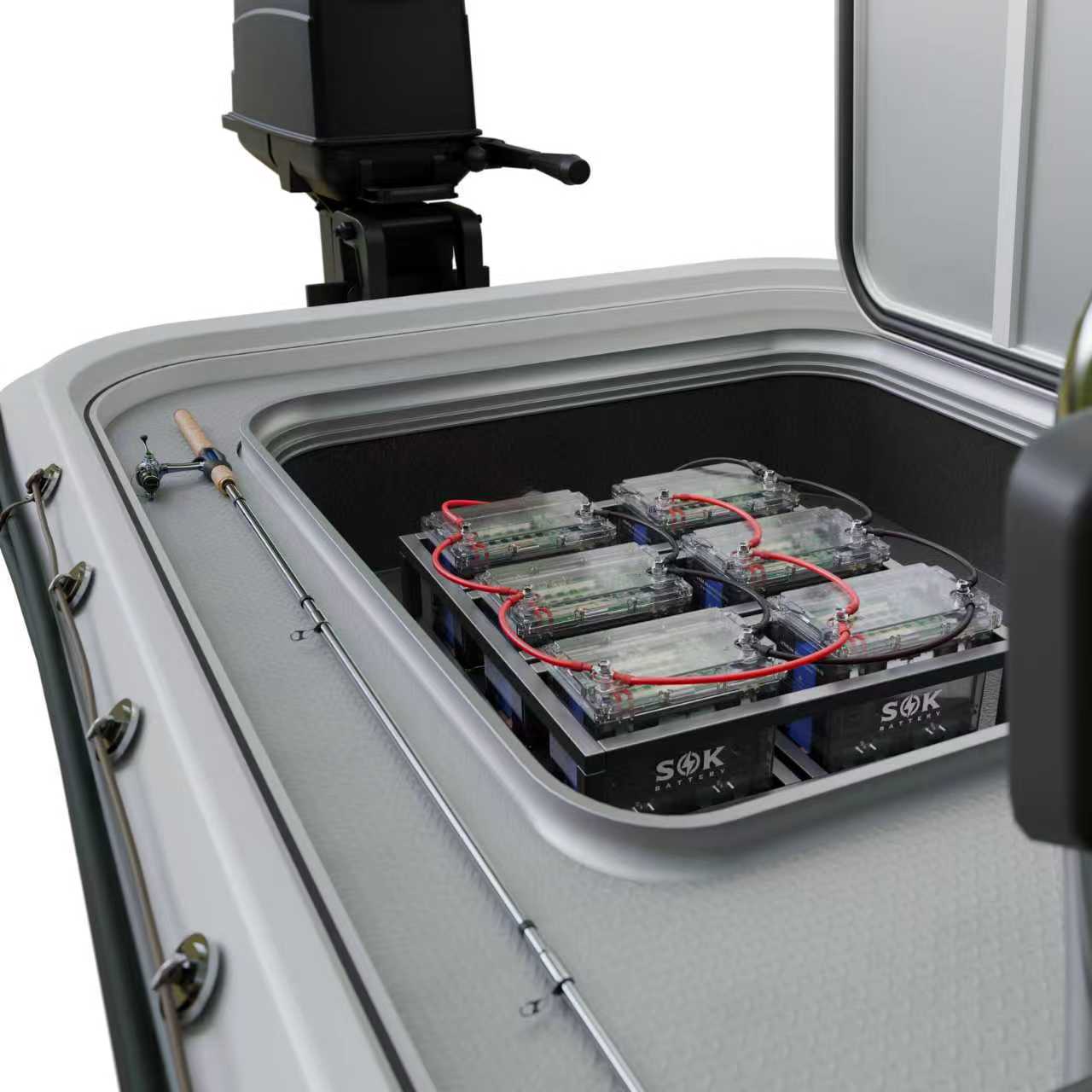

The SOK SK12V100PC is designed for compatible 12V deep-cycle energy storage applications, including RV house batteries, marine systems, solar power systems, off-grid installations, backup power, and other mobile or stationary battery banks. Its compact dimensions and 24.7 lb weight make it suitable for installations where available space and battery weight are important considerations.

Smart BMS & Cell Balancing

The integrated Battery Management System is designed to protect the battery during charging and discharging. The system includes overcharge, over-discharge, over-current, short-circuit, and temperature protection, while automatic cell balancing helps maintain consistent cell voltage.

Series & Parallel Configuration

Up to four compatible batteries can be connected in series for higher-voltage battery-bank configurations. Up to 10 compatible batteries can be connected in parallel for increased total capacity. Use batteries with matching specifications and follow the manufacturer's recommended wiring and installation procedures.

Charging & Operation

The recommended charging current is below 50A, while the maximum charge current is 70A. The recommended charge voltage is 13.8V–14.6V. The recommended low-voltage disconnect is 10.4V, with the BMS discharge cutoff specified above 10.4V and reconnect voltage above 11.6V.

Temperature & Enclosure

The specified charge, discharge, and storage temperature range is -4°F to 140°F (-20°C to 60°C). The sealed plastic enclosure has an IP65 rating for dust and water-jet protection. The battery should still be installed in accordance with the manufacturer's environmental and installation requirements.

Important Usage Note

Actual battery performance and service life depend on charging settings, discharge rate, depth of discharge, temperature, connected equipment, wiring, and installation conditions. Do not exceed the specified charge or discharge limits. Verify battery voltage, charger compatibility, cable sizing, terminal connections, and system requirements before installation. For series-connected batteries, use compatible batteries with matching specifications and follow the manufacturer's installation guidance.
