SOG TT Fan Set for Trelino M, L & Compatible Composting Toilets

SOG TT Fan Set for Trelino M, L & Compatible Composting Toilets

The SOG TT Fan Set is a ventilation system designed for compatible Trelino composting toilets from size M and larger mobile toilet installations. It uses a low-power fan and filter housing to continuously extract air from the toilet system, supporting faster drying of the solids compartment and helping reduce condensation and odors. The kit provides two installation options, allowing ventilation through a vehicle service flap or through a floor outlet.

Key Features

• Dedicated Trelino Ventilation System: Designed for compatible Trelino composting toilets from size M.
• Low-Power Fan: Uses approximately 1.2W of power, allowing the fan to operate continuously when required.
• Faster Drying: Continuous ventilation supports the drying process inside the composting toilet's solids compartment.
• Condensation Reduction: Air extraction helps reduce moisture and condensation within the toilet system.
• Odor Reduction: The ventilation system continuously extracts air from the toilet to help reduce unwanted odors.
• Integrated Filter Housing: The filter unit incorporates the fan and provides odor-filtering capability for compatible installations.
• Vehicle-Mounted Switch: The included cable set and switch allow the fan to be controlled from inside the vehicle.
• Continuous Operation Option: Due to its low 1.2W power consumption, the fan can also be operated continuously without a switch.
• Waterproof Fan: The specially developed SOG fan is designed for waterproof operation.
• Two Ventilation Options: Supports installation through a vehicle service flap or through a floor outlet.
• Service Flap Installation: Uses a hose connection to the vehicle's service flap with an activated carbon filter for odor filtration.
• Floor Outlet Installation: Directs extracted air through the vehicle underbody using the supplied floor ventilation components.
• 1.20m Exhaust Hose: Includes an exhaust air hose for connecting the ventilation system to the selected outlet.

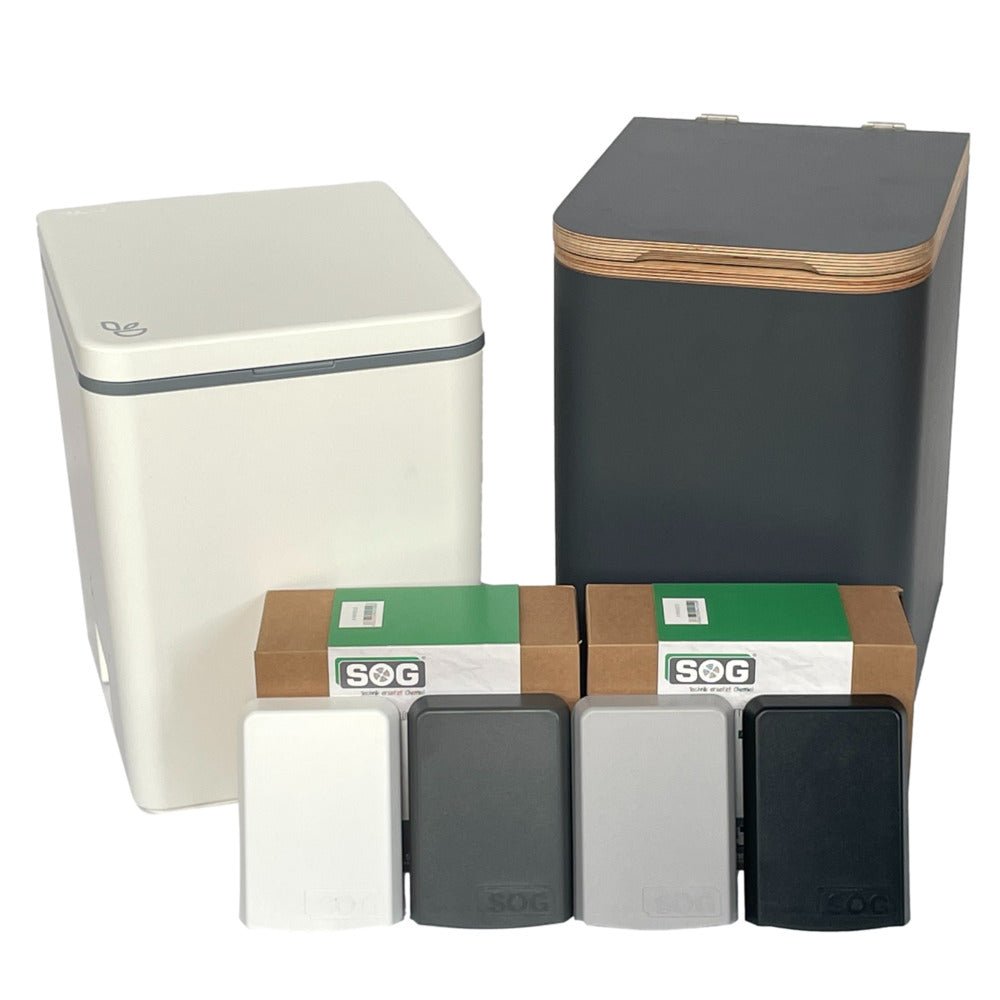

• Multiple Filter Housing Colors: Depending on the selected variant, the filter housing is available in white, light gray, dark gray, or black.
• Complete Installation Kit: Includes the fan motor, hose, toilet adapters, switch wiring, installation hardware, and instructions.

Specifications

• Brand: SOG
• Product: SOG TT Fan Set
• Compatibility: Trelino composting toilets from size M
• System Type: Composting toilet ventilation and odor-reduction system
• Fan Type: Fan motor integrated in housing
• Power Consumption: 1.2W
• Control: Interior vehicle switch included
• Exhaust Hose: 1.20m included
• Ventilation Options: Service flap or floor outlet
• Filter Type: Activated carbon filter for service-flap configuration
• Filter Housing Colors: White, light gray, dark gray, or black depending on variant
• Fan Construction: Waterproof

Suitable Applications

The SOG TT Fan Set is designed for mobile toilet installations using compatible Trelino composting toilets from size M. It is suitable for camper vans, motorhomes, RVs, trailers, and other mobile homes where controlled ventilation can support drying and odor reduction.

Ventilation Options

The SOG TT system provides two installation methods. The first routes exhaust air through the vehicle's service flap using a hose and activated carbon filter. The second routes ventilation through the vehicle floor and underbody using the supplied floor duct and sealing flange. The selected installation method depends on the vehicle layout and available mounting location.

Service Flap Installation

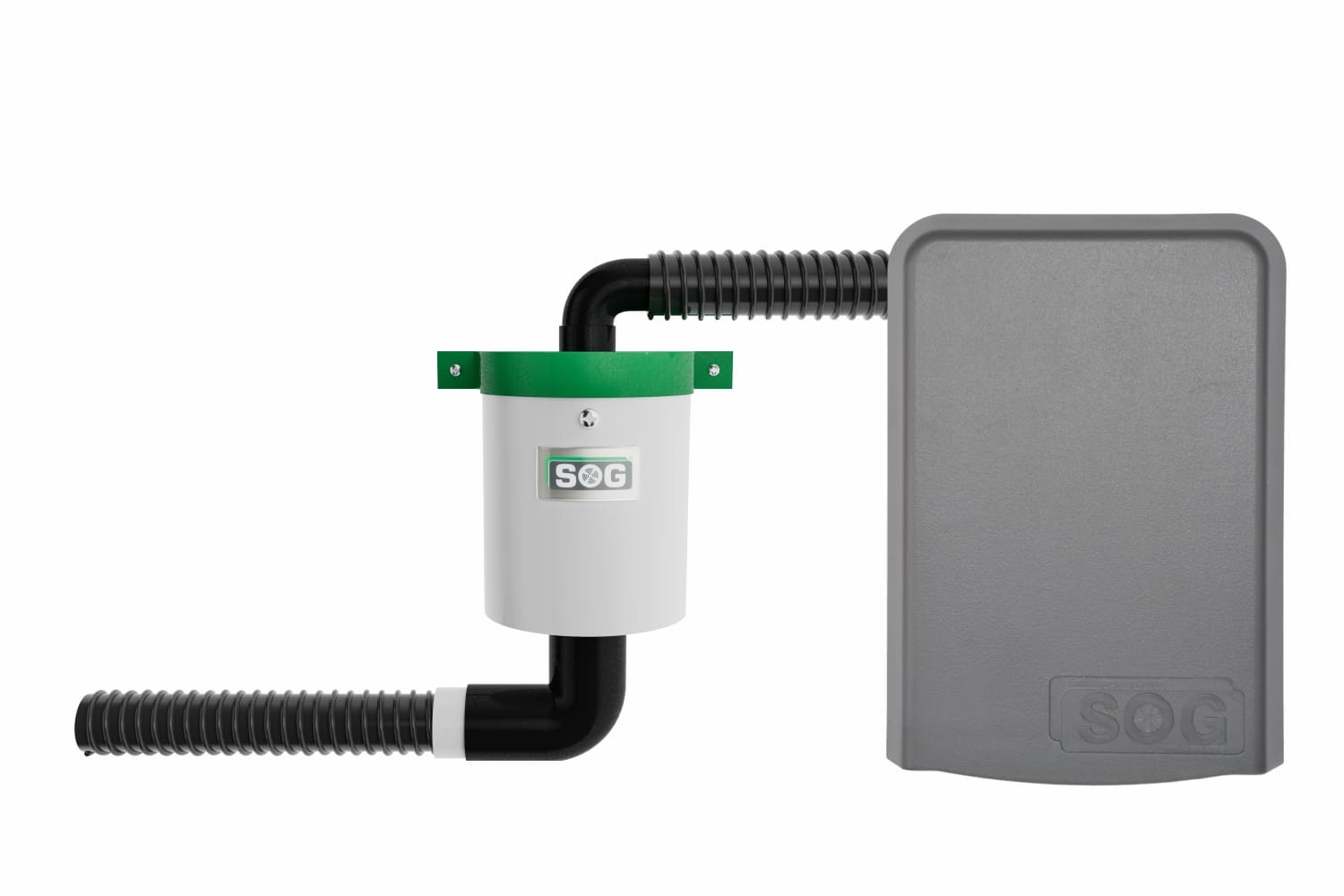

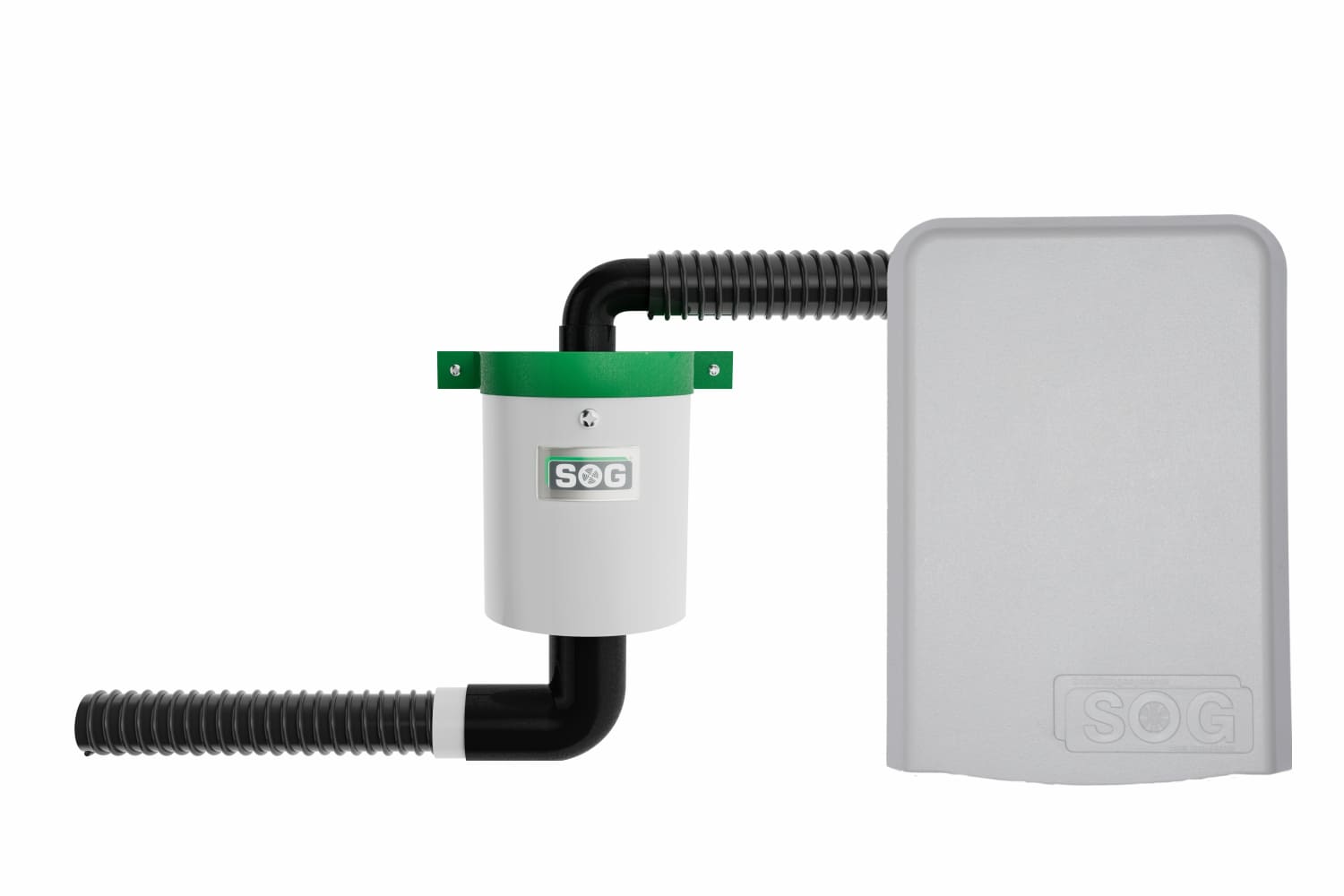

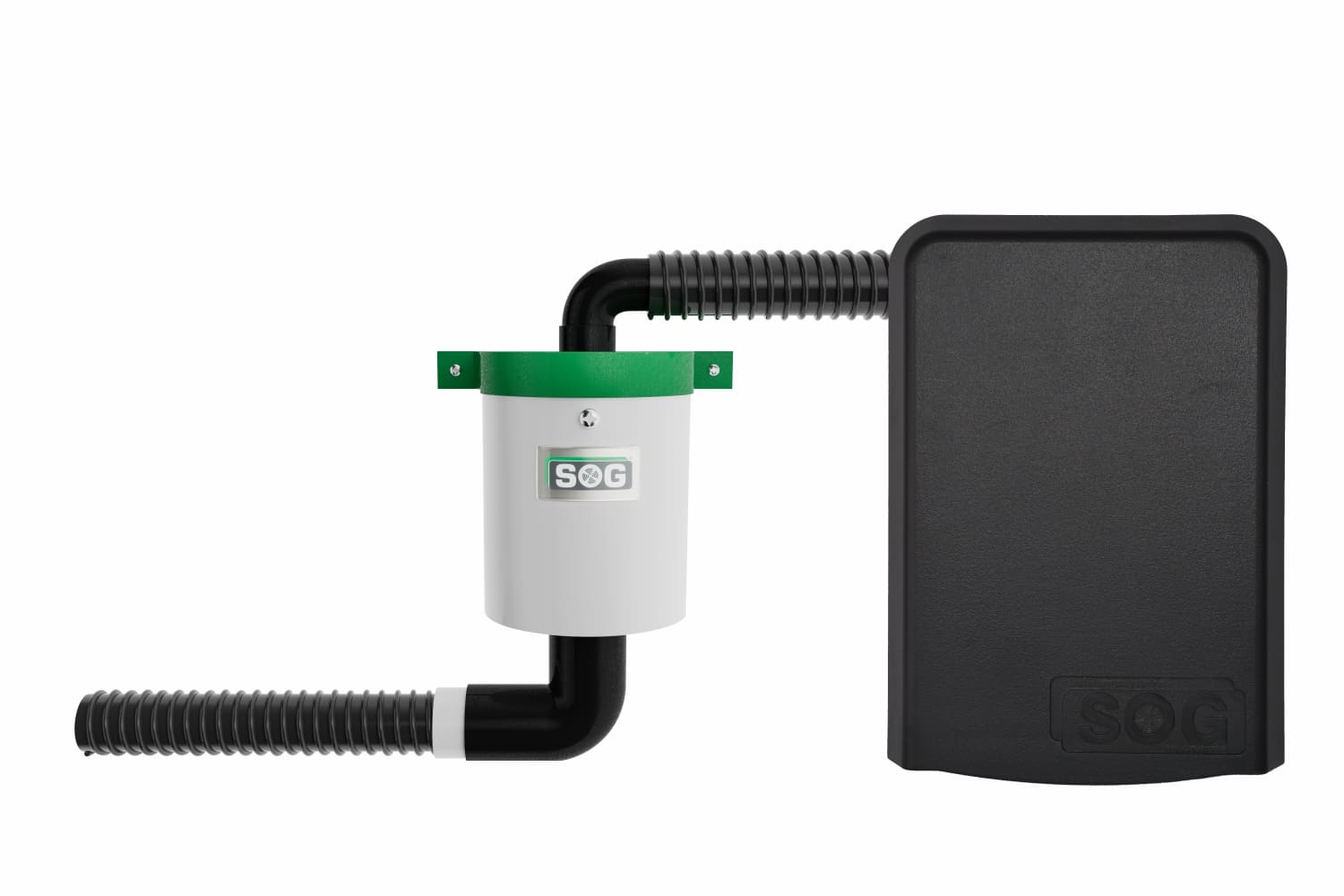

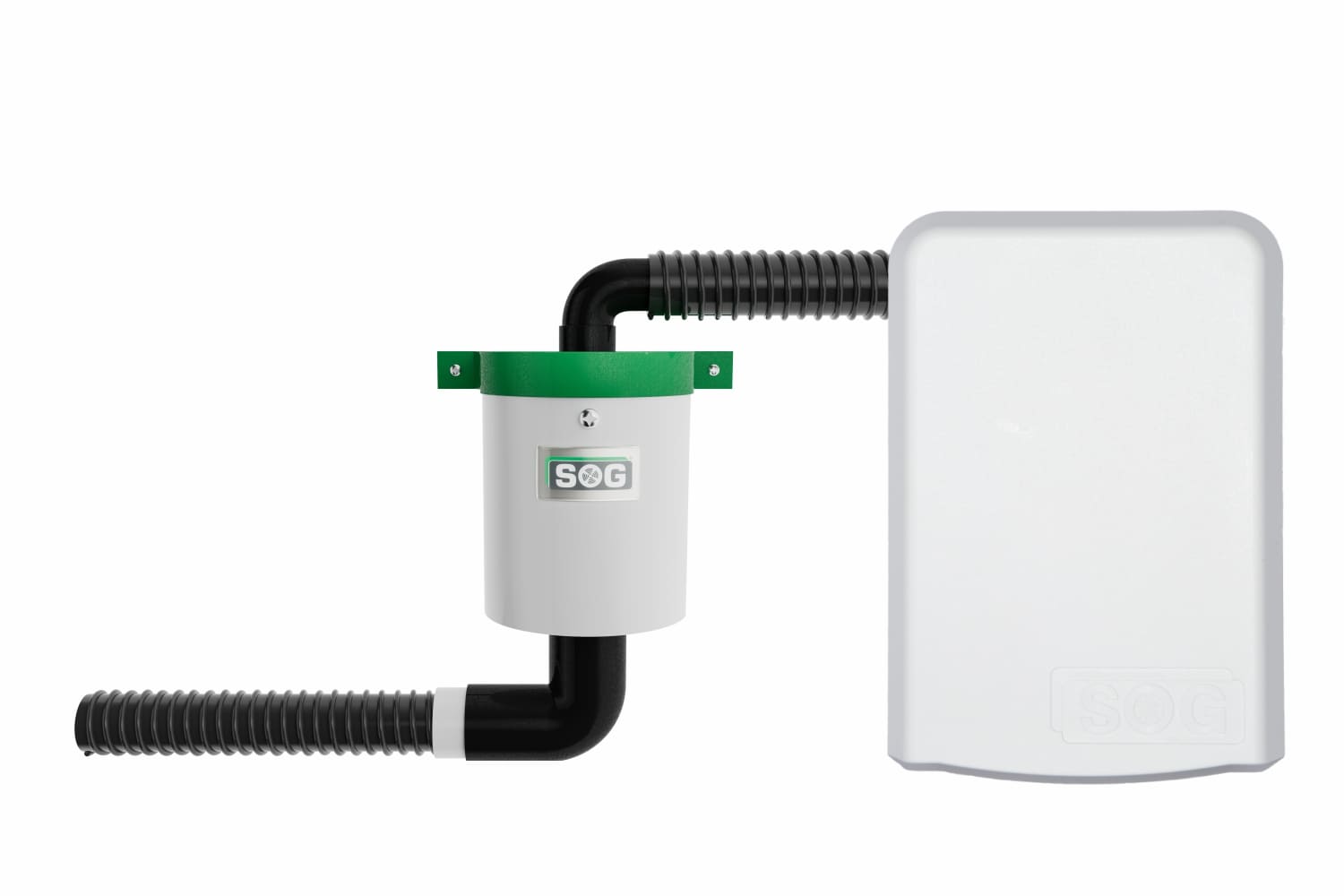

For service-flap installation, the fan connects to the vehicle's service flap through the exhaust hose. The activated carbon filter is used to filter extracted air, while the filter cover can be selected in white, light gray, dark gray, or black depending on the product variant.

Floor Outlet Installation

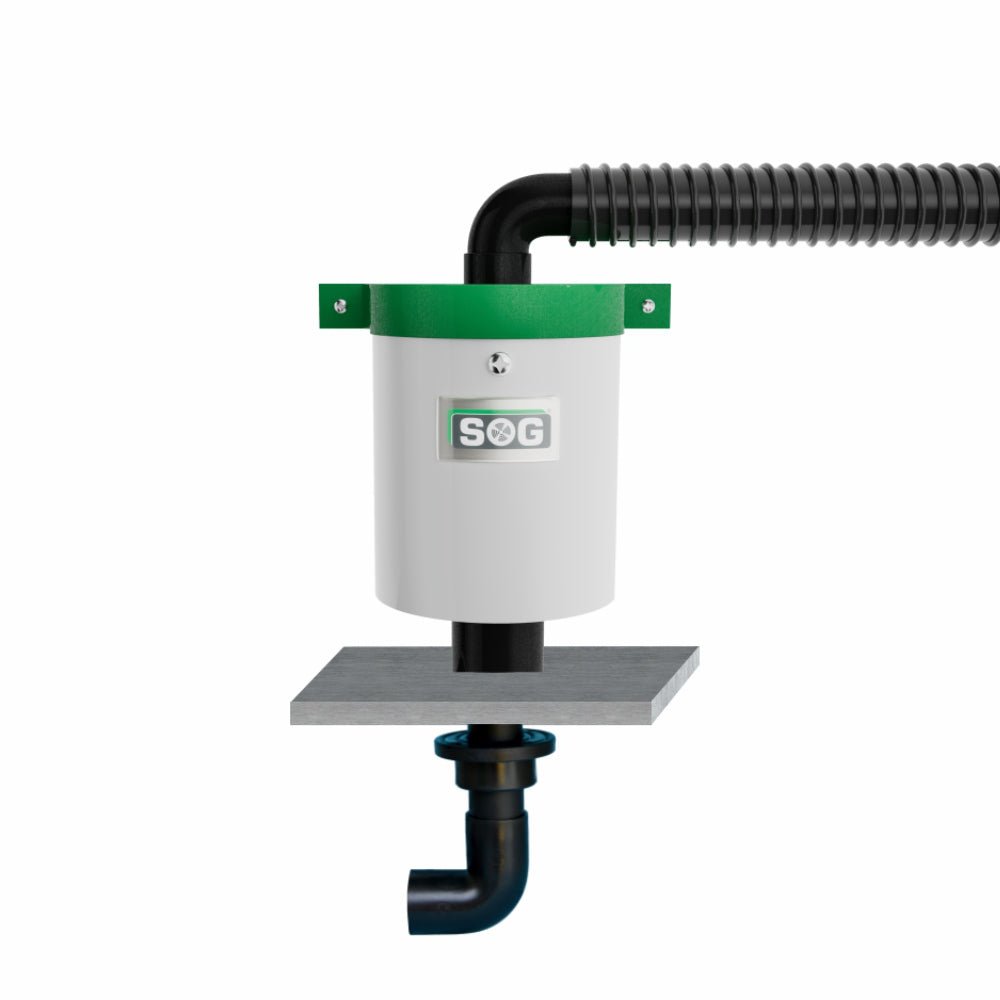

For floor-outlet installation, the extracted air is routed through the vehicle underbody. The included 1.20m hose is used for the connection. When additional hose length is required, SOG recommends using a gas-tight sanitary hose suitable for the installation.

Included Components

• 1 × Fan Motor Housing: Fan motor integrated into the ventilation housing.
• 1 × Exhaust Air Hose: Hose with connector for the ventilation connection.
• Adapter Components: Parts required to connect the fan system to the compatible toilet.
• 1 × Cable Set with Switch: Wiring and interior switch for fan operation.
• Installation Hardware: Small parts required for installation.
• Installation Instructions: Instructions for setup and installation.
• Variant-Specific Components: Filter housing for service-flap installation or floor duct with sealing flange and base for floor-outlet installation.

Installation & Operation

The SOG TT Fan Set should be installed according to the supplied installation instructions and the selected ventilation configuration. Ensure that the fan, hose, toilet adapters, electrical connections, and exhaust outlet are securely installed. The low-power fan can be operated using the included switch or continuously, depending on the installation setup.

Important Usage Note

Compatibility is specified for Trelino composting toilets from size M. Select the appropriate service-flap or floor-outlet configuration before installation and verify that the available mounting location, hose routing, and vehicle structure are suitable for the selected ventilation method.
