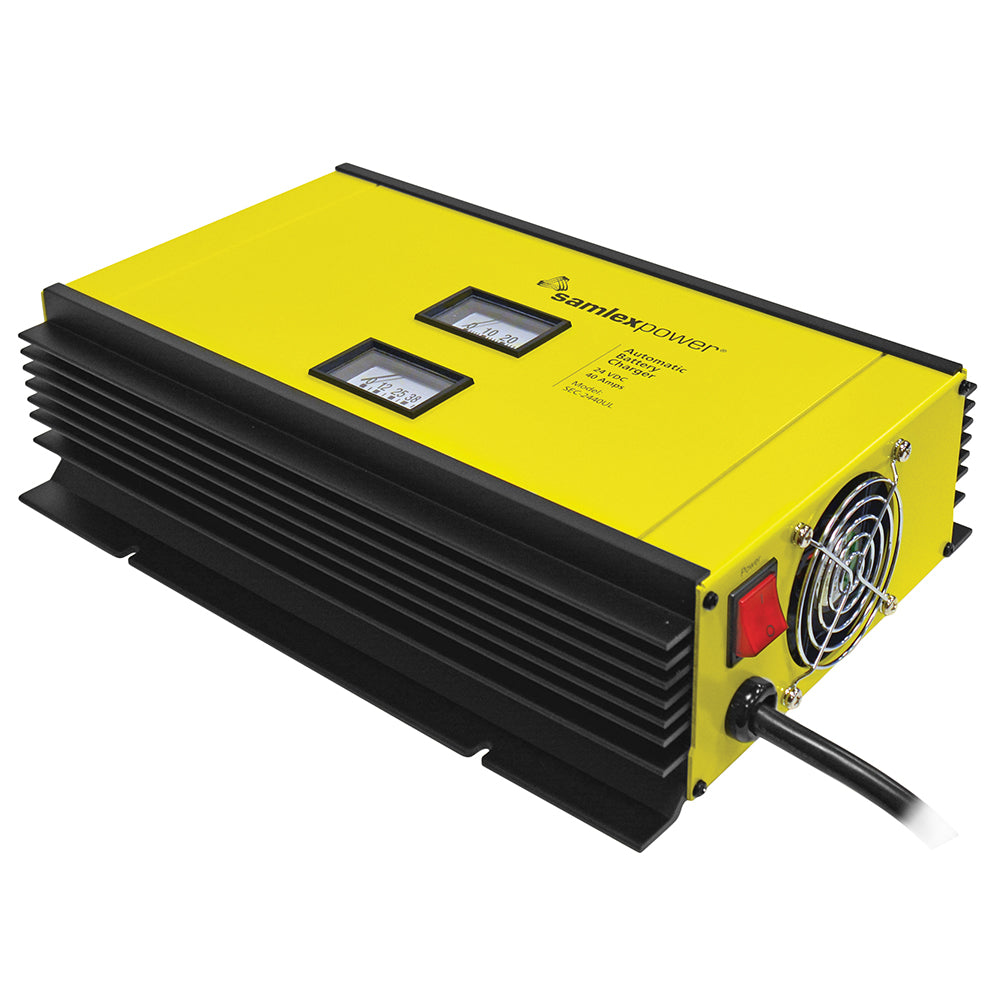

Samlex SEC-2440UL 24V 40A Battery Charger – 2-Bank, 3-Stage with Temperature Sensor

The Samlex SEC-2440UL is a fully automatic three-stage 40 A battery charger for all types of 24 V lead-acid batteries, including Flooded, AGM (Absorbed Glass Mat) and Gel Cell. It runs from a 120 V, 60 Hz or 230 V, 50 Hz AC source and can charge up to two separate battery banks at the same time, with no isolator needed.

Charges All Lead-Acid Battery Types

Automatic operation takes the guesswork out of charging Flooded, AGM and Gel Cell batteries. A DIP switch lets you choose a 2-stage or 3-stage algorithm for rapid, safe charging of both standalone and loaded batteries. The 2-stage setting suits batteries connected to a DC load (DC UPS).

Two Battery Banks, Plus Power Supply Use

Charge two battery banks simultaneously. When used with a battery, the unit can also serve as a DC power supply or DC UPS.

Smart Charging Features

• Half Power Mode reduces maximum charging current to half the rated capacity for safe charging of lower capacity batteries
• Included temperature sensor helps prevent undercharging and overcharging when temperatures vary widely
• Built-in voltmeter and ammeter for easy monitoring
• User configurable AC input: 120 or 230 VAC, 50/60 Hz
• Fan cooling based on output current

Efficient and Protected

Switch mode technology delivers high efficiency, light weight and quiet operation. Protections include short circuit, overload, reverse battery connection and over temperature.

Common Applications

Automotive, recreational vehicles, marine, communications sites and battery back-up systems.

Specifications

• Brand: Samlex America
• Model: SEC-2440UL
• Manufacturer Part No: SEC-2440UL
• UPC: 622988083075
• Input: 120 VAC or 230 VAC, 50/60 Hz
• Output: 24 VDC, 40 A
• Battery Banks: 2
• Charging Stages: 3-stage (2-stage selectable by DIP switch)
• Battery Types: Flooded, AGM, Gel Cell
• Remote Control: 900-RC
• Weight: 9 lbs (4.1 kg)
• Dimensions: 15 x 9.61 x 3.82 in (381 x 244 x 97 mm)
• Safety: Listed to UL 1564, EMI compliant to FCC Part 15(B) Class B
• Warranty: 2 year limited
