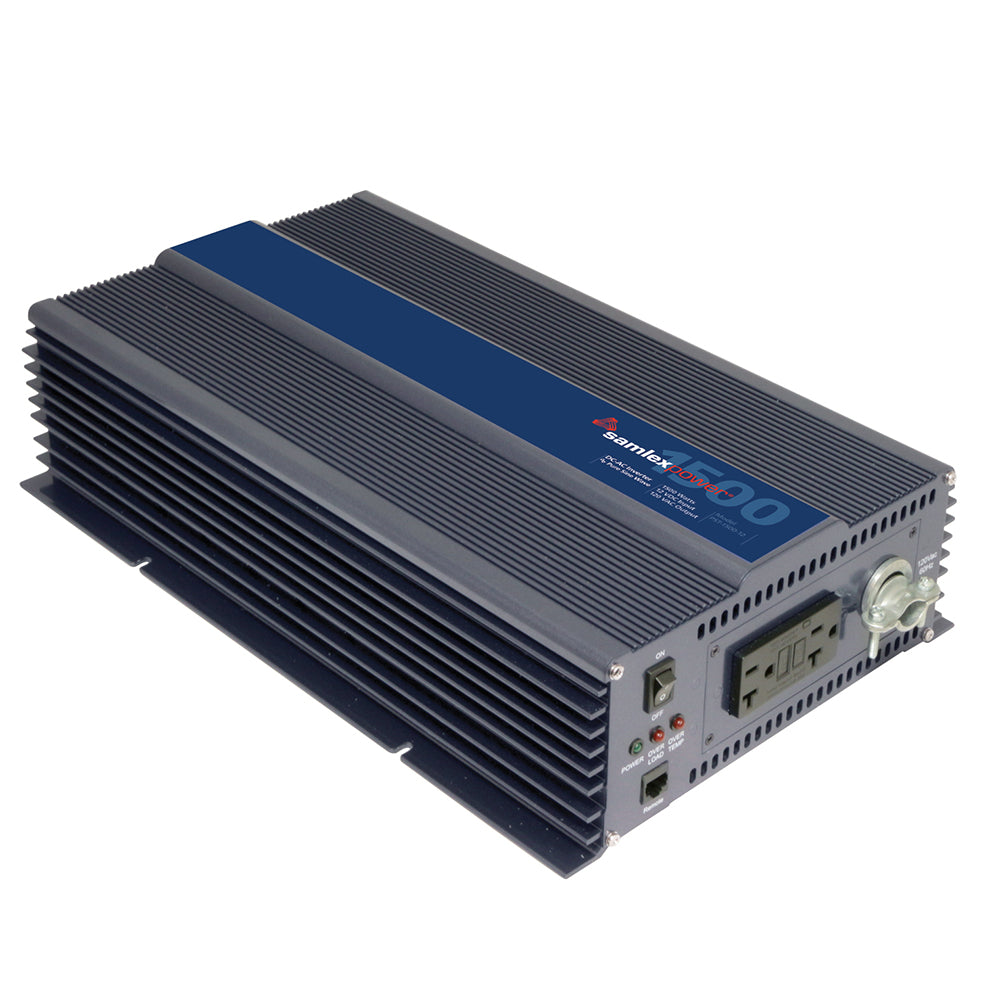

Samlex PST-1500-12 1500W Pure Sine Wave Inverter – 12V DC to 120V AC

The Samlex PST-1500-12 is a high efficiency 12 V DC to 120 V AC pure sine wave inverter that delivers 1500 W of continuous power at 60 Hz, with 3000 W of surge power. Its commercial grade design suits heavy duty loads, long periods of continuous operation and emergency backup power.

Clean Pure Sine Wave Power

Pure sine wave output with low interference makes it a good fit for home electronics, computers, printers, TVs and video games. AC power comes from dual GFCI protected duplex outlets (NEMA 5-20R) on the front panel.

Built-In Protection

The Universal Protection Circuit guards against low voltage, over voltage, over temperature, overload and short circuit. A low battery alarm and shut down help protect your batteries. The unit draws less than 1 A at idle, and its temperature controlled cooling fan reduces energy consumption.

Flexible Installation

The inverter comes with pin-type battery cable lugs or can be hard wired. It accepts a wide DC input range of 10.7–16.5 VDC. An optional RC-200 remote control is sold separately.

Common Applications

Service vehicles, mobile offices, boats, RVs and camping, telecommunications, field work and construction sites, solar power systems, and emergency backup power.

Specifications

• Brand: Samlex America
• Model: PST-1500-12 (PST Series, 120 VAC)
• Manufacturer Part No: PST-1500-12
• UPC: 622988072192
• DC Input Voltage: 12 VDC (10.7–16.5 VDC range)
• AC Output: 120 VAC, 60 Hz
• Continuous Power: 1500 W
• Surge Power: 3000 W
• Output Waveform: Pure sine wave
• Outlets: Dual GFCI protected duplex outlets
• Remote Control: RC-200 (sold separately)
• Weight: 15.6 lbs (7.1 kg)
• Dimensions: 10.35 x 18.43 x 4.16 in (263 x 468.2 x 105.6 mm)
• Safety: ETL to UL standard, FCC compliant
• Warranty: 2 year limited
