RUiXU SUNON3.6 Cabin Starter Off-Grid System, 3.6kW 120V Inverter with 10-15kWh LiFePO4 Rack Batteries, Bracket Racks & Busbar

🏡 Complete Cabin Power System|🔋 10–15kWh LiFePO4 Storage|☀️ 4,500W Solar Input|🔗 Free RX10P Busbar

Regular price: Price: $2,787.00
Regular price: List Price: $2,927.00
Sale price: Price: $2,787.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Battery Storage 2 Batteries (10kWh) 3 Batteries (15kWh)

Product variants

Quantity

🏡Cabin-Ready120V household power
🔋10–15kWh Storage2 or 3 rack batteries
☀️4,500W Solar InputBuilt-in MPPT
🔗Busbar Included FreeRX10P, a $140 value
🧱Stackable RacksNo cabinet needed
🛡️10-Year Battery WarrantyBacked by RUiXU

Everything you need to power a cabin, shed or small off-grid home. This starter system pairs RUiXU's SUNON3.6 all-in-one off-grid inverter with two or three RX-LFP48100 rack batteries, stackable bracket racks and the RX10P busbar, included free. Add solar panels and wiring, and you've got a complete 120V power system.

3.6kWContinuous 120V output

10–15kWhBattery storage

4,500WMax solar input

80AMax battery charging

🏡 Is It Right for You?

Cabins & hunting camps
Sheds & workshops
Tiny homes
Small off-grid homes
Backup for essential circuits

📏 Before you order:

The SUNON3.6 delivers 120V single-phase power. If you need 240V for a well pump, dryer or central AC, look at the SUNON7.2 system instead.
Keep your solar array within 4,500W and 300V open-circuit.
It's an off-grid inverter. It can charge from the grid or a generator, but it doesn't export power to the utility.
Need more power later? Up to 6 SUNON3.6 units can run in parallel.

Choose Your System

System	Storage	Bought Separately	System Price
SUNON3.6 + 2 batteries	10.24kWh	$2,927	$2,787
SUNON3.6 + 3 batteries	15.36kWh	$4,061	$3,921

"Bought separately" is the SUNON3.6 at $519, RX-LFP48100 batteries at $1,059 each, bracket racks at $75 each, and the RX10P busbar at $140.

Why This System

🧩

All-in-One Inverter

The SUNON3.6 combines a pure sine wave inverter, solar charge controller and battery charger in one unit.

🔌

Charge From Anything

Charge from solar and the grid or a generator at the same time, up to 80A combined.

🧱

Grows With You

Add more rack batteries and bracket racks as your needs grow. Racks stack up to nine high.

✅

Certified Components

The SUNON3.6 is UL 1741 certified. The RX-LFP48100 batteries carry UL 1973 and UL 9540A.

📦 What's Included

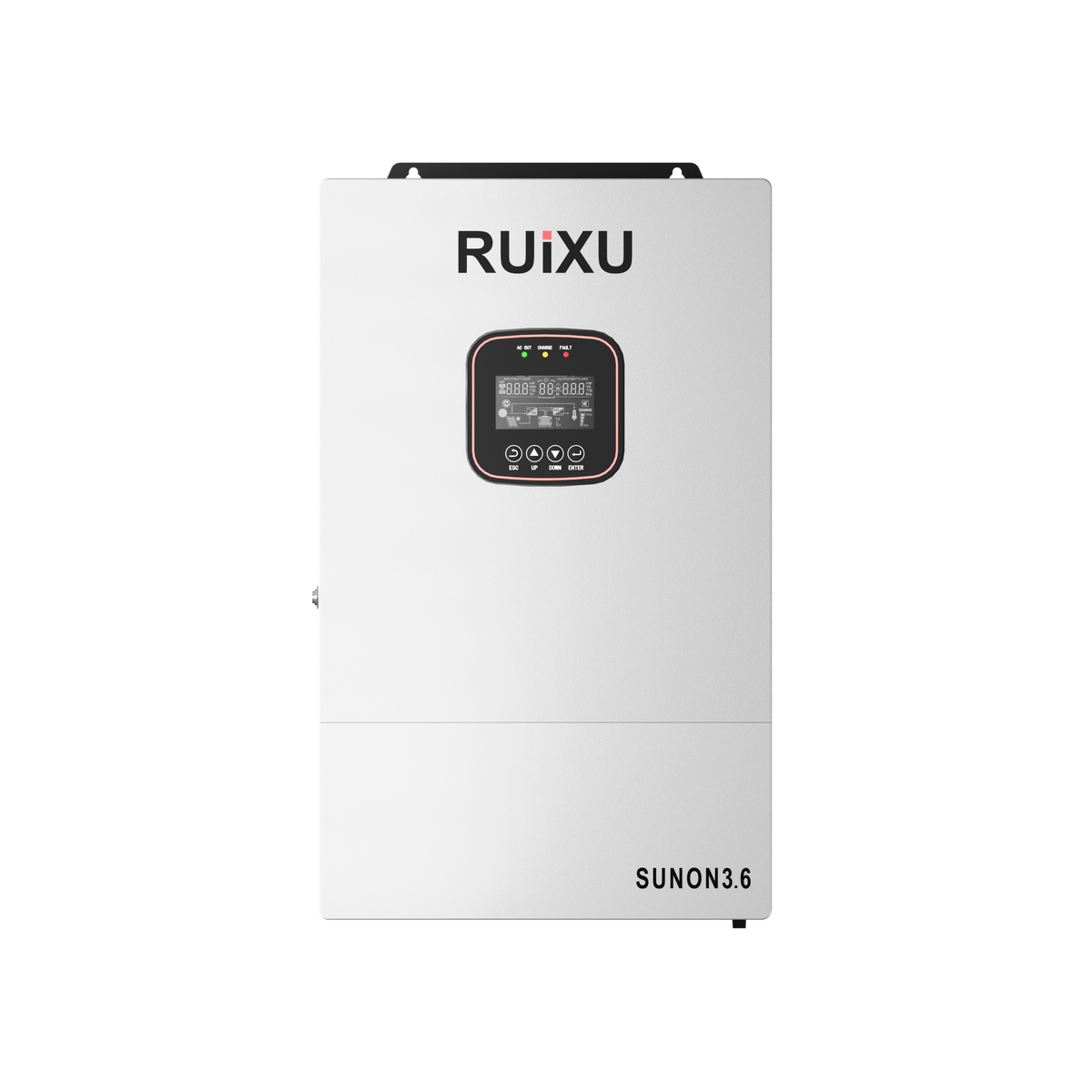

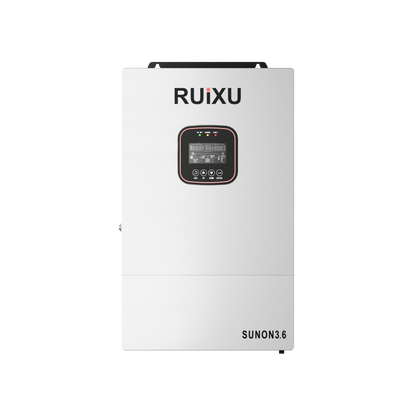

RUiXU SUNON3.6 Off-Grid Inverter3.6kW, 120V, with battery comm cable, Wi-Fi dongle & manual

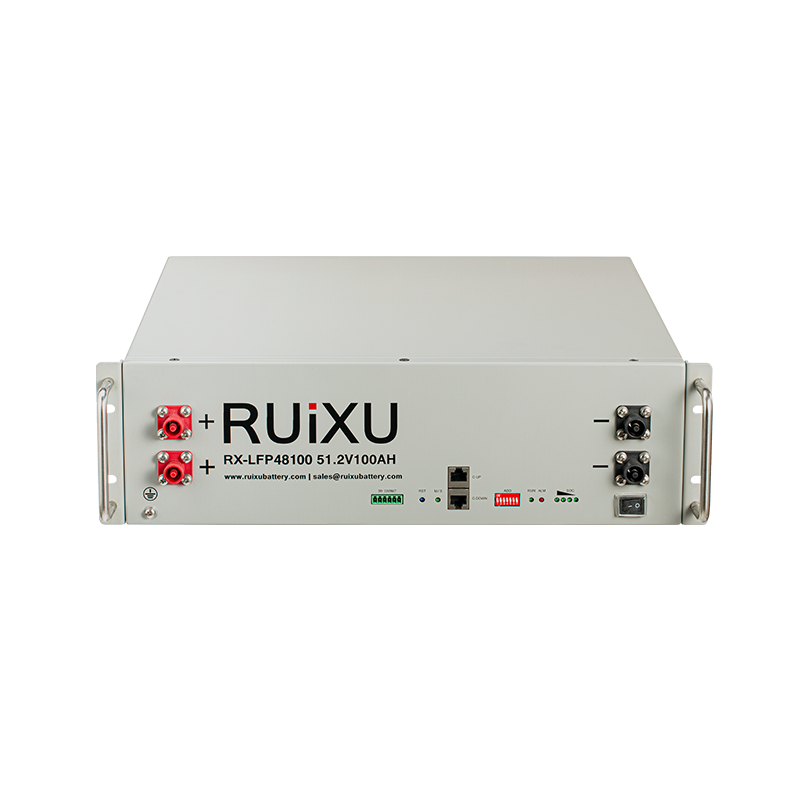

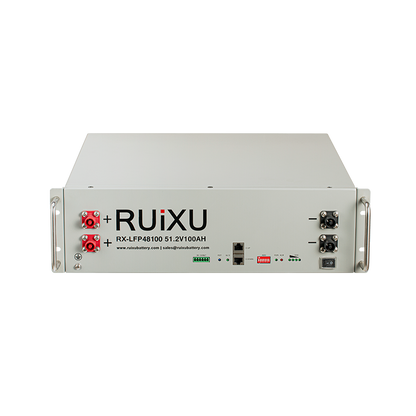

2 or 3 RUiXU RX-LFP48100 Batteries5.12kWh each, with RUiXU's standard cables
2 or 3 RUiXU Bracket RacksOne per battery, stackable
RUiXU RX10P Busbar Pair300A, included free

Not included: solar panels, AC and DC wiring, disconnects, and installation. We recommend installation by a qualified electrician.

📋 Key Specifications

Inverter Output	3,600W rated / 7,200VA max, 120V, pure sine wave
Motor Load	Up to 2 HP
Solar Input	1 MPPT, 4,500W max, 90–260V MPPT range, 300V max Voc
Battery Charging	80A max (solar + grid), 40A max from grid/generator
Parallel	Up to 6 inverters (21.6kW)
Battery	RX-LFP48100: 51.2V, 100Ah, 5.12kWh each
Certifications	SUNON3.6: UL 1741 / RX-LFP48100: UL 1973, UL 9540A, CEC, SGIP
Warranties	SUNON3.6: 3 years / RX-LFP48100: 10 years

❓ Common Questions

Will it run my well pump or AC?

The SUNON3.6 is 120V only and rated for motors up to 2 HP. Many well pumps and central AC units need 240V. If yours does, choose our SUNON7.2 system instead.

Can I add batteries later?

Yes. Add more RX-LFP48100 batteries and bracket racks anytime. The included RX10P busbar has room for a larger bank.

Can I add a generator?

Yes. The SUNON3.6 can charge your batteries from a generator at up to 40A.

How is it delivered?

By freight from RUiXU's California warehouse. Residential and liftgate delivery may add a fee, and we'll confirm the details before shipping.

Planning a Cabin or Off-Grid System?

Tell us what you want to power, and we'll help you pick the right size.

📞 Call 833-664-7433 📧 Email Us
