RUIXU Battery

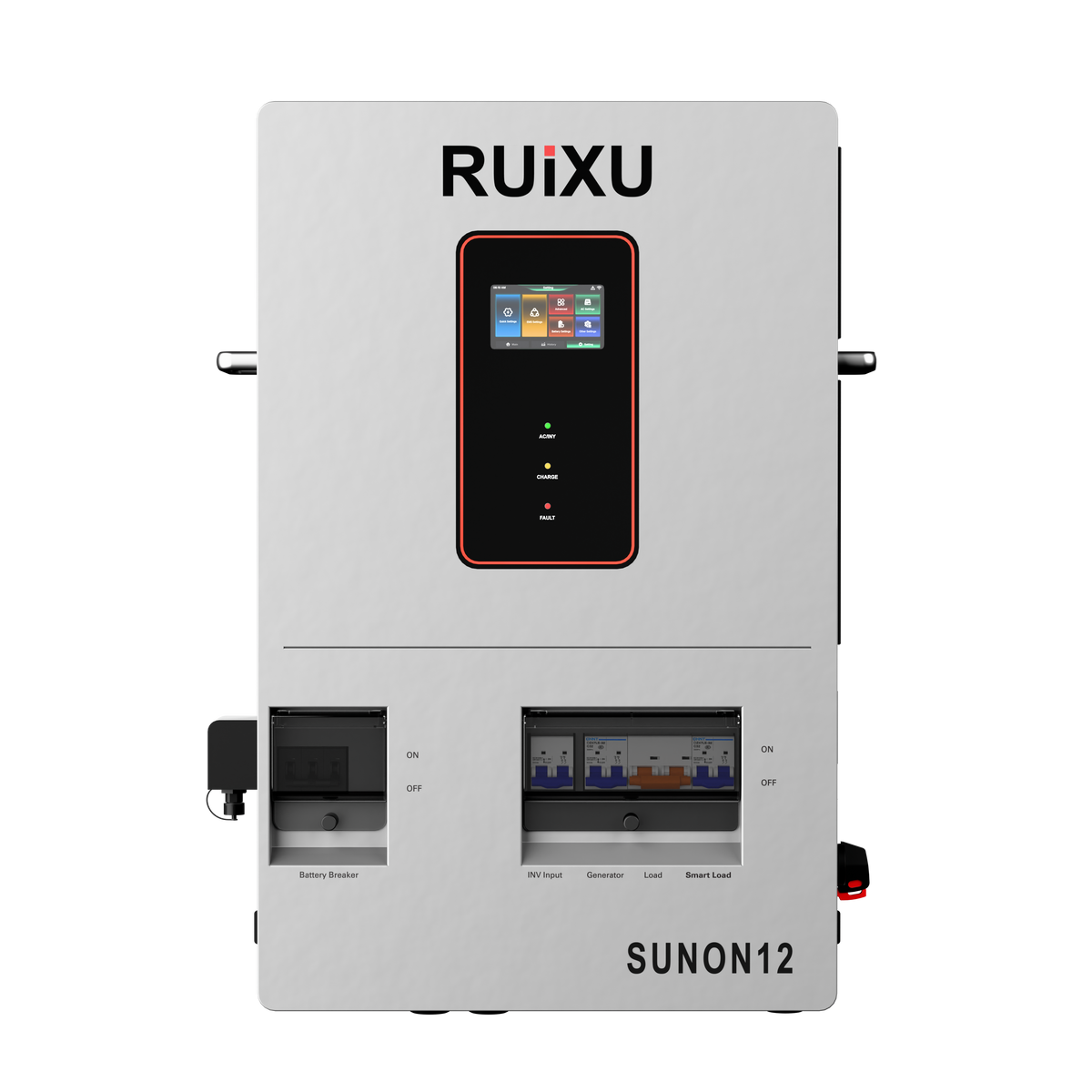

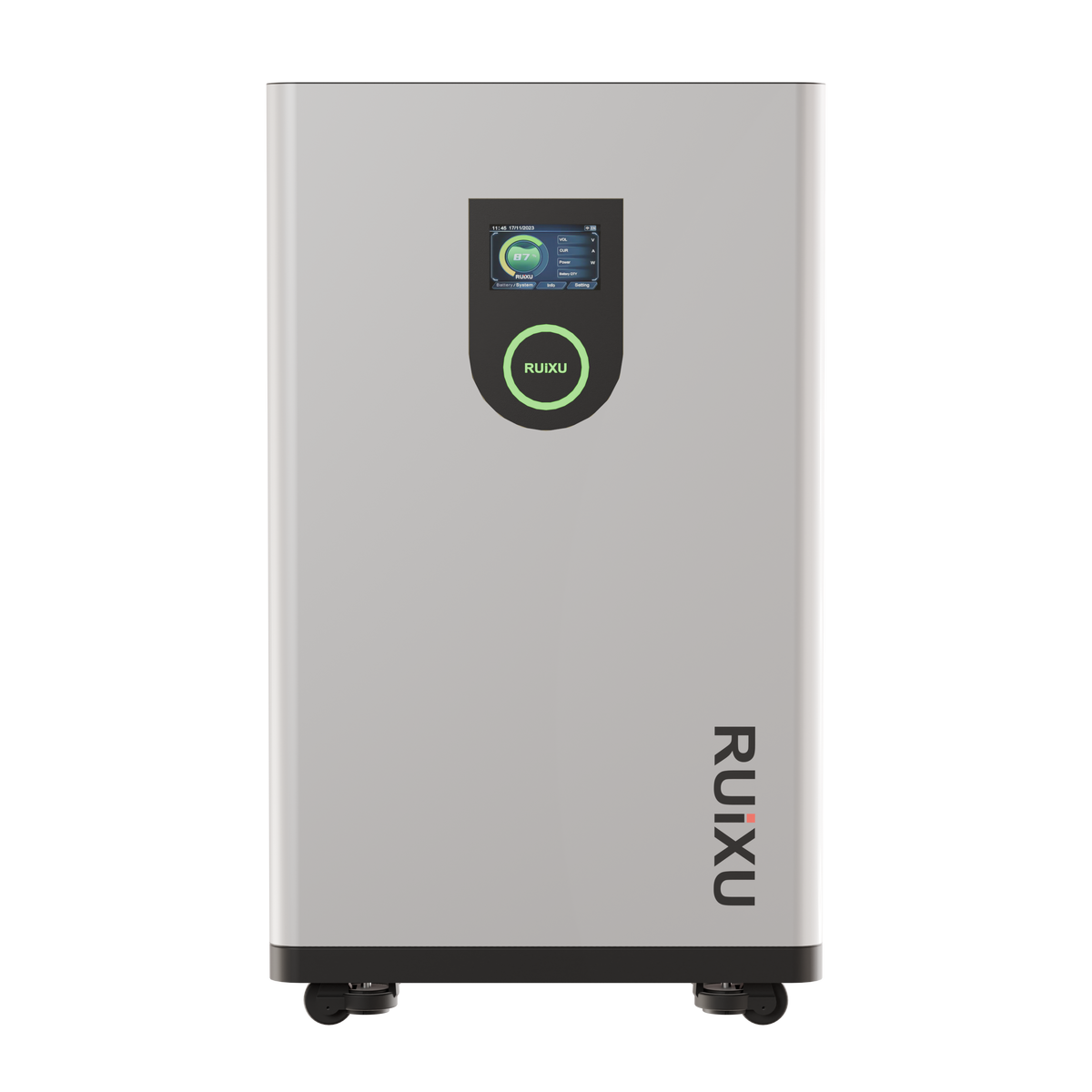

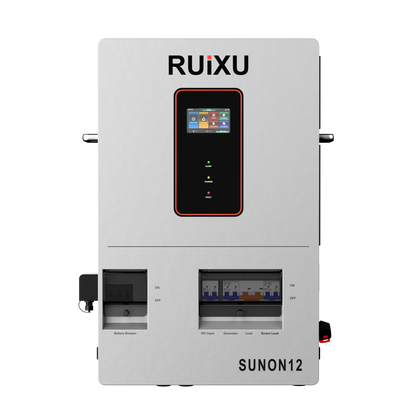

RUiXU SUNON12 + Lithi2-16 Off-Grid Power System, 12kW 120/240V Inverter with 16-48kWh LiFePO4 Battery Storage

⚡ 12kW Off-Grid Inverter|🔋 16–48kWh Lithi2-16 Storage|☀️ 24kW Solar Input|🛡️ 5 + 10-Year RUiXU Warranties

Regular price: Price: $5,398.00
Regular price: List Price:
Sale price: Price: $5,398.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Battery Storage 1 Battery (16kWh) 2 Batteries (32kWh) 3 Batteries (48kWh)

Product variants

Quantity

⚡12kW Inverter120/240V split-phase
🔋16–48kWh Storage1 to 3 Lithi2-16 batteries
☀️24kW Solar InputDual MPPT
🛠️Generator ReadyDedicated generator input
✅UL-Certified PartsUL 1741 inverter, UL 9540 battery
🛡️5 + 10-Year WarrantiesInverter + batteries

A matched RUiXU off-grid power system in one order. Pair the SUNON12 12kW off-grid inverter with one, two or three Lithi2-16 16kWh batteries. RUiXU lists the SUNON12 as compatible with the Lithi2-16, so the inverter and batteries communicate over CAN once set up per RUiXU's manual.

12kWContinuous output

24kWMax solar input

16–48kWhBattery storage

250AMax battery charging

🏡 Is It Right for You?

Off-grid homes
Cabins & remote properties
Farms & workshops
Whole-home backup with a generator

📏 Choosing your battery count:

A single Lithi2-16 is rated for 200A, or roughly 10kW at 48V. To use the SUNON12's full 12kW output, choose 2 or more batteries.
The SUNON12 is an off-grid inverter. It can charge from the grid or a generator, but it doesn't export power to the utility. For grid-tied backup, see our RX-12K + Lithi2-16 system.
The SUNON12 is rated IP20, indoor only. The Lithi2-16 batteries are outdoor-ready.
Keep each solar string under 500V open-circuit in your coldest weather.

Choose Your System

System	Storage	Bought Separately	System Price
SUNON12 + 1 battery	~16kWh	$5,398	$5,398
SUNON12 + 2 batteries	~32kWh	$8,867	$8,697
SUNON12 + 3 batteries	~48kWh	$12,166	$11,996

2- and 3-battery systems include the RX9MP busbar ($170) free. "Bought separately" is the SUNON12 at $2,099, batteries at $3,299 each, and the busbar at $170 where needed.

Why This System

⚡

Real Whole-Home Power

12kW continuous, 18,000VA peak and a 6 HP motor rating for well pumps, AC units and shop tools.

☀️

Room for a Big Solar Array

Two MPPT inputs take up to 12kW each, so you can size solar to refill a large battery bank.

🔋

Fast Charging

Up to 250A from solar and grid together, or 160A from a generator alone.

🌡️

Cold-Weather Batteries

Each Lithi2-16 has built-in self-heating and a 5-inch touchscreen.

📦 What's Included

RUiXU SUNON12 12kW Off-Grid InverterWith CAT6 battery cable, Wi-Fi dongle & manual
1, 2 or 3 RUiXU Lithi2-16 Batteries16.07kWh each, self-heating, with RUiXU's standard cables
RUiXU RX9MP Busbar PairIncluded free with 2- and 3-battery systems
Expert Setup HelpCall or email us with design questions

Not included: solar panels, AC and DC wiring, disconnects, conduit, wall brackets, and installation. We recommend installation by a qualified electrician.

📋 Key Specifications

Inverter Output	12,000W rated / 18,000VA max, 120/240V split-phase
Solar Input	2 MPPT, 12,000W + 12,000W, 90–450V MPPT range, 500V max Voc
Battery Charging	Up to 250A (solar/hybrid), 160A (grid/generator)
Battery	Lithi2-16: 51.2V, 314Ah, 16.07kWh each
Battery Certifications	UL 1973, UL 9540, UL 9540A, CEC, SGIP
Inverter Certifications	UL 1741, FCC Part 15 Class B
Inverter Rating	IP20, indoor only
Warranties	SUNON12: 5 years / Lithi2-16: 10 years

📄 Manuals & Downloads

📋SUNON12 Spec SheetFull inverter specifications (PDF)📘SUNON12 ManualWiring, settings & battery setup (PDF)📜RUiXU Warranty TermsInverter & battery coverage

❓ Common Questions

Should I get 1, 2 or 3 batteries?

One battery covers smaller loads and backup. Two or more let you use the SUNON12's full 12kW output and give you more runtime between charges. Call us with your loads and we'll help you size it.

Can I sell power back to the grid?

No. The SUNON12 is an off-grid inverter. It can use grid or generator power to charge your batteries, but it doesn't export. For grid-tied backup, look at our RX-12K + Lithi2-16 system.

Can I add more batteries or inverters later?

Yes. RUiXU supports up to 32 Lithi2-16 batteries in parallel and up to 6 SUNON12 inverters for 72kW of output.

How is it delivered?

By freight from RUiXU's California warehouse. Residential and liftgate delivery may add a fee, and we'll confirm the details before shipping.

Need Help Designing Your System?

Tell us about your loads, solar and backup goals, and we'll help you pick the right battery count.
