RUiXU SUNON12 12kW 48V Split-Phase Off-Grid Solar Inverter Charger, 120/240V, Dual MPPT 24kW PV, 250A Charger, UL 1741

⚡ 12kW 120/240V Split-Phase|☀️ Dual MPPT, 24,000W Solar|🔋 250A Battery Charging|🛡️ 5-Year RUiXU Warranty

Regular price: Price: $2,099.00
Regular price: List Price:
Sale price: Price: $2,099.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Product variants

Quantity

⚡12kW Continuous18,000VA max output
☀️24kW Solar InputTwo 12kW MPPT channels
🔗Stack Up to 6Up to 72kW total
✅UL 1741 CertifiedPlus FCC Part 15 Class B
🛡️5-Year WarrantyBacked by RUiXU
📞Real Human SupportSystem sizing questions

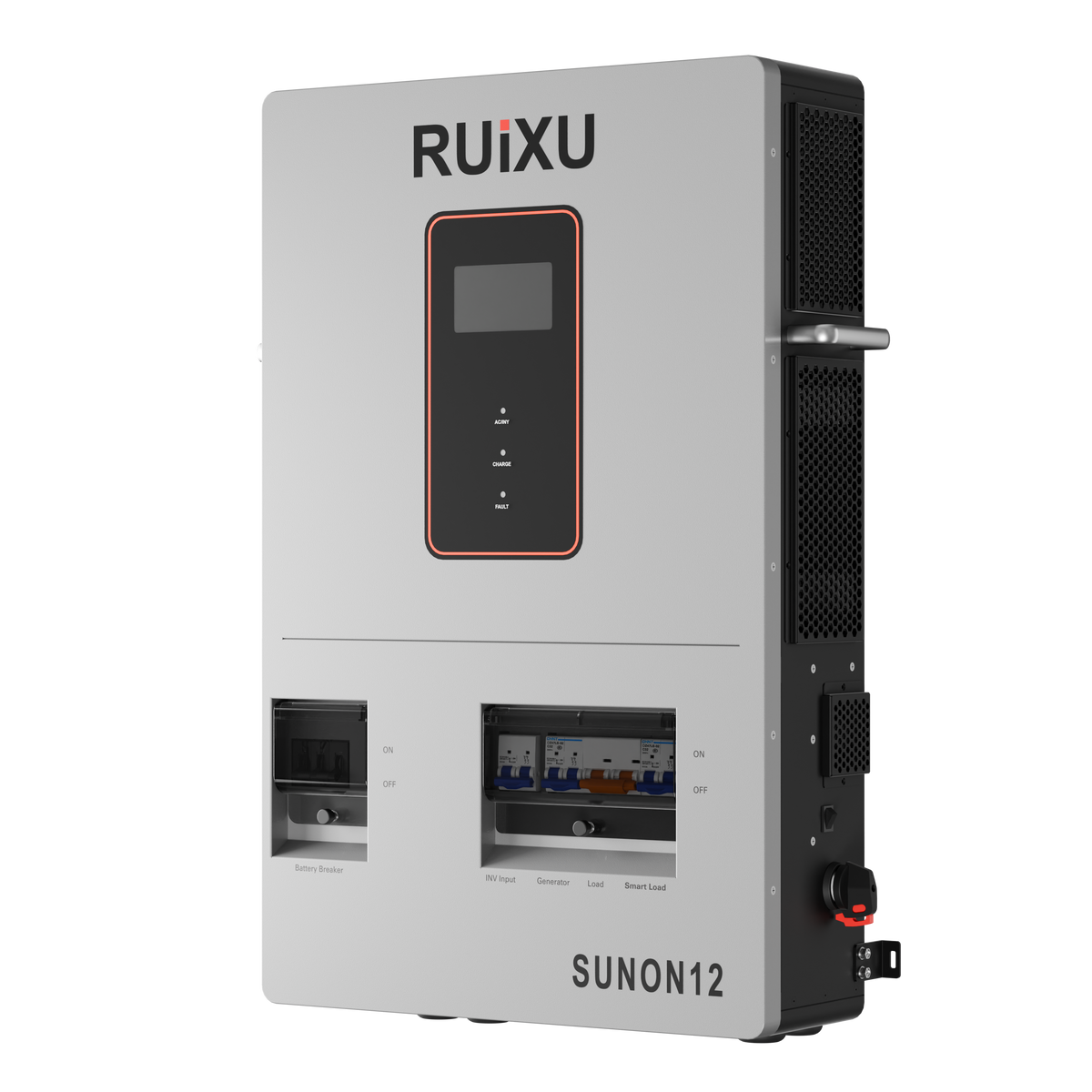

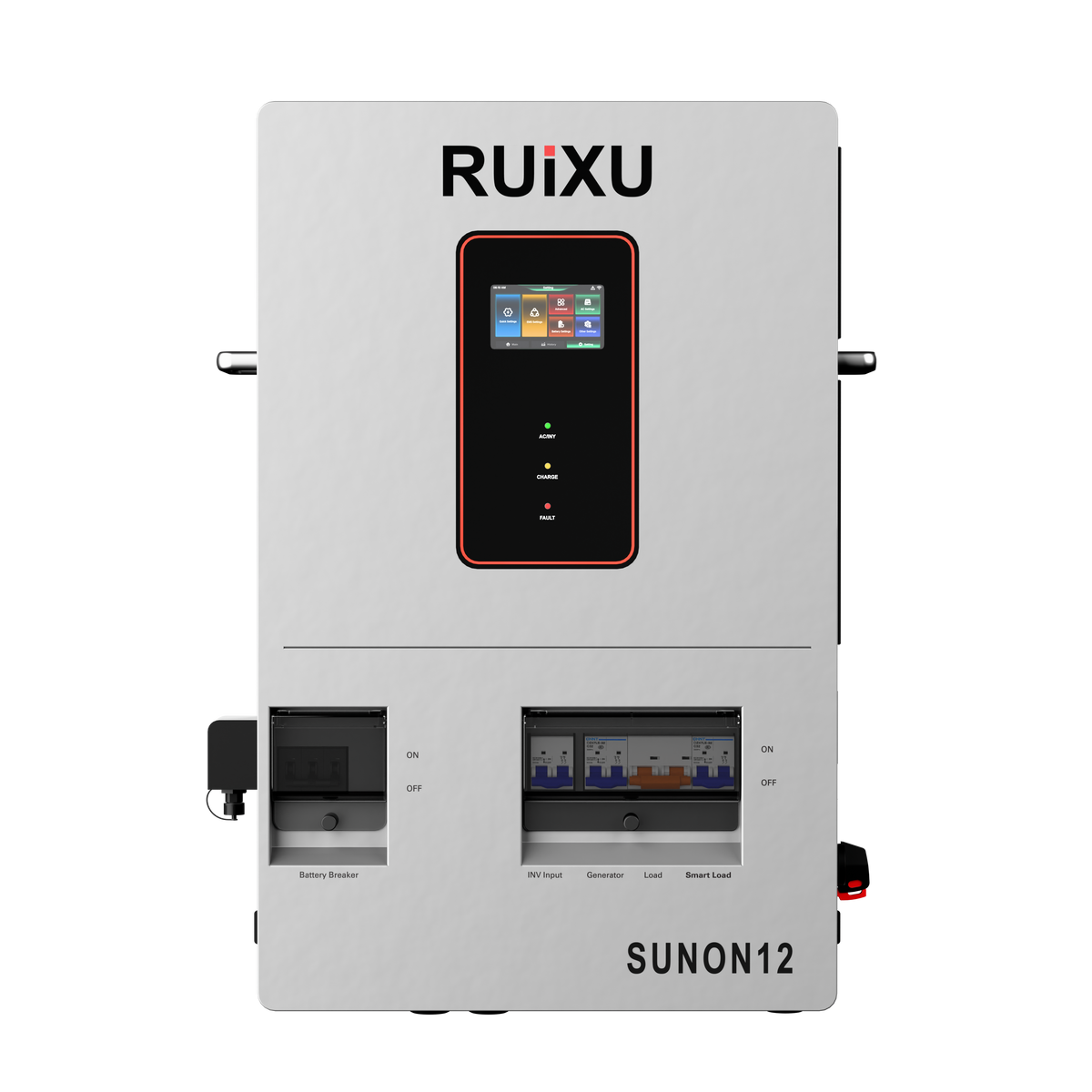

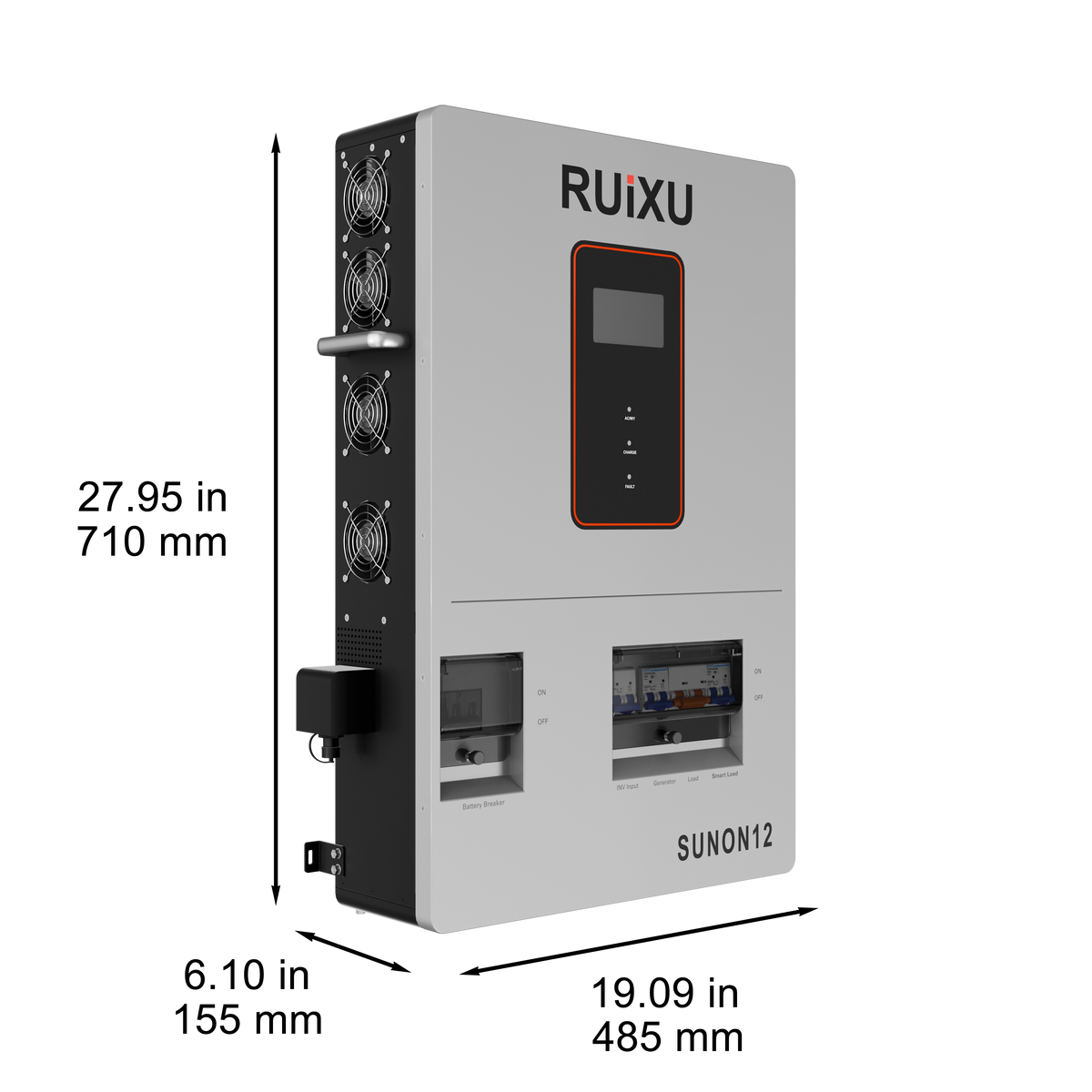

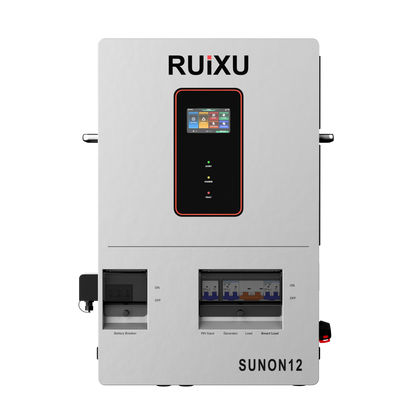

The biggest inverter in RUiXU's SUNON off-grid line. The SUNON12 is an all-in-one 48V inverter, solar charge controller and battery charger in one wall-mount unit. It delivers 12kW of 120/240V split-phase power, takes up to 24kW of solar across two MPPT inputs, and charges your battery bank at up to 250A from solar, grid or generator.

12,000WRated output, 120/240V

24,000WMax solar input (2 MPPT)

250AMax battery charging

6 HPMotor load capacity

🏡 Is It Right for Your System?

The SUNON12 is built for larger off-grid and backup systems that run on a 48V battery bank, such as:

Off-grid homes
Cabins & remote properties
Whole-home backup
Farms & workshops
Shops & small commercial
RUiXU Lithi2-16
RUiXU RX-LFP48100 rack batteries

📏 Quick system check before you order:

You have a 48V battery bank (40–60V DC range). Lithium, lead-acid and user-defined profiles are supported.
Each solar string stays under 500V open-circuit, and each MPPT input stays within 12,000W and 32A.
It will be mounted indoors. The SUNON12 is rated IP20, indoor only.
You have wall space for a 30.9" × 19.1" × 6.3" unit weighing about 85 lb.

Not sure? Send us your battery bank, solar array and loads, and we'll help you size the system before you buy.

Why Choose the SUNON12

⚡

Real Whole-Home Power

12kW continuous and 18,000VA peak at 120/240V split-phase, with a 6 HP motor rating for well pumps, AC units and shop tools.

☀️

Dual MPPT, 24kW of Solar

Two independent MPPT inputs take up to 12kW each (90–450V operating range) with 99.9% tracking efficiency.

🔋

250A Hybrid Charging

Charge from solar and grid at the same time at up to 250A, or up to 160A from the grid or a generator alone.

🔗

Grows With You

Run 1 to 6 units in parallel for up to 72kW of total output as your needs grow.

🛠️

Generator Ready

A dedicated generator input with selectable 120V or 240V operation, plus a 60A smart load output you can control by voltage, state of charge or PV input.

📱

Wi-Fi Monitoring & Rapid Shutdown

Monitor your system from the app with the included Wi-Fi dongle. Built-in rapid shutdown de-energizes the PV array to protect first responders.

📦 What's in the Box

SUNON12 12kW Off-Grid InverterInverter, dual MPPT charger & battery charger in one
200 cm CAT6 Communication CableConnects the inverter to your battery's BMS
Wi-Fi DongleFor app monitoring
Operation ManualWiring, settings & parallel setup

Not included: batteries, solar panels, battery and AC cabling, conduit, and external DC/AC disconnects. RUiXU specifies installation by a qualified electrician.

SUNON12 vs. SUNON7.2

	SUNON12	SUNON7.2
Rated output	12,000W	7,200W
Output voltage	120/240V split-phase	120/240V split-phase
Max solar input	24,000W (2 MPPT)	9,000W (2 MPPT)
Max battery charging	250A	150A
Battery voltage	48V	48V
Parallel units	Up to 6 (72kW)	Up to 6
Best for	Larger homes, heavy loads, big solar arrays	Small to mid-size homes & cabins

🔌 Charging & Battery Setup

☀️

Solar: Up to 250A

Two MPPT channels, 90–450V operating range, 500V max open-circuit voltage.

🏠

Grid or Generator: Up to 160A

Accepts 120V (L1/N, L2/N) or 240V (L1/L2) input, 50/60Hz.

⏱️

Time-Sharing Control

Schedule charging and discharging windows to manage your battery around your daily usage.

🧠

Closed-Loop Battery Comms

Talks to compatible BMSs over RS485 or CAN using the included cable. RUiXU lists the SUNON12 as compatible with the Lithi2-16.

🛡️ 5-Year Manufacturer Warranty

Years 1–5RUiXU limited warranty against defects in materials and workmanship

Questions or a claim?Call or email us and we'll work with RUiXU for you

Warranty per RUiXU's SUNON12 spec sheet. Full terms at ruixubattery.com.

📋 Full Specifications

Inverter Output
Rated Output Power	12,000W
Max Output Power	18,000VA
Rated Output Voltage	120/240Vac (single-phase / split-phase)
Motor Load Capacity	6 HP
Frequency / Waveform	50/60Hz, pure sine wave
Bypass Overload Current	Load 125A + smart load 60A
Smart Load Overload Current	60A
Switching Time	10ms (typical)
Battery
Battery Type	Lithium-ion, lead-acid or user-defined
Rated Battery Voltage	48V (40–60Vdc range)
Max Solar Charging Current	250A
Max Grid/Generator Charging Current	160A
Max Hybrid Charging Current	250A
Solar Input
Number of MPPTs	2
Max Input Power	12,000W + 12,000W
Max Input Current	32A + 32A
Max Open-Circuit Voltage	500Vdc
MPPT Voltage Range	90–450Vdc
Grid & Generator Input
Rated Input Voltage	120V (L1/N, L2/N) / 240V (L1/L2)
Input Phase Voltage Range	85–140Vac ±2%
Input Frequency	50/60Hz
Generator Overload Current	60A
Efficiency
MPPT Tracking Efficiency	99.9%
Max Efficiency	93%
General
Parallel Capacity	1–6 units
Dimensions (L × W × D)	30.91" × 19.09" × 6.33" (785 × 485 × 160.8 mm)
Weight	84.88 lb (38.5 kg)
Protection Degree	IP20, indoor only
Operating Temperature	-10°C to 55°C (14°F to 131°F), derates above 45°C (113°F)
Cooling / Noise	Intelligent fan / <60 dB
Communication	RS485, CAN, USB, dry contact; Wi-Fi module included
Integrated Breakers	Inverter input, generator, load, smart load, battery
Certifications	UL 1741, FCC Part 15 Class B
Warranty	5 years
Ordering
Model / SKU	SUNON12

📄 Manuals & Downloads

📋Spec SheetFull SUNON12 specificationsPDF ↗ 📘User & Installation ManualWiring, settings, parallel setupPDF ↗ ✅UL 1741 CertificateSafety certification for inspectorsPDF ↗ 📜Warranty TermsRUiXU warranty policyRUiXU ↗

❓ Common Questions

Will it work with my RUiXU batteries?

Yes. RUiXU lists the SUNON12 as compatible with the Lithi2-16, and it works with 48V lithium battery banks like the RX-LFP48100 rack batteries. It connects to the battery BMS over RS485 or CAN using the included CAT6 cable.

Is this a grid-tied inverter? Can I sell power back?

No. The SUNON12 is an off-grid inverter. It can use the grid or a generator to charge your batteries and pass power through to your loads, but it doesn't export power to the utility. For grid-tied backup with export, look at the RUiXU RX-12K hybrid inverter.

Can I install it outside?

No. It's rated IP20, indoor only. Install it in a garage, utility room or other protected indoor space within its -10°C to 55°C operating range.

Can I run a well pump or central AC?

The SUNON12 is rated for motor loads up to 6 HP with an 18,000VA max output. Check your equipment's starting (surge) current, and call us if you'd like help sizing.

How much solar can I connect?

Up to 12,000W per MPPT input (24,000W total), with a maximum of 32A per input and 500V open-circuit voltage. Size strings to stay under 500V Voc in your coldest weather.

Can I add more inverters later?

Yes. You can run 1 to 6 SUNON12 units in parallel for up to 72kW of total output.

Does it work with a generator?

Yes. It has a dedicated generator input with selectable 120V or 240V operation, and can charge your batteries from the generator at up to 160A.

Can I install it myself?

RUiXU specifies installation by a qualified electrician, and local code usually requires a licensed installer and permit. We're happy to answer system design questions before you buy.
