RUIXU Battery

RUiXU RX-12K + Lithi2-16 Hybrid Home Backup System, 11.4kW Split-Phase Inverter with 16-48kWh LiFePO4 Storage & Conduit Box

⚡ 11.4kW Hybrid Inverter|🔋 16–48kWh Lithi2-16 Storage|✅ UL 9540 System|🧰 Free Conduit Box

Regular price: Price: $6,598.00
Regular price: List Price: $6,723.00
Sale price: Price: $6,598.00
Unit price: per

In Stock – Ready to Ship

Free Shipping – Lower 48

Authorized Dealer – Full manufacturer warranty

Pay Over Time – Shop Pay Installments

Ships From US Warehouses

Battery Storage 1 Battery (16kWh) 2 Batteries (32kWh) 3 Batteries (48kWh)

Product variants

Quantity

⚡11.4kW Hybrid Inverter120/240V split-phase
🔋16–48kWh Storage1 to 3 Lithi2-16 batteries
☀️17.1kW Solar Input4 MPPT trackers
🧰Conduit Box IncludedMade for this pairing, free
✅UL 9540 SystemRX-12K + Lithi2-16
🛡️10-Year Battery WarrantyBacked by RUiXU

RUiXU's grid-tied home backup system in one order. The RX-12K hybrid inverter works with your utility and solar panels, and switches your home to battery power during an outage. Pair it with one, two or three Lithi2-16 16kWh batteries, plus the RUiXU conduit box built for this exact setup, included free.

11.4kWContinuous output

17.1kWMax solar input

16–48kWhBattery storage

4 MPPTSolar trackers

🏡 Is It Right for You?

Grid-tied homes with solar
Whole-home outage backup
Time-of-use savings
Adding storage to new solar

📏 Before you order:

Grid-tied systems need utility interconnection approval and a permit. Talk to your installer and utility first.
Keep solar strings within the RX-12K's 90–550V PV input range.
For off-grid properties without utility power, see our SUNON12 + Lithi2-16 off-grid system.
Installation by a licensed electrician is required for grid-tied systems in most areas.

Choose Your System

System	Storage	Bought Separately	System Price
RX-12K + 1 battery	~16kWh	$6,723	$6,598
RX-12K + 2 batteries	~32kWh	$10,192	$9,897
RX-12K + 3 batteries	~48kWh	$13,491	$13,196

Every system includes the RX-12K conduit box ($125) free. 2- and 3-battery systems also include the RX9MP busbar ($170) free. "Bought separately" uses the RX-12K at $3,299 and batteries at $3,299 each.

Why This System

🔌

Grid + Solar + Battery

The RX-12K blends utility, solar and battery power, and backs up your home when the grid goes down.

✅

Listed as a System

The Lithi2-16 carries UL 9540 listing with the RUiXU RX-12K, which inspectors and utilities look for.

☀️

Big Solar Capacity

Four MPPT trackers and up to 17.1kW of PV input handle complex roofs with multiple orientations.

🧰

Clean, Finished Install

The included RUiXU conduit box encloses the cabling between the battery and inverter.

📦 What's Included

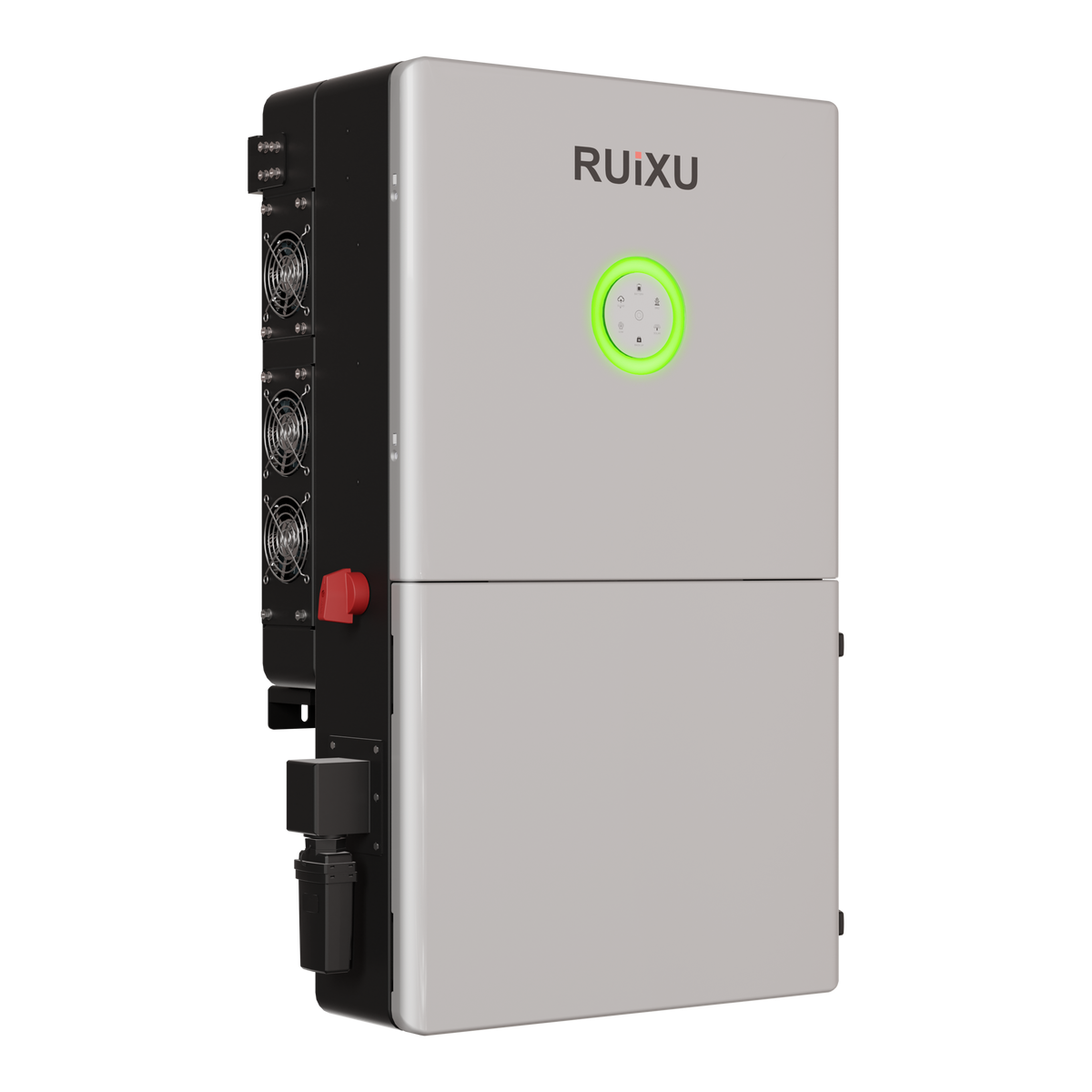

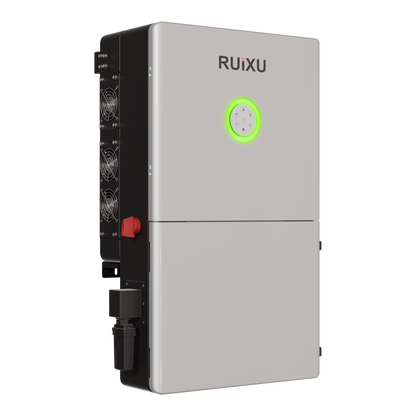

RUiXU RX-12K Hybrid Inverter11.4kW, 120/240V split-phase, UL 1741 & UL 9540

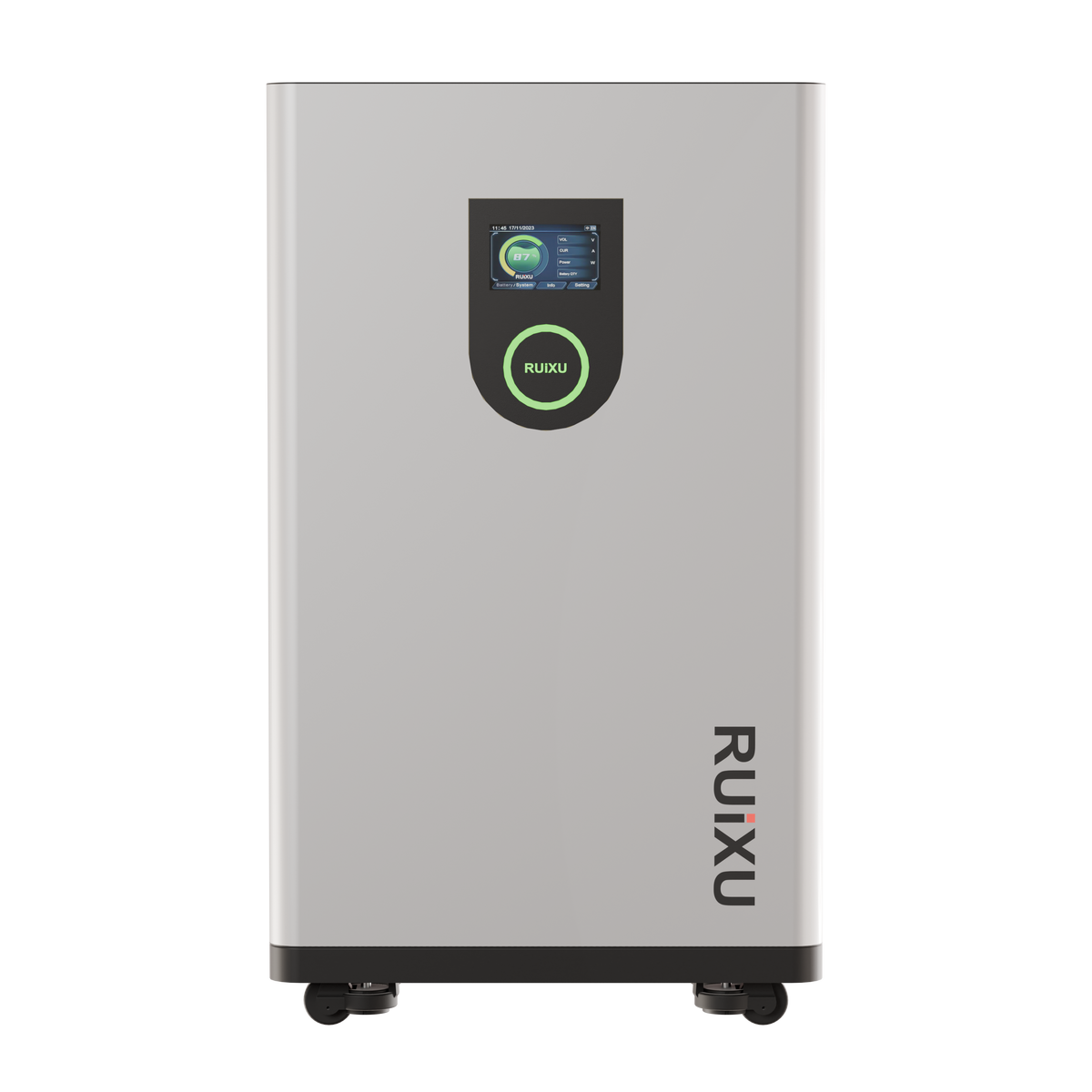

1, 2 or 3 RUiXU Lithi2-16 Batteries16.07kWh each, self-heating, with RUiXU's standard cables
RUiXU RX-CB-US(R) Conduit BoxMade for the RX-12K, included free
RUiXU RX9MP Busbar PairIncluded free with 2- and 3-battery systems

Not included: solar panels, racking, AC and DC wiring, disconnects, permits, and installation.

📋 Key Specifications

Inverter Output	11.4kW, 120/240V split-phase
Solar Input	Up to 17.1kW, 4 MPPT, 90–550V PV range
Battery Voltage	40–60V (48V class)
Battery	Lithi2-16: 51.2V, 314Ah, 16.07kWh each
Inverter Certifications	UL 1741, UL 9540
Battery Certifications	UL 1973, UL 9540, UL 9540A, CEC, SGIP
Battery Warranty	10 years

❓ Common Questions

What's the difference between this and the SUNON12 system?

The RX-12K is a hybrid inverter for homes connected to the utility. It works with the grid and backs you up in an outage. The SUNON12 system is built for off-grid properties.

Will it back up my whole house?

It depends on your loads. The RX-12K delivers 11.4kW continuous, which covers most homes. Send us your main loads and we'll help you check.

Can I add more batteries later?

Yes. RUiXU supports up to 32 Lithi2-16 batteries in parallel.

How is it delivered?

By freight from RUiXU's California warehouse. Residential and liftgate delivery may add a fee, and we'll confirm the details before shipping.

Planning a Home Backup System?

Tell us about your home, solar and backup goals, and we'll help you choose the right battery count.
