The RUiXU 48V self-heating lithium battery kits are modular energy storage packages built around RX-LFP48100-H 51.2V 100Ah LiFePO4 server rack batteries. Available in 15kWh, 20kWh, 25kWh, and 30kWh configurations, each kit combines multiple self-heating battery modules with a pre-assembled 6-slot battery cabinet, communication cables, grounding cables, and parallel connection cables. The battery system supports up to 32 units in parallel and is designed for compatible residential solar, backup power, and off-grid energy storage applications.

Key Features

• Modular 48V LiFePO4 Storage: Each RX-LFP48100-H battery provides 51.2V nominal voltage, 100Ah capacity, and 5.12kWh of nominal energy.
• Four Kit Capacity Options: Choose from 15kWh, 20kWh, 25kWh, or 30kWh class configurations using three, four, five, or six battery modules respectively.

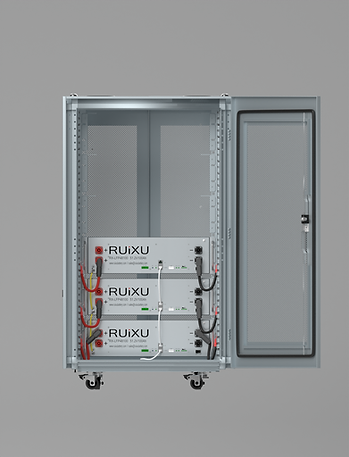

• 15kWh Kit: Includes three 5.12kWh battery modules for approximately 15.36kWh of combined nominal energy.

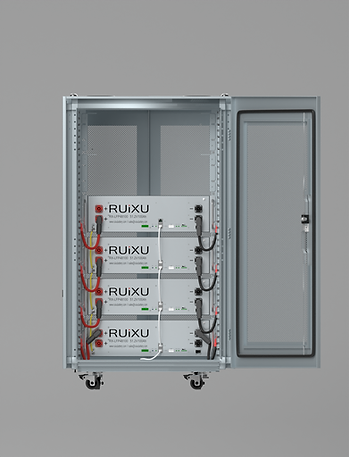

• 20kWh Kit: Includes four battery modules for approximately 20.48kWh of combined nominal energy.

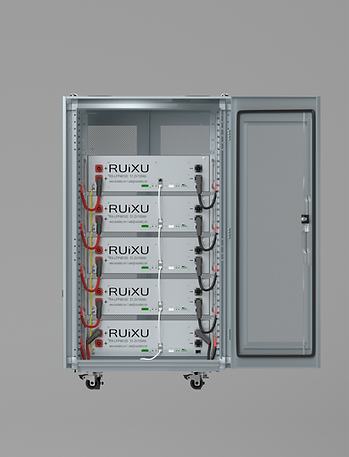

• 25kWh Kit: Includes five battery modules for approximately 25.60kWh of combined nominal energy.

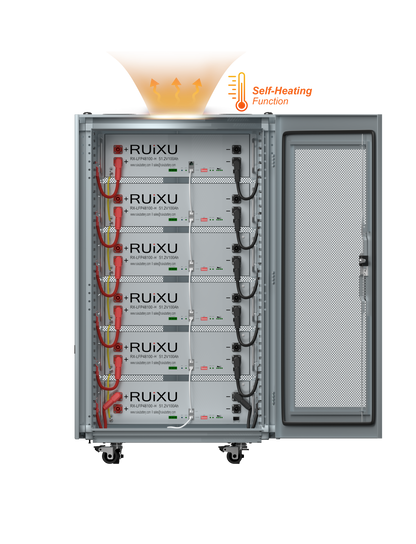

• 30kWh Kit: Includes six battery modules for approximately 30.72kWh of combined nominal energy.
• Self-Heating Technology: Built-in heating elements support cold-weather charging by warming the battery using power from the charger.
• Cold-Weather Charging Support: The self-heating battery is designed for charging in low-temperature conditions, with heating activation at or below 41°F (5°C).
• 3U Rack-Mount Battery: Each battery uses a standard 3U form factor measuring approximately 18.9 × 5.2 × 18.1 inches.
• Pre-Assembled 6-Slot Cabinet: Every listed kit includes a pre-assembled cabinet designed to accommodate the included battery modules.
• 32-Unit Parallel Expansion: The battery platform supports up to 32 units in parallel for larger energy storage configurations.
• RS485 & CAN Communication: Built-in communication interfaces support compatible inverter and battery-management systems.
• Configurable Inverter Protocols: DIP address settings allow selection of the RS485 baud rate and compatible inverter communication protocol.
• Wide Inverter Compatibility: CAN communication supports compatible systems from Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
• RS485 Compatibility: RS485 communication is listed for compatible MPP, Voltronic, RCT, and Alpha Outback inverter systems.
• Intelligent BMS: The integrated Battery Management System provides over-charge, over-discharge, and over-current protection while supporting cell balancing.
• 250A Quick-Plug Capacity: Quick-plug battery connections provide up to 250A continuous overcurrent capacity and tool-less connection.
• Multiple Installation Methods: The battery platform supports wall-mounted, floor-mounted, stacked, and rack-mounted installation configurations.
• IP20 Indoor Design: The battery specification identifies the RX-LFP48100-H as an IP20 battery intended for indoor installation.
• Long Cycle Life: The battery is rated for at least 6,000 cycles at 90% depth of discharge under the stated test conditions.
• 10-Year Warranty: The supplied RUiXU documentation specifies a 10-year warranty for the 48V server rack battery.

Specifications

• Brand: RUiXU
• Battery Model: RX-LFP48100-H
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Battery Nominal Voltage: 51.2V
• Battery Nominal Capacity: 100Ah per module
• Battery Nominal Energy: 5.12kWh per module
• Battery Usable Energy: 4.92kWh per module under specified conditions
• Operating Voltage Range: 44.8V–56.0V
• Charge Voltage: 56.0V
• Float Voltage: 54.6V
• Recommended Charge Current: 50A per battery
• Maximum Charge Current: 70A per battery
• Recommended Discharge Current: 50A per battery
• Maximum Discharge Current: 100A per battery
• Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
• Communication: RS485 / CAN
• Parallel Expansion: Up to 32 battery units
• Battery Dimensions: 482 × 133.5 × 460mm / 18.9 × 5.2 × 18.1 inches
• Battery Weight: Approximately 47kg / 103.6 lb per module
• Battery Enclosure Rating: IP20
• Battery Installation: Wall mounted, floor mounted, stack mounted, or rack mounted
• Battery Operating Temperature: -10°C to 50°C / 14°F to 122°F
• Battery Storage Temperature: -10°C to 45°C / 14°F to 113°F
• Maximum Installation Altitude: 4,000m
• Cycle Life: ≥6,000 cycles at 90% DOD under specified test conditions
• Extended Cycle Rating: ≥9,500 cycles at 80% DOD
• Design Life: 15 years
• Self-Heating: Yes
• Heater Power: 480W
• Heater Voltage: 56V
• Self-Heating Start: At or below 41°F (5°C)
• Self-Heating Stop: At or above 53.6°F (12°C)
• Certifications: UL9540A, CE, IEC62619, UL1973, UN38.3
• Warranty: 10 years

Kit Configurations

• 15kWh Battery Kit: 3 × RX-LFP48100-H batteries, 3 × RJ45/CAT5e patch cables, 3 × ground cables, 3 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 20kWh Battery Kit: 4 × RX-LFP48100-H batteries, 4 × RJ45/CAT5e patch cables, 4 × ground cables, 4 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 25kWh Battery Kit: 5 × RX-LFP48100-H batteries, 5 × RJ45/CAT5e patch cables, 5 × ground cables, 5 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.
• 30kWh Battery Kit: 6 × RX-LFP48100-H batteries, 6 × RJ45/CAT5e patch cables, 6 × ground cables, 6 × sets of 30cm parallel 4AWG cables, and 1 × pre-assembled 6-slot battery cabinet.

Suitable Applications

These RUiXU lithium battery kits are designed for compatible residential solar energy storage, backup power, and off-grid systems. The modular rack-based configuration is suitable for installations where battery capacity needs to be expanded in defined stages while maintaining inverter communication and organized battery-bank wiring.

Self-Heating & Cold-Weather Charging

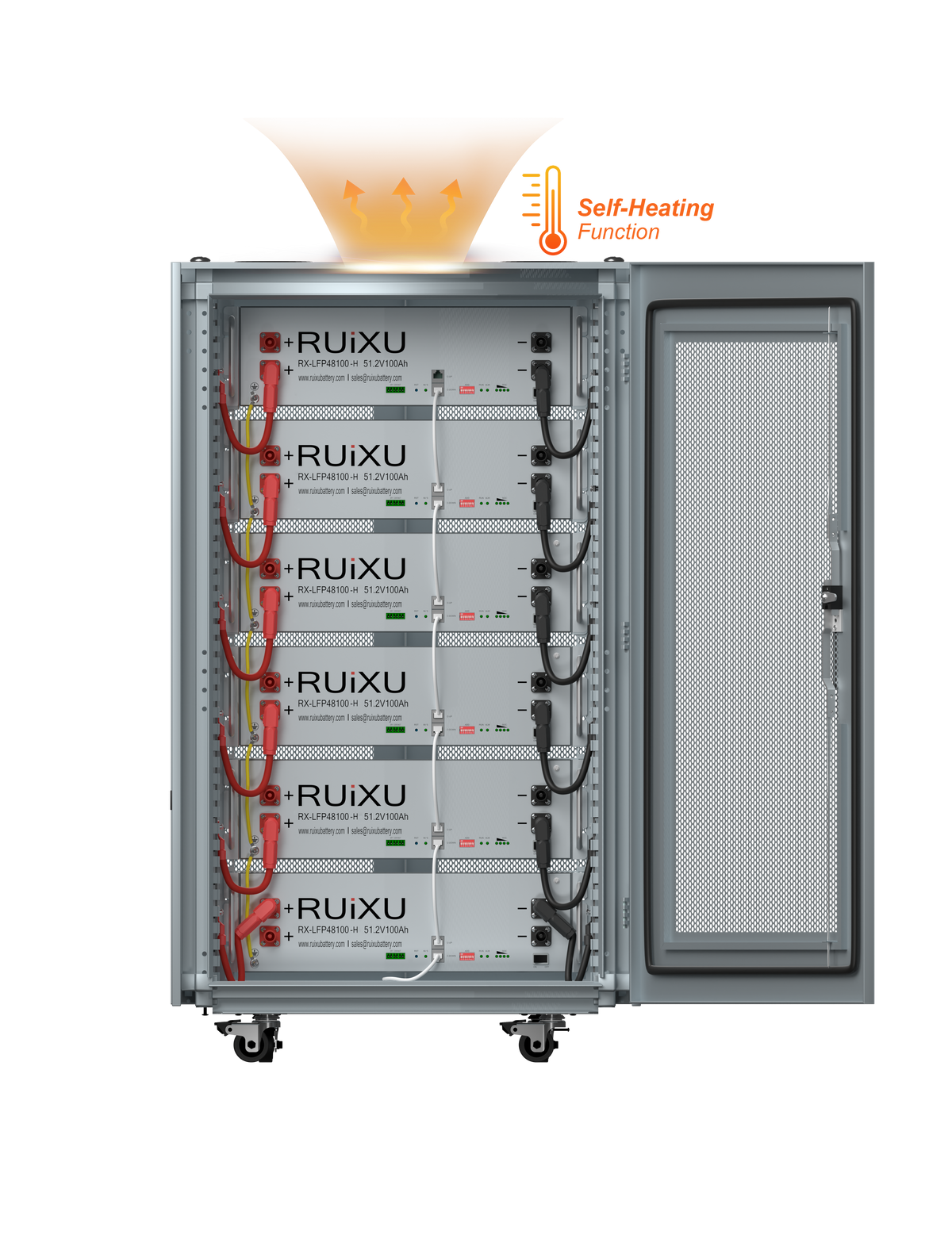

The RX-LFP48100-H battery includes a built-in 480W heating system that draws power from the charger. Self-heating starts when the battery temperature reaches approximately 41°F (5°C) or below and stops at approximately 53.6°F (12°C). This feature is intended to support charging in cold environments within the battery's specified operating conditions.

Rack Cabinet Installation

Each kit includes a pre-assembled 6-slot battery cabinet. The supplied RUiXU product documentation also shows three installation approaches for the battery platform, including bracket-rack, 6-slot cabinet, and 10-slot cabinet configurations. The 6-slot cabinet is identified for 5kWh–30kWh battery kits, while the 10-slot cabinet is shown for larger 5kWh–50kWh configurations.

Inverter Communication

The RX-LFP48100-H uses RS485 and CAN communication interfaces for compatible inverter systems. DIP address settings allow configuration of the RS485 baud rate and inverter protocol. CAN compatibility is listed for Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider. RS485 compatibility is listed for MPP, Voltronic, RCT, and Alpha Outback systems.

Parallel Expansion

The individual battery modules can be connected in parallel, with the platform supporting up to 32 units. Parallel expansion allows the system to grow beyond the supplied 15kWh, 20kWh, 25kWh, and 30kWh configurations when additional compatible batteries, communication wiring, protection equipment, and installation capacity are available.

Smart BMS & Protection

The integrated BMS provides protection against over-charge, over-discharge, and over-current conditions while supporting battery cell balancing. The battery also uses quick-plug connections with up to 250A continuous overcurrent capacity for convenient system wiring.

Included Components

Each kit includes the specified number of RX-LFP48100-H self-heating server rack batteries, matching RJ45/CAT5e communication cables, grounding cables, parallel 4AWG battery cables, and one pre-assembled 6-slot battery cabinet.

Installation & Operation

The RX-LFP48100-H battery is specified for indoor installation with an IP20 enclosure rating. Install the battery cabinet in a dry, protected location with appropriate clearance, ventilation, grounding, overcurrent protection, and communication connections. Match the inverter and charging equipment to the battery's voltage, current, and communication requirements before commissioning.

Important Usage Note

Actual usable energy, charging performance, discharge capability, cycle life, and system capacity can vary with inverter selection, depth of discharge, charge and discharge rate, temperature, wiring, and installation conditions. The supplied documentation notes that usable energy may vary by inverter brand and that derating can occur within certain temperature ranges. Verify all battery, inverter, cabinet, wiring, protection, and local installation requirements before commissioning.
