Nature's Generator Lithium 3600 3072Wh LiFePO4 Expansion Battery

Nature's Generator Lithium 3600 3072Wh LiFePO4 Expansion Battery

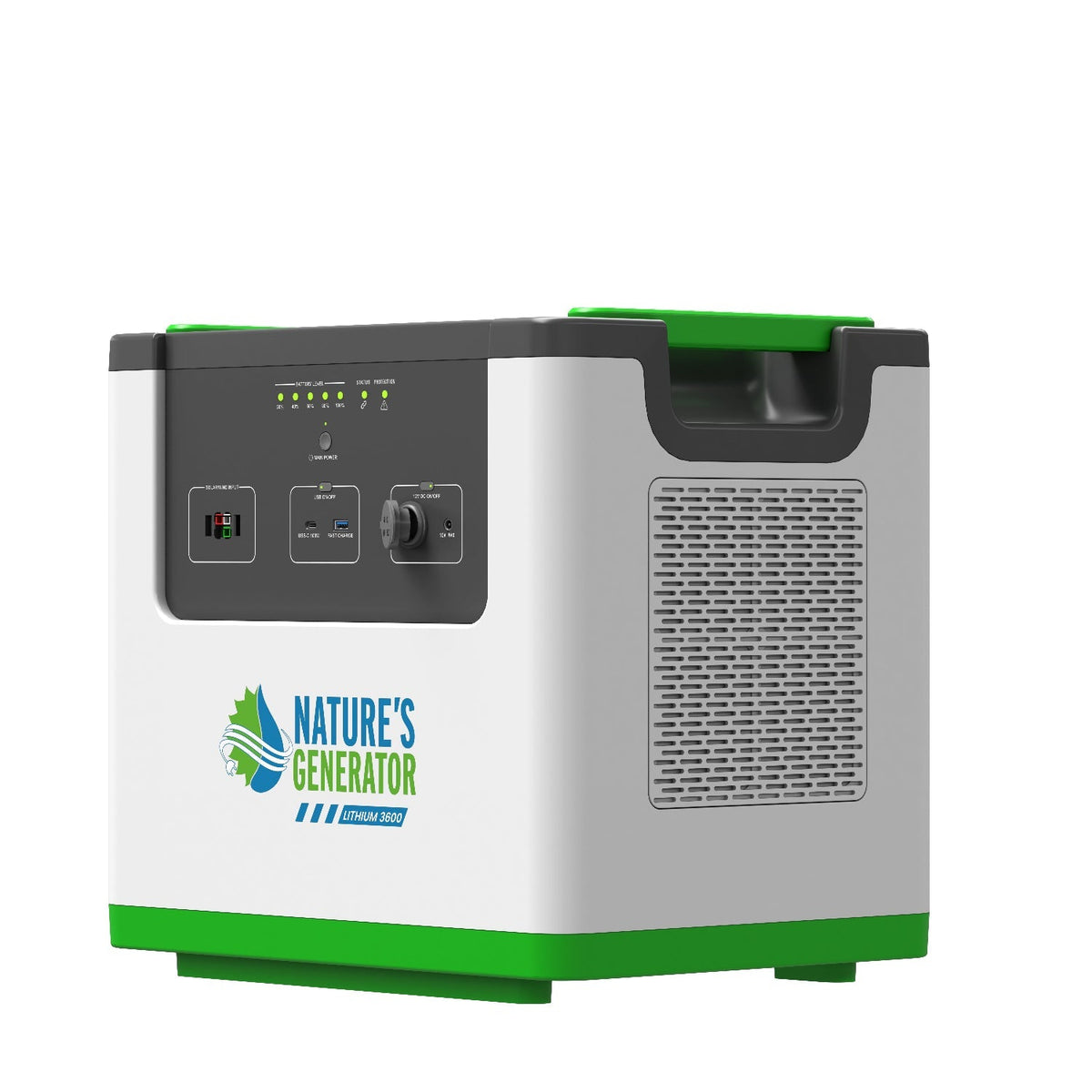

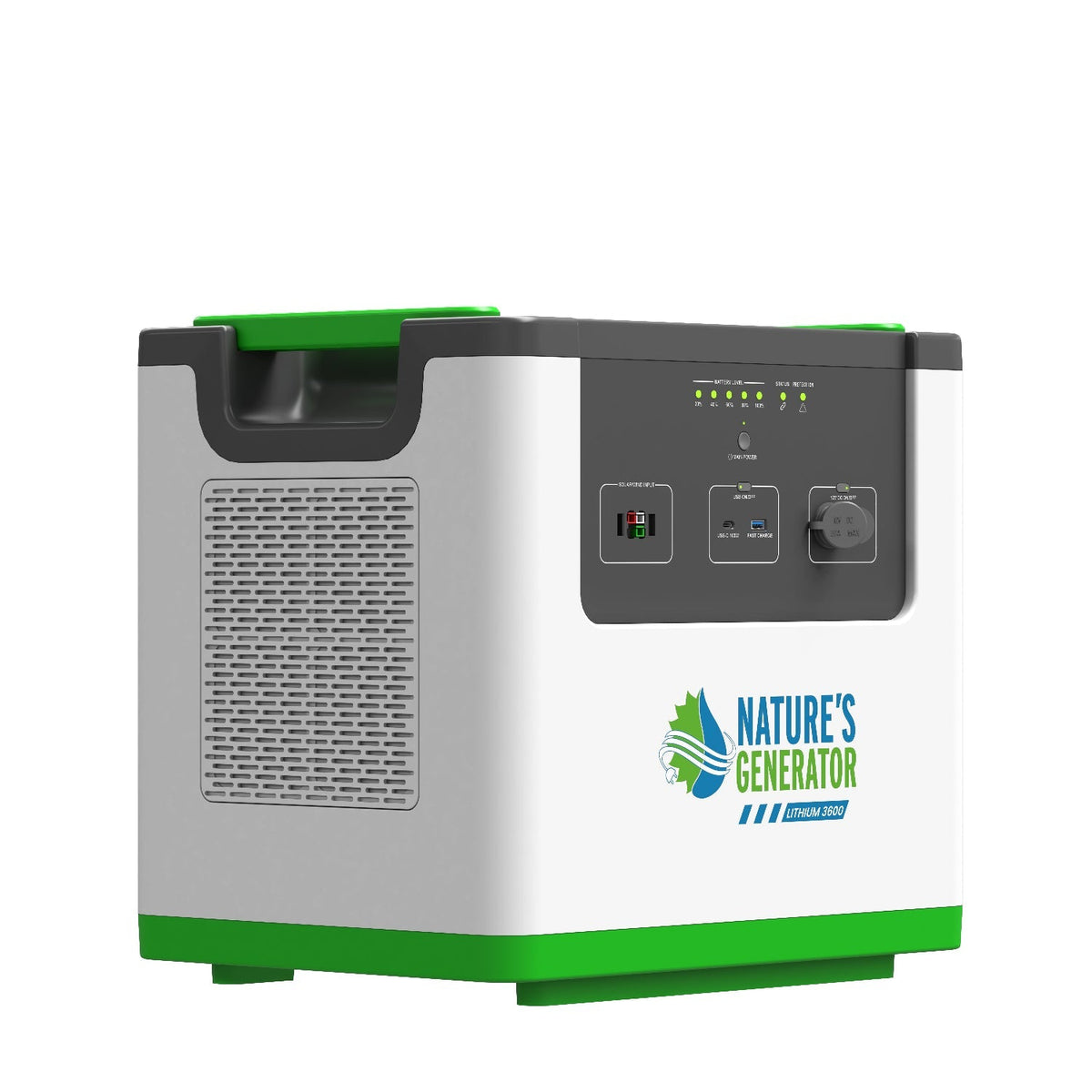

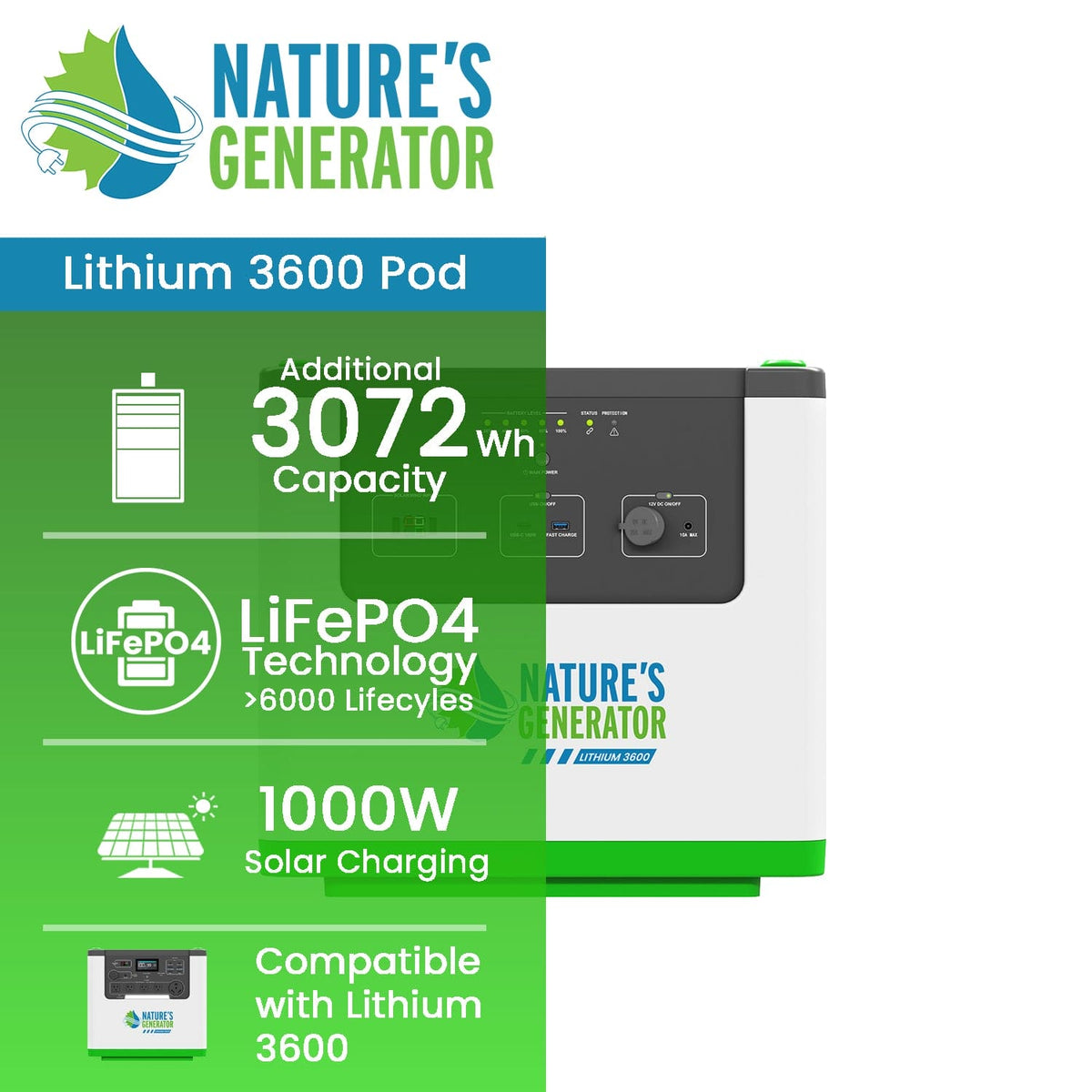

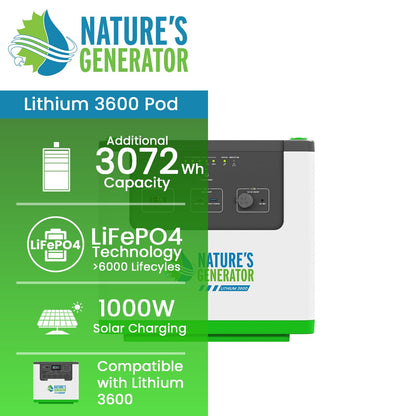

The Nature's Generator Lithium 3600 Power Pod is an expansion battery designed specifically for the Nature's Generator Lithium 3600 power station. It adds 3,072Wh of LiFePO4 battery storage and supports up to 1,000W of solar charging and 150W of wind charging through its integrated MPPT charging system. The Power Pod also includes multiple DC outputs, battery-level indicators, and an expansion connection for compatible Lithium 3600 systems.

Key Features

• 3,072Wh Expansion Capacity: Adds 51.2V 60Ah of Lithium Iron Phosphate battery storage to a compatible Lithium 3600 system.
• Designed for Lithium 3600: Engineered specifically as an expansion battery for the Nature's Generator Lithium 3600 power station.
• 1,000W Solar Charging: Supports up to 1,000W of solar charging through the integrated solar input.
• 150W Wind Charging: Supports up to 150W of wind charging through the shared solar/wind input.
• Integrated MPPT Charging: Uses MPPT charge control for compatible solar charging applications.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate battery chemistry for the stated energy-storage application.
• 3,000+ Cycle Life: Rated for more than 3,000 cycles according to the supplied product specifications.
• Plug-In Expansion: Includes a dedicated expansion connection for use with compatible Lithium 3600 systems.
• Battery Level Indicator: Five LED indicators provide battery-level information.
• Multiple DC Outputs: Includes USB-A, USB-C, 12V DC socket, and 12V DC barrel connections for compatible devices.
• USB-A and USB-C Charging: Provides dedicated USB-A and USB-C ports for compatible electronics.
• Safety Monitoring: Works with the Lithium 3600 battery management system for system monitoring and battery protection.

Specifications

• Brand: Nature's Generator
• Battery Chemistry: Lithium Iron Phosphate / LiFePO4
• Nominal Voltage: 51.2V
• Battery Capacity: 60Ah
• Stored Energy: 3,072Wh / 3.072kWh
• Cycle Life: More than 3,000 cycles
• Self-Discharge: Recharge recommended every 6 months
• Solar Charging: Up to 1,000W
• Wind Charging: Up to 150W through the shared input
• Charge Control: MPPT
• Battery Level Indicator: 5 LED lights
• USB-A Output: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3A, up to 60W
• USB-C Output: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, up to 100W
• 12V DC Socket: 12V / 10A / 120W maximum
• 12V DC Barrel Port: 12V / 10A / 120W maximum
• Expansion Port: Built in
• Operating Temperature: 20°C to 30°C / 68°F to 86°F according to the supplied technical overview
• Storage Temperature: -10°C to 45°C / 14°F to 113°F
• Discharging Temperature: -10°C to 45°C / 14°F to 113°F
• Dimensions: 18.5 × 14.0 × 17.6 inches / 469 × 356 × 446mm
• Weight: 84 lb / approximately 38kg

Compatibility

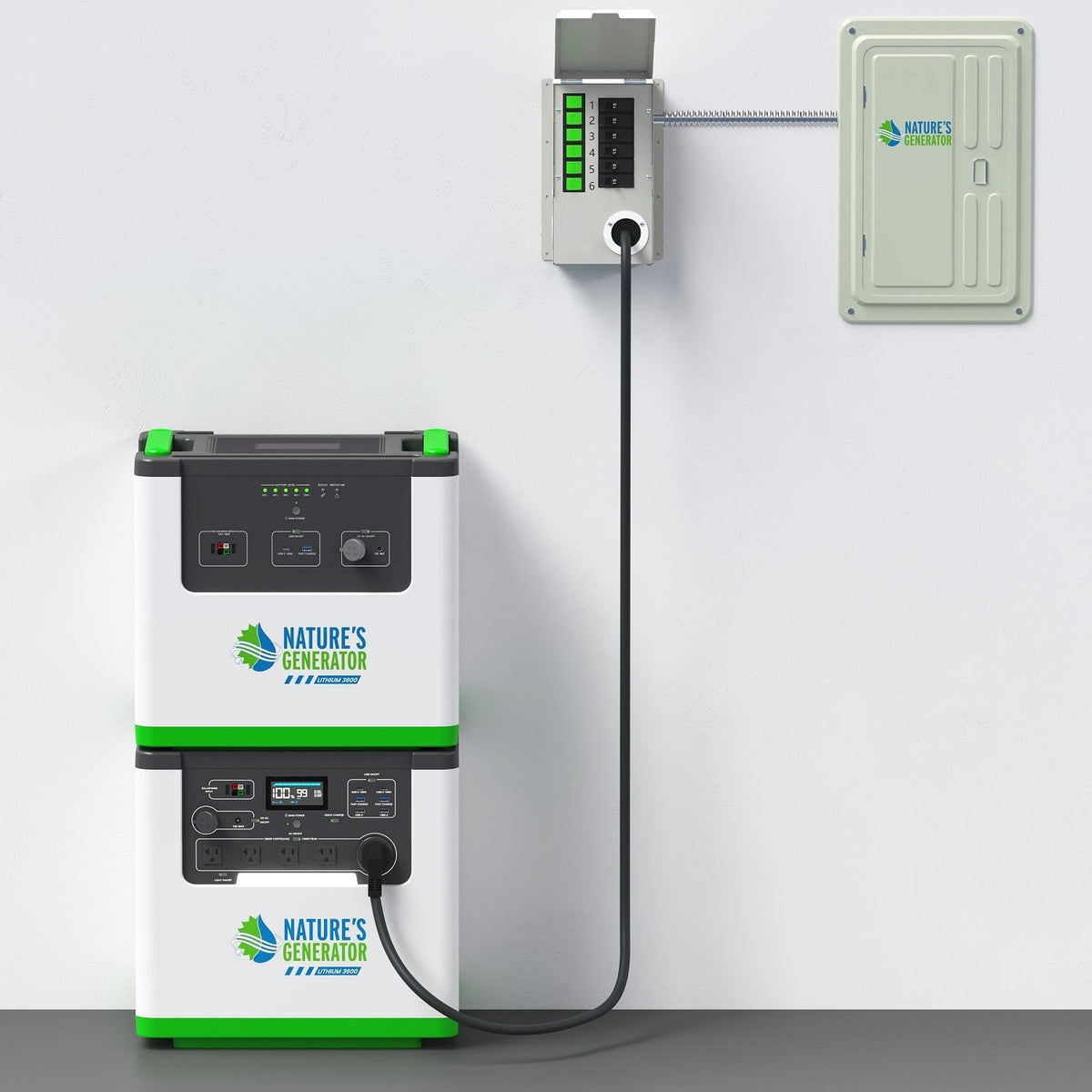

The Lithium 3600 Power Pod is specifically designed as an expansion battery for the Nature's Generator Lithium 3600 power station. It is intended to increase available battery storage and renewable charging capability within supported Lithium 3600 configurations.

Solar Charging

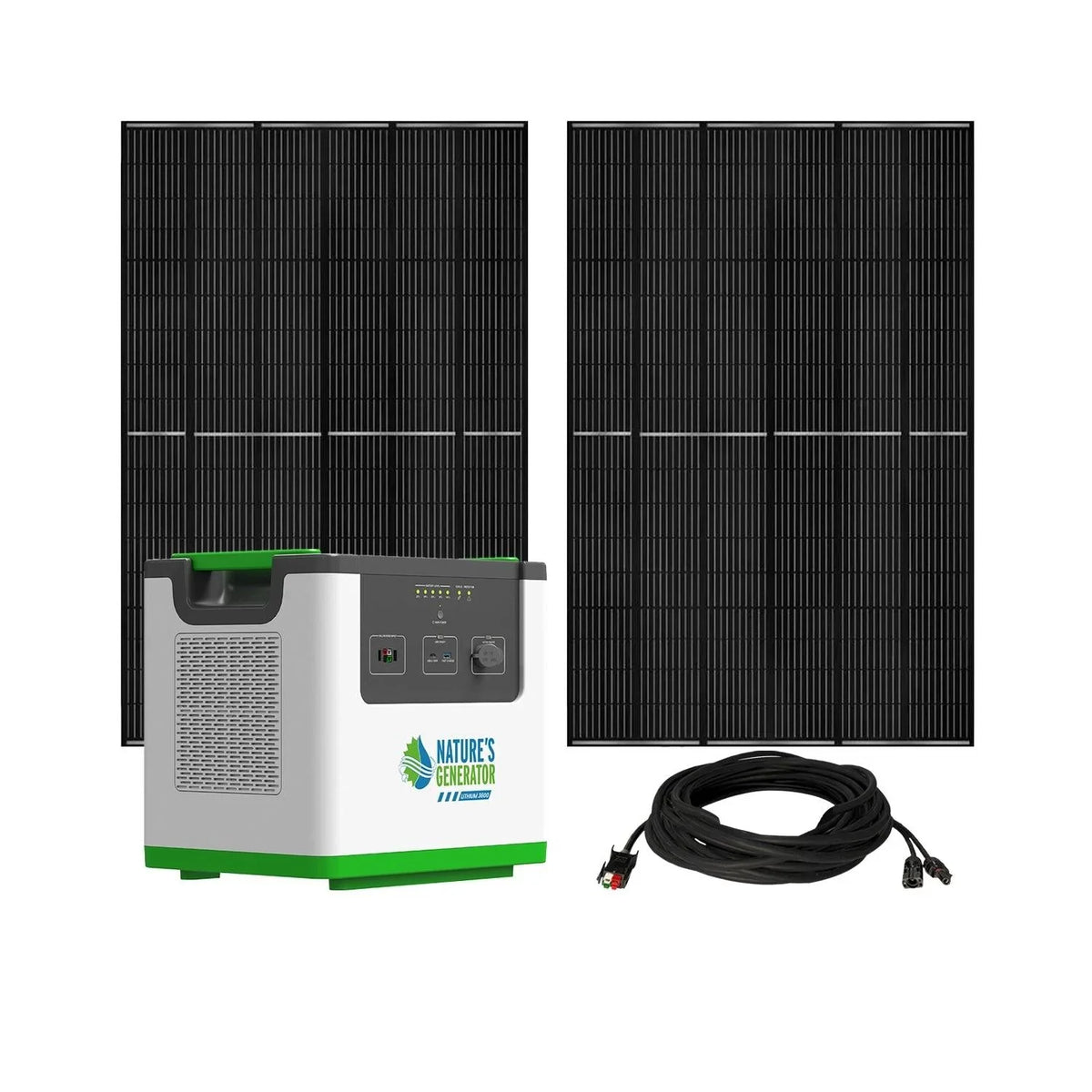

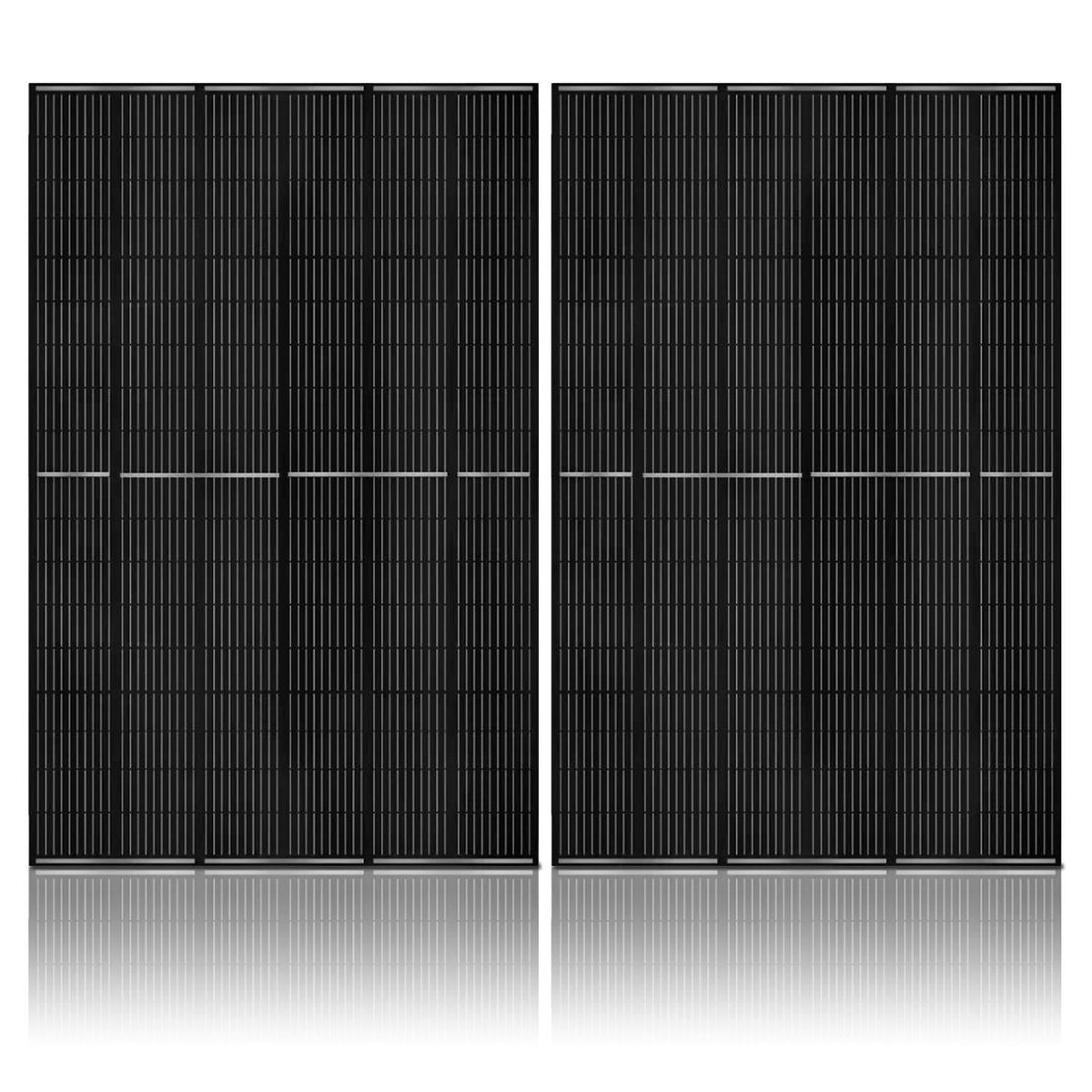

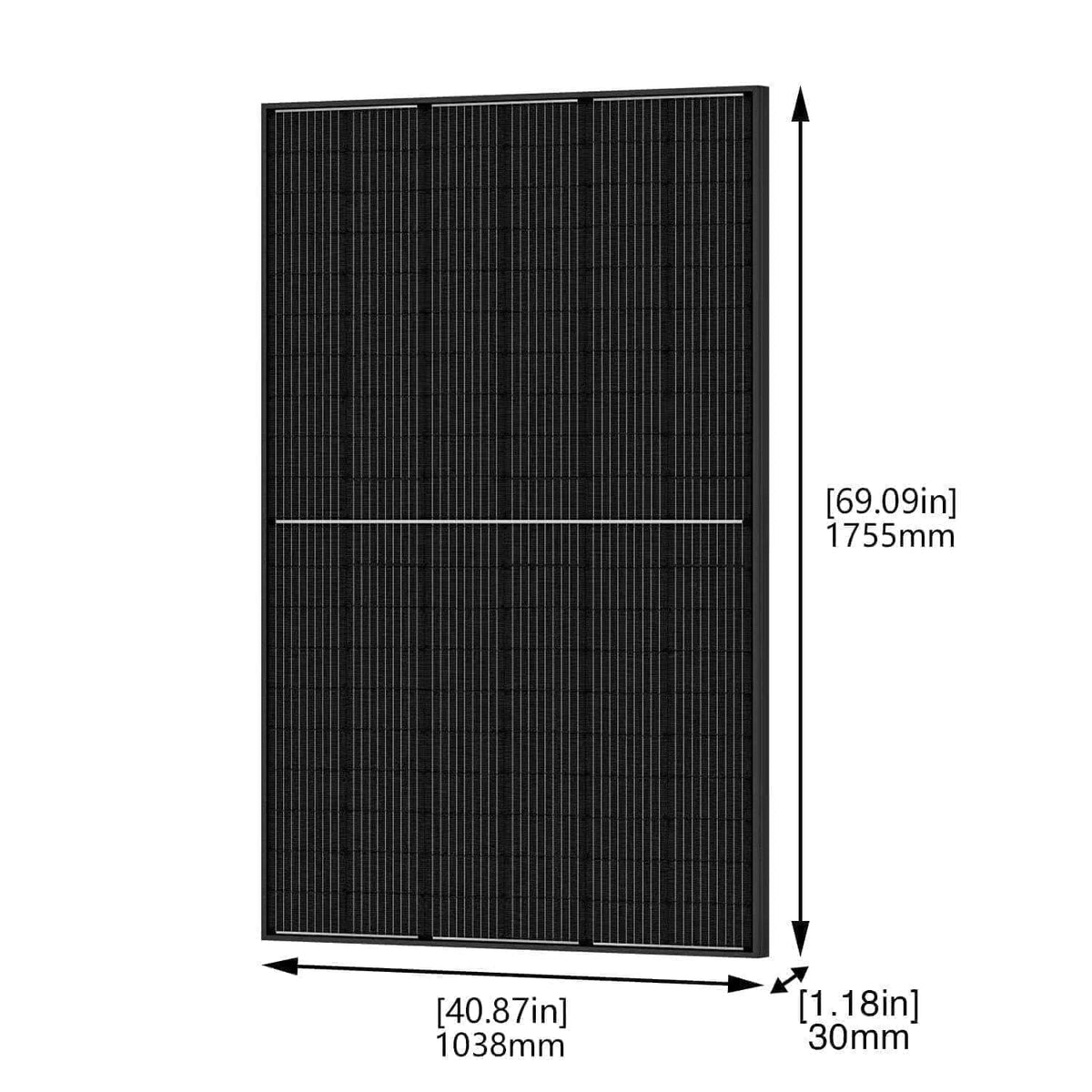

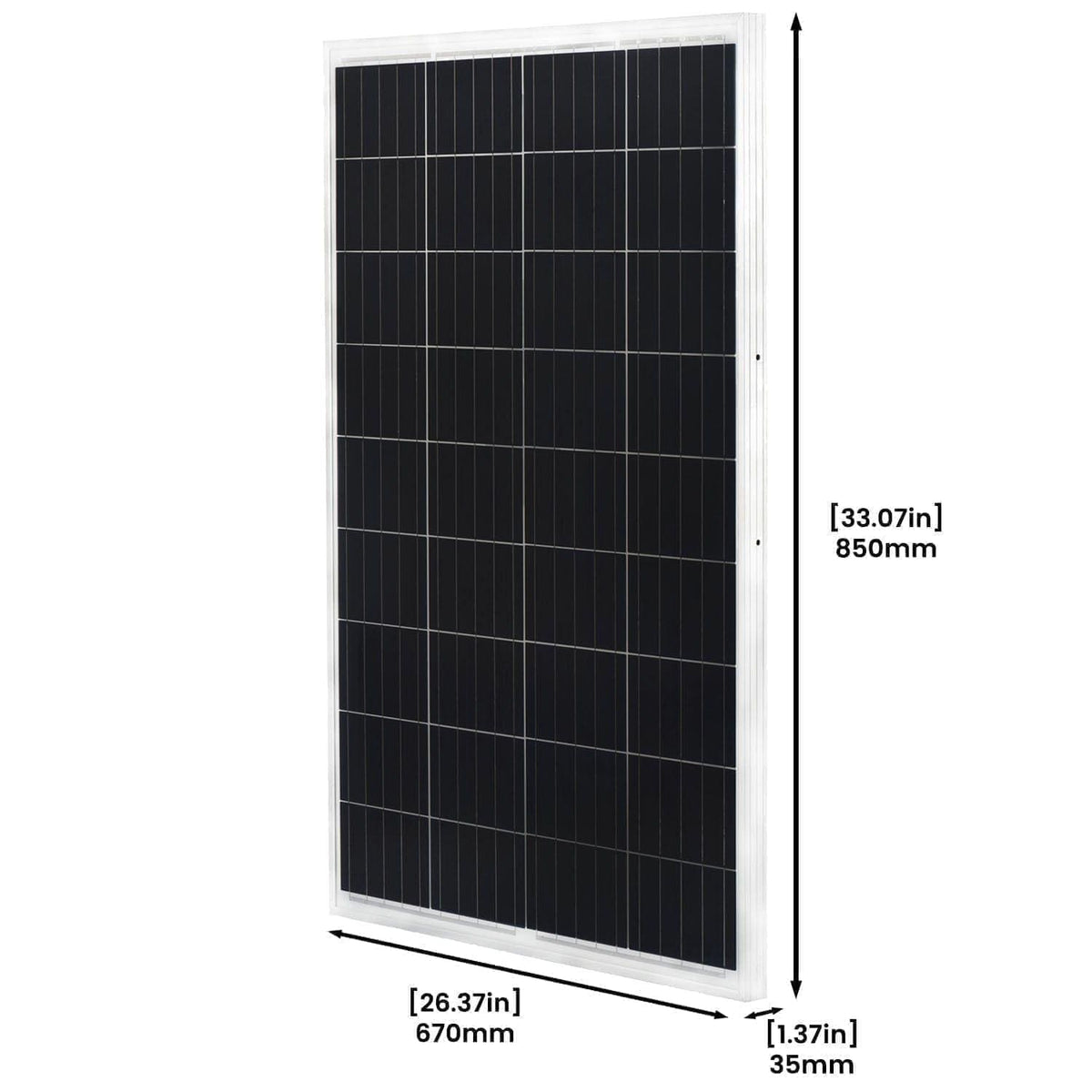

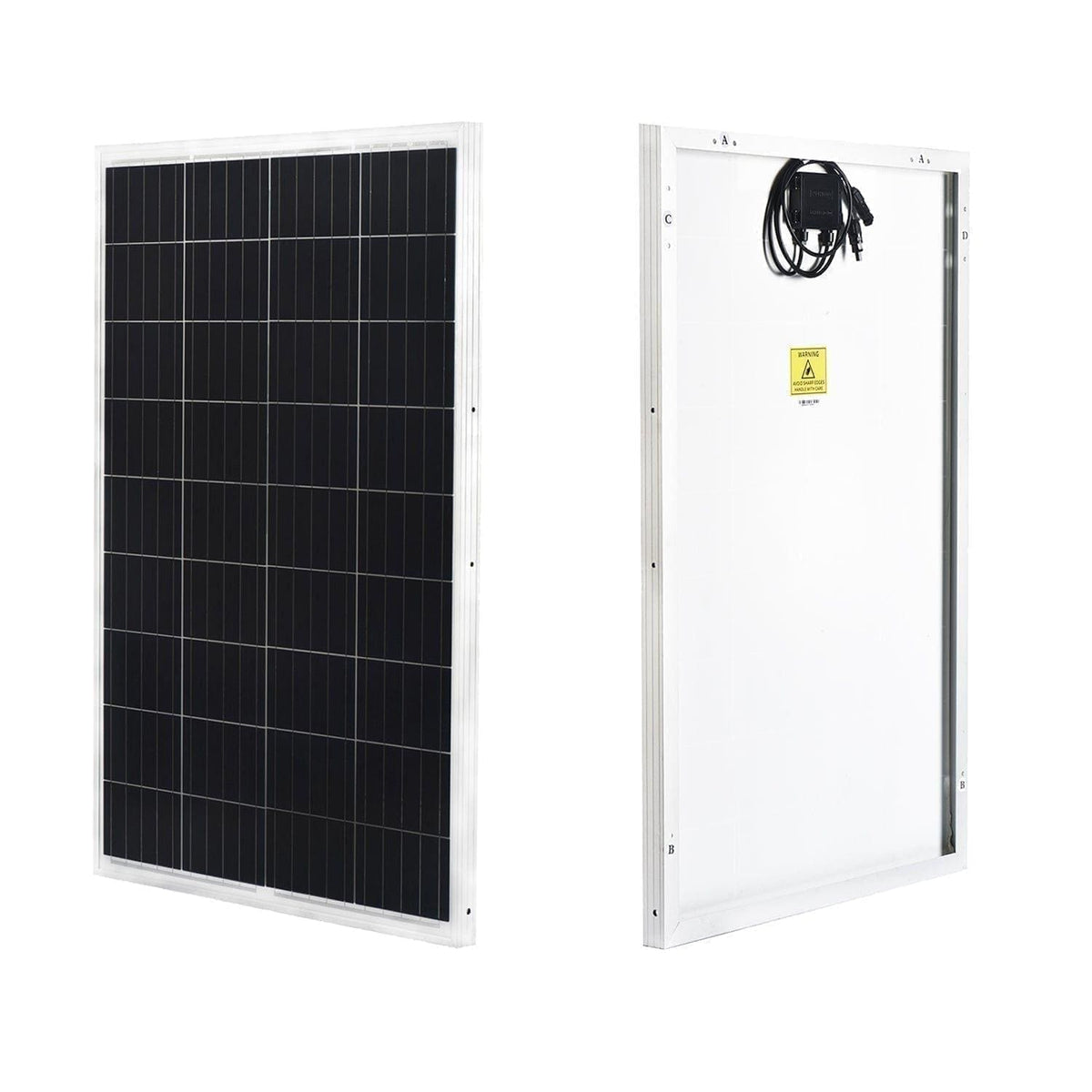

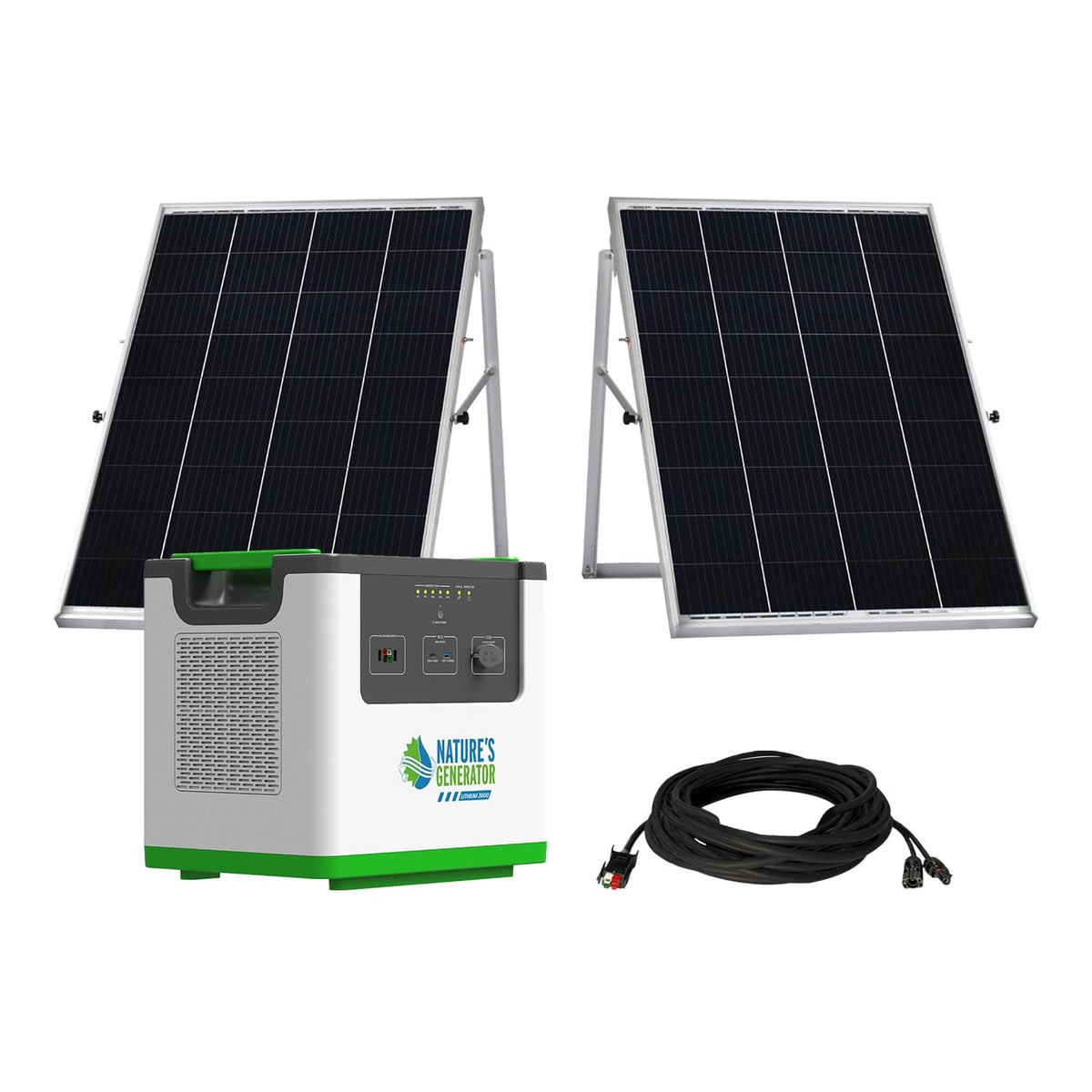

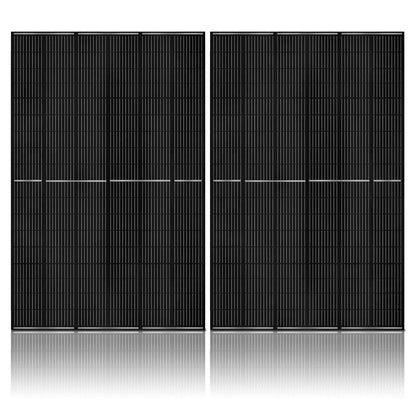

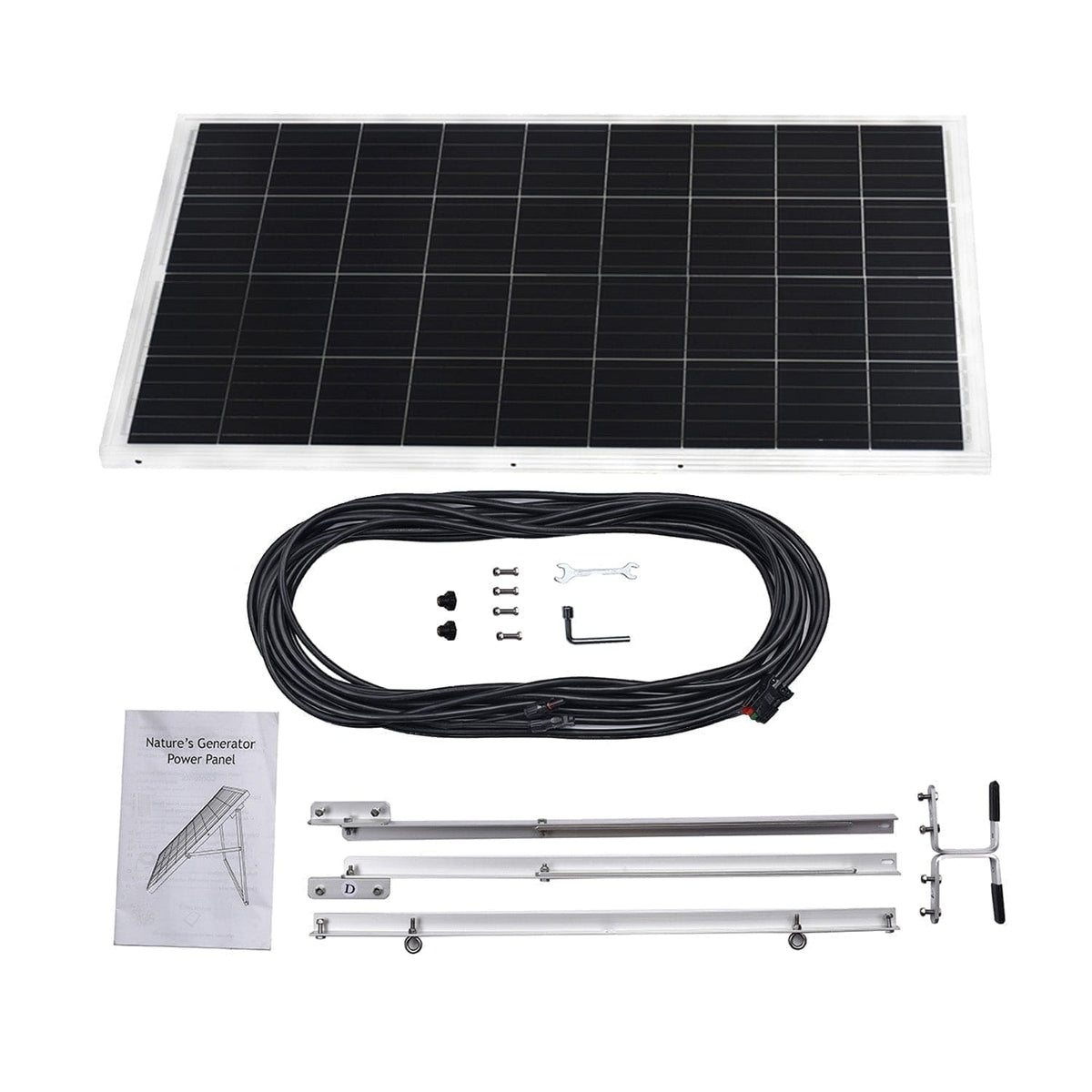

The Power Pod supports up to 1,000W of solar charging through its integrated MPPT controller. The supplied compatibility information identifies support for 100W and 410W rigid solar panels as well as 200W folding solar panels. Confirm the connected Lithium 3600 system's solar input limits and approved panel configuration before connecting an array.

Wind Charging

The shared renewable-energy input supports up to 150W of wind charging. This allows compatible wind charging equipment to supplement solar charging for supported Lithium 3600 configurations.

DC Outputs

• USB-A: Up to 60W.
• USB-C: Up to 100W.
• 12V DC Socket: 10A / 120W maximum.
• 12V DC Barrel Port: 10A / 120W maximum.

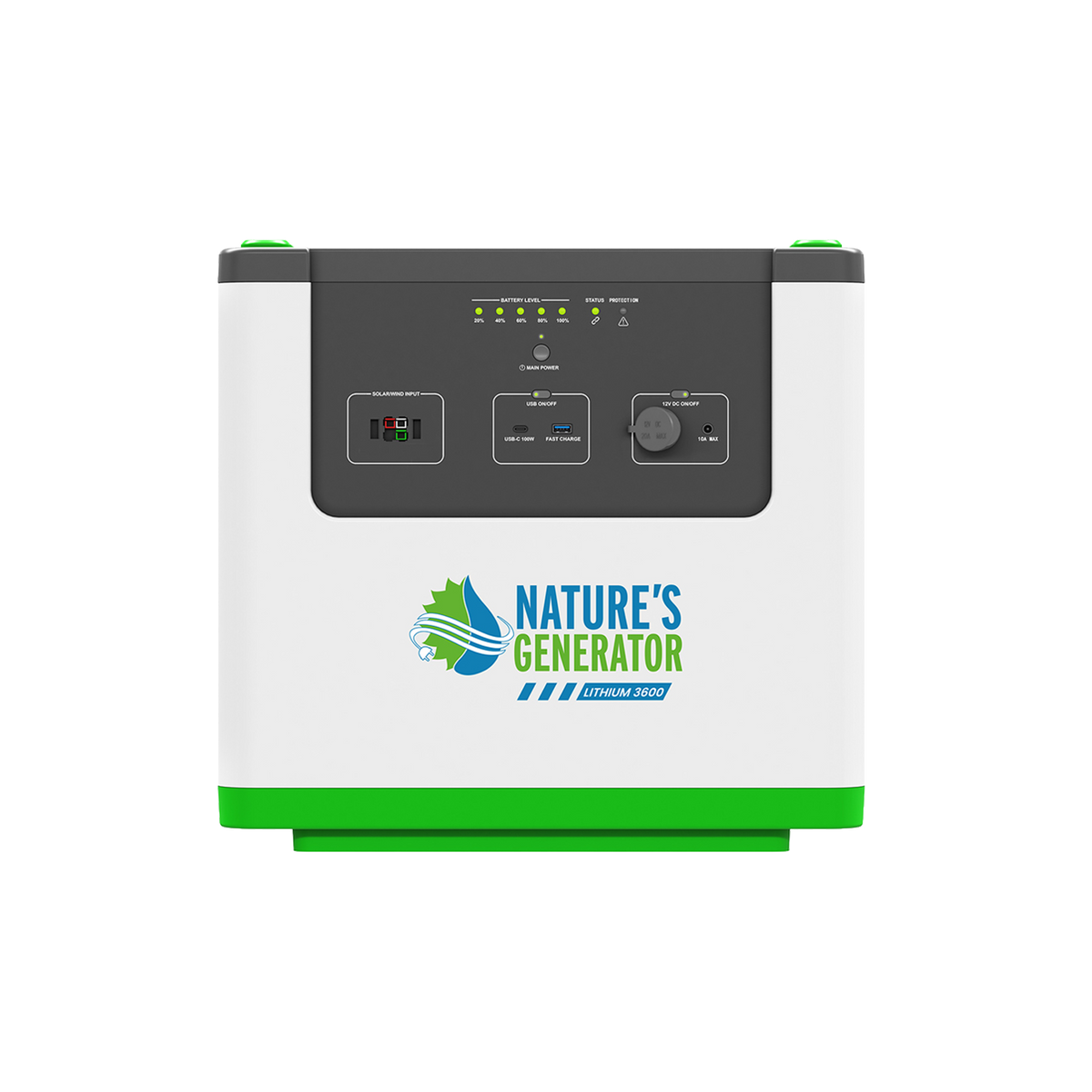

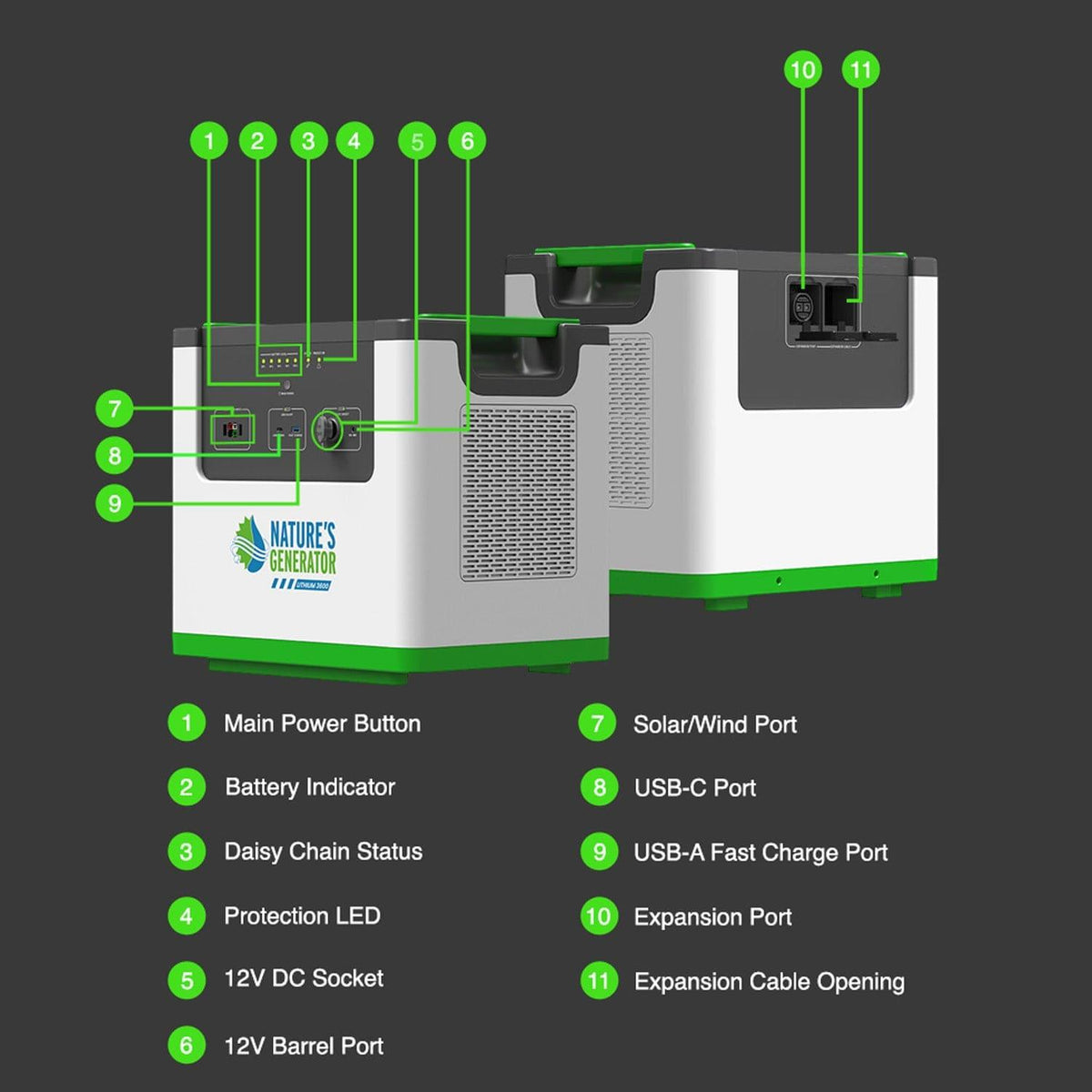

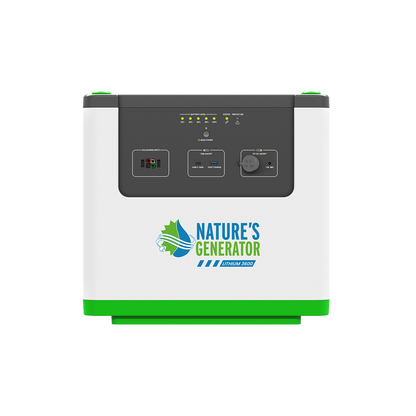

Control and Connection Features

• Battery Level Indicator: Five LED lights display battery-level information.
• Main Switch: Provides primary power control.
• Solar/Wind Input: Provides the renewable charging connection.

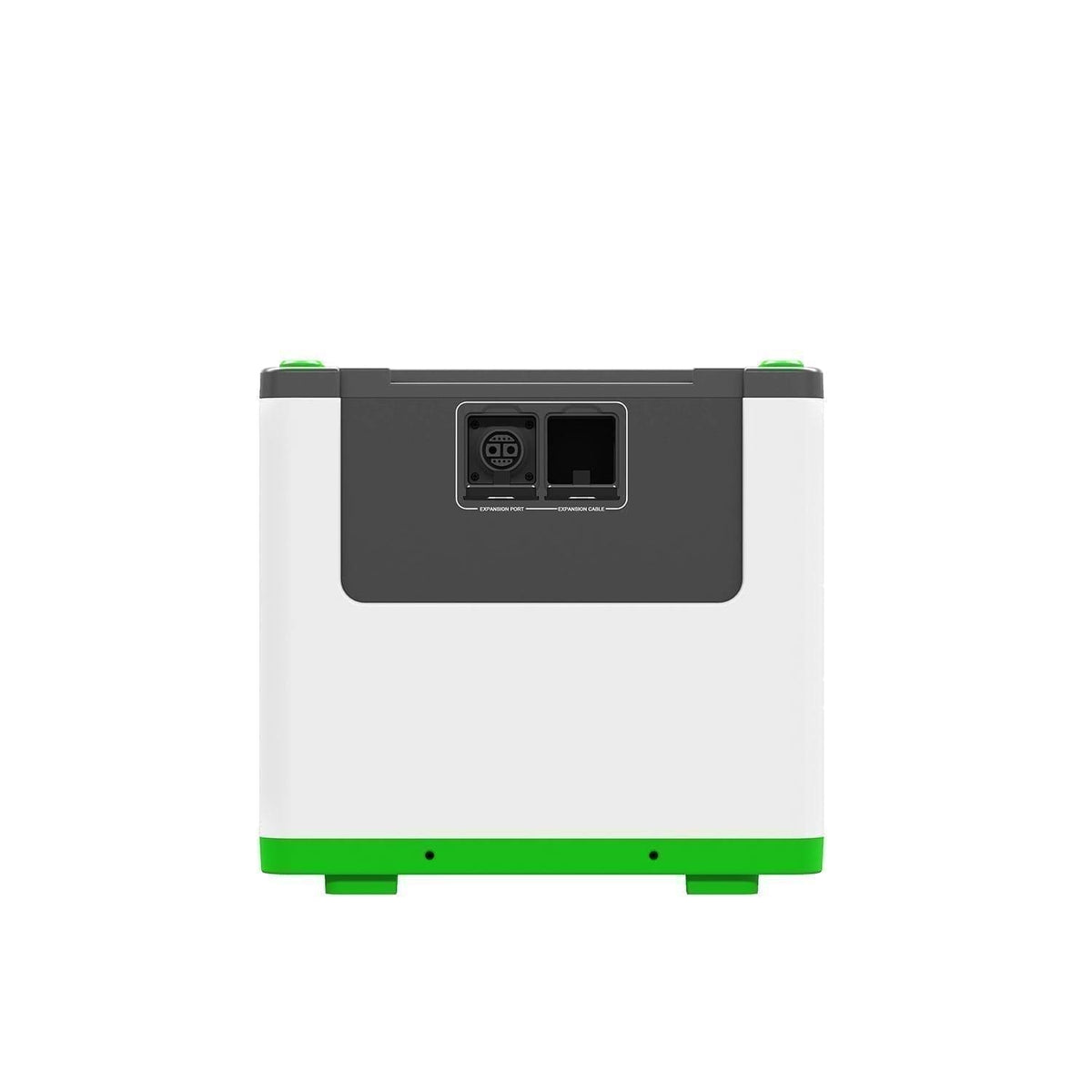

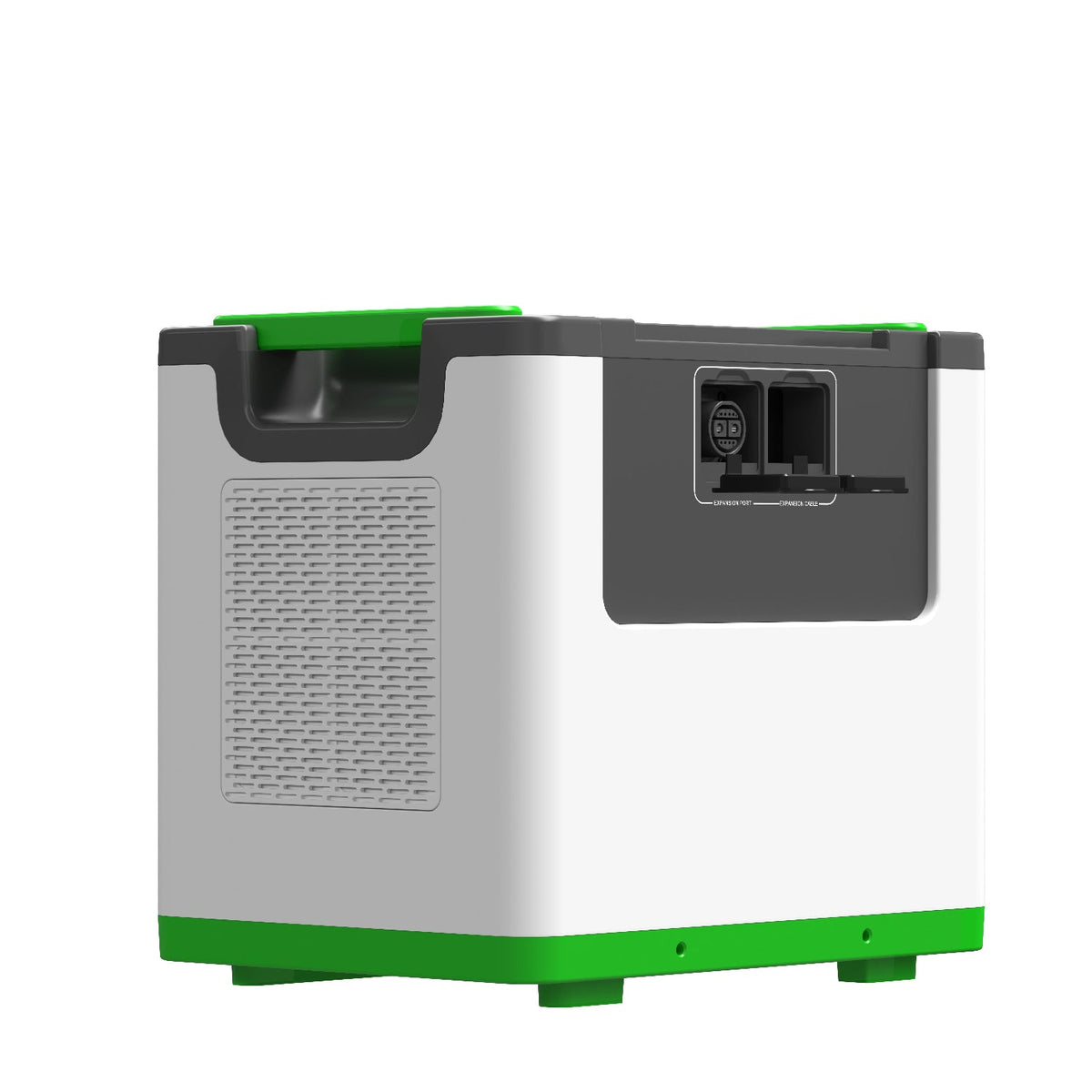

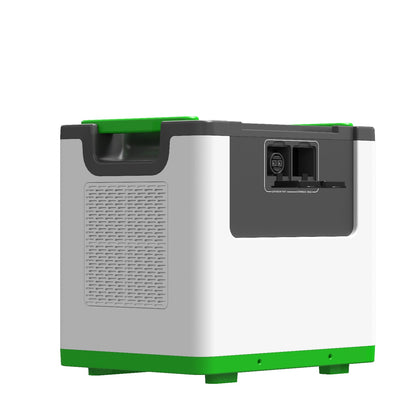

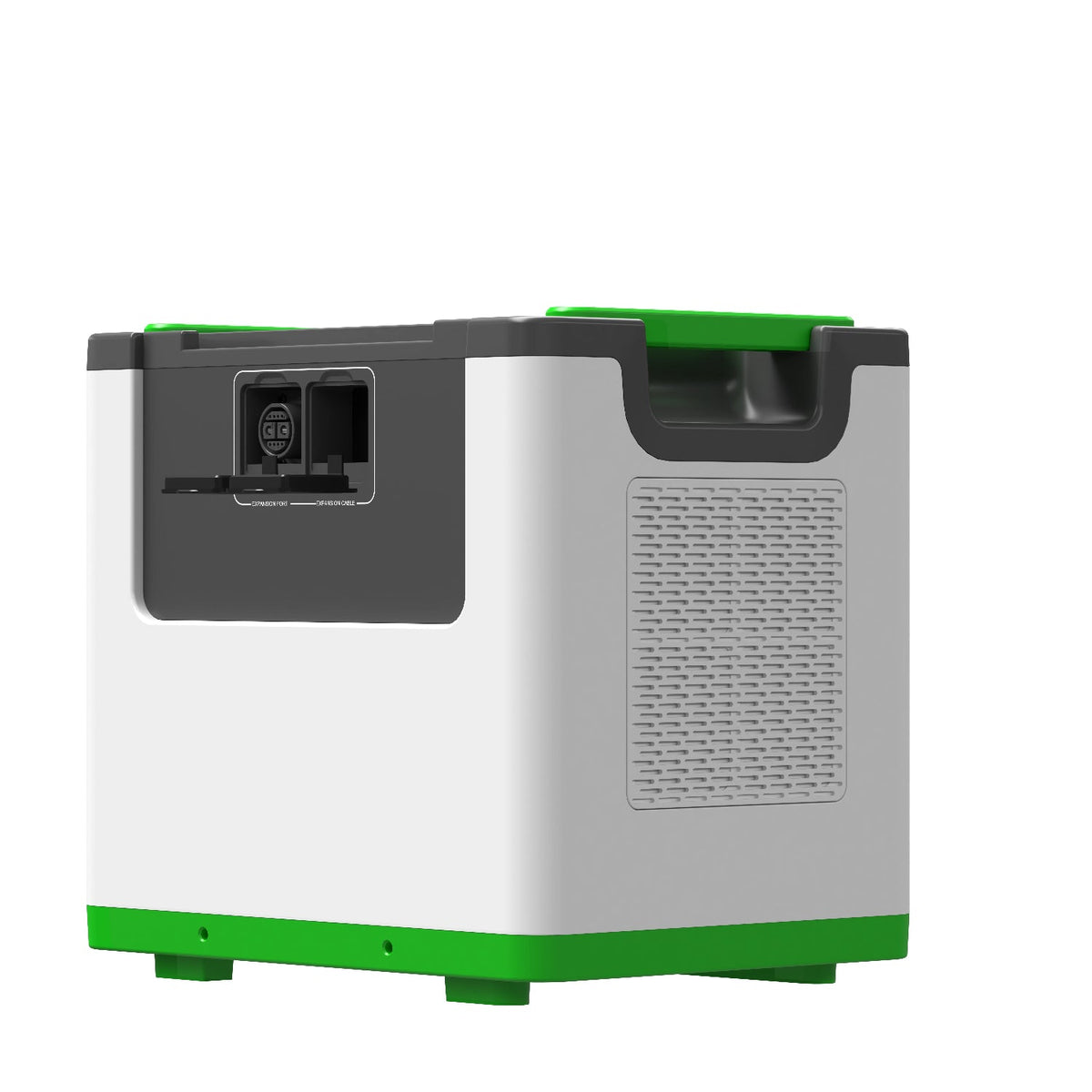

• Expansion Port: Used to connect the Power Pod to a compatible Lithium 3600 system.

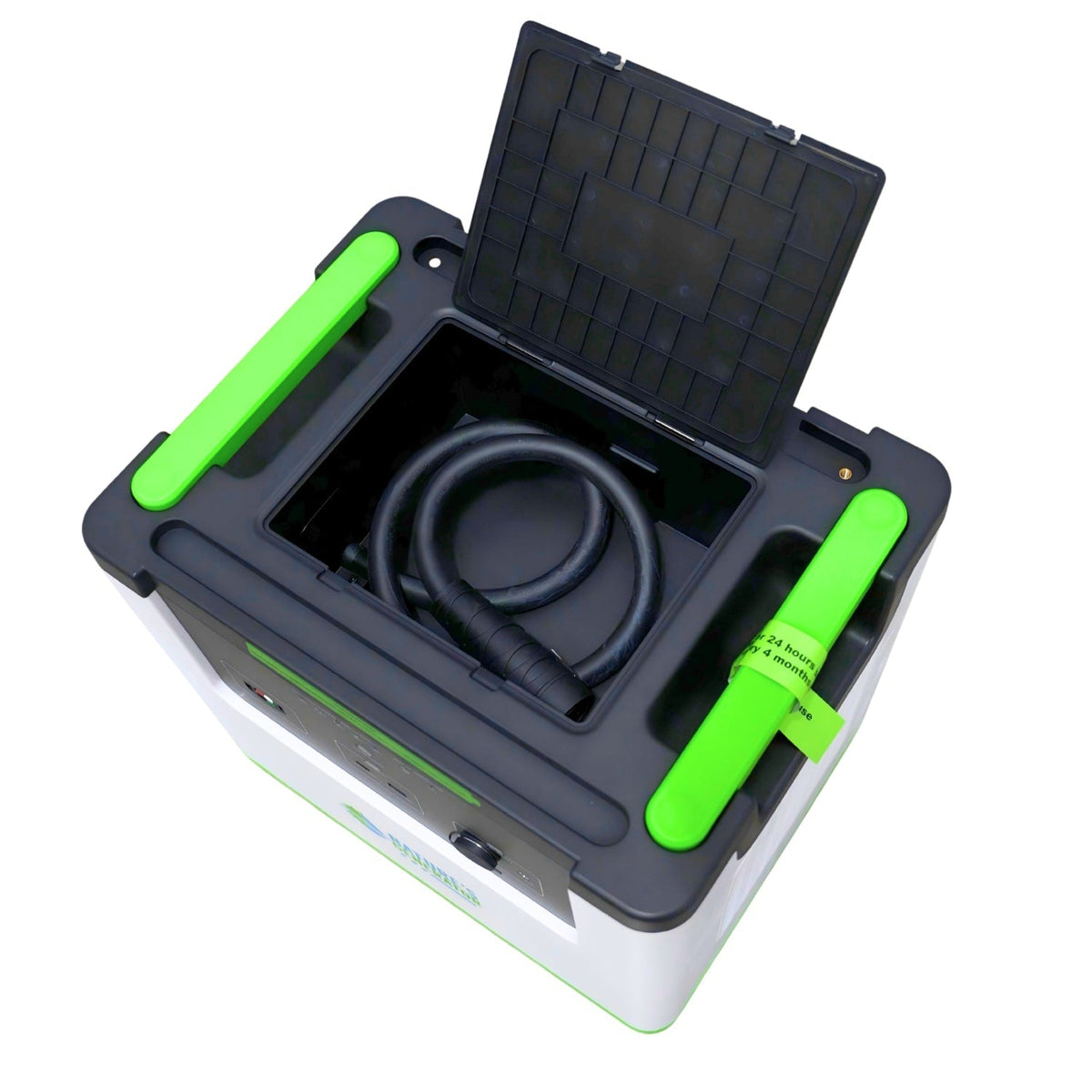

• Expansion Cable Opening: Provides access for compatible system expansion wiring.

Recommended Use

Suitable as an expansion battery for compatible Nature's Generator Lithium 3600 systems used for home backup, RV power, camping, off-grid energy storage, and other applications where additional battery capacity is required.

Installation Note

This Power Pod is designed as a Lithium 3600 expansion component rather than a standalone replacement battery. Use the designated expansion connection and follow the manufacturer's setup instructions. Verify battery connections, solar input limits, wind input limits, system configuration, and installation location before use.

Package Contents

• Power Pod: 1 × Nature's Generator Lithium 3600 Power Pod
• User Guide: Included

The Nature's Generator Lithium 3600 Power Pod adds 3,072Wh of LiFePO4 battery storage to a compatible Lithium 3600 system and supports up to 1,000W solar charging and 150W wind charging, with USB and 12V DC outputs for compatible expansion applications.
