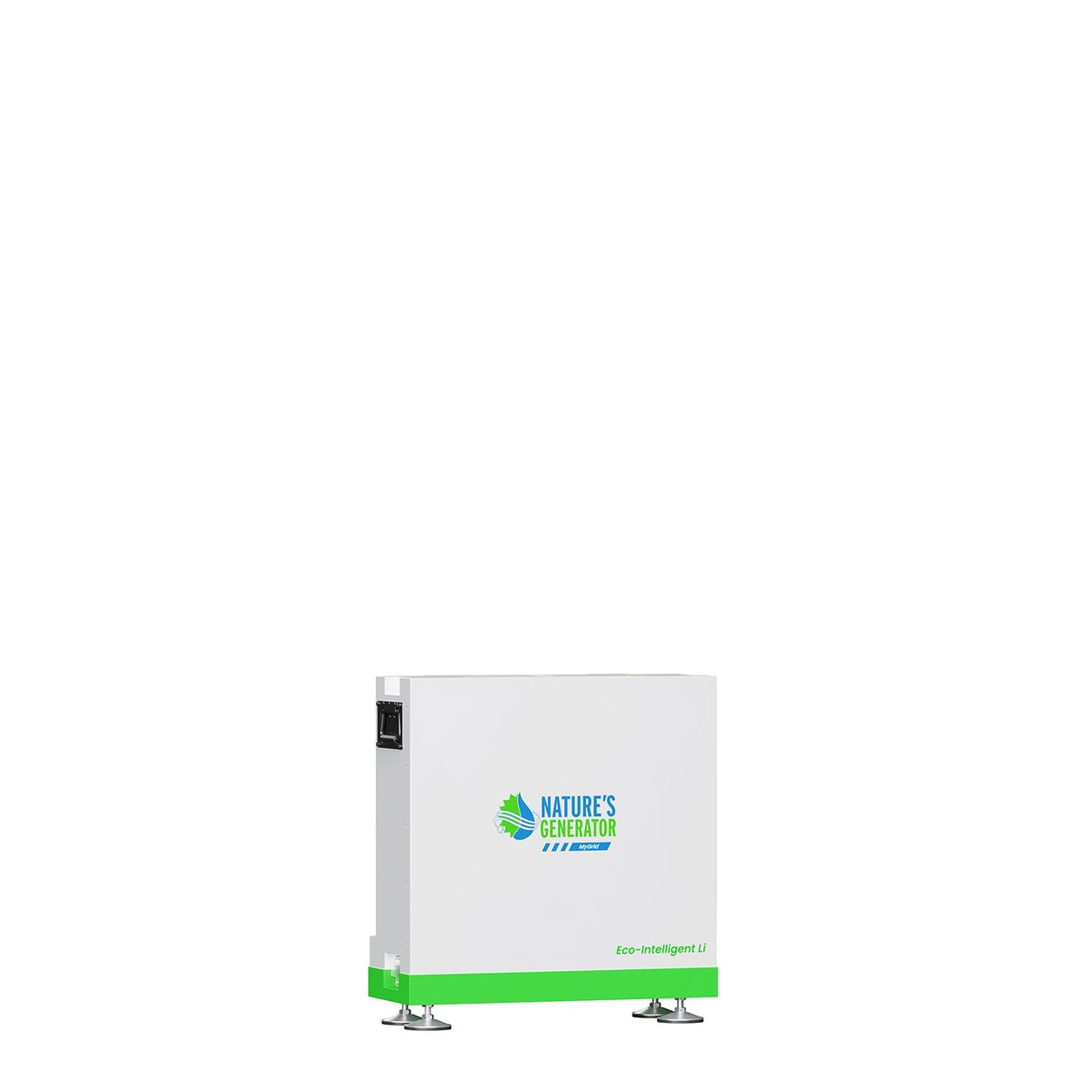

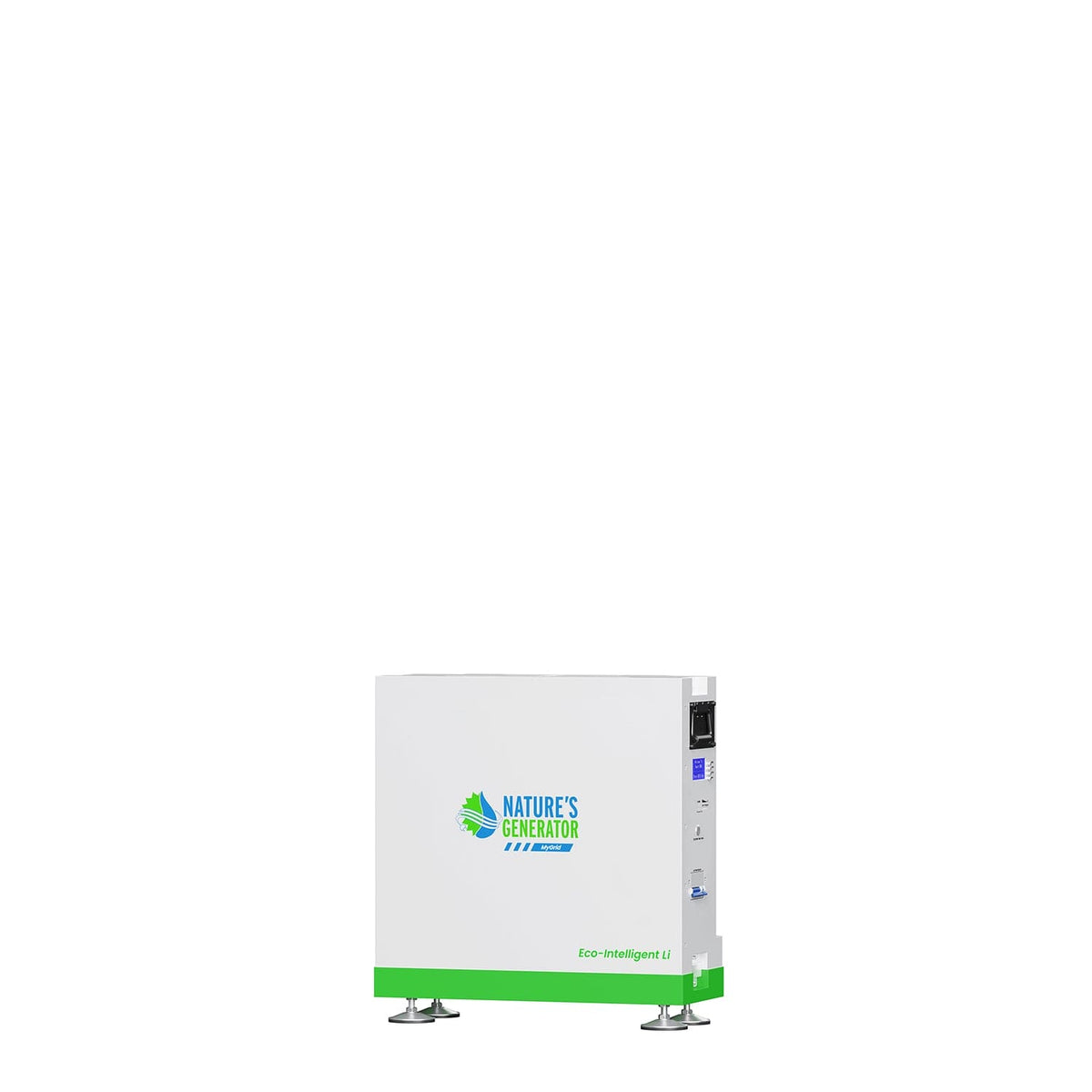

The Nature's Generator MyGrid 10K Solar Battery is a 51.2V 205Ah LiFePO4 expansion battery designed specifically for the MyGrid 10K whole-home generator. It provides 10,496Wh of stored energy, includes expansion cables for connecting additional batteries, and supports system expansion to approximately 73.7kWh of total storage. The battery also features an integrated Battery Management System for monitoring and battery protection.

Key Features

• 10.496kWh Battery Capacity: Provides 51.2V, 205Ah and 10,496Wh of lithium iron phosphate energy storage.
• MyGrid 10K Compatible: Designed to work with the Nature's Generator MyGrid 10K whole-home generator as an expansion battery.
• Expandable Storage: Supports adding up to six additional batteries to expand total system storage to approximately 73,742Wh.
• Expansion Cables Included: Includes a set of battery expansion cables for connecting additional MyGrid Solar Batteries.
• LiFePO4 Chemistry: Uses Lithium Iron Phosphate chemistry for the stated high-capacity energy-storage application.
• 6,000+ Cycle Life: Rated for more than 6,000 cycles according to the supplied product specifications.
• Integrated Battery Management System: Built-in BMS monitors, controls, and displays battery status and provides battery protection functions.
• Stackable Design: Batteries can be stacked up to three units in a single row according to the supplied product information.

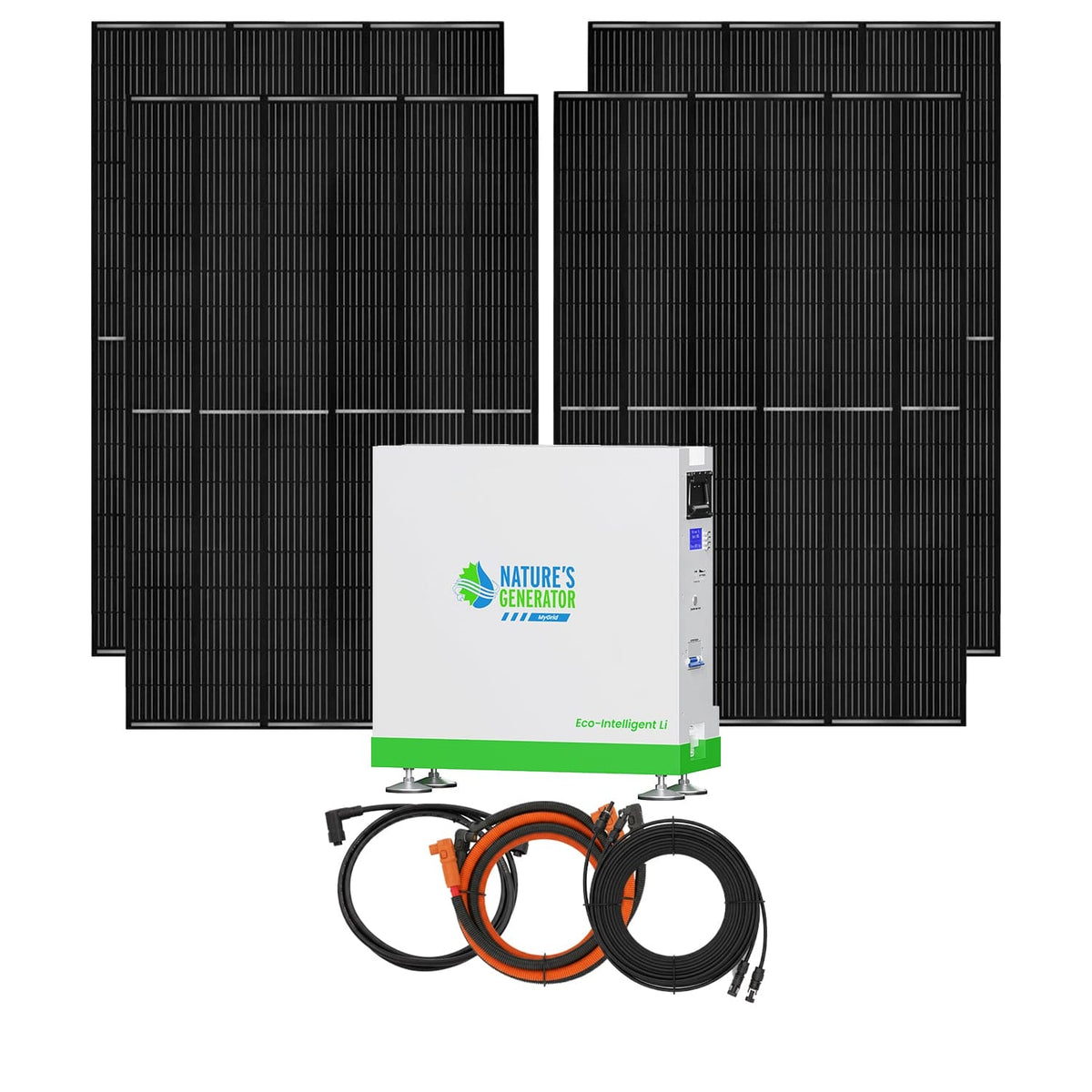

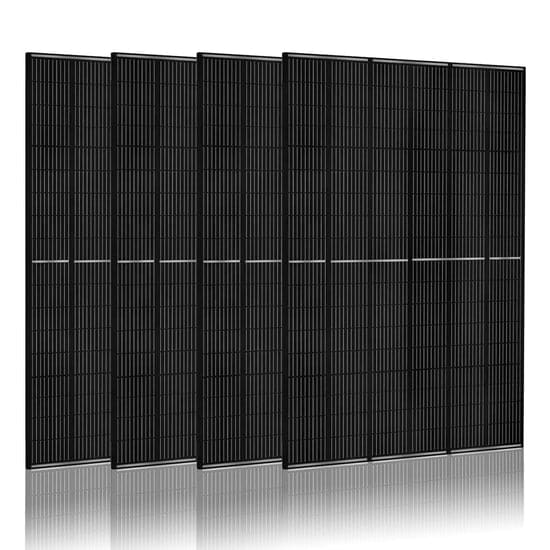

• Solar System Compatibility: Compatible with Nature's Generator 410W rigid and 400W folding solar panels for supported MyGrid 10K configurations.
• Plug-and-Play Expansion: Designed for straightforward connection to compatible MyGrid 10K systems using the included expansion cables.
• Diagnostic Connections: Includes battery communication, expansion communication, and diagnostic ports.
• Recharge Guidance: The supplied specifications recommend recharging the battery every six months during storage.

Specifications

• Brand: Nature's Generator
• Battery Type: Lithium Iron Phosphate / LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 205Ah
• Stored Energy: 10,496Wh / 10.496kWh
• Cycle Life: More than 6,000 cycles
• Self-Discharge / Storage: Recharge recommended every 6 months
• Expandable System Capacity: Up to approximately 73,742Wh with additional batteries according to the supplied product information
• Maximum Additional Batteries: Up to 6 additional batteries
• Battery Stacking: Up to 3 batteries in a single row
• Battery Dimensions: 21.8 × 8.5 × 23.4 inches / 555.4 × 216 × 596mm, excluding mounting bar
• Battery Weight: 213 lb / approximately 96.6kg
• Optimal Operating Temperature: 20°C to 30°C / 68°F to 86°F
• Battery Charging Temperature: 0°C to 45°C / 32°F to 113°F
• Battery Discharging Temperature: -10°C to 45°C / 14°F to 113°F
• Storage Temperature: -10°C to 45°C / 14°F to 113°F

Compatibility

The MyGrid 10K Solar Battery is designed specifically as an expansion battery for the Nature's Generator MyGrid 10K system. The supplied product information also identifies compatibility with 410W rigid and 400W folding solar panels within supported MyGrid 10K configurations.

System Expansion

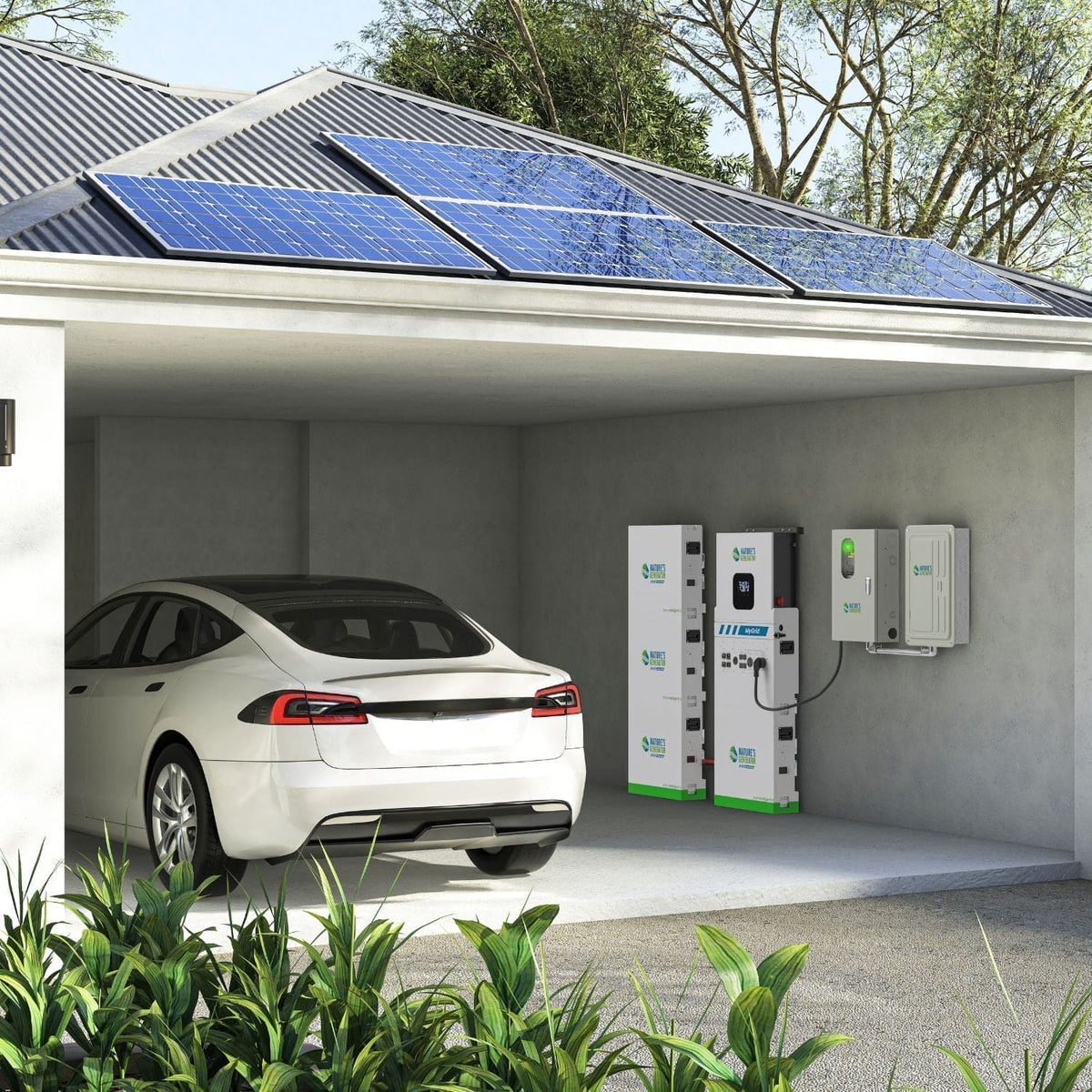

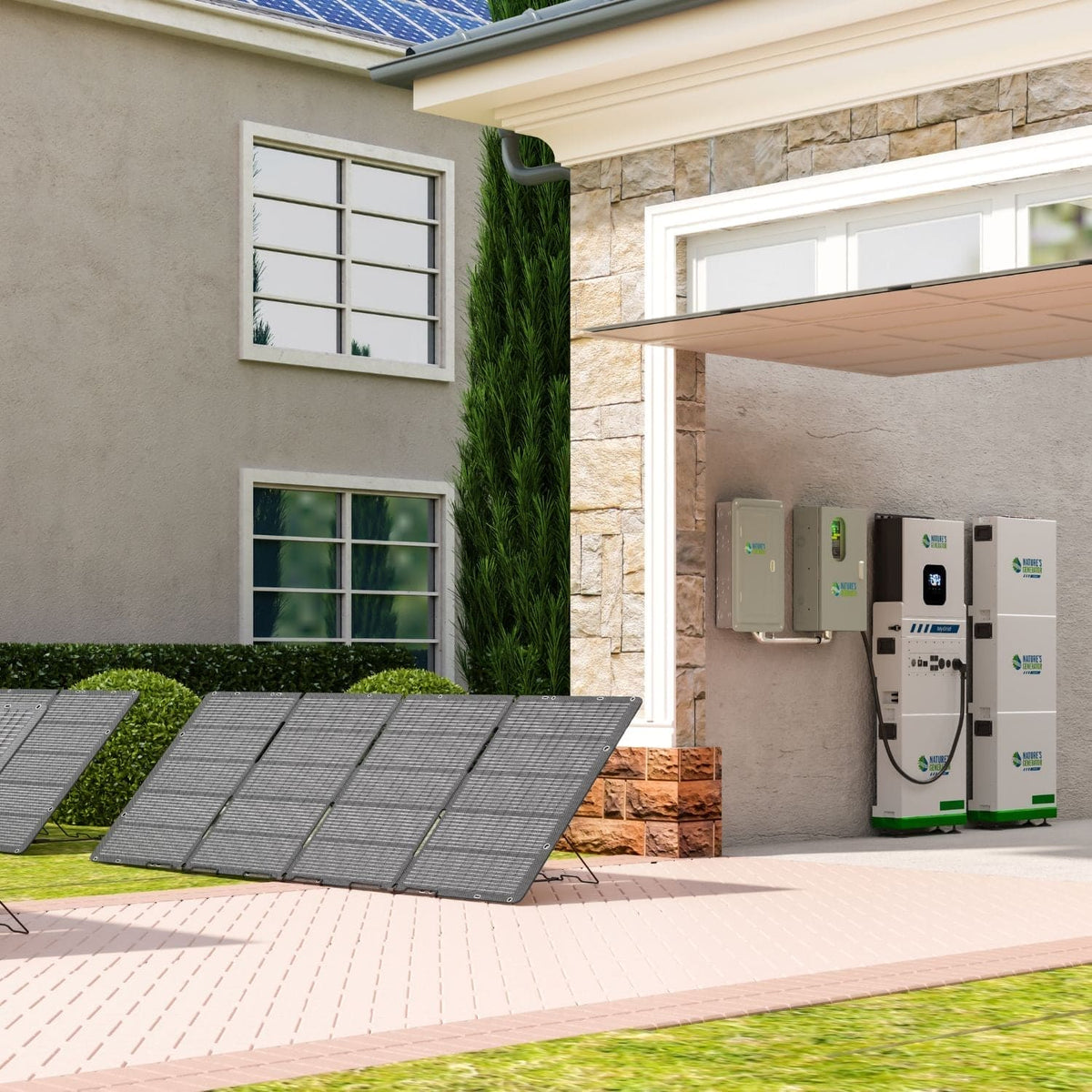

Add up to six additional MyGrid Solar Batteries to the MyGrid 10K system for expanded energy storage. Based on the supplied specifications, the expanded system can reach approximately 73.7kWh of total battery capacity. Batteries can be stacked up to three units in a single row to help organize installations in suitable garages, basements, utility rooms, and power-storage areas.

Battery Management

The integrated Battery Management System monitors, controls, and displays battery status while providing protection for the battery system. Communication and diagnostic ports are provided for system connection, battery expansion, and service functions.

Connection Ports

• Battery Terminals: Main battery connection points.
• Battery Communication Port: Used for system communication.
• Battery Expansion Communication Port: Supports communication between connected expansion batteries.
• Battery Diagnostic Ports: Two diagnostic connections are provided.

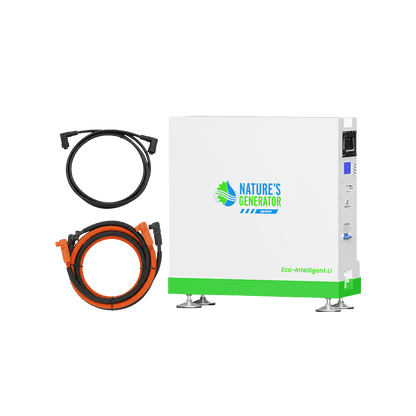

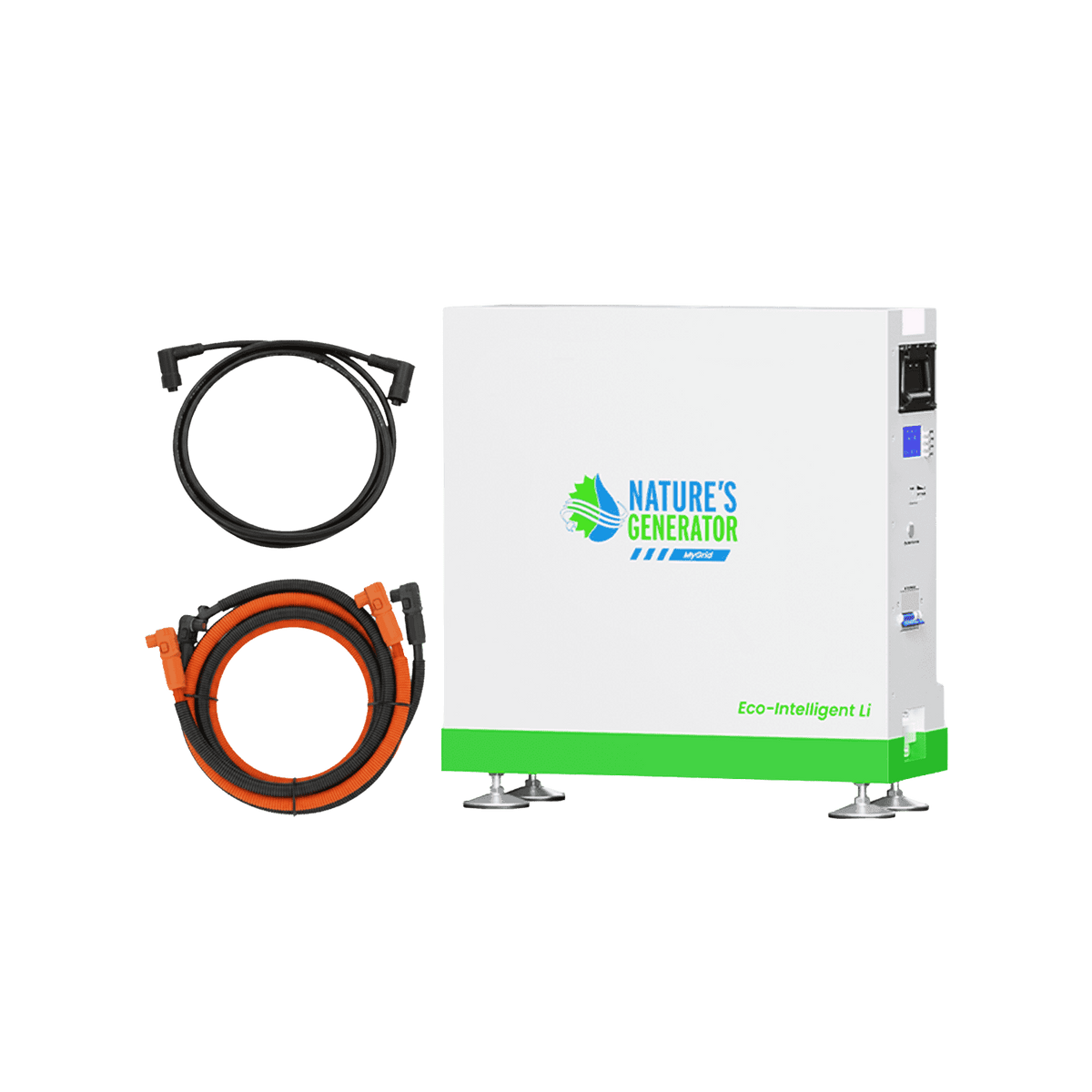

Package Contents

• MyGrid Solar Battery: 1 × Nature's Generator MyGrid 10K Solar Battery
• Expansion Cables: 1 set
• User Guide: Included

Solar Charging Compatibility

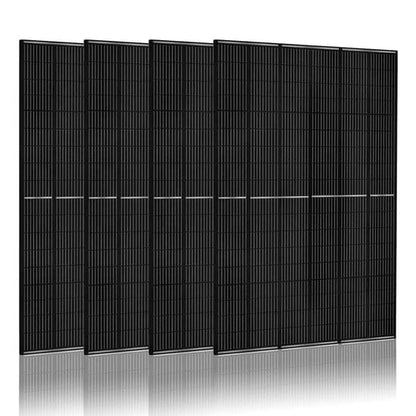

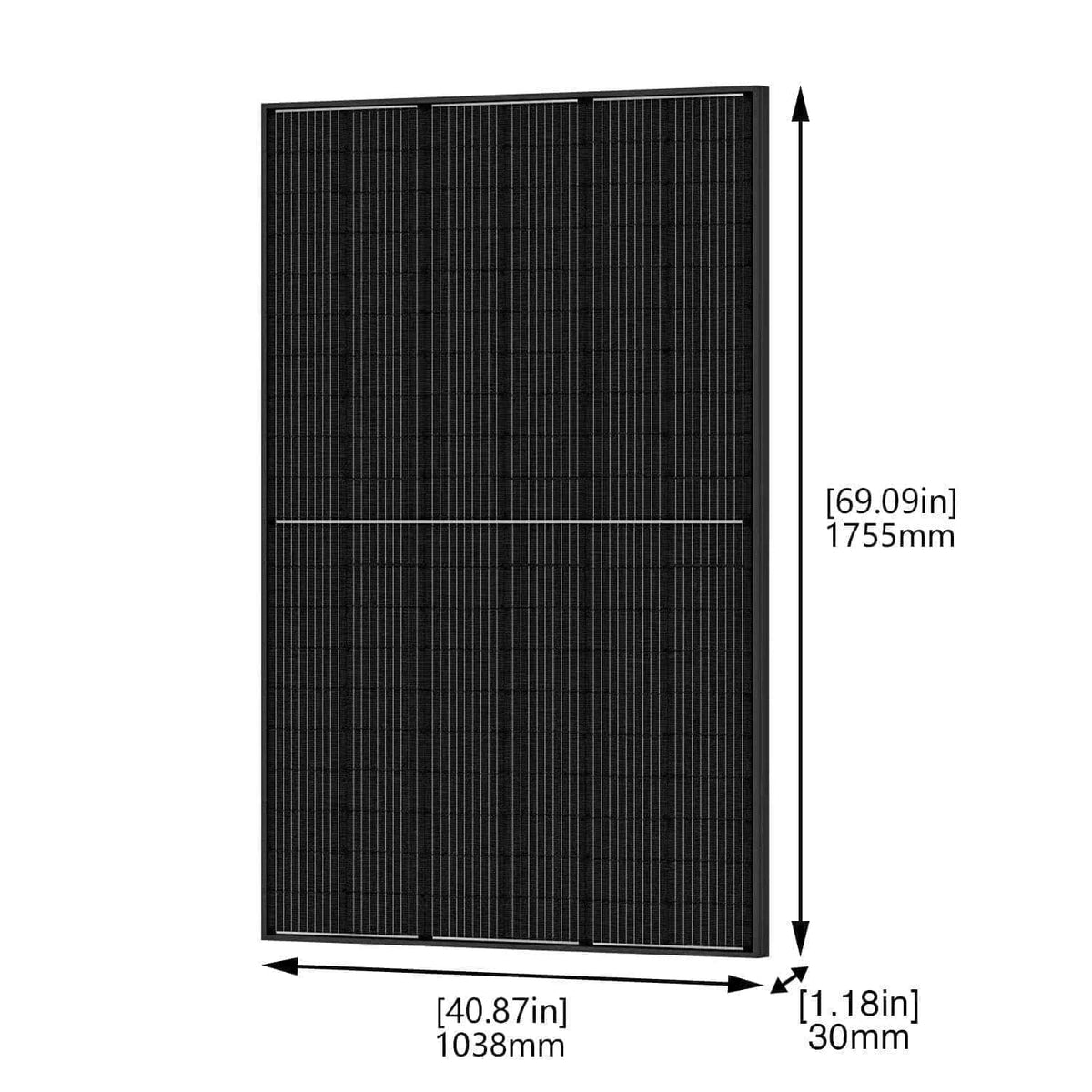

The MyGrid 10K system is specified for use with compatible Nature's Generator 410W rigid and 400W folding solar panels. Solar input configuration must remain within the MyGrid 10K's published voltage and current limits.

Installation Note

This battery is designed as an expansion component for the MyGrid 10K system rather than as a standalone general-purpose battery. Use the supplied expansion cables and follow the manufacturer's connection and stacking instructions when adding batteries. Verify the system configuration, mounting surface, cable connections, and operating environment before installation.

The Nature's Generator MyGrid 10K Expansion Solar Battery provides 10.496kWh of LiFePO4 storage in a 51.2V 205Ah battery and expands a compatible MyGrid 10K system toward approximately 73.7kWh of total storage with additional batteries.
