Lion Energy Savanna IV 2000W Pure Sine Wave Inverter

Lion Energy Savanna IV 2000W Pure Sine Wave Inverter

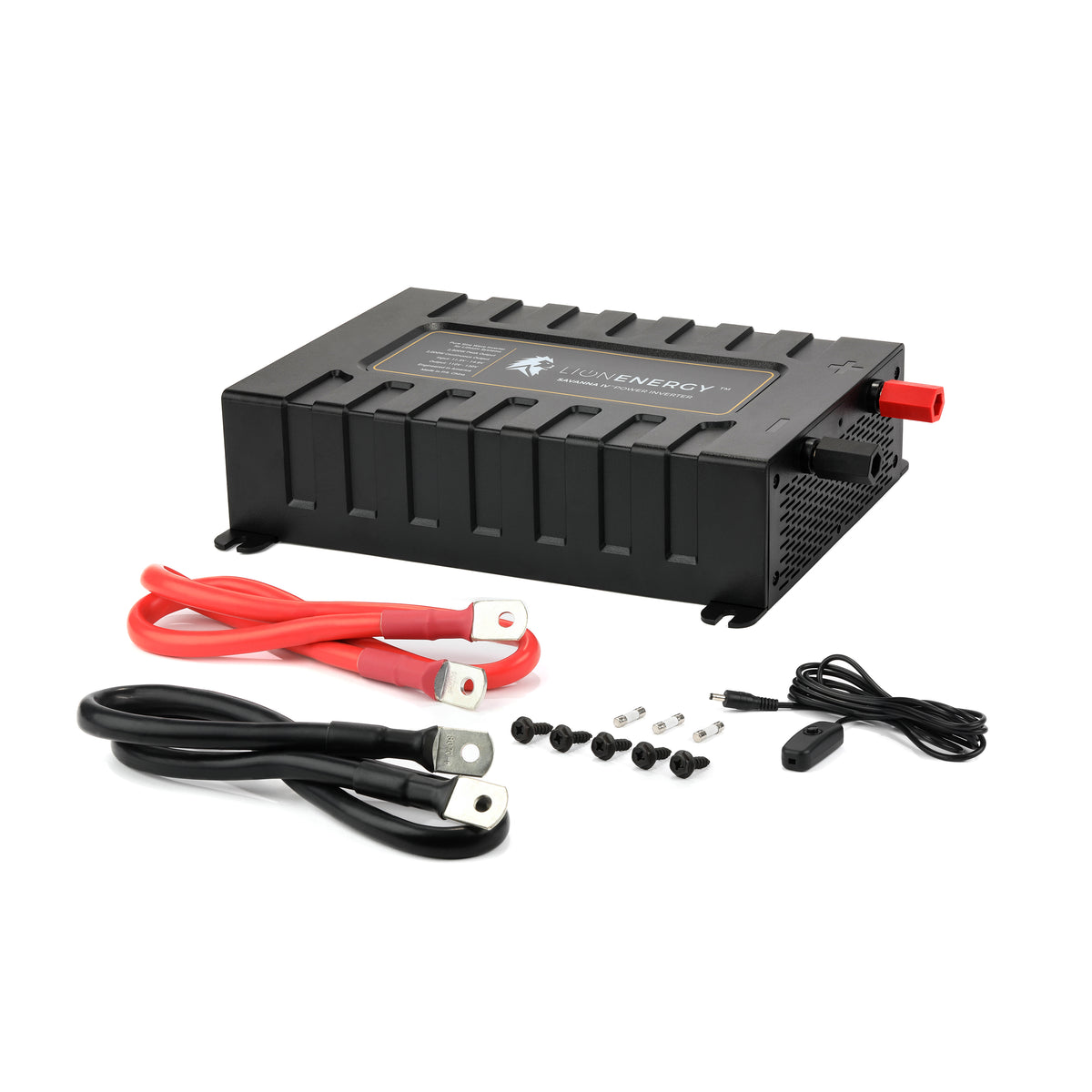

The Lion Energy Savanna IV 2000W Pure Sine Wave Inverter converts 12V DC battery power into 110–130V AC power for compatible household electronics, tools, appliances, and mobile equipment. It provides 2,000W of continuous output and up to 2,500W of peak output, making it suitable for RVs, boats, camper vans, trailers, job sites, and other off-grid applications.

Key Features

• 2,000W Continuous Output: Provides up to 2,000W of continuous AC power for compatible appliances and equipment.
• 2,500W Peak Output: Supports higher short-duration power demands during startup and surge conditions.
• Pure Sine Wave: Produces a pure sine wave AC output designed for compatibility with sensitive electronic equipment.
• 12V Battery Compatibility: Designed for 12V lithium battery systems with a recommended battery size of 105Ah or larger.
• 11.5–14.8V DC Input: Accepts the specified DC input range from a compatible 12V battery system.
• 110–130V AC Output: Converts stored DC battery energy into standard AC power for compatible devices.
• 90% Nominal Efficiency: Provides efficient DC-to-AC power conversion under rated operating conditions.
• Compact Design: Measures 13.375 × 7.75 × 3.375 inches for installation in space-constrained mobile and off-grid systems.
• Lightweight Construction: Weighs approximately 8.5 lb for easier installation in RVs, boats, vans, and mobile power setups.

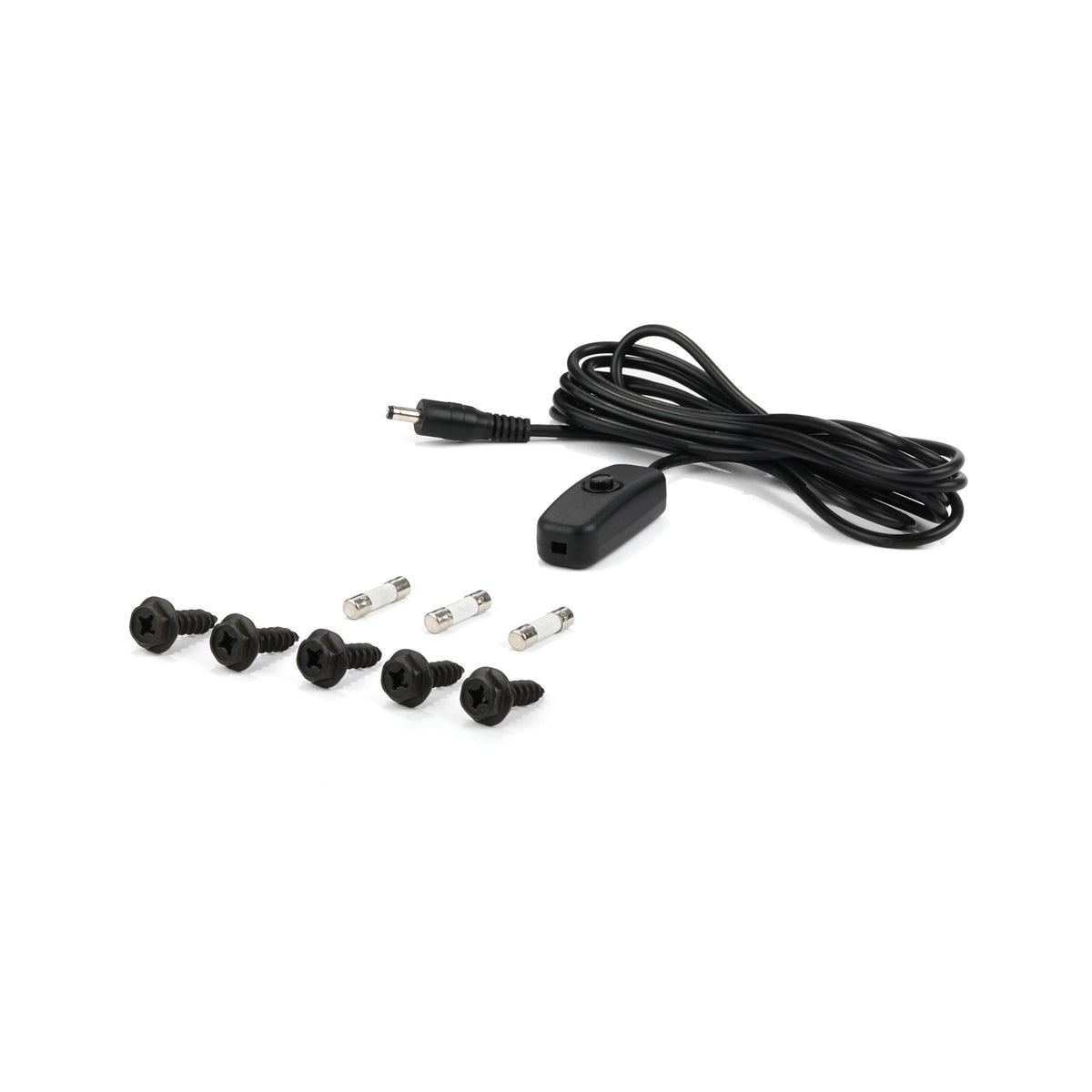

• Remote Switch Support: The supplied quick-start guide shows connection and operation with a wired remote power switch. :contentReference[oaicite:0]{index=0}
• Built for Mobile Applications: Suitable for compatible RV, marine, camper van, trailer, job-site, and emergency backup power systems.

Specifications

• Brand: Lion Energy
• Product: Savanna IV 2000W Power Inverter
• Inverter Type: Pure sine wave inverter for lithium systems
• Continuous Output: 2,000W
• Peak Output: 2,500W
• Input Voltage: 11.5–14.8V DC
• Output Voltage: 110–130V AC
• Nominal Efficiency: 90%
• Recommended Battery: Lion Energy UT 1300 105Ah lithium battery or larger
• System Voltage: 12V lithium battery systems
• Waveform: Pure Sine Wave
• Weight: 8.5 lb
• Dimensions: 13.375 × 7.75 × 3.375 inches

Suitable Applications

The Savanna IV is designed for compatible 12V lithium battery systems used in off-grid and mobile environments. Typical applications include RVs, boats, camper vans, trailers, job sites, emergency backup systems, and other setups requiring 120V-class AC power from a 12V battery.

Battery Compatibility

The supplied product information recommends using a Lion Energy UT 1300 105Ah lithium battery or larger with this inverter. The inverter is intended for 12V lithium battery systems, so verify battery voltage, capacity, cable sizing, terminal connections, and the total load before installation.

Installation & Operation

The Savanna IV uses direct battery connections to convert stored DC power into AC electricity. The Lion Energy Quick Start Guide illustrates the connection sequence between the inverter, battery, and wired remote power switch on pages 2–3. :contentReference[oaicite:1]{index=1}

The specifications shown on page 4 of the supplied Quick Start Guide confirm a 2,000W continuous output, 2,500W peak output, 11.5–14.8V input, 110–130V output, 90% nominal efficiency, 13.375 × 7.75 × 3.375-inch dimensions, and an 8.5 lb weight. :contentReference[oaicite:2]{index=2}

Important Usage Note

Actual AC output capability depends on the connected battery, wiring, battery state of charge, inverter load, and installation conditions. Do not exceed the inverter's rated continuous or peak output limits. Use appropriately sized battery cables, secure connections, and suitable overcurrent protection for the installation.
