Lion Energy 100W 24V Lightweight Monocrystalline Solar Panel

Lion Energy 100W 24V Lightweight Monocrystalline Solar Panel

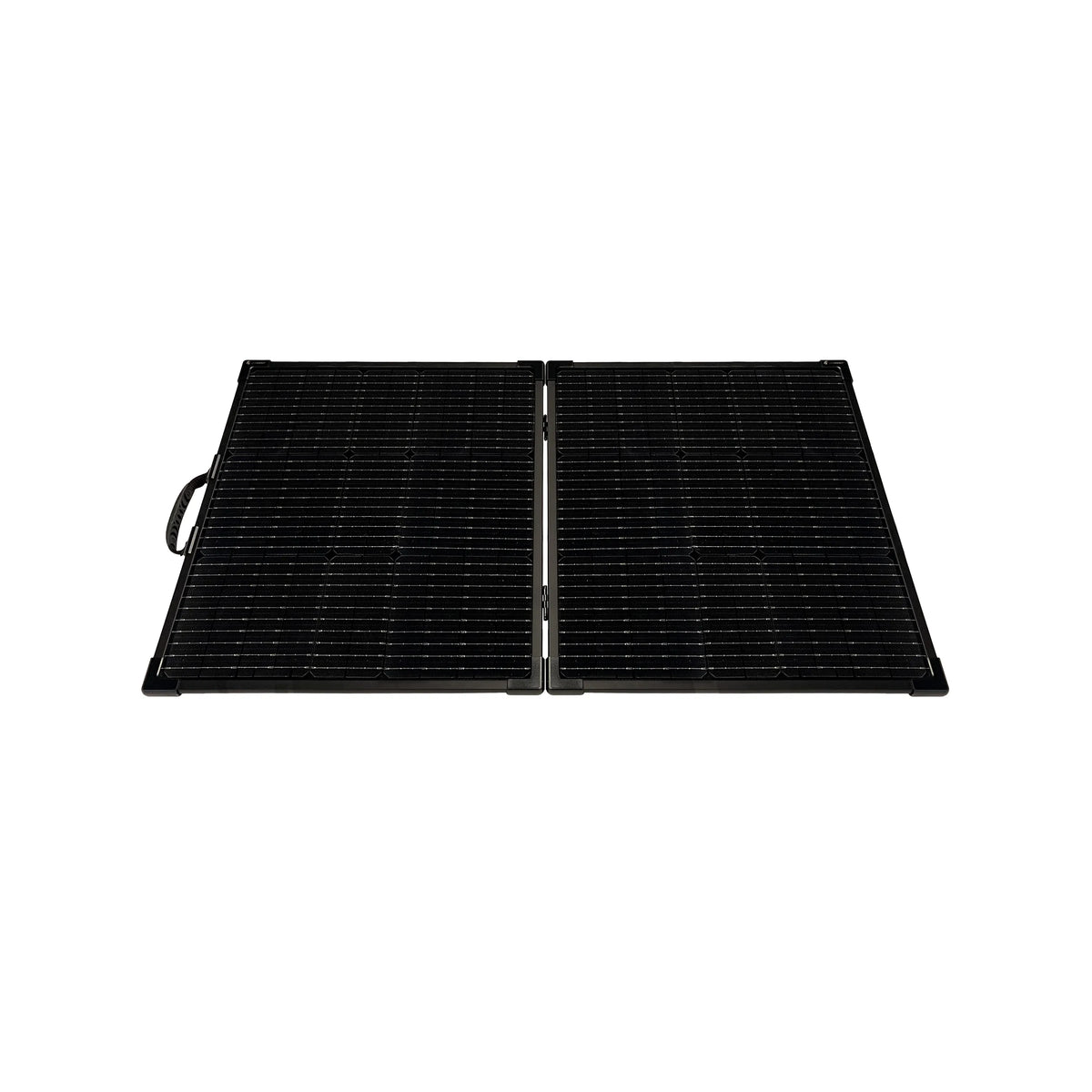

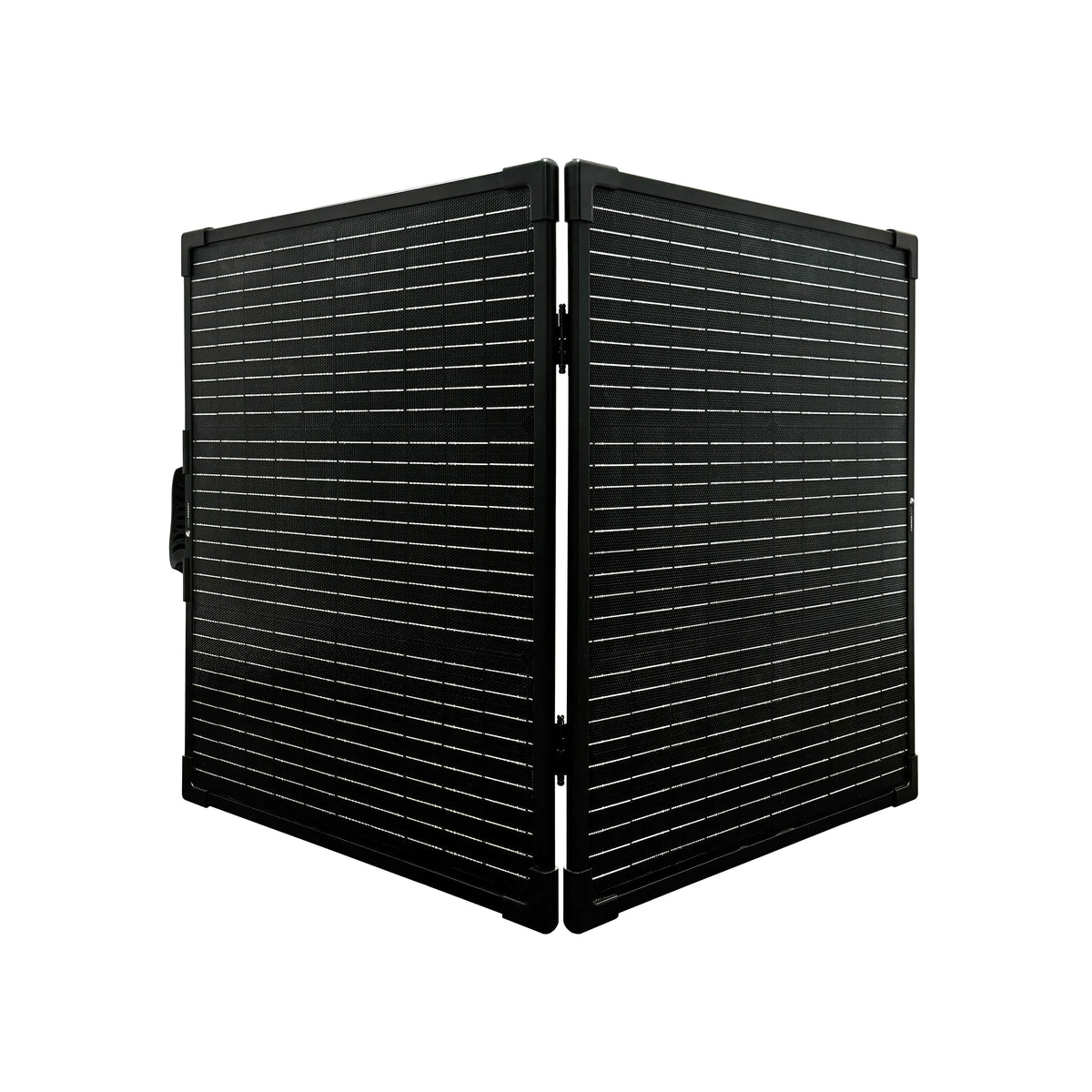

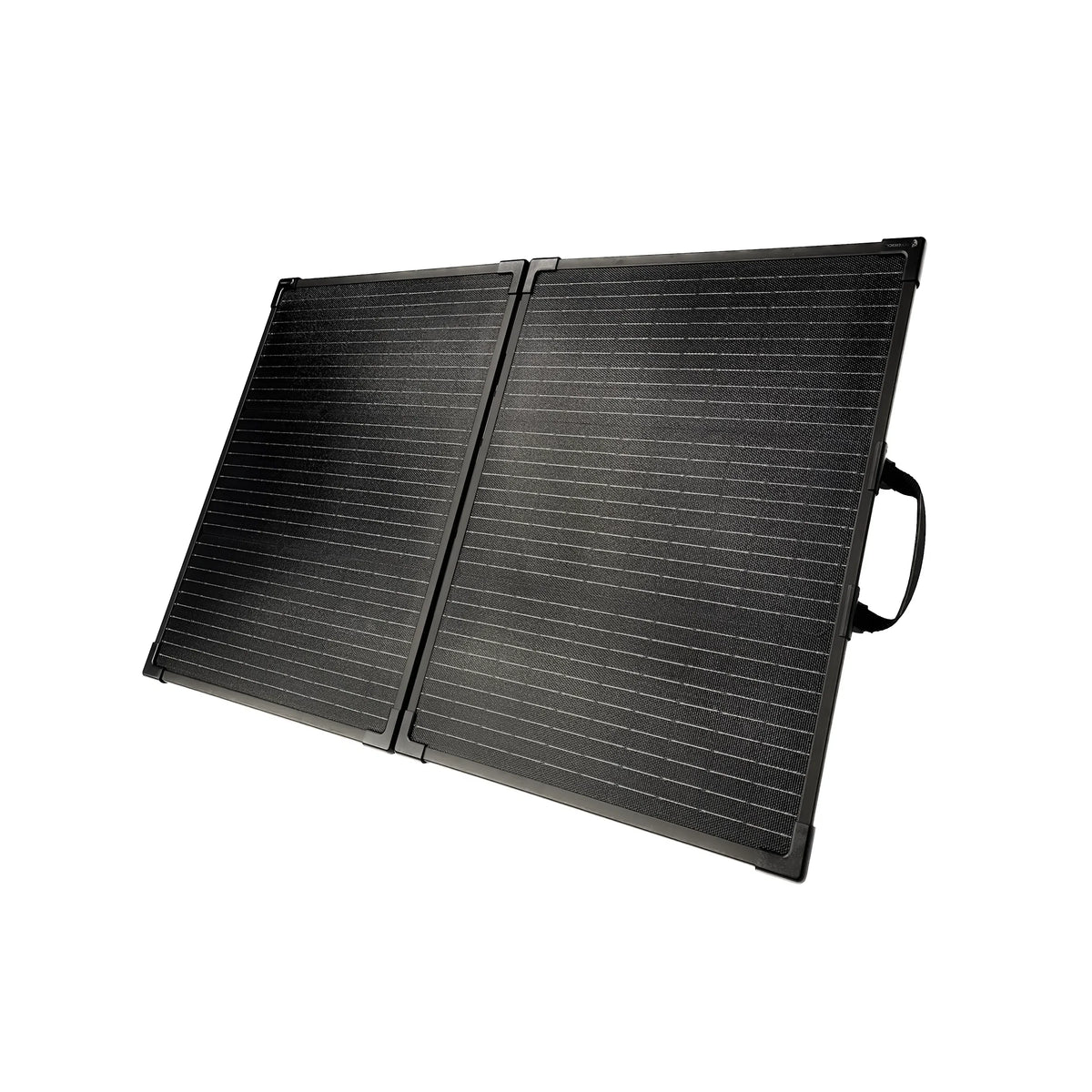

The Lion Energy 100W 24V LW Solar Panel is a lightweight, folding monocrystalline solar panel designed for compatible 24V power systems, including the Lion Safari ME and other supported devices. It provides 100W of rated solar power, features an anti-corrosive double-walled aluminum frame with tempered glass, built-in 6ft solar cables, foldable tilt legs, carrying handles, and a neoprene case for transport and storage.

Key Features

• 100W Solar Output: Provides 100W of rated solar power for compatible 24V charging applications.
• 24V Solar Panel: Designed specifically for compatible 24V systems and is not compatible with 12V systems.
• Monocrystalline Cells: Uses high-efficiency monocrystalline solar cells for portable solar energy generation.
• Lightweight Folding Design: Weighs 8.5 lb and folds for easier transport and storage.
• Anti-Corrosive Aluminum Frame: Uses a double-walled aluminum frame with tempered glass for outdoor solar applications.

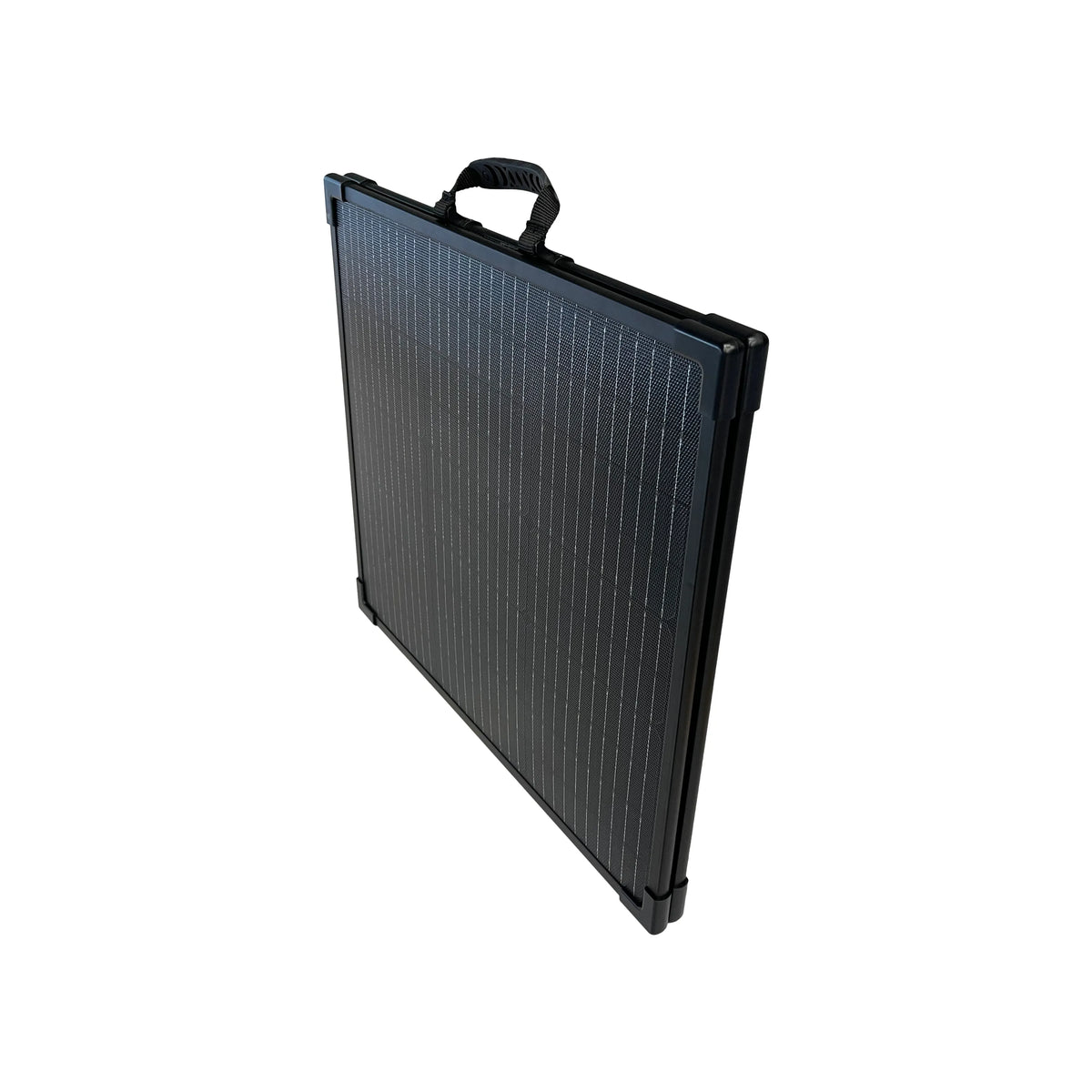

• Built-In Carry Handle: Folding construction includes a handle for easier transportation.

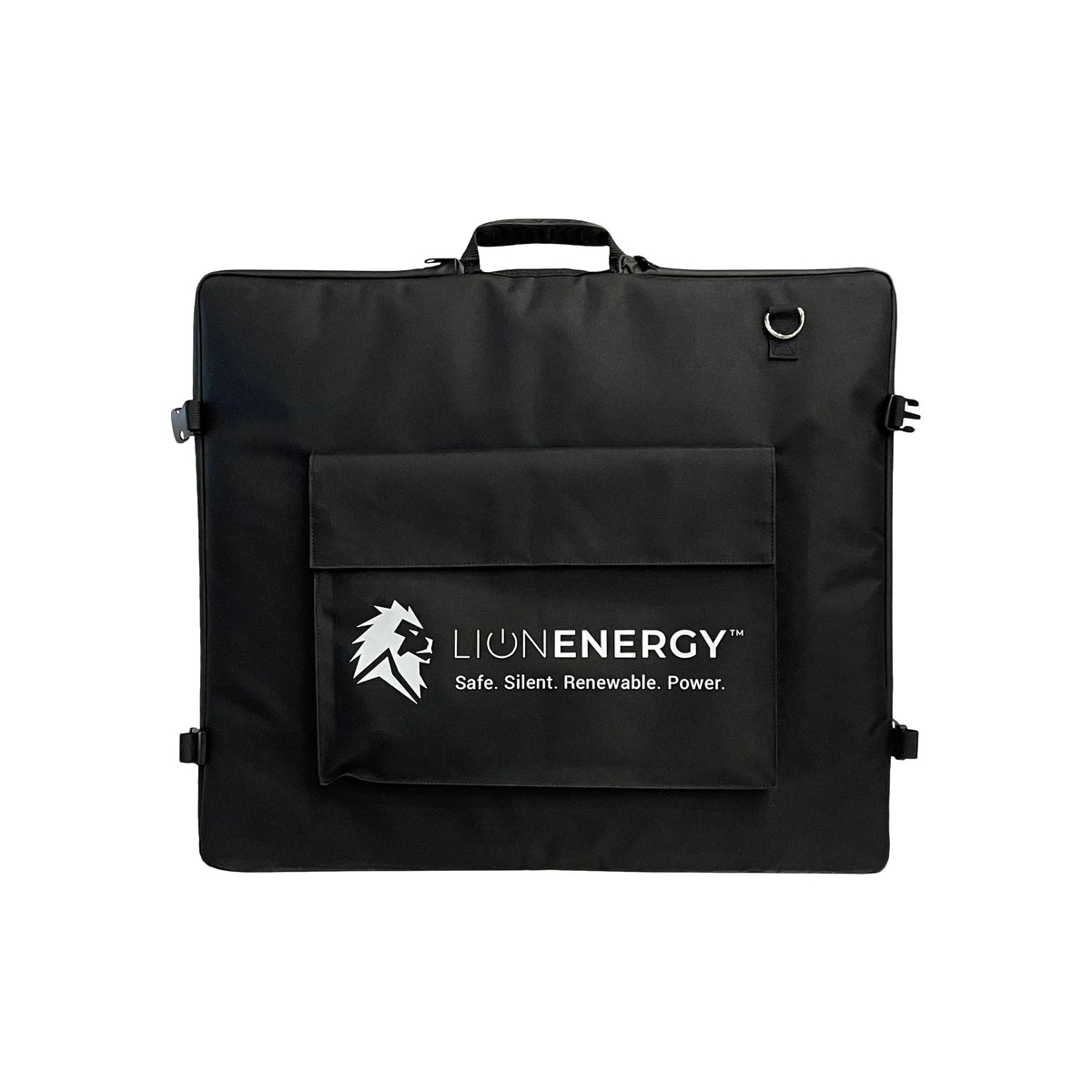

• Neoprene Case: Includes a protective neoprene case for storage and transport.

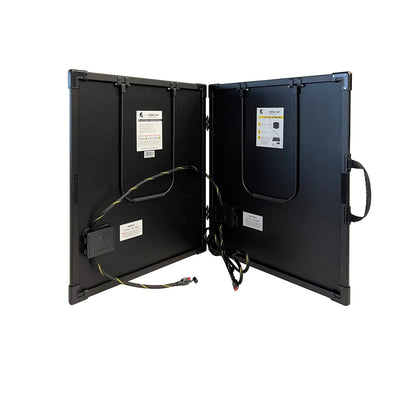

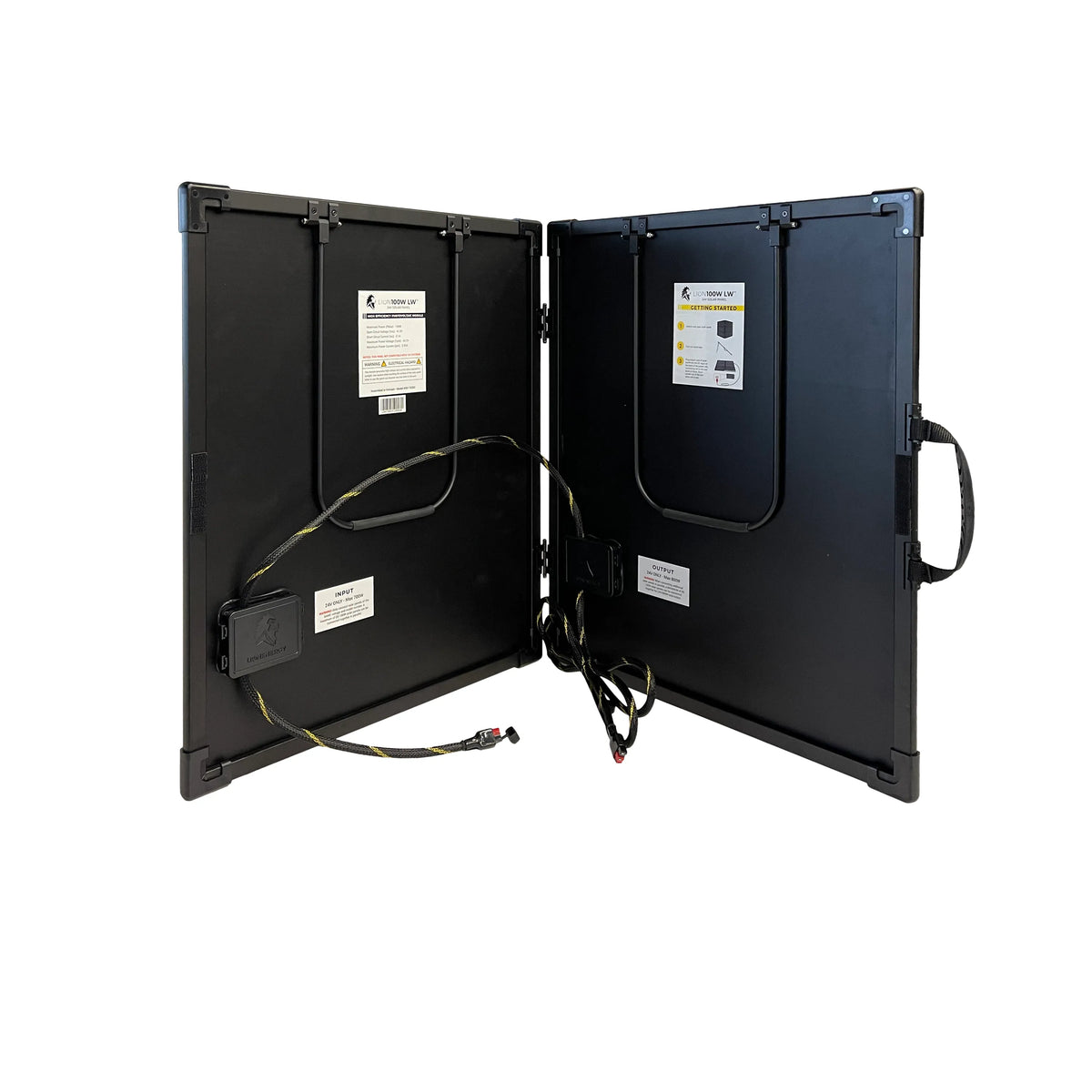

• Built-In 6ft Cables: Includes integrated 6ft solar cables for convenient connection to compatible equipment.

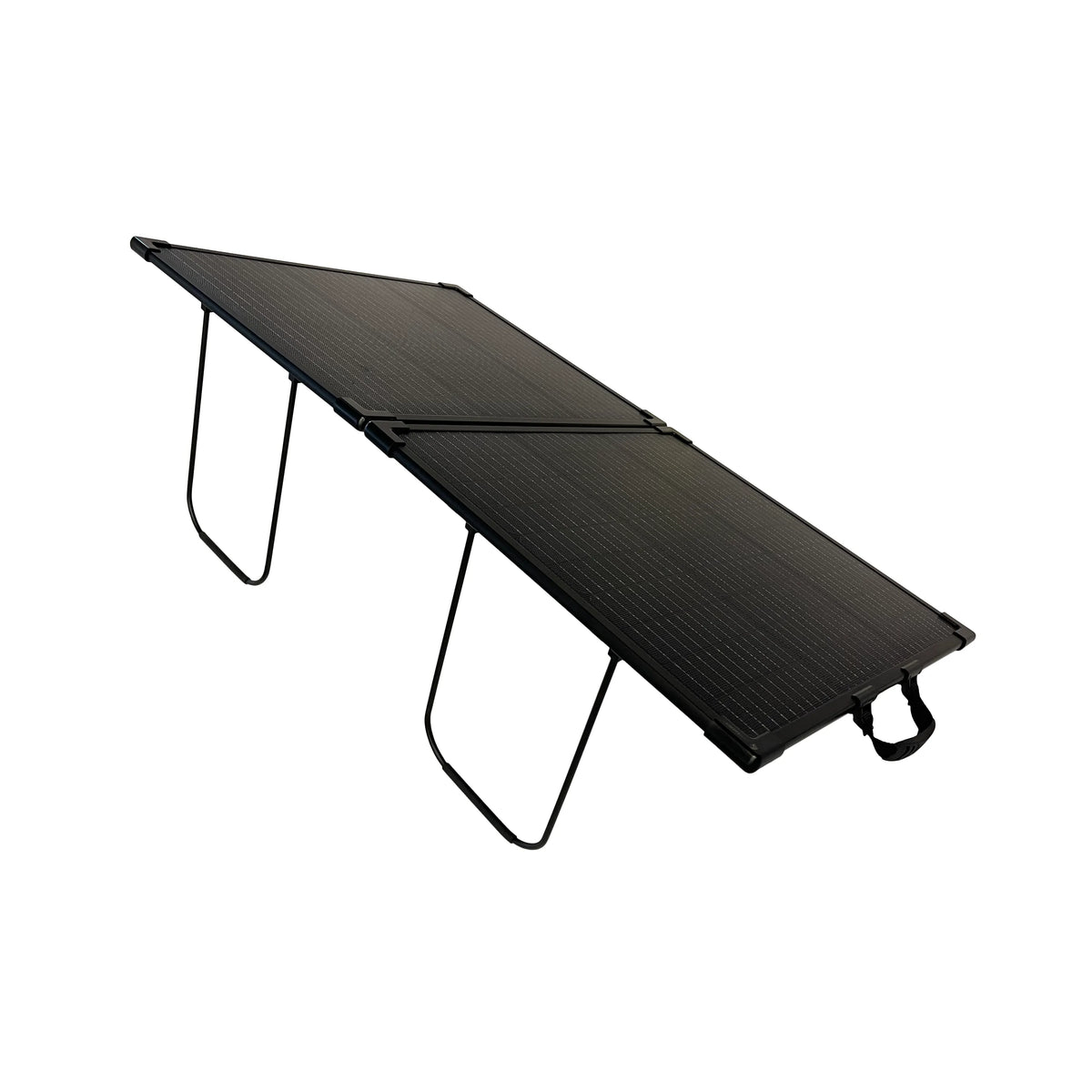

• Adjustable Tilt Legs: Foldable legs allow ground positioning and angle adjustment toward available sunlight.
• Expandable to Six Panels: Supports connecting up to six same-voltage, same-model panels in parallel according to the supplied product information.
• 600W Maximum Combined Array: Six 100W panels can provide up to 600W of combined rated solar capacity when the connected system supports the configuration.
• 20-Year Stated Lifespan: The supplied specifications list a rated lifespan of 20 years.

Specifications

• Brand: Lion Energy
• Panel Type: Folding monocrystalline solar panel
• Rated Power: 100W
• Rated Voltage: 24V
• Rated Current: 2.78A
• Short-Circuit Current (Isc): 3.13A
• Open-Circuit Voltage (Voc): 43.2V
• Maximum Power Point: 2.85A at 35V
• Cell Type: High-efficiency monocrystalline
• Frame: Anti-corrosive double-walled aluminum
• Front Glass: Tempered glass
• Built-In Solar Cables: 6ft
• Expansion: Up to 6 same-voltage, same-model panels in parallel
• Maximum Combined Panel Capacity: Up to 600W with six 100W panels
• Weight: 8.5 lb
• Warranty: 5-year limited warranty
• Stated Lifespan: 20 years

Dimensions

• Unfolded Dimensions: 23.5 × 40.875 × 0.75 inches

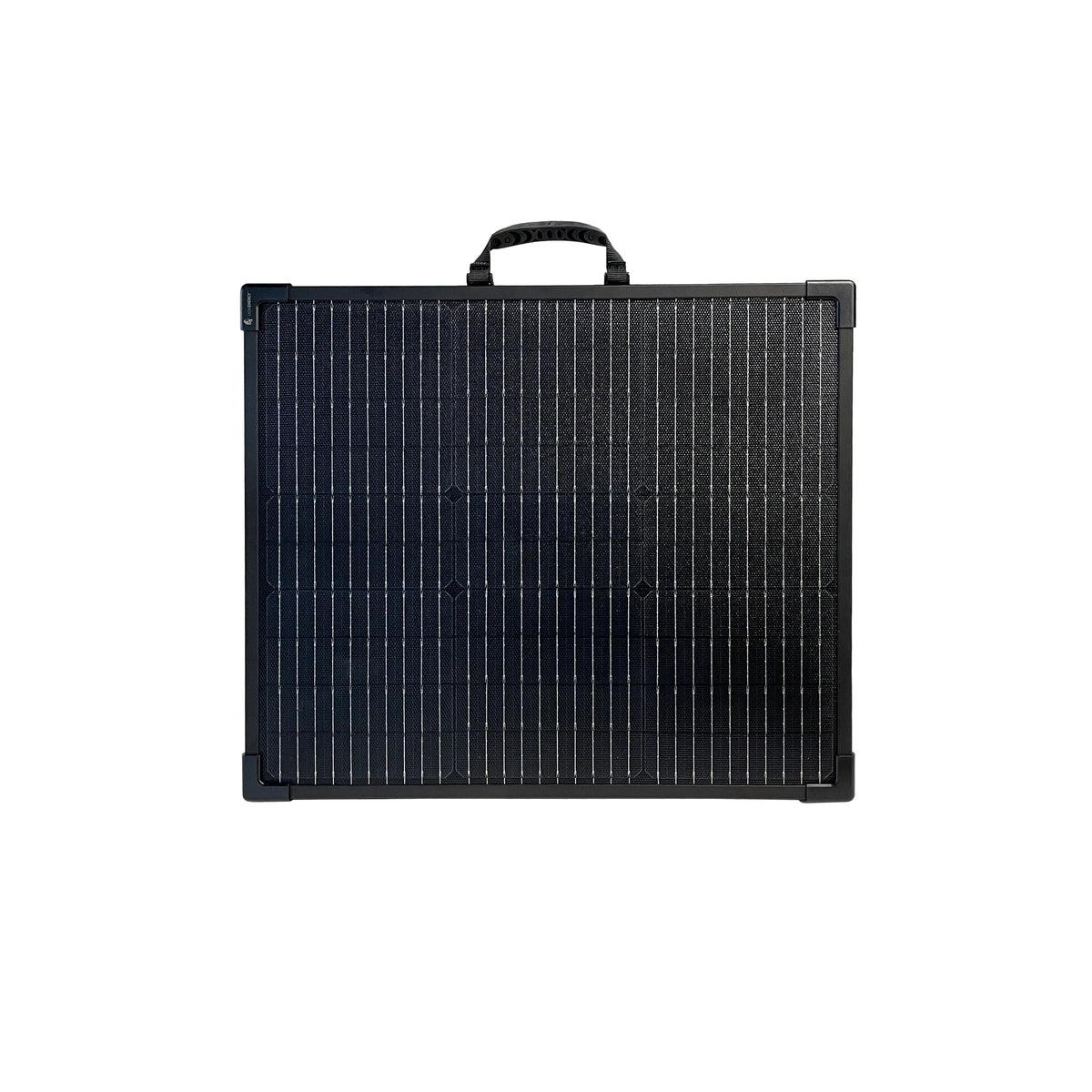

• Folded Dimensions: 23.5 × 20.4375 × 1.5 inches

System Compatibility

The supplied product information states that this 100W LW solar panel is designed for the Lion Safari ME and other compatible 24V devices. It is specifically not compatible with 12V systems.

Solar Panel Expansion

Up to six panels can be connected in parallel for increased solar input, potentially scaling the array from 100W to 600W. Only solar panels with the same voltage and model number should be connected together. The final configuration must remain within the voltage and current limits of the connected power station or charge controller.

Portable Solar Charging

The folding design, built-in handle, and neoprene case make the panel suitable for mobile solar charging. The adjustable tilt legs allow the panel to be positioned on the ground and oriented toward available sunlight during use.

Mounting Applications

The panel can be used for portable ground setups or mounted on suitable rooftops, sheds, RVs, and camper vans when the installation is properly supported and the connected system is compatible with the panel's 24V electrical characteristics.

Charging Performance

The supplied product information states that connecting up to six 100W panels can provide up to 600W of combined solar input and can recharge a compatible Safari system in approximately 2.5–3.5 hours under suitable conditions. Actual charging time depends on sunlight, panel orientation, system losses, battery state of charge, and the connected equipment.

Compatibility Warning

Only connect solar panels of the same voltage and model number. This 100W panel is intended for 24V systems and should not be connected to 12V systems. Confirm the solar input requirements of the connected Lion Energy product before use.

Installation Note

Place the panel on a stable surface and position the adjustable legs securely before connecting it to the power system. For permanent mounting, use appropriate mounting hardware and follow the requirements of the mounting surface. Protect the cables and connectors from excessive mechanical stress and verify polarity before connection.

The Lion Energy 100W 24V Lightweight Monocrystalline Solar Panel provides 100W of rated solar power in a portable folding design with monocrystalline cells, an anti-corrosive aluminum frame, tempered glass, integrated 6ft cables, adjustable tilt legs, and support for expansion with up to six matching 24V panels.
