Lion Energy 100W 12V Lightweight Monocrystalline Solar Panel

Lion Energy 100W 12V Lightweight Monocrystalline Solar Panel

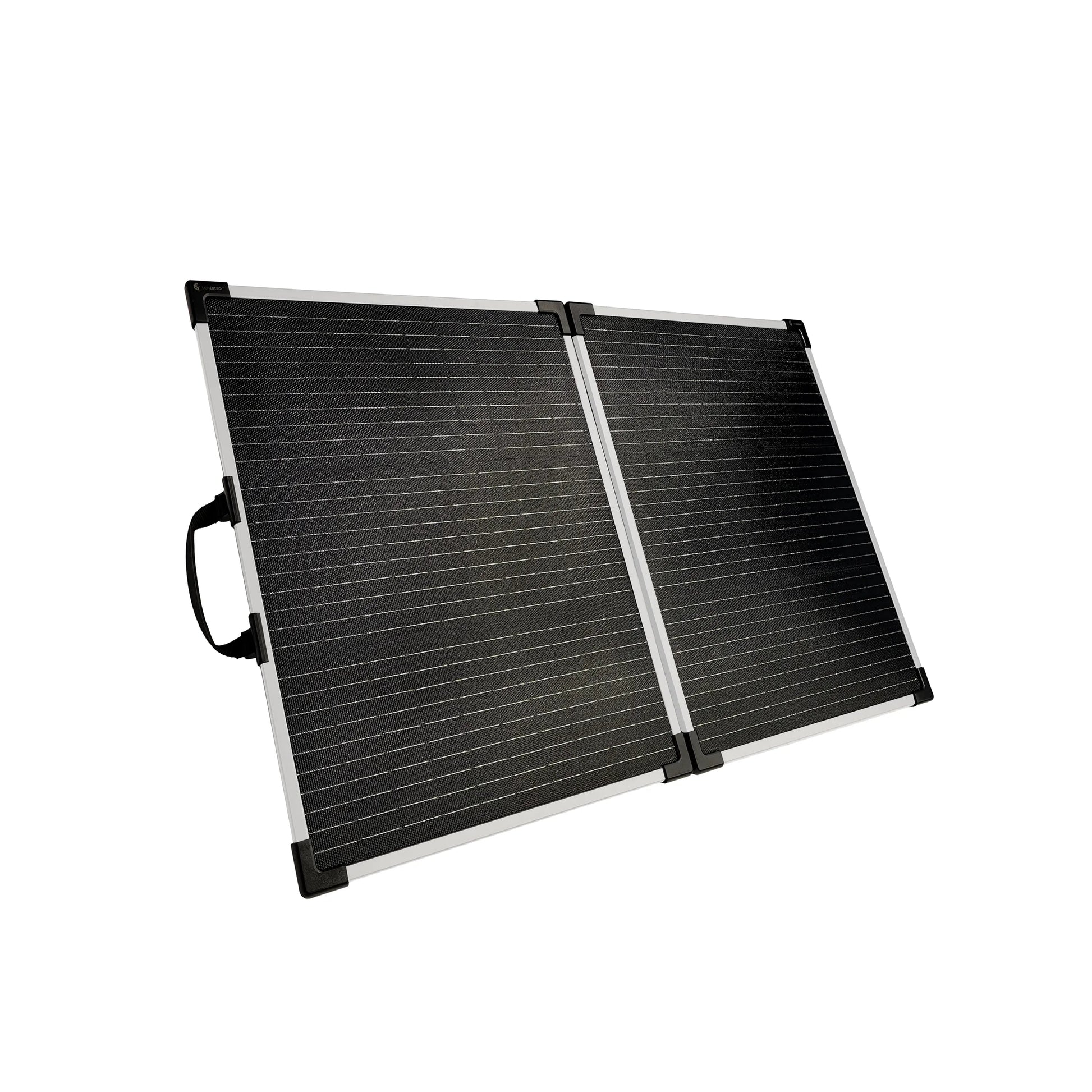

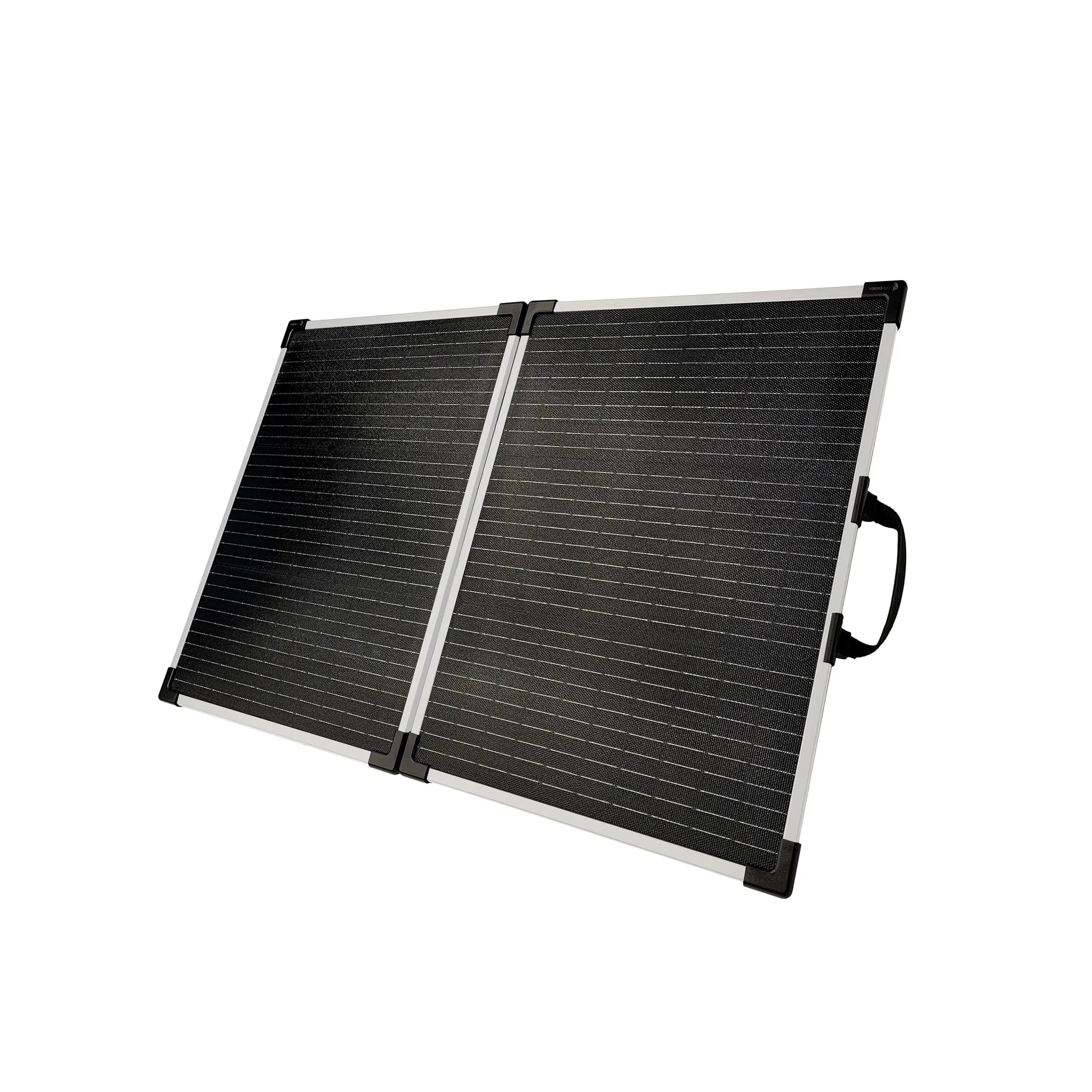

The Lion Energy 100W LW Solar Panel is a lightweight 12V folding monocrystalline solar panel designed for portable solar charging. It delivers up to 100W of rated power, weighs 8.5 lb according to the supplied specifications, and can be used with compatible Lion Energy power stations, batteries, RVs, campers, roofs, sheds, and ground-based solar setups. The panel also supports expansion by connecting up to four panels for increased solar output.

Key Features

• 100W Solar Output: Provides 100W of rated solar power for compatible 12V solar charging applications.
• 12V Solar Panel: Designed for compatible 12V battery systems and Lion Energy power products.
• Monocrystalline Cells: Uses monocrystalline solar cell technology for solar energy generation.
• Lightweight Design: Weighs 8.5 lb according to the supplied product information for easier transport and setup.

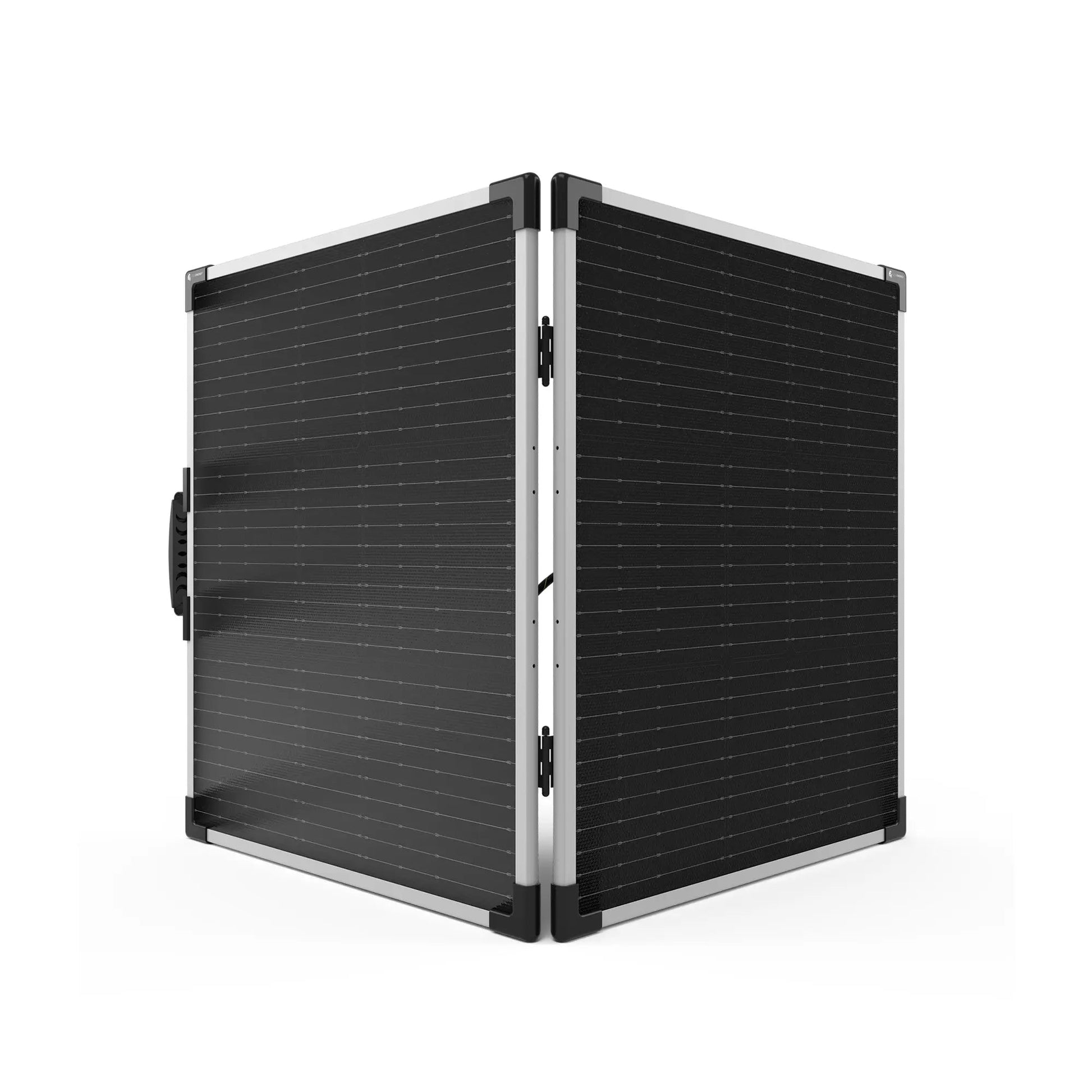

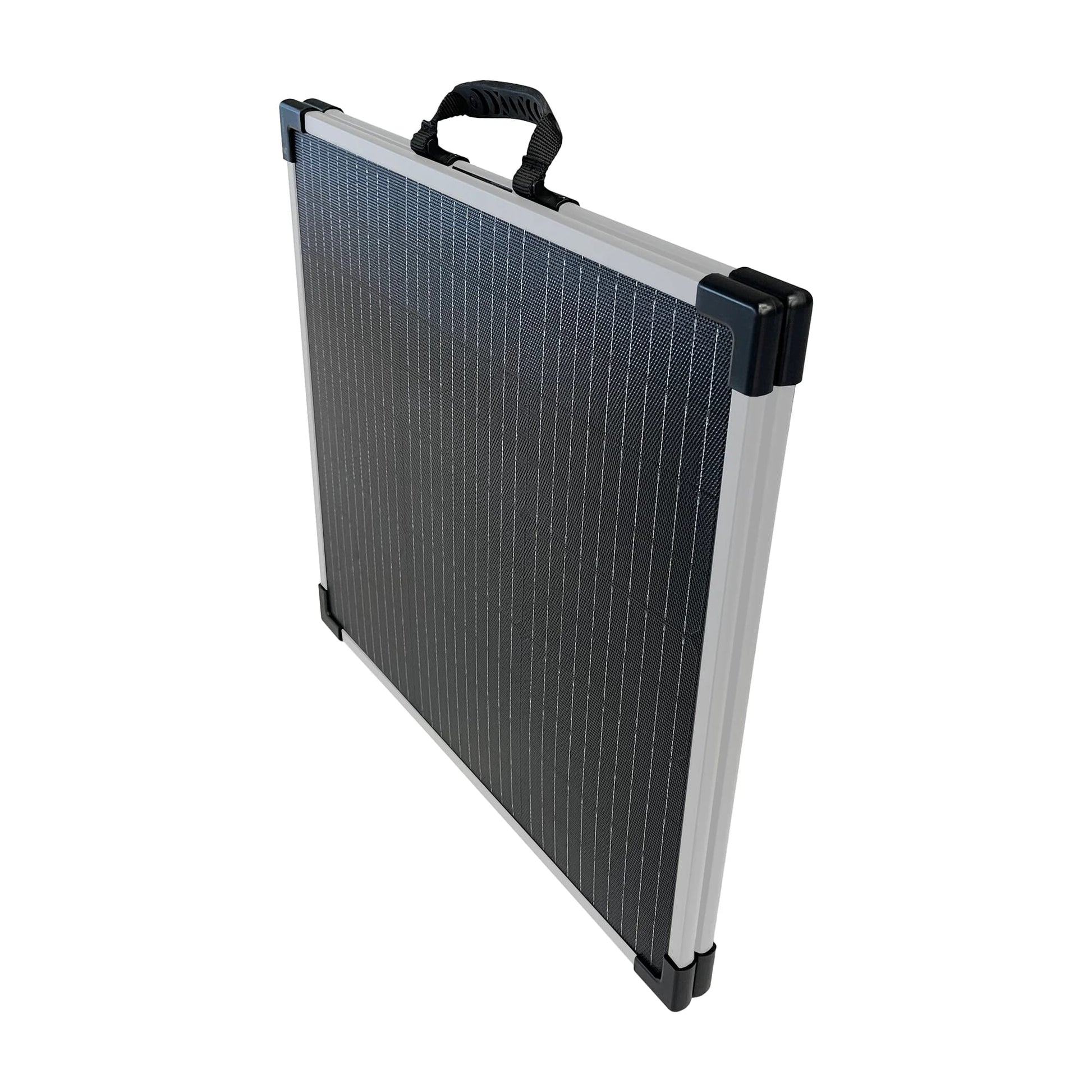

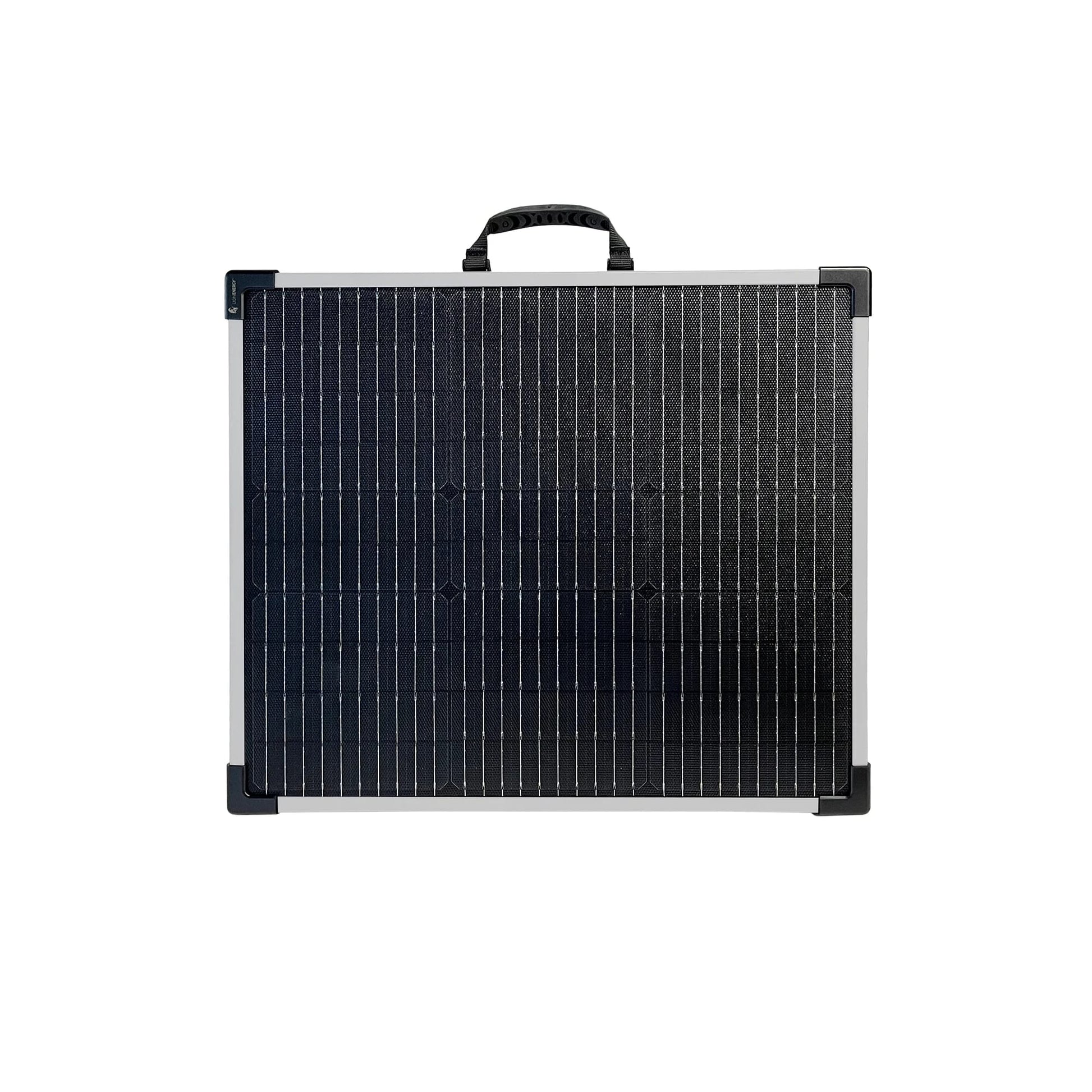

• Folding Construction: Folds into a more compact format for storage and transportation during camping, RV, and mobile applications.
• Expandable Output: Supports connecting up to four panels for increased solar generation where the connected system allows it.

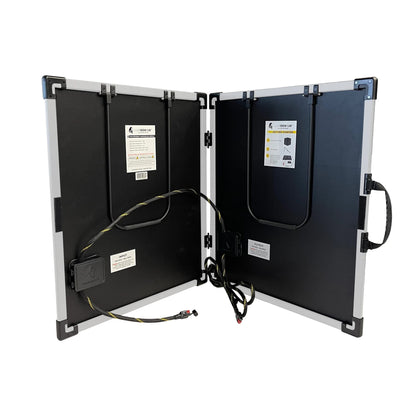

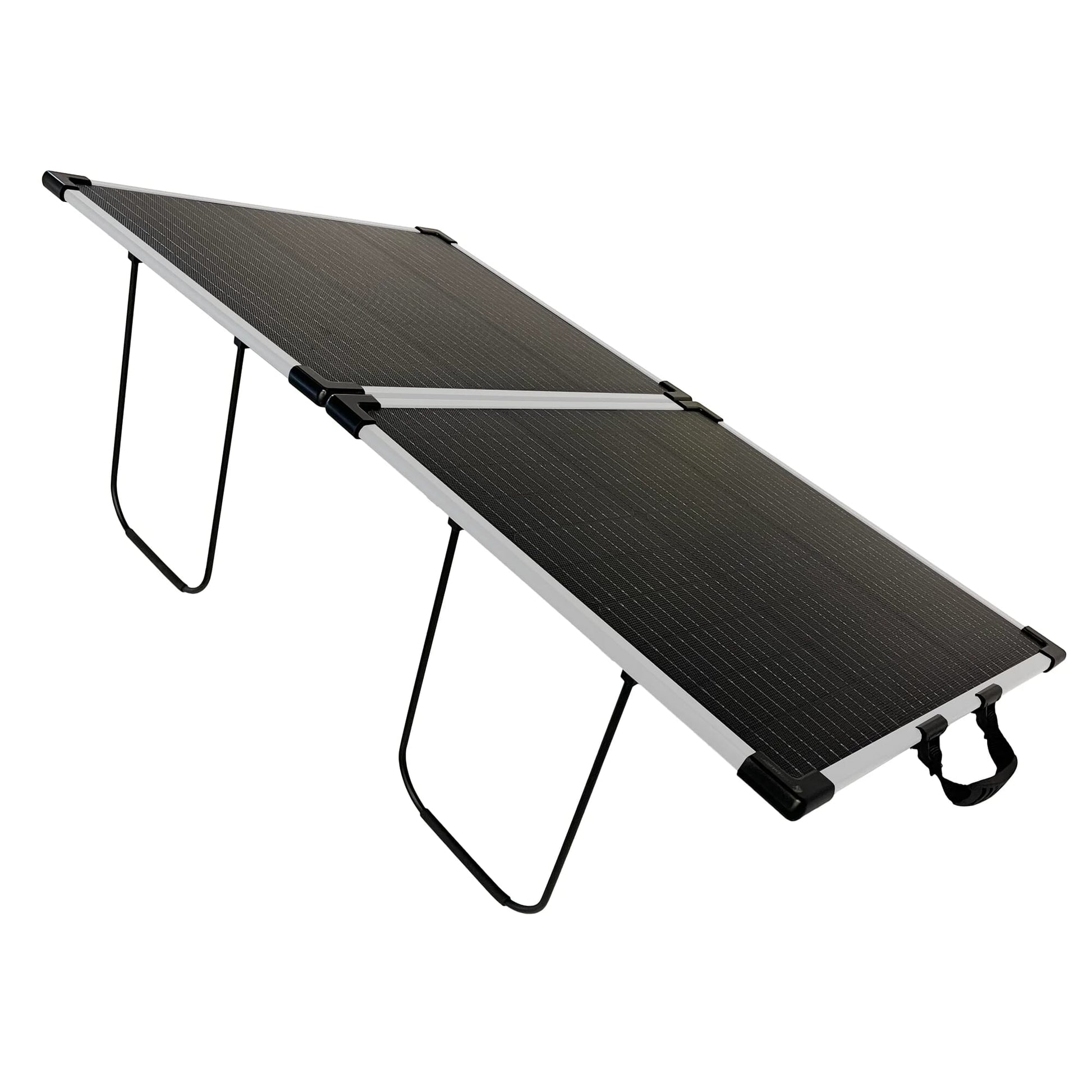

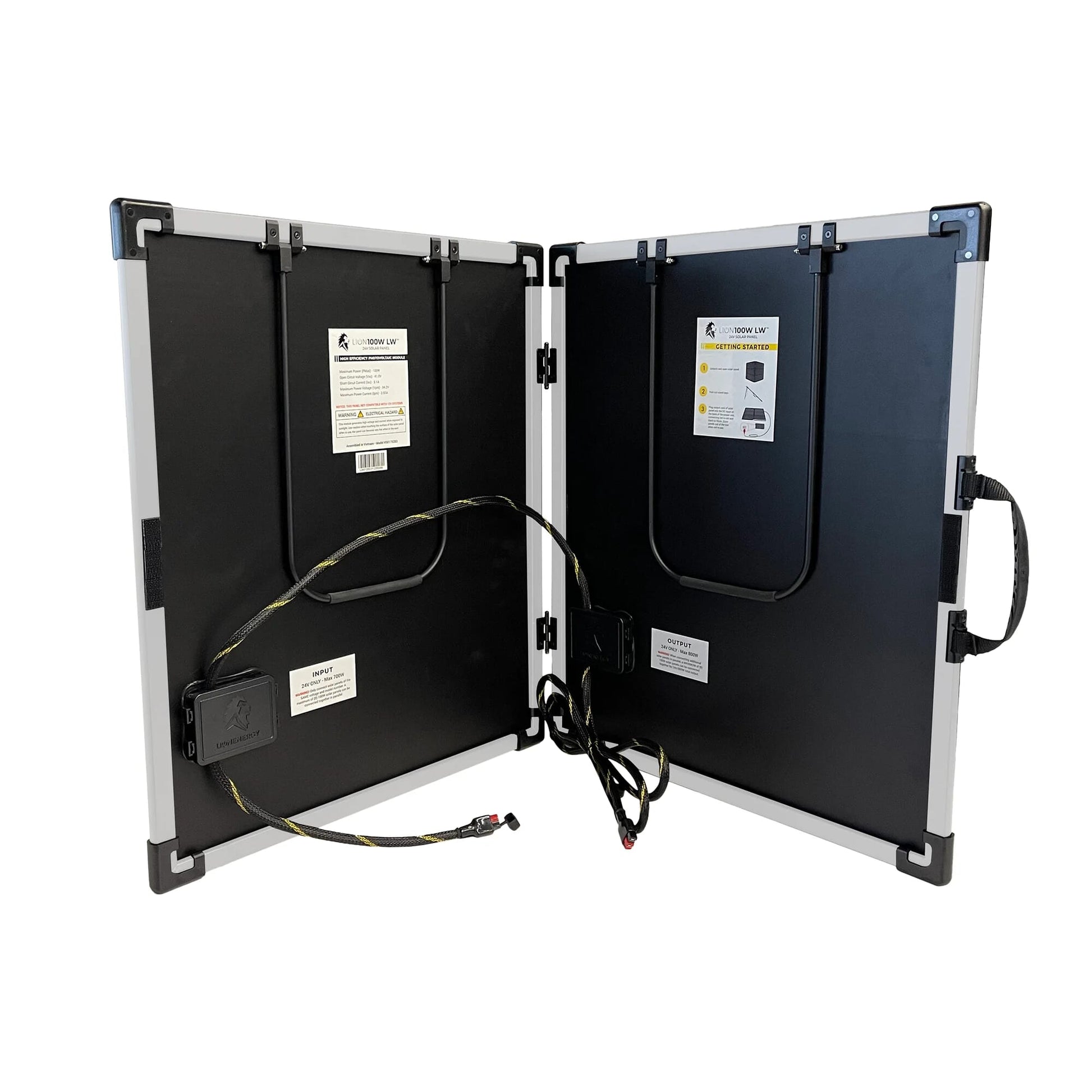

• Adjustable Legs: Includes adjustable support legs for ground positioning and solar-angle adjustment.
• Outdoor Construction: Uses a protective folding design with anti-corrosive aluminum construction for outdoor solar applications.
• Portable Solar Charging: Suitable for camping, tailgating, construction sites, RVs, camper vans, and other mobile power applications.
• Multiple Mounting Options: Can be positioned on the ground or mounted on suitable roofs, sheds, RVs, or camper vans with appropriate hardware.

Specifications

• Brand: Lion Energy
• Panel Type: Monocrystalline folding solar panel
• Rated Power: 100W
• Rated Output: 12V @ 5.84A
• Maximum Output: 18V @ 5.56A
• Short-Circuit Current (Isc): 6.14A
• Open-Circuit Voltage (Voc): 20.52V
• Maximum Power Point: 5.84A @ 17.1V
• Cell Type: Monocrystalline
• Panel Design: Folding portable construction
• Expansion: Up to 4 panels, subject to connected system compatibility
• Weight: 8.5 lb according to the supplied specifications
• Warranty: 5 years according to the supplied specifications
• Stated Output Life: Rated for 20 years of solar output performance

Dimensions

• Unfolded Dimensions: 23.5 × 40.875 × 0.75 inches or 26.5 × 40 × 1 inch, depending on version
• Folded Dimensions: 23.5 × 20.4375 × 1.5 inches or 26.5 × 20 × 2 inches, depending on version

Compatible Applications

The Lion Energy 100W LW Solar Panel is designed for compatible Lion Energy solar generators and power banks and can be used in portable and semi-permanent solar applications. Suitable use cases include camping, RVs, camper vans, tailgating, construction sites, sheds, roofs, and ground-mounted solar setups.

Portable Solar Charging

The folding construction and lightweight design make the panel suitable for users who need a solar charging source that can be transported between locations. Adjustable legs allow the panel to be placed on the ground and positioned toward available sunlight.

Solar Panel Expansion

The supplied product information states that up to four panels can be linked for increased output. The actual number of panels and connection configuration must remain within the voltage and current limits of the connected Lion Energy power station, battery, charge controller, or solar generator.

Mounting Options

The panel can be positioned using its adjustable legs or mounted on suitable structures such as roofs, sheds, RVs, or camper vans. Permanent installations should use appropriate mounting hardware and follow the requirements of the mounting surface and connected solar system.

Compatible Lion Energy Products

The supplied product information identifies the panel as suitable for recharging Lion Energy products such as the UT 1300 and Lion Summit. Always verify the solar input specifications of the connected product before installation.

Installation Note

Verify the solar panel's voltage, current, polarity, and maximum power characteristics against the connected charge controller, battery, or power station before use. Keep connectors protected from excessive moisture and mechanical damage, and secure the panel properly when used outdoors.

Product Information Note

The supplied source lists multiple dimensions and warranty details for different versions of this panel. The primary stated weight is 8.5 lb, while the source also references a 22 lb version. Confirm the exact panel variant and its specifications before purchase or installation.

The Lion Energy 100W 12V Lightweight Monocrystalline Solar Panel combines 100W rated solar output, monocrystalline cells, folding construction, adjustable support legs, expandable panel connections, and portable outdoor functionality for compatible Lion Energy, RV, camping, and off-grid solar applications.
