Lectrotab XKA Stainless Steel Electric Trim Tab Kit with One-Touch Leveling Control, 12" x 12", 12V, Boats 18-32 ft, XKASL12X12
Lectrotab XKA Stainless Steel Electric Trim Tab Kit with One-Touch Leveling Control, 12" x 12", 12V, Boats 18-32 ft, XKASL12X12
- Regular price
- Price: $1,070.15
- Regular price
- List Price: $0.00
- Sale price
- Price: $1,070.15
- Unit price
- / per
Notify me when this product is available:
Couldn't load pickup availability
PRODUCT DESCRIPTION

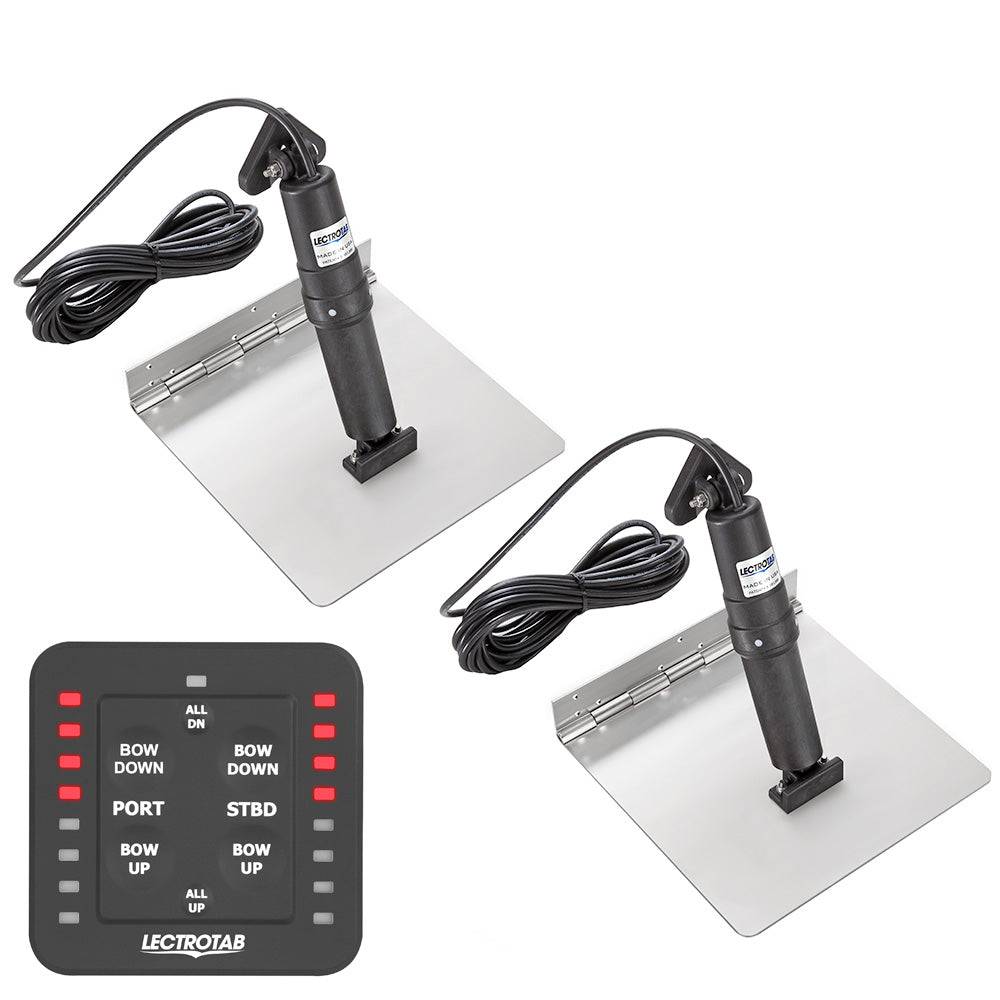

Lectrotab XKA 12" x 12" Stainless Steel Electric Trim Tab Kit with One-Touch Leveling Control (XKASL12X12)
The Lectrotab XKA trim tab kit combines heavy-duty 304 stainless steel tabs with precision-engineered electric actuators for strong, reliable trim on boats from 18 to 32 feet. Each tab is fabricated with a continuous rolled and pinned hinge, adding strength and eliminating the need for welding.
The non-hydraulic, maintenance-free actuators deliver quiet operation, accurate tab positioning, and high lift force, with each actuator load tested to push 1,000 lbs. Unlike hydraulic trim tabs, there is no oil to leak. The actuator assembly is housed in a non-metallic, permanently sealed housing that will not corrode or deteriorate in sun or water, and it is fully self-contained, so no components need to be installed inside the boat. Actuators accept either a standard or low-profile transom mounting bracket.
The included Lectrotab One-Touch leveling LED rocker switch control puts complete control of your trim tabs at your fingertips and operates on 12V or 24V systems.
Key Features
- 12" x 12" tabs made from 12-gauge 304 stainless steel
- Continuous rolled and pinned hinge with no welding
- Electric, non-hydraulic actuators with no oil to leak
- Actuators load tested to 1,000 lbs of force
- Internal brake system prevents unwanted tab movement under way or backing down
- Upper ram seal location protected from fouled ram or barnacle growth
- Internal pressure equalization system
- Non-metallic sealed actuator housing resists corrosion and UV
- Self-contained design with no components inside the boat
- One-Touch leveling LED rocker switch control
Specifications
| Brand | Lectrotab |
| Model | XKA with One-Touch Leveling Control |
| Part Number | XKASL12X12 |
| Trim Tab Size (L x W) | 12" x 12" (30 x 30 cm) |
| Recommended Boat Length | 18 to 32 ft (5.5 to 9.5 m) |
| Tab Material | 12-Gauge 304 Stainless Steel |
| Actuator Voltage | 12V DC |
| Actuator Stroke Length | 2.25" (57 mm) |
| Actuator Cable Length | 23 ft (7 m) |
| Actuator Vertical Height | 11.875" (302 mm) |
| Rocker Switch Dimensions (W x H) | 3" x 3" (77 x 77 mm) |
| Rocker Switch Mounting Cutout (H x W) | 2.25" x 2.5" (57 x 64 mm) |
| Rocker Switch Operating Voltage | 12V or 24V |
What's in the Box
- (1) One-Touch leveling control
- (2) Stainless steel trim tabs
- (2) Actuators with 23 ft (7 m) cables
- Instruction manual
Sold as a complete kit.
